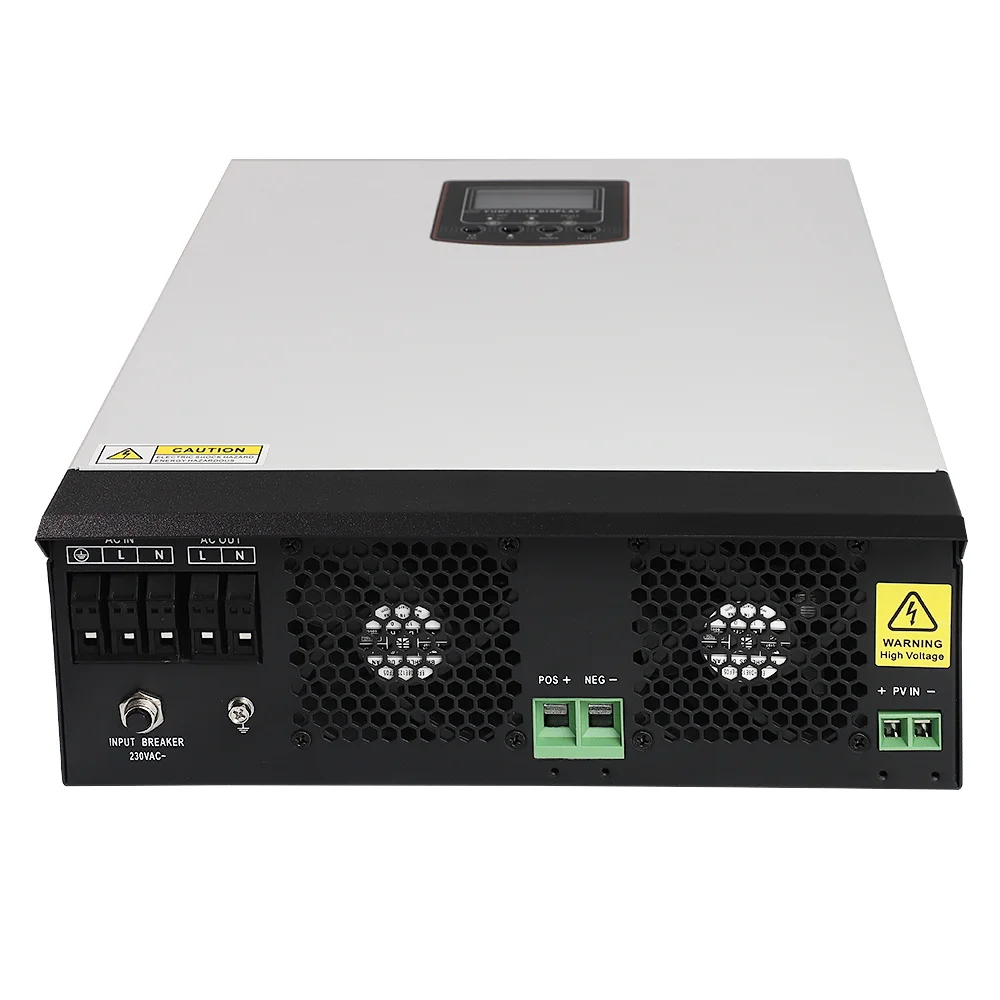

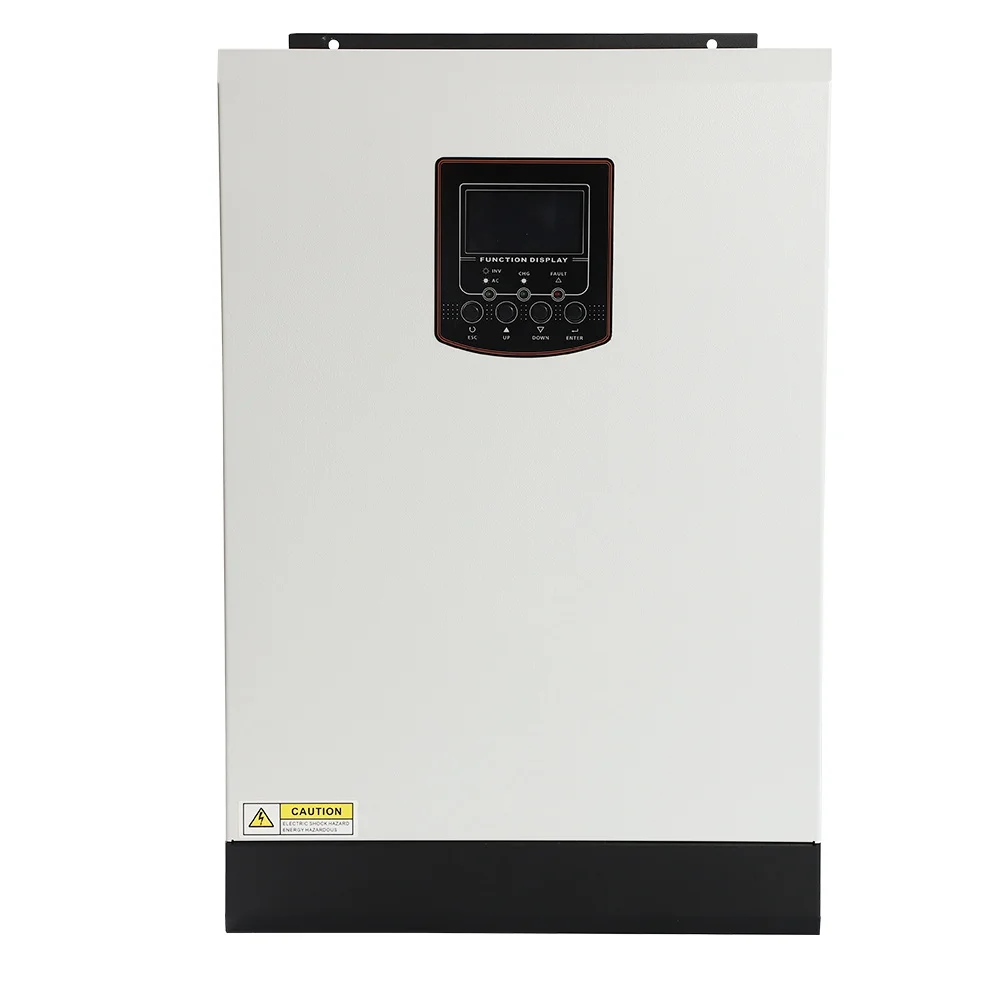

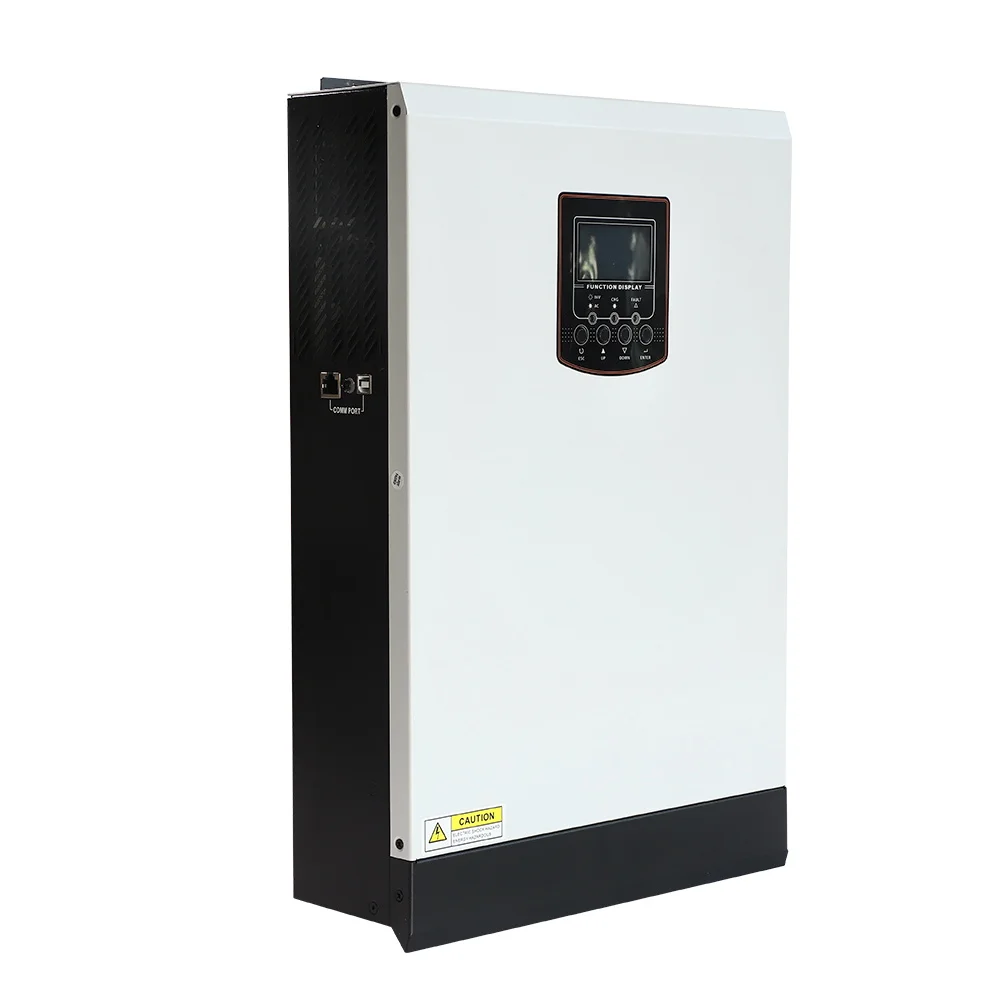

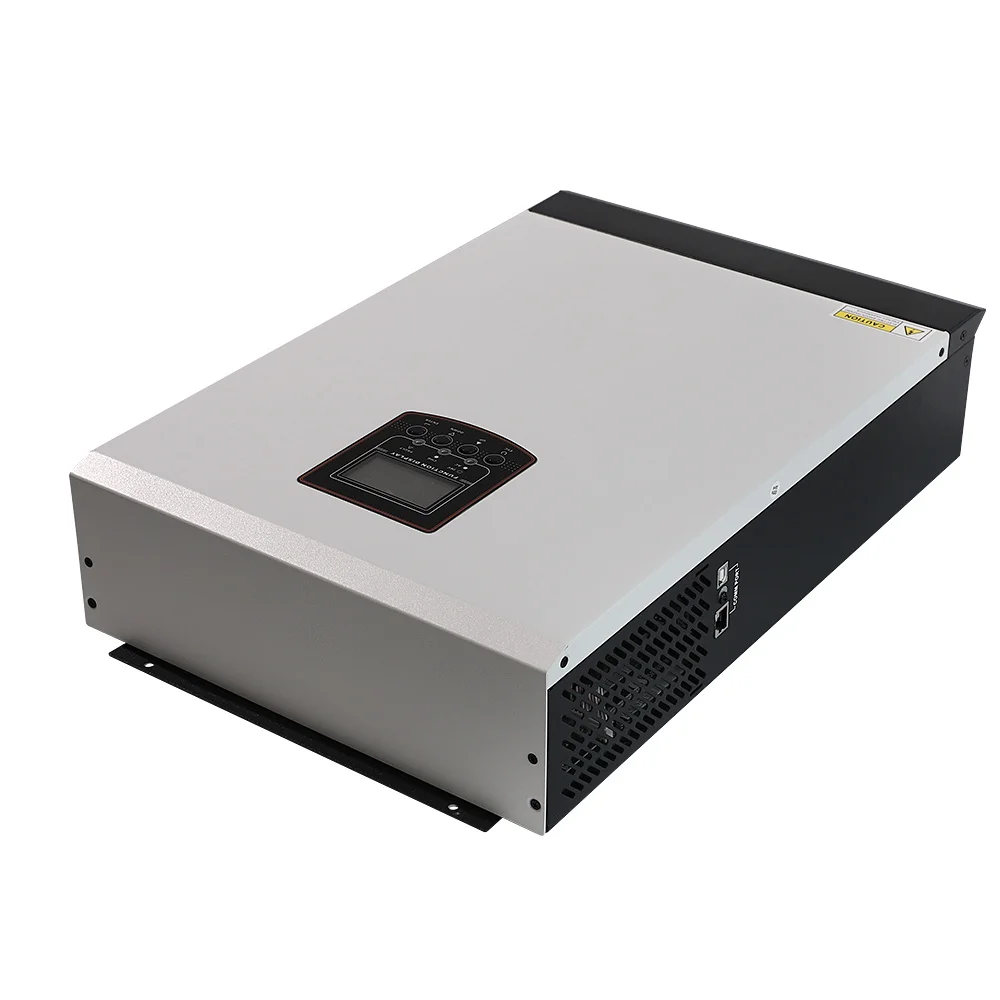

MPS V Run without battery 3200W hybrid solar power Inverter 80A MPPT Charger 120V~450Vdc PV
- Category: >>>
- Supplier: Shenzhen Sunray Power Co. Ltd.
Share on (62027309361):
Product Overview
Description

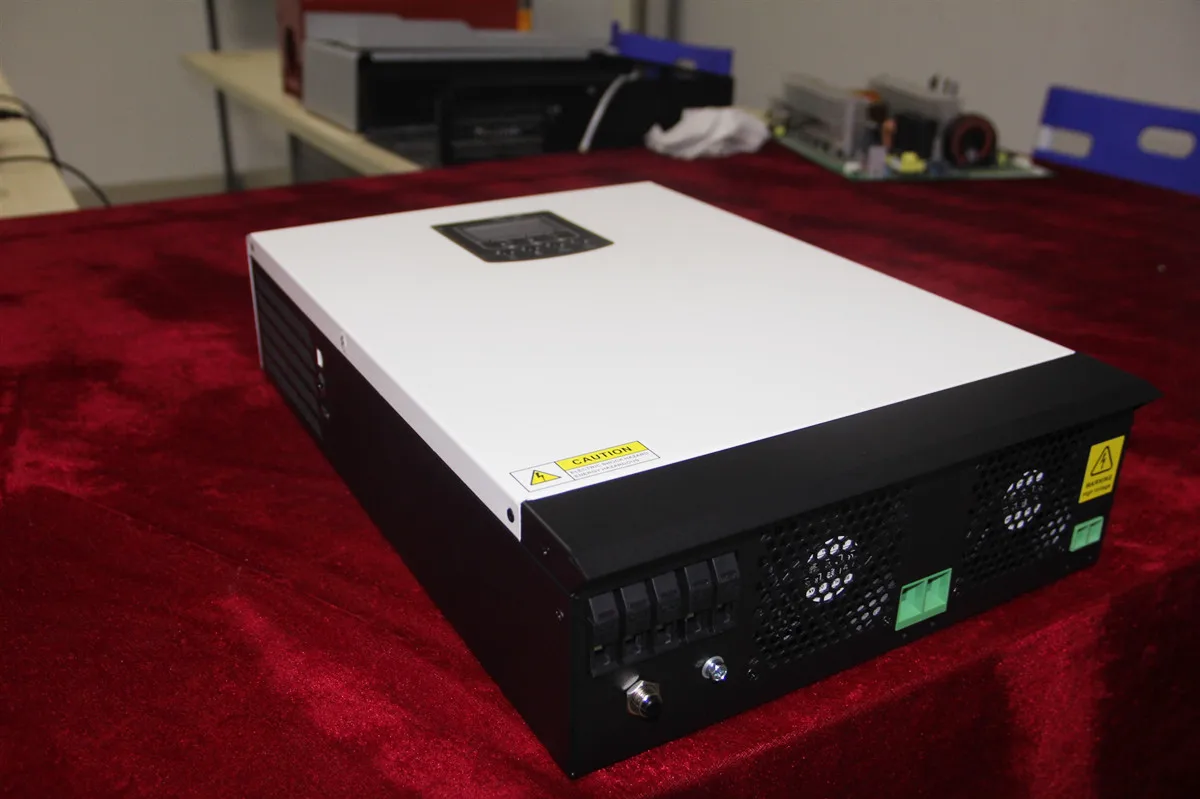

MPS-V 3200W/5000W Off Grid Solar Power Inverter Pure Sine Wave 80A MPPT Charger+500Vdc PV Input
Model | MPS-V-3200-24 | MPS-V-5000-48 | |
Rated Power | 3200VA/3200W | 5000VA/5000W | |
Input |
| ||
Voltage | 230Vac | ||
Selectable Voltage Range | 170~280Vac/90~280Vac | ||
Frequency Range | 50Hz/60Hz auto sensing | ||
Output |
|
| |
AC Voltage Regulation(Bat mode) | 230Vac+/-5% | ||
Surge Power | 6000VA | 10000VA | |
Efficiency(Peak)PV to Inv | 97% | ||
Efficiency(Peak)bat to Inv | 94% | ||
Transfer Time | 10ms(personal computor);20ms(home appliance) | ||
Waveform | pure sine wave | ||
Battery&AC charger |
|
| |
Battery Voltage | 24Vdc | 48Vdc | |
Floating charge Voltage | 27Vdc | 54Vdc | |
Overcharge Protection | 33Vdc | 63Vdc | |
Maximum Charge Current | 60A | 60A | |
Solar Charger |
|
| |
Max PV Array Power | 4000W | 4000W | |
MPPT Range@Operating Volt | 120VDC~450VDC | ||
Max PV Array Open Circuit Volt | 500VDC | 500VDC | |
Max Charging Current | 80A | 60A | |
Max Efficiency | 98% | ||
Physical |
|
| |
Dimension | 100*300*440 | ||
Net Weight | 9kgs | 10kgs | |
Communication Interface | USB/RS232 | ||
Operating Environment |
|
| |
Humidity | 5% to 95% relative humidity(Non-condensing) | ||
Operating Temperature | 0~55℃ | ||
Storage Temperature | -15~60℃ | ||
Key Feature:
1. High efficiency pure sine wave Inverter(PF=1)
2. Wide PV input range(120Vdc~500Vdc)80A MPPT SCC;intelligent 3 stage 60A AC charger
3. Surge to 2X continous power for 5 seconds for motor loads
4. Intelligent functionality enables utility and solar input prioritization
5. Field serviceable with replacement boards and spare parts,Monitor,troubleshoots,or communication with USB/RS232
6. System configures quickly into compact,wall-mounted system
7 Working without battery in sun day
