Miniature Pilot Lamps IMPA 790701 790735

Product Overview

Description

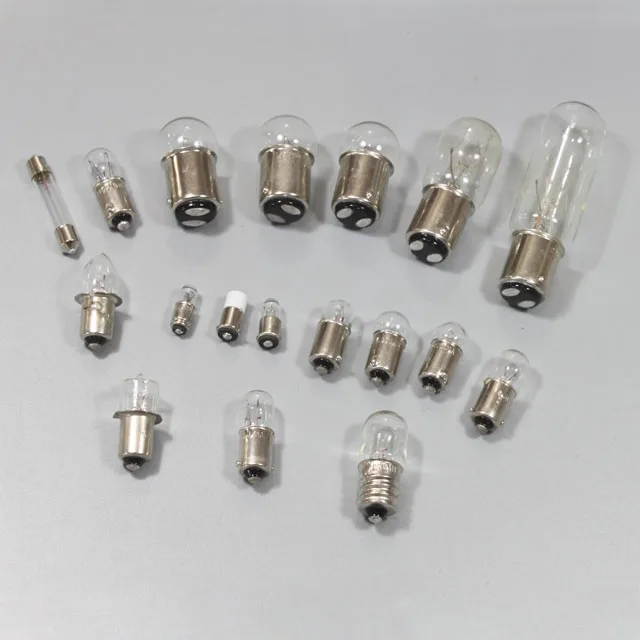

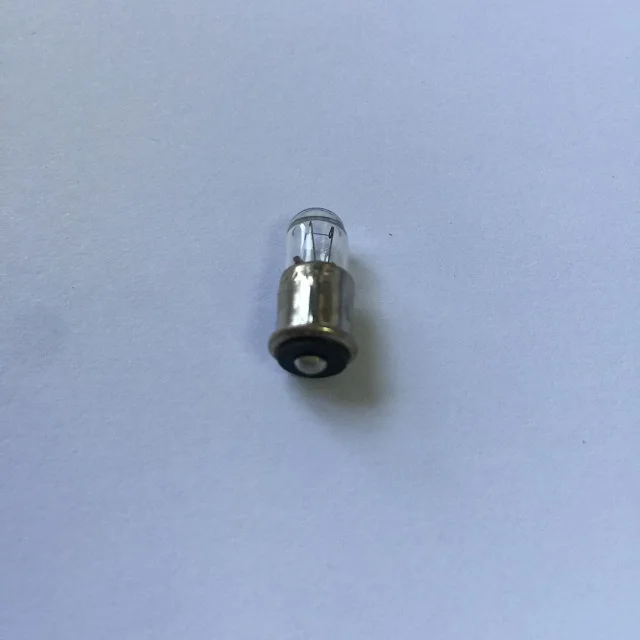

Miniature Pilot Lamps

As we carry quite a large assortment of pilot lamps, specify type of glass, base length and other details such as voltage, wattage, ampere, etc.

CODE	DES	BASE	DETAIL	CODE	DES	BSE	DETAIL
790701	Miniature	F-6	6V 0.1A 5.5X16MM	790717	Miniature	S5.5-0	18V 0.05A 5X16MM
790702	Miniature	F-6	6V 0.2A 5.5X16MM	790718	Miniature	S5.5-0	28V 0.04A 5X16MM
790703	Miniature	F-6	14V 0.05A 5.5X16MM	790721	Miniature	S5.5-K	6V 0.6W 5X18MM
790704	Miniature	F-6	14V 0.08A 5.5X16MM	790722	Miniature	S5.5-K	12V 0.6W 5X18MM
790705	Miniature	F-6	18V 1W 5.5X16MM	790723	Miniature	S5.5-K	18V 0.6W 5X18MM
790706	Miniature	F-6	28V 0.025A 5.5X16MM	790724	Miniature	S5.5-K	24V 0.6W 5X18MM

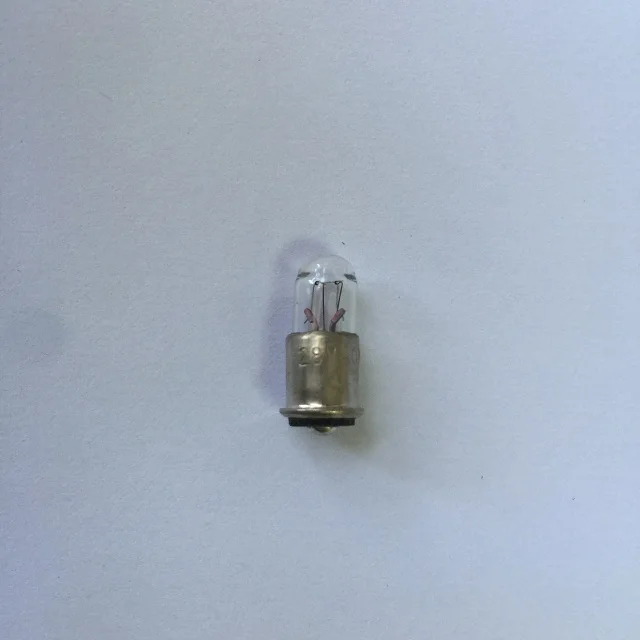

790707	Miniature	F-6	28V 0.04A 5.5X16MM	790725	Miniature	S5.5-K	28V 0.6W 5X18MM
790711	Miniature	S5.5S18	6V 0.2A 5.5X16MM	790730	Miniature	L	15V 15MA 6.2X22MM
790712	Miniature	S5.5S18	14V 0.08A 5.5X16MM	790731	Miniature	L	15V 20MA 6.2X22MM
790713	Miniature	S5.5S18	28V 0.04A 5.5X16MM	790732	Miniature	L	30V 30MA 6.2X22MM
790716	Miniature	S5.5-0	14V 0.05A 5X16MM	790735	Miniature	NH	28V 22MA 4.85X21MM
