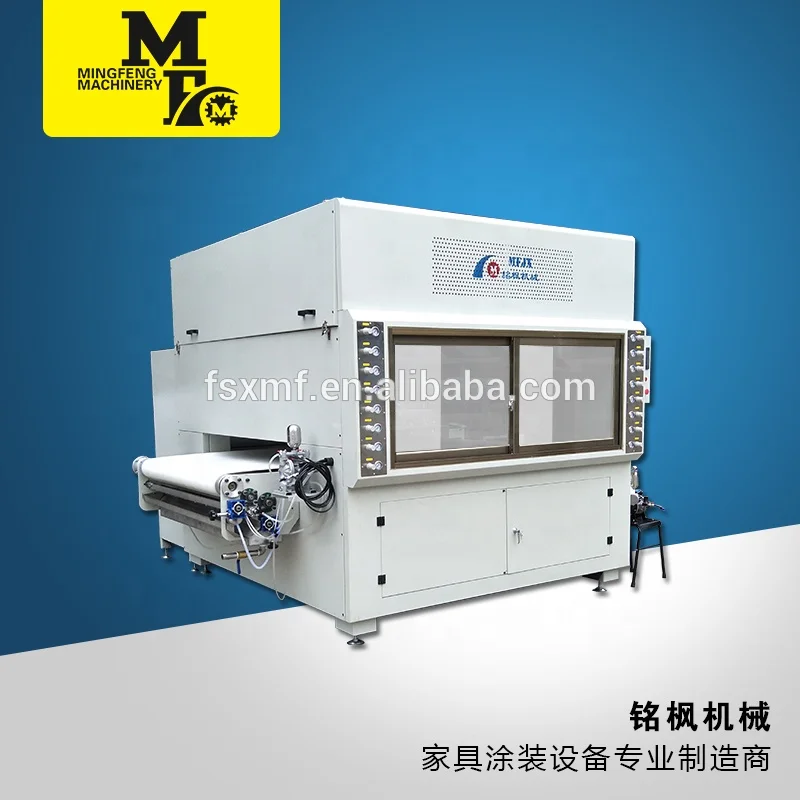

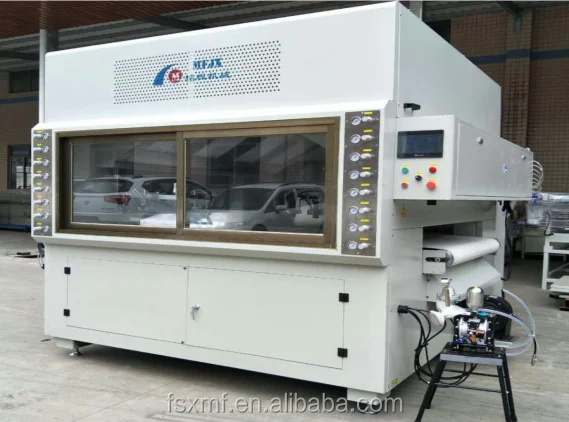

Reciprocating automatic spraying machine for large wooden door plate cabinet door plate automatic spraying machine
- Category: >>>
- Supplier: Foshan XMF Machinery Co. Ltd.
Share on (62027419606):
Product Overview
Description
Product Description
Characteristic: Automatic reciprocating spraying structure is adopted,Very high spraying efficiency, Mainly for a variety of furniture, doors, cabinets and other board parts of the surface paint coating. Suitable for mass assembly line spraying operation, can be used in connection with other related equipment. The whole machine's air pressure ring system and paint recovery and treatment system are advanced in design to ensure the continuous operation of environmental spraying. Apply the paint: UV paint, waterborne paint, PU paint, etc Application field: Furniture board, cabinet board, door board, etc | |
 | Reciprocating spray structure Germany original import airbrush

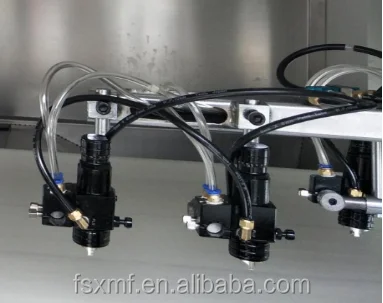

The automatic reciprocating spraying machine is equipped with two sets of linear and two-axis reciprocating spraying mechanisms,Each spray arm is equipped with 4 spray guns,A total of eight German automatic spray guns were equipped,Spraying not only saves paint,Spray bounce also maximizes control. Spray Angle, spray distance arbitrary adjustment,Linear silent reciprocating spray guide rail with automatic lubrication control. The intelligent spraying program can be precisely controlled to meet the spraying requirements of different sizes of products. |

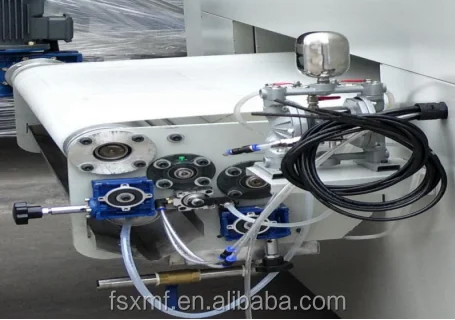

Belt cleaning structure Double scraper oil pump automatic cleaning Reciprocating spraying operations with different sizes of sheet parts can cause paint mist pollution of conveyor belts, Continuous work will affect the back of some products without spraying part of the paint pollution,Double scraper oil pump automatic cleaning structure at the bottom of the conveyor belt is designed. The function of double scraper oil pump automatic scraping flow thoroughly cleans the excess paint attached to the conveyor belt at one time,Ensure that the conveyor belt carrying the sprayed workpiece is kept clean . |  |
 |  | . |
Product detailed configuration parameters:
Electrical force: AC three-phase 380V 50HZ |
Mechanical dimension: length: 3500mm height: 2500mm width: 3200mm |
Effective spraying width: 1320mm |
Mechanical spraying speed: 0 ~ 10m/min machinable workpiece height: 100mm |
Mechanical transmission power: 1.5kw; Fan power: 5.5kw; Swing servo power: 3KW |
Control system: computer PLC control; Servo motor reciprocating; Spraying width can be adjusted at will. |
Configuration details: a set of automatic programming control system; Germany bingli airbrush 8; 2 pneumatic oil pumps with high pressure; 1 high-power blowdown fan; |
Automatic belt cleaning function; 1 set of water curtain sewage discharge device; Paint recovery function; Water pump: 0.75kw; |

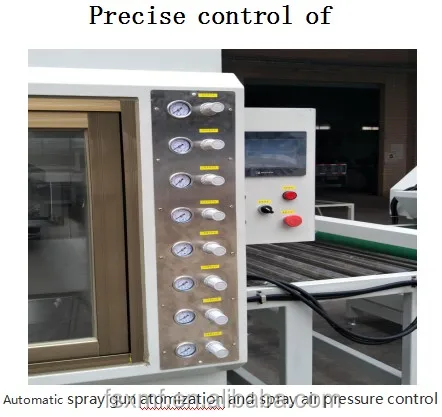

Automatic induction spraying function; Spray flow control; Air volume control; Conveyor belt speed control; Airbrush arm speed control |
1.Mechanical reciprocating spray structure
Equipped with servo double swing arm control system, original imported gun from Germany
Automatic reciprocating spraying machine is equipped with two groups of linear two-axis reciprocating spraying mechanism, each group of spraying mechanism is equipped with 4 sets of 8 German automatic spraying guns, spraying not only saves paint, spray spray rebound also maximizes the control of spray Angle, spray distance arbitrary adjustment, linear mute reciprocating spraying guide rail with automatic lubrication control. The intelligent spraying program can be precisely controlled to meet the spraying requirements of different sizes of products.

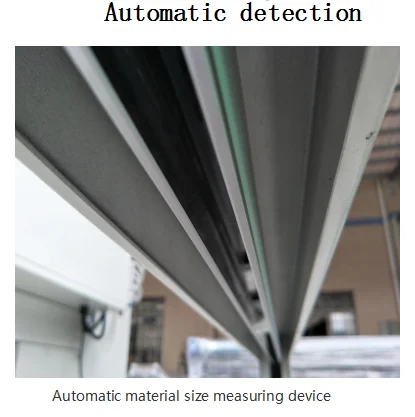

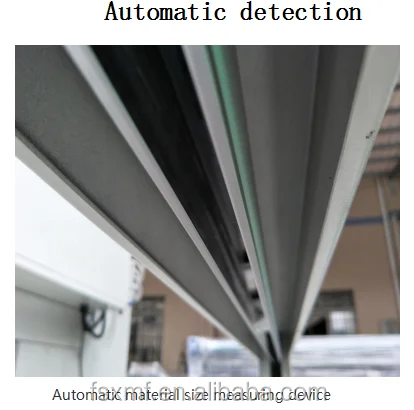

2.Automatic workpiece detection device
Equipped with two-way transmitting and receiving workpiece automatic detection device, can accurately detect the size of the workpiece.
In the production process, the machine can automatically adjust the spraying time and width according to the size of the plate, so as to achieve accurate spraying and greatly reduce the waste of paint.
3.Belt cleaning device
In the production process, the reciprocating spraying operation of different size plate parts will cause the paint mist pollution of the conveyor beltContinuous work will affect the paint pollution on the back of some products without spraying.Designed double scraper at the bottom of the conveyor belt automatic cleaning structure,Multi-scraper type and scraping function will be completely attached to the conveyor belt of the excess paint a one-time clean,Ensure that the conveyor belt carrying the sprayed workpiece is kept clean.
4.Paint recovery plant
In the reciprocating spraying work of different size plates in the production process, there will be excess paint attached to the belt and the gun stop position at both ends. The mechanical recycling device will collect all the excess paint together and then continue to use after filtering, greatly reducing the waste and consumption of spraying paint.
5.Dust removal and blowdown device

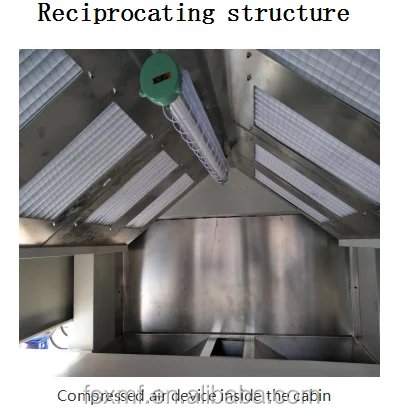

Spray gun in the production process of paint spray, through the high-power suction device will paint fog to the rear of the water curtain dust bin, the paint fog settlement to the water, and then from this through the air filter cotton exclusion, greatly reduce the impact on the environment.

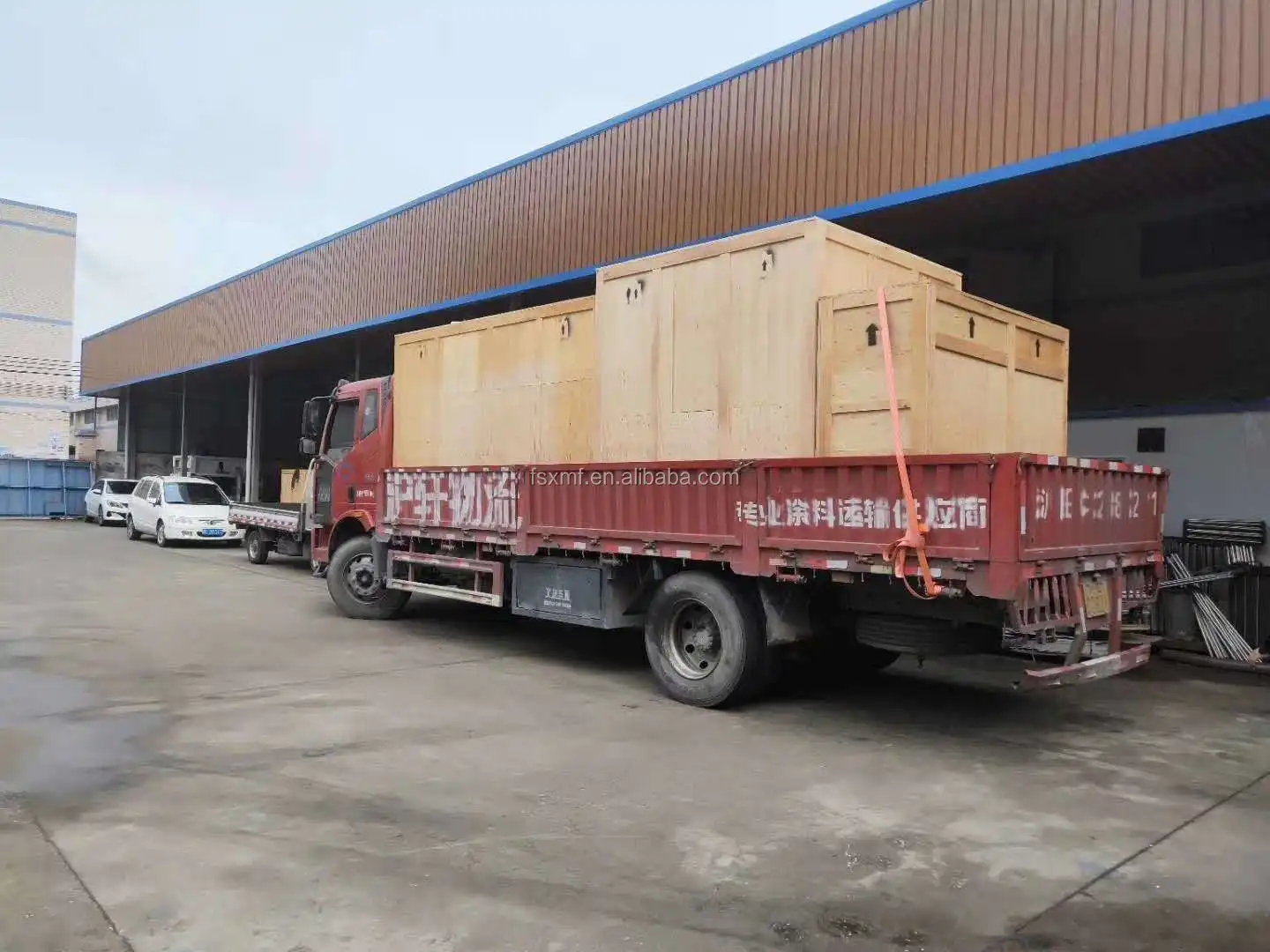

Packaging & Shipping
