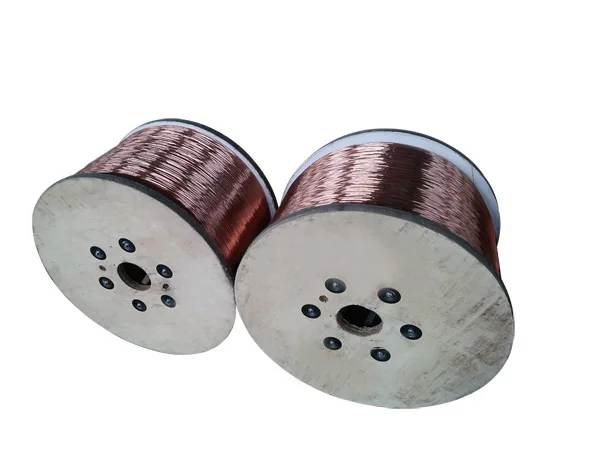

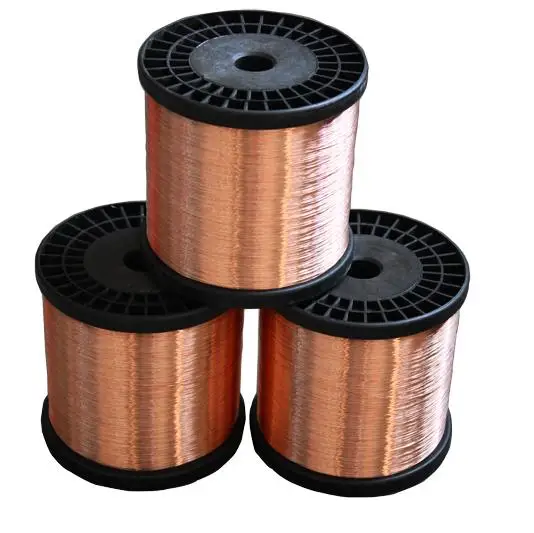

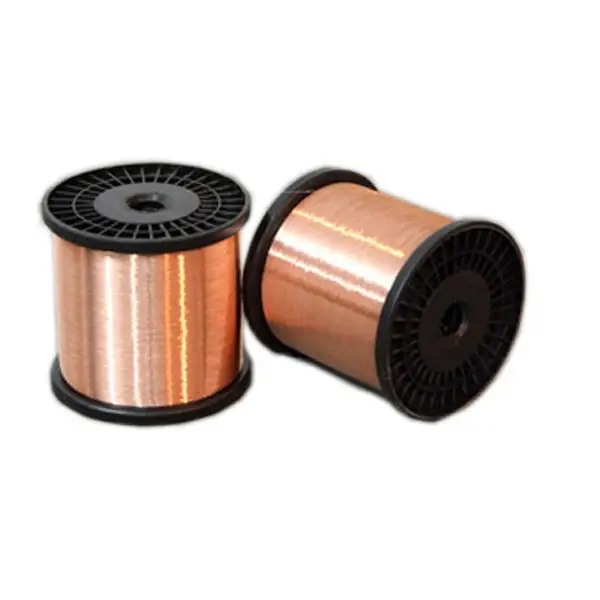

Горячие новые продукты медный Плакированный Алюминий cca провод для акустического кабеля
- Category: >>>
- Supplier: Jiangsu Greenshine Supcon Tech Co. Ltd.
Share on (62027431488):
Product Overview
Description
Product Description
Hot new products copper clad aluminum cca wire for speaker cable
Product Detail
| Size | 0.12mm~8.00mm |
| copper content in volume | 2%,10% and 15% |
| State | Annealed and Hard Drawn |
| Conductivity | more than 64% |
| Month Capacity | 400tons |
| Certificate | ISO OHSAS SGS REACH |
| Trade type | factory supply |
| Product Keywords | copper clad aluminum cca wire for speaker cable |
Copper Clad Aluminum is an electrical conductor which has an outer sleeve of copper metallurgically
bonded to a solid aluminum core. The combination of these two metals make
it uniquely suited to many electrical applications
Standard:
SJ/T 11223-2000
ASTM B 566-93
Feature:
Compared to copper conductors:
Higher Flexibility due to lower elastic modulus
63% material weight reduction due to lower specific gravity of CCA over regular copper
Compared to aluminum conductors:
Better corrosion resistance than aluminum due to copper layer
Lower resistance due to high electric conductivity of copper
Better Solderability
Higher strength than aluminum
Application:
In high frequency signal transmission field, it is applied to:
l Standard Material of Conductor in CATV Coaxial Cable;
l 50 Ohm Radio Frequency Aerial;
l Leaky Cable;
l Soft Coaxial Radio Frequency Cable;
l Data Cable
In power transmission field, it can be applied to:
l Stranded wire;
l Power Cable;
l Control Cable;
l automotive cable;
l Building distribution wire;
l Busbar;
l Radio Frequency shielding;
In special electromagnetic wire, it can be applied to:
l Coils in motor and fans, mahjong machine, Loudspeakers
l Voice coils (e.g. in Headphone, Headset, ...)
l Windings
Manufacture Scope:
0.12MM~5.50MM
Physical property of CCA wire
| Specification | Copper in volume (%) | Copper in mass (%) | Length comparison | Density (g/cm3) | Max.DC resistivity Ω.mm2/m (20°C) | Conductivity (%IACS) Min |
| CCA-10%Copper volume | 8~12 | 27 | 2.65:1 | 3.32 | 0.02743 | 63 |
| CCA-15%Copper volume | 13-17 | 37 | 2.45:1 | 3.63 | 0.02676 | 65 |
| Copper wire | 100 | 100 | 1:01 | 8.89 | 17241 | 100 |
Specification
Hot new products copper clad aluminum cca wire for speaker cable
Copper Clad Aluminum is an electrical conductor which has an outer sleeve of copper metallurgically bonded to a solid aluminum core.
The combination of these two metals make it uniquely suited to many electrical applications
Standard:
SJ/T 11223-2000 ASTM B 566-93
Manufacture Scope :0.12MM~5.50MM
Feature:
Compared to copper conductors:
1.Higher Flexibility due to lower elastic modulus
2.63% material weight reduction due to lower specific gravity of CCA over regular copper
Compared to aluminum conductors:
1.etter corrosion resistance than aluminum due to copper layer
2.Lower resistance due to high electric conductivity of copper
3.Better Solderability
4.Higher strength than aluminum
Application:
In high frequency signal transmission field, it is applied to:
Standard Material of Conductor in CATV Coaxial Cable;
50 Ohm Radio Frequency Aerial;
Leaky Cable;
Soft Coaxial Radio Frequency Cable;
Data Cable
In power transmission field, it can be applied to:
Stranded wire;
Power Cable;
Control Cable;
automotive cable;
Building distribution wire;
Busbar;
Radio Frequency shielding;
In special electromagnetic wire, it can be applied to:
Coils in motor and fans, mahjong machine, Loudspeakers
Voice coils (e.g. in Headphone, Headset, ...)
Windings
Physical property of CCA wire
| Goods | Copper volume (%) | Copper mass (%) | Length | Density (g/cm3) | Max.DC resistivity Ω.mm2/m (20 ℃) | %IACS Min |
| CCA 10% | 8-12 | 27 | 2.65:1 | 3.32 | 0.02743 | 63 |
| CCA 15% | 13-17 | 37 | 2.45:1 | 3.63 | 0.02676 | 65 |
| CU | 100 | 100 | 1:1 | .89 | 0.01724 | 100 |

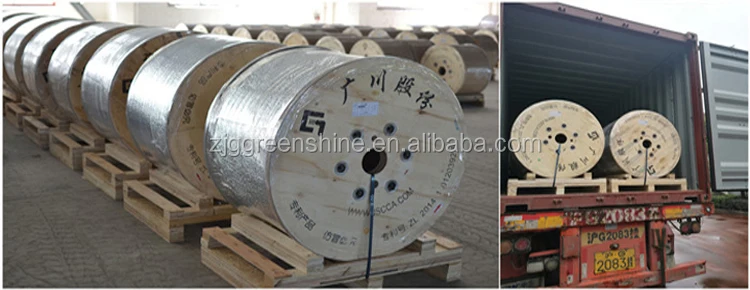

Packaging and Shipping
Company Introduction
Certifications
Our Service
FAQ
1.How long can i get the feedback after we sent the inquiry?
A: We will reply you within 12hours in working day
2.How can i get some samples?
A. We are pleasured to offer you sample, the delivery time is 3~5days
3. Are you a factory?
A. Yes, we are. We have specialized in this field over 12 years.
4. Where is your factory located? How can i visit there?
A. Our factory is located in Zhangjiagang, Suzhou,Jiangsu Province and near shanghai,wuxi,changzhou
You can visit us by train or by air. All our clients ,from home and abroad, are warmly welcome to visit us.
5.What is the lead time?
A.20days normally, Final lead time depends on production season and order quantity.
