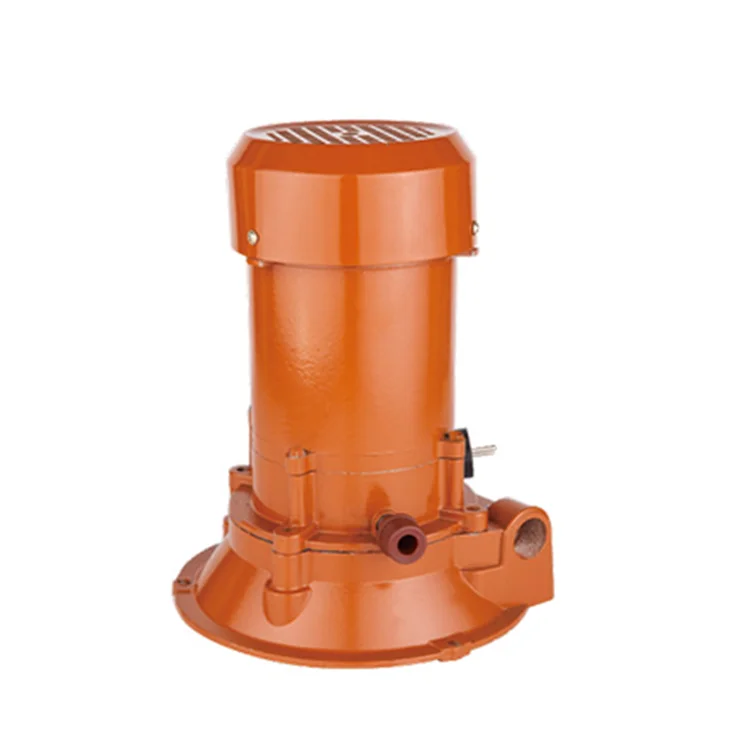

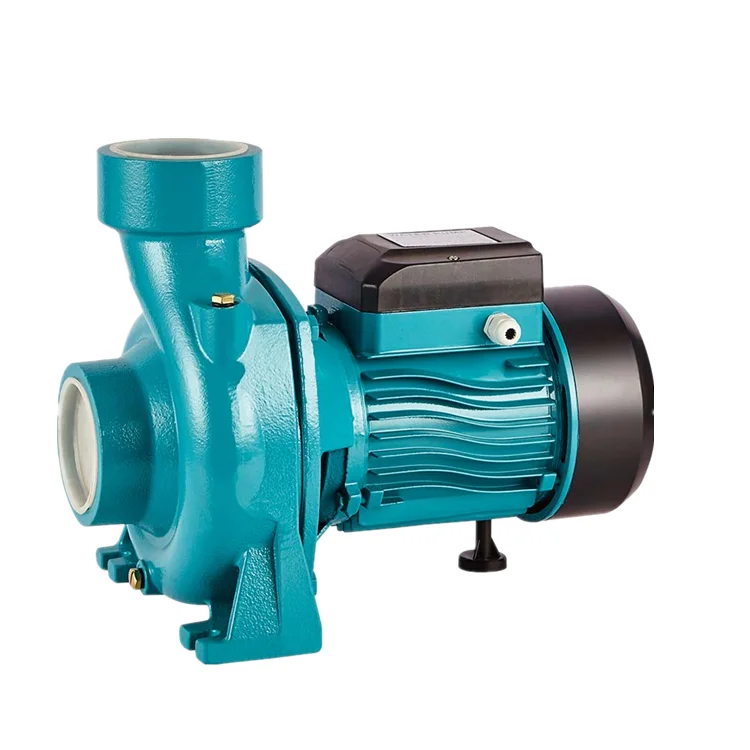

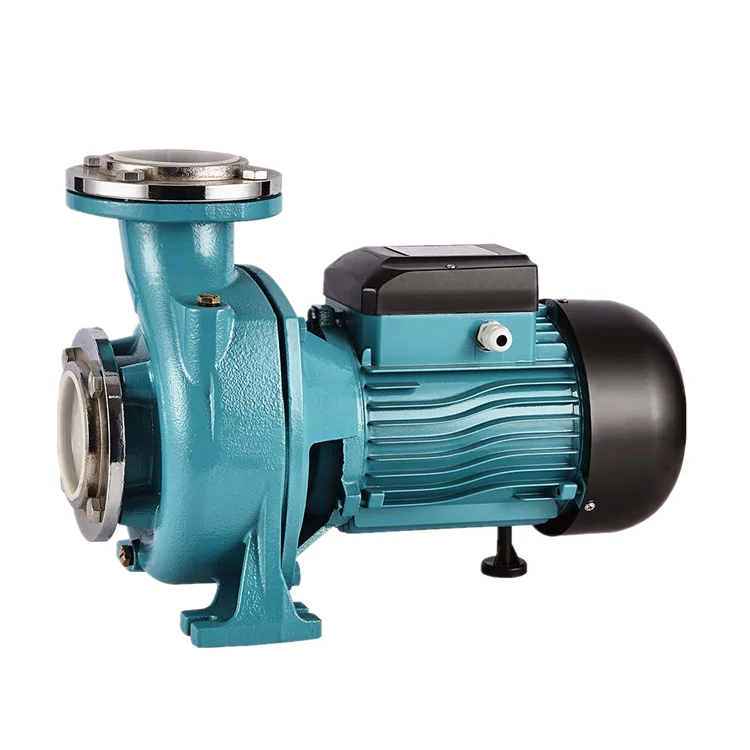

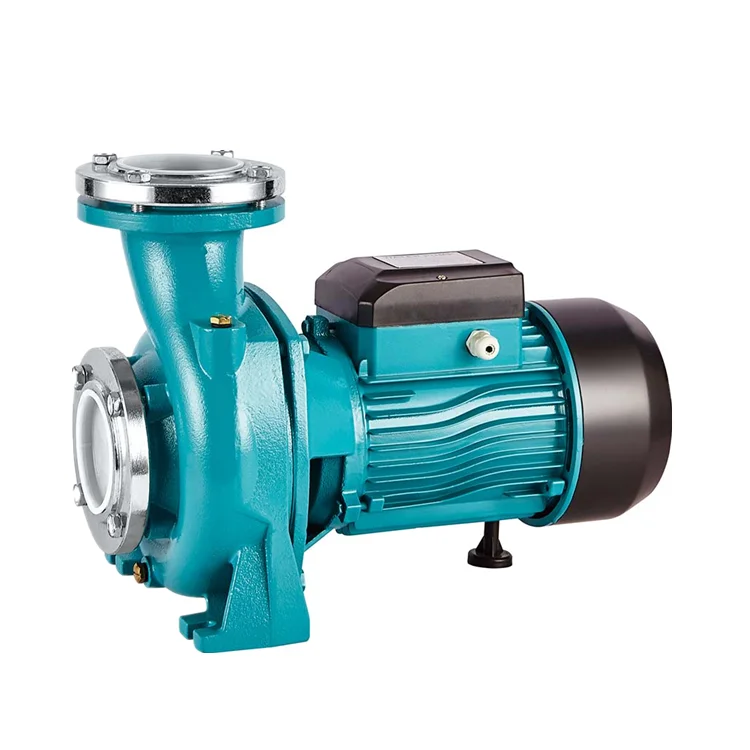

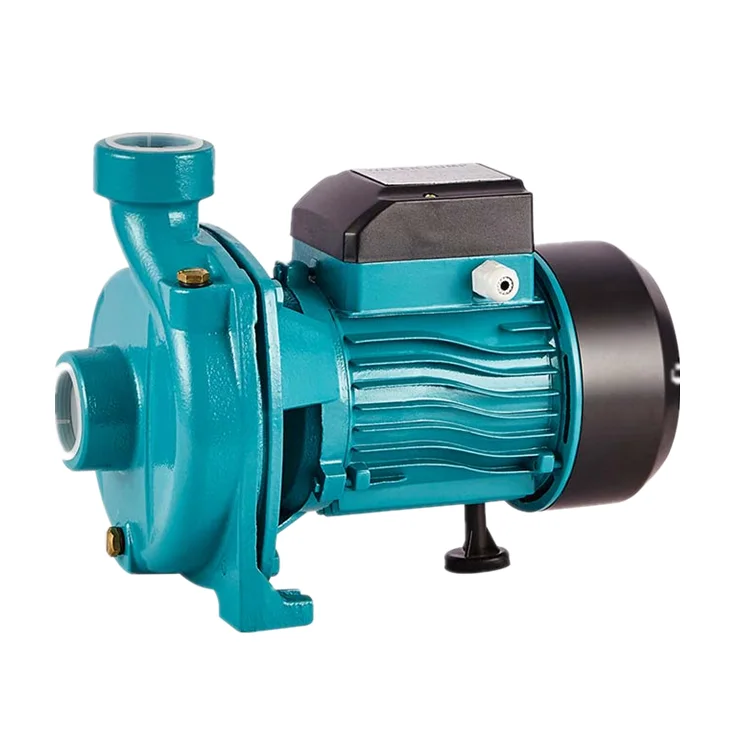

1.1Kw 1.5Hp Mini Centrifugal Water Pumps
- Category: >>>
- Supplier: Taizhou Ouke Technology Co. ltd.
Share on (62027436560):
Product Overview
Description
Product details
Working Condition Motor
1.For clear water. PH: 6.5-8.5. 1.Degree of protection: IP44
2.Solid impurity no more than 0.1%. 2.Insulation class:B
3.Fluid temperature: 0-40℃. 3.Continuous operation
4.Maximum ambient temperature:+40℃.
Technical data
| Model | Power (Kw) | Power (Hp) | Max.head (m) | Max.flow (L/min) | Max.suct (m) | Inlet/Oulet | Packing dimension(mm) |
| HM/5C | 0.75 | 1.00 | 18 | 280 | 8 | 1 1/2"*1 1/2" | 270*135*185 |
| HM/5B | 0.75 | 1.00 | 15 | 450 | 8 | 2"*2" | 350*215*275 |
| HM/5A | 1.1 | 1.50 | 14.5 | 650 | 8 | 2"*2" | 390*230*290 |
| HM/5AM | 1.5 | 2.00 | 22.5 | 600 | 8 | 2"*2" | 390*230*290 |
| 1DK-20 | 0.55 | 0.75 | 20 | 150 | 7 | 1"*1" | 270*135*185 |
| 1.5DK-20 | 0.75 | 1.00 | 20 | 250 | 7 | 1 1/2"*1 1/2" | 380*235*250 |
| 2DK-16 | 1.1 | 1.50 | 16 | 430 | 7 | 2"*2" | 380*235*250 |
| 2DK-20 | 1.5 | 2.00 | 20 | 450 | 7 | 2"*2" | 380*235*250 |
Related products
Company Information
Applicance
1.Used for garden and gardening irrigation.
2.Domestic, Civil and Industrial Pumps
3.Water is supplied from wells, lakes, rivers and rivers, etc.
