Veterinary detachable bipolar vessel ligasure instrument

    1) Product name:

Veterinary detachable bipolar vessel ligasure instrument

    2) Types:

The last letter of the specification model: A means detachable; S means not removable.

1.Normal working environment

   This product is intended for using in the operation room, work together with high frequency generator. Usage of  the environment and the requirements  is the same as operation room without special requirement. Operating conditions are as follows

       1) Indoor use

2) Professional medical institutions use

3) Environment temperature:10℃~40℃.

4) Relative humidity :30%~75%.

5) Atmospheric pressure:700hPa~1060hPa.

6) Work together with high frequency Covidien (Valleylab)generators , for electrosugical use. Tissue cutting,dissection,vessel sealing and tissue fusion ect.

2. Working Principle

     This product belongs to bipolar. Two electrodes are located on the top of the clamp. When the high-    frequency generator outputs a certain waveform of high-frequency current, high-frequency current flows  between the two electrodes, directly acting on the human tissue. The two electrodes of the bipolar  electrode itself serve as a loop and do not require a neutral electrode.

     When the surgical electrode is in contact with the tissue, the jaw portion of the surgical electrode can maintain a consistent jaw pressure at different tissue thicknesses and maintain a consistent closing  pressure during closure. The intelligent host system (high-frequency generator) can quickly recognize  the tissue density and output energy through the surgical electrode clamp head. The human tissue  collagen and fibrin dissolved degeneration, vascular wall fusion formed a transparent zone, resulting in a  permanent bureaucratic closure.

3. The main structure

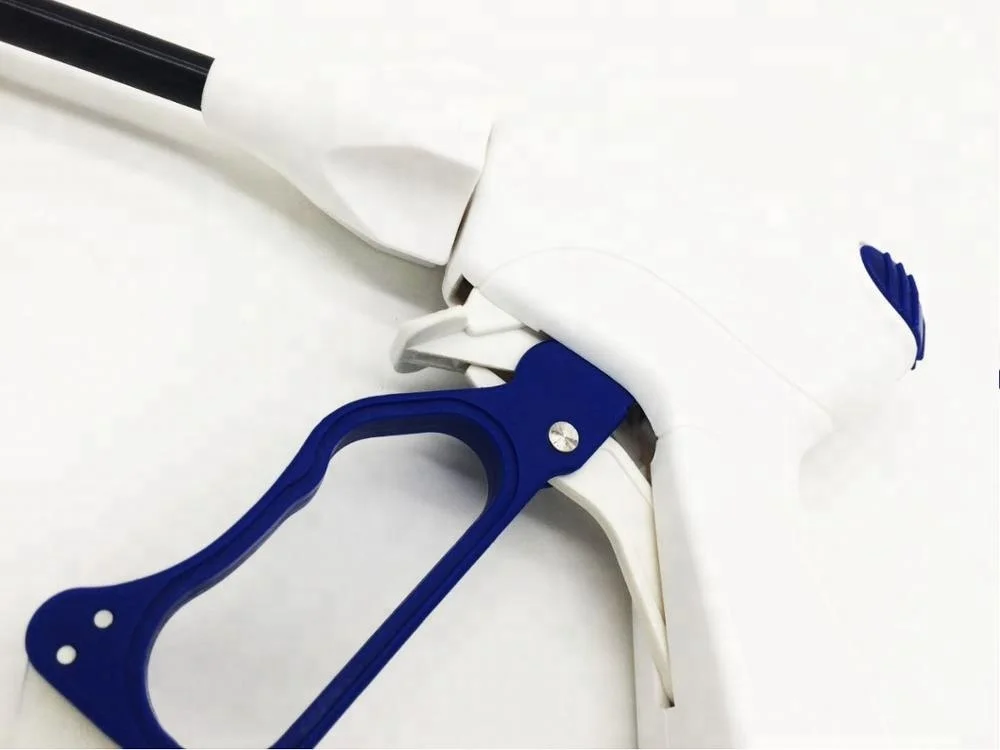

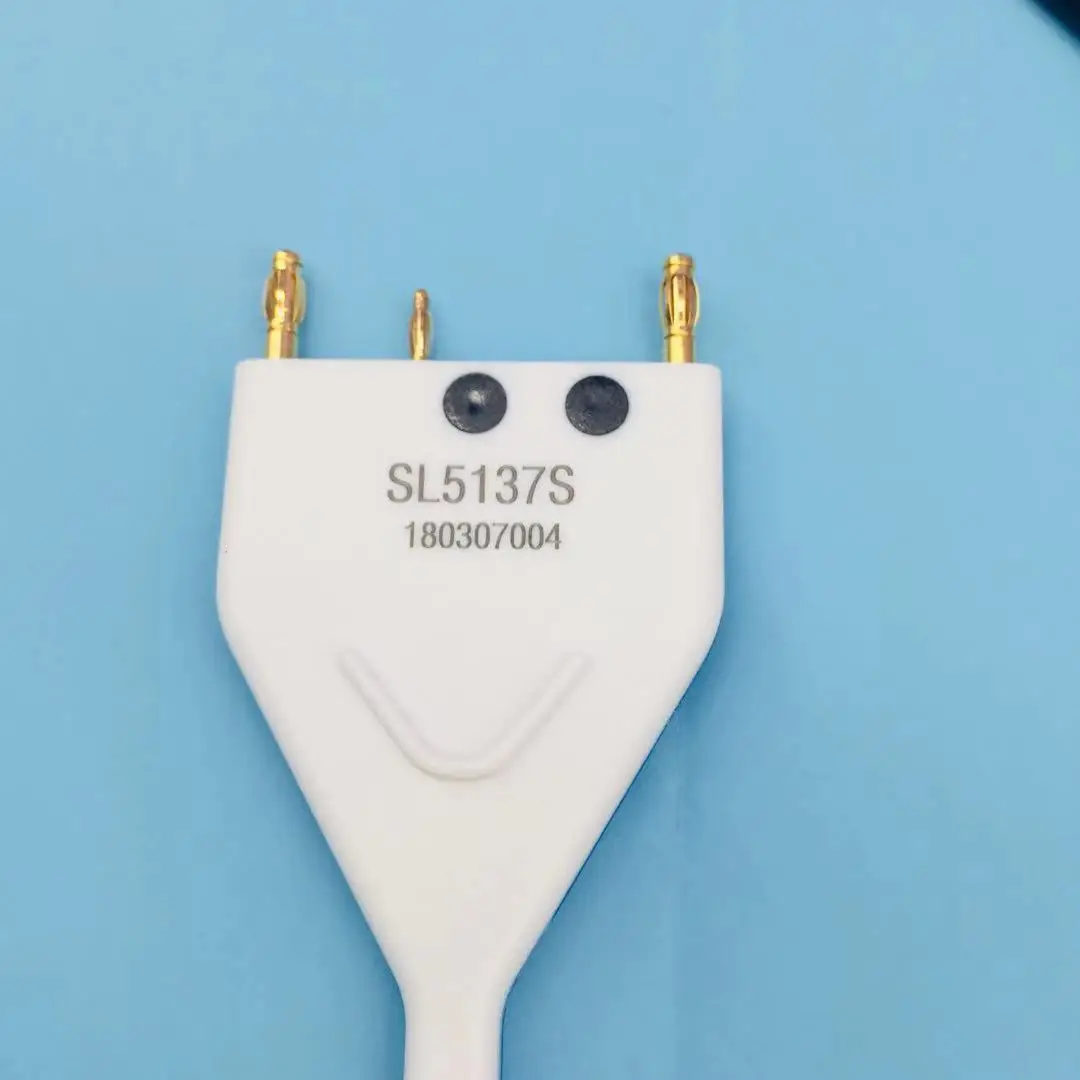

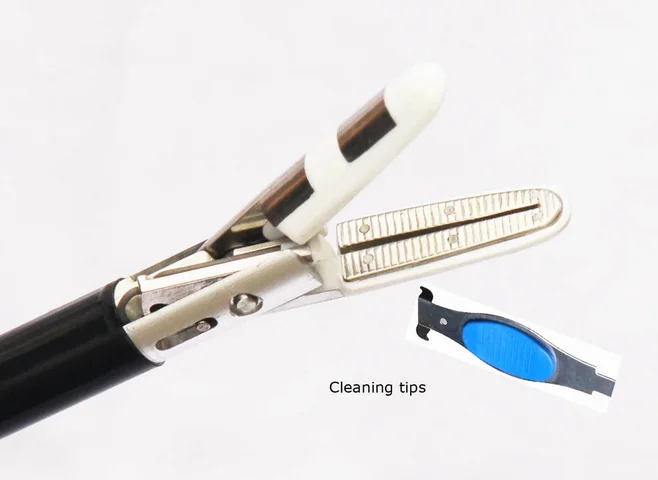

   1) The first 7 models in the above table are composed of a closed/cut electrode for electrosurgery consisting of a handle, a pliers head, a rotary head, a clamp rod, a bipolar electric coagulation line, a high frequency wire plug, a cutting knife, a master wrench, and a start button.

   2)SL5300S consists of clamp, ring handle, manual start button, cutting trigger, wire, plug and blade locking mechanism

Tissue real time feedback and power control technology

Tissue type automatic identification

Output time and voltage adjust automatically

Real time check of the result of vessel fuse

Automatic stop energy output

Optimum pressure lock

Tissue denaturation fuse

Advantages of clinical use:

  1. Sealing vascular up to 7mm permanently and safety

  2.Fuse tissue bundle directly,easily

  3.Minimum thermal damage and spread

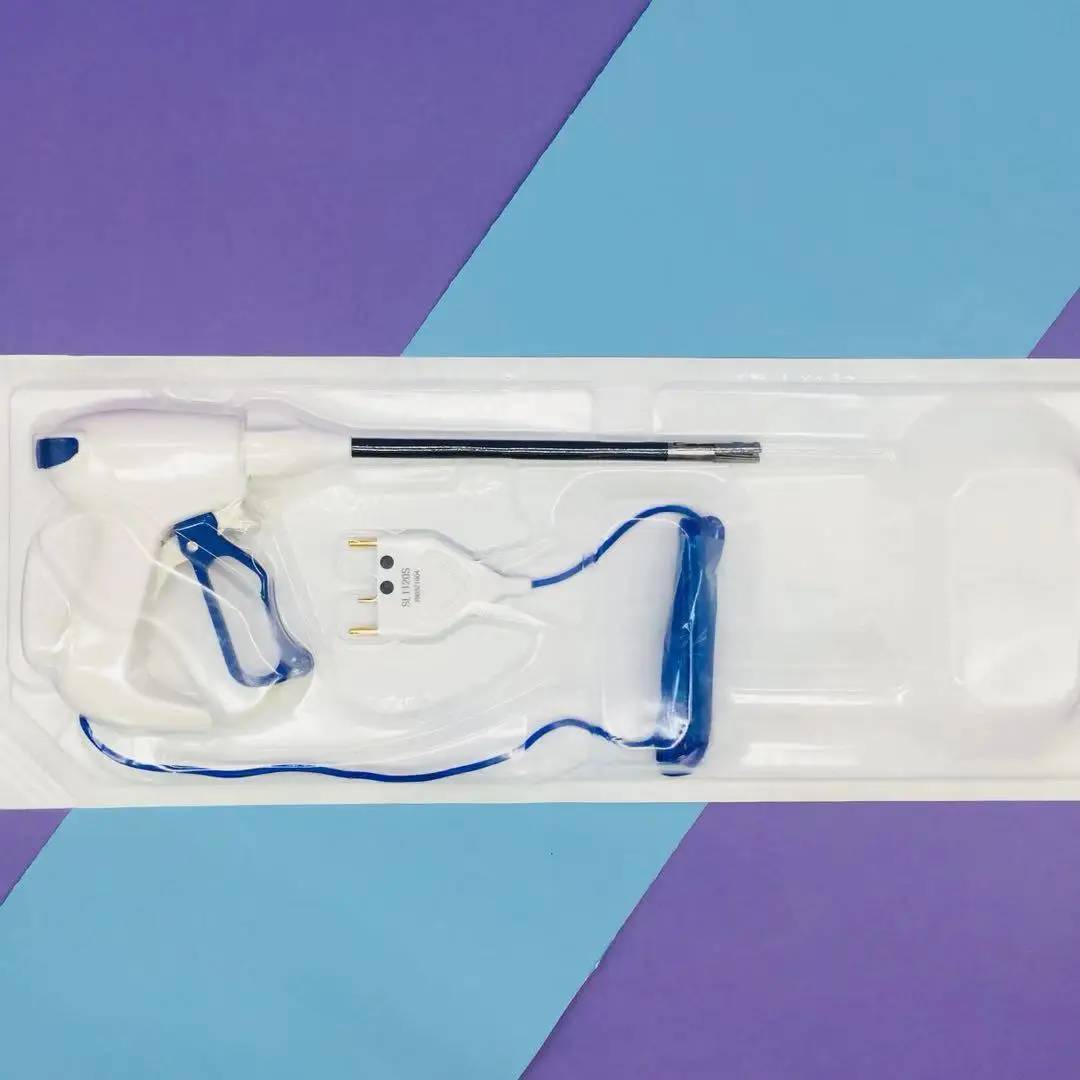

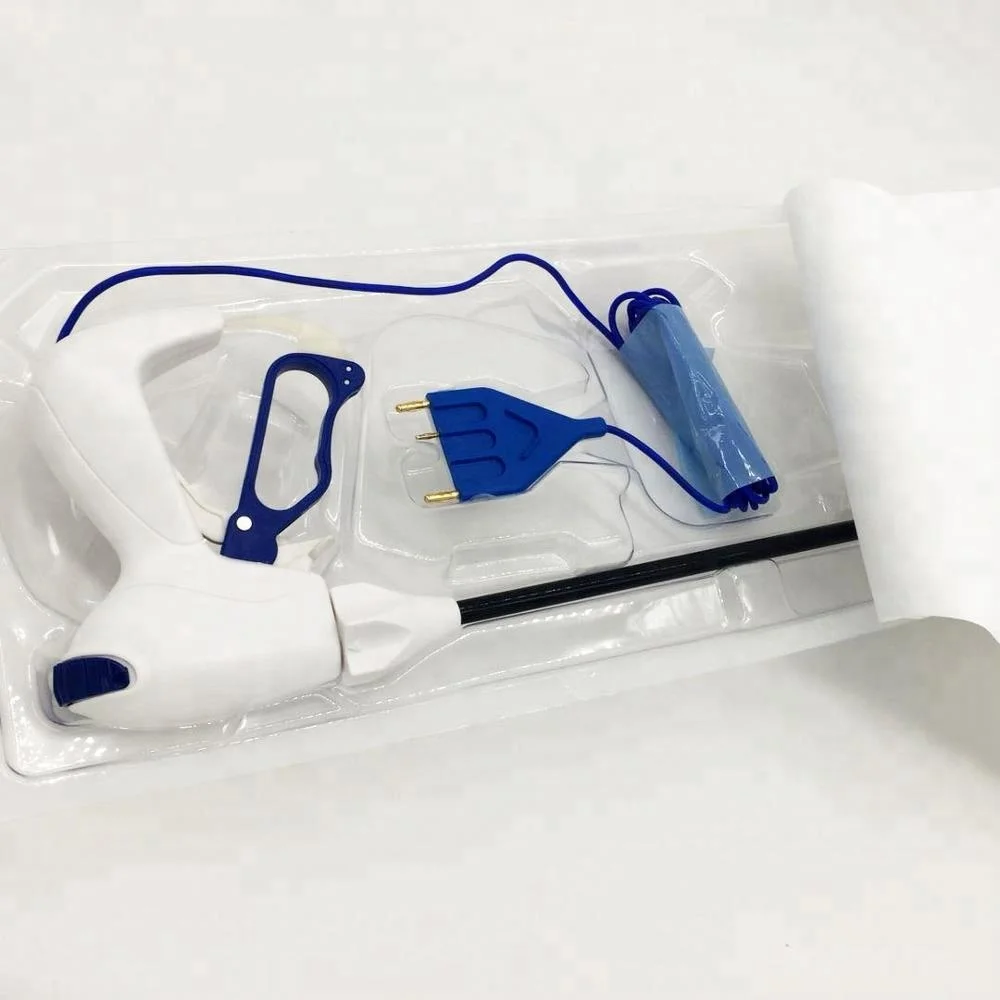

  one piece per blister box,three per case, eight for a container

  Delivery Time

  Within 10  days after payment received

   Nanjing Shouliang Medical Technology limited company is a private technology enterprise integrating scientific research, production and operation.Since its establishment in August 2016, the company has established the management policy and development direction of "knowledge economy, integrity management", "social, enterprise and employee harmonious development".The company mainly produces surgical electrodes.The company consists of a lean product research and development, technical support and sales management team.The company has established a set of characteristic modern management system, management work science, standard.To provide customers with excellent products and perfect services.Make your own contribution to the medical cause.

Our mission is 'For Human Health'.

OEM - YES

Distributor - YES

On-time delivery - YES

Professional R&D team - YES

Well-experienced Sales team - YES
CE, ISO13485 certificates - YES

1. What is the delivery time?

    1-3 days if goods are in stock,

    10-15days for special request on package,

    15-30days for big orders or special request on products.

2. Why it is cheaper than Covidien brand ?

    We are a new brand company who wants to do some contribution to this society,wants to be knewn by this world,wants to help more patients.
