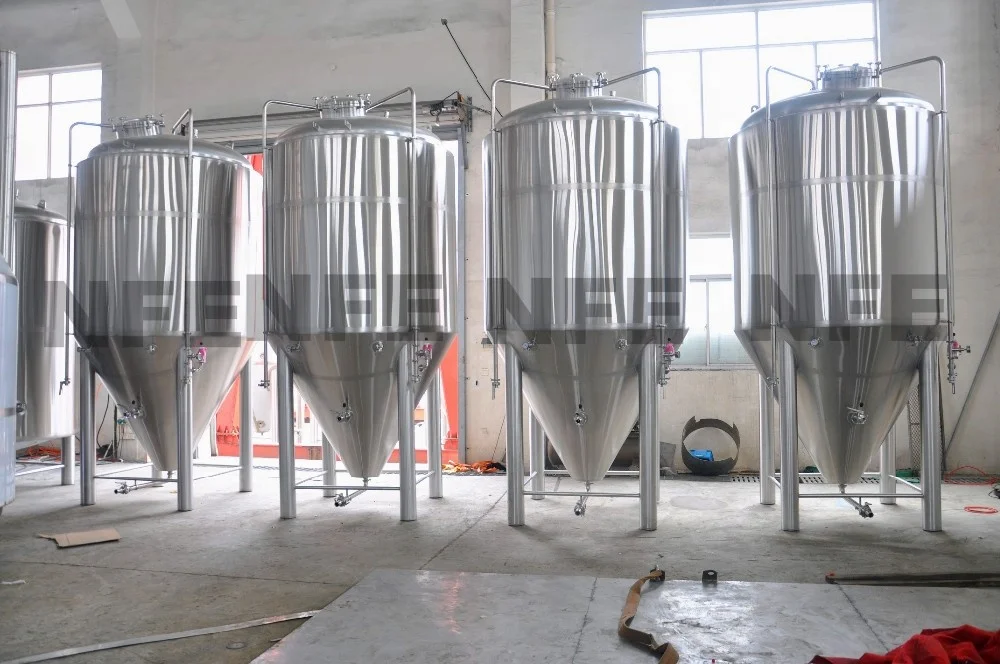

- CE approved 40bbl stainless steel beer fermenter | Beer manufacturing equipment for brewery | Beer brewing machinery for brewery
CE approved 40bbl stainless steel beer fermenter | Beer manufacturing equipment for brewery | Beer brewing machinery for brewery
- Category: >>>
- Supplier: Jinan NFE Machinery Co. Ltd.
Share on (62027496559):
Product Overview
Description
Product Description

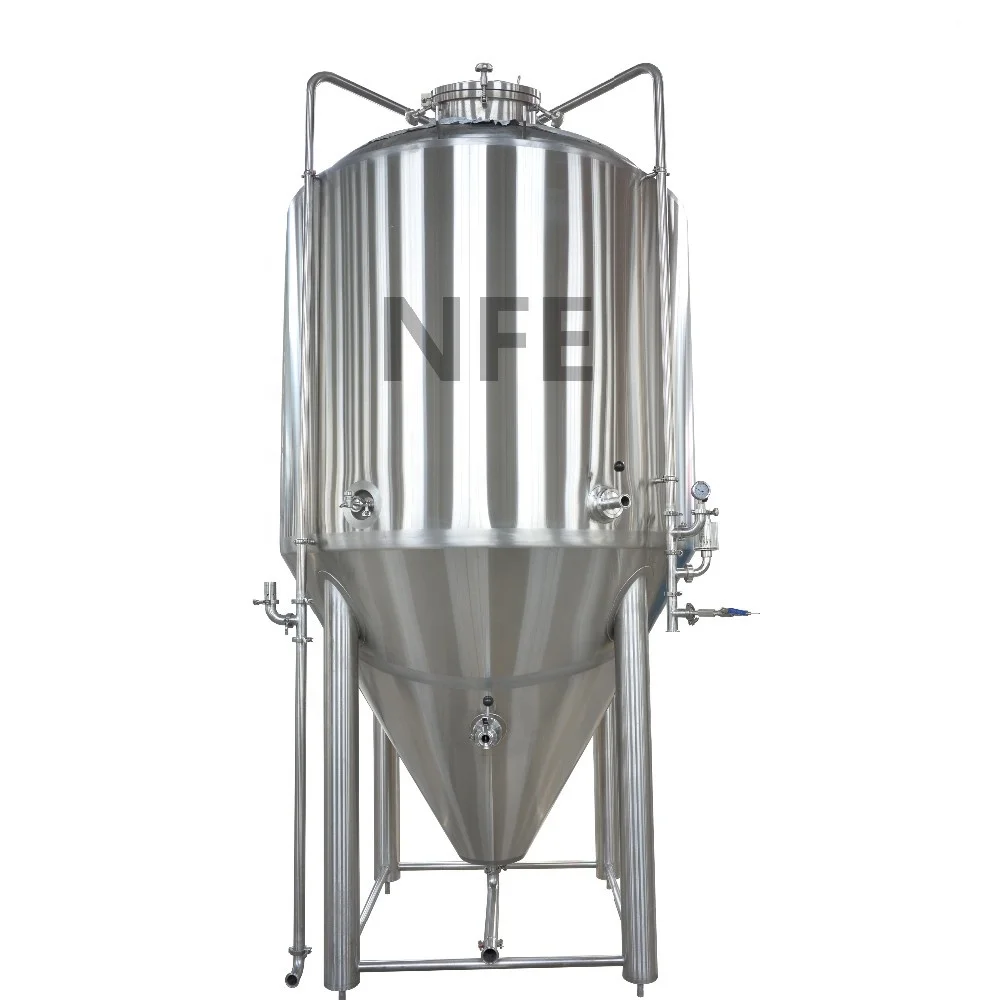

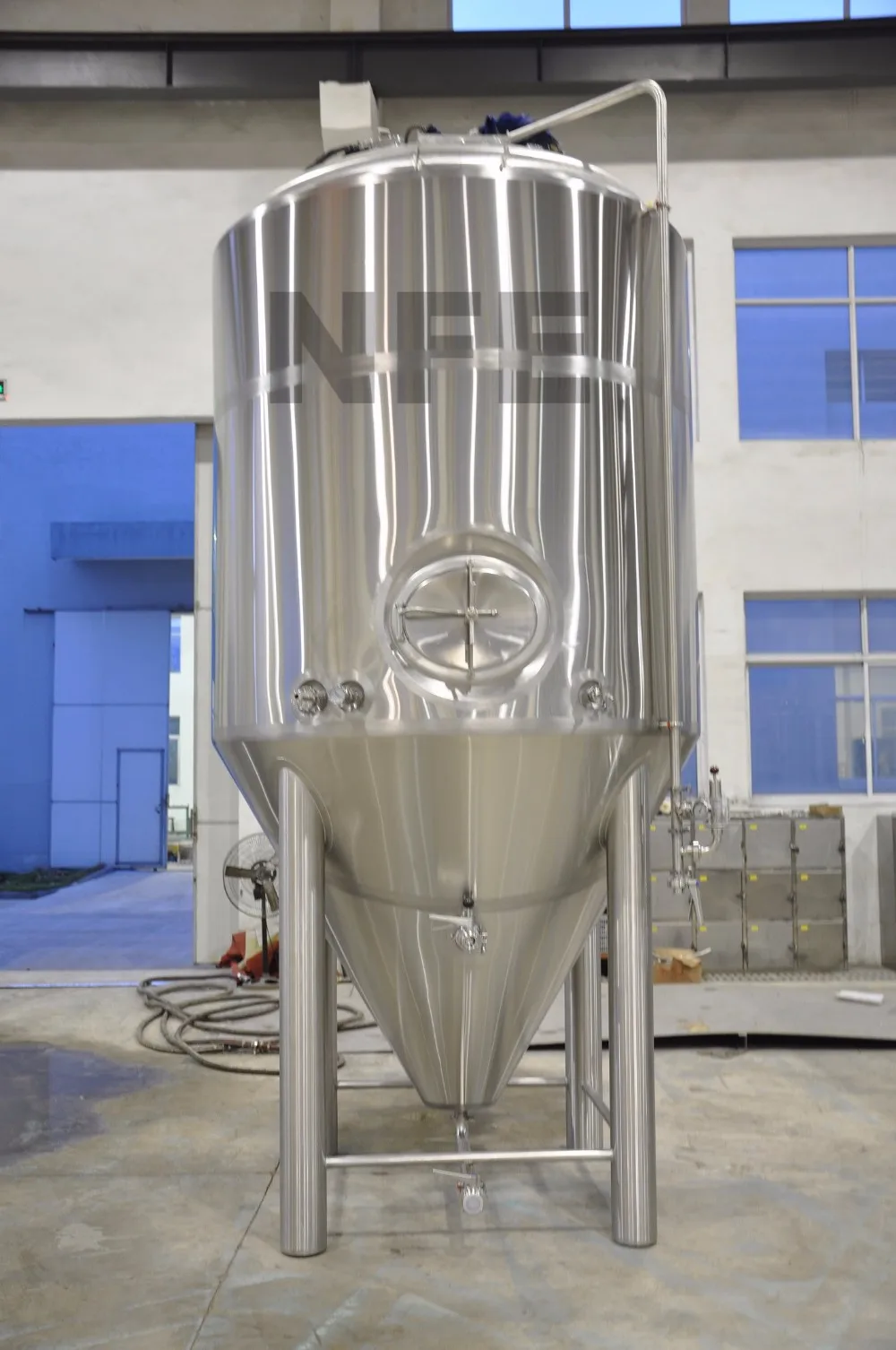

| SPECIFICATIONS FOR 100L BEER FERMENTER | |||
| Standard Features | Dual zone dimple cooling jackets (3 or more on larger tanks); Interior shell: 304 stainless steel, thickness 3mm /11 gauge; Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge; Exterior shell: 304 stainless steel, thickness 2mm /14 gauge; 80mm Polyurethane insulation; Interior surface to finish pickled and passivated; Exterior surface to brushed, #4 finish; 580x480mm Side manway, shadowless; Dry hop inlet at top. | ||

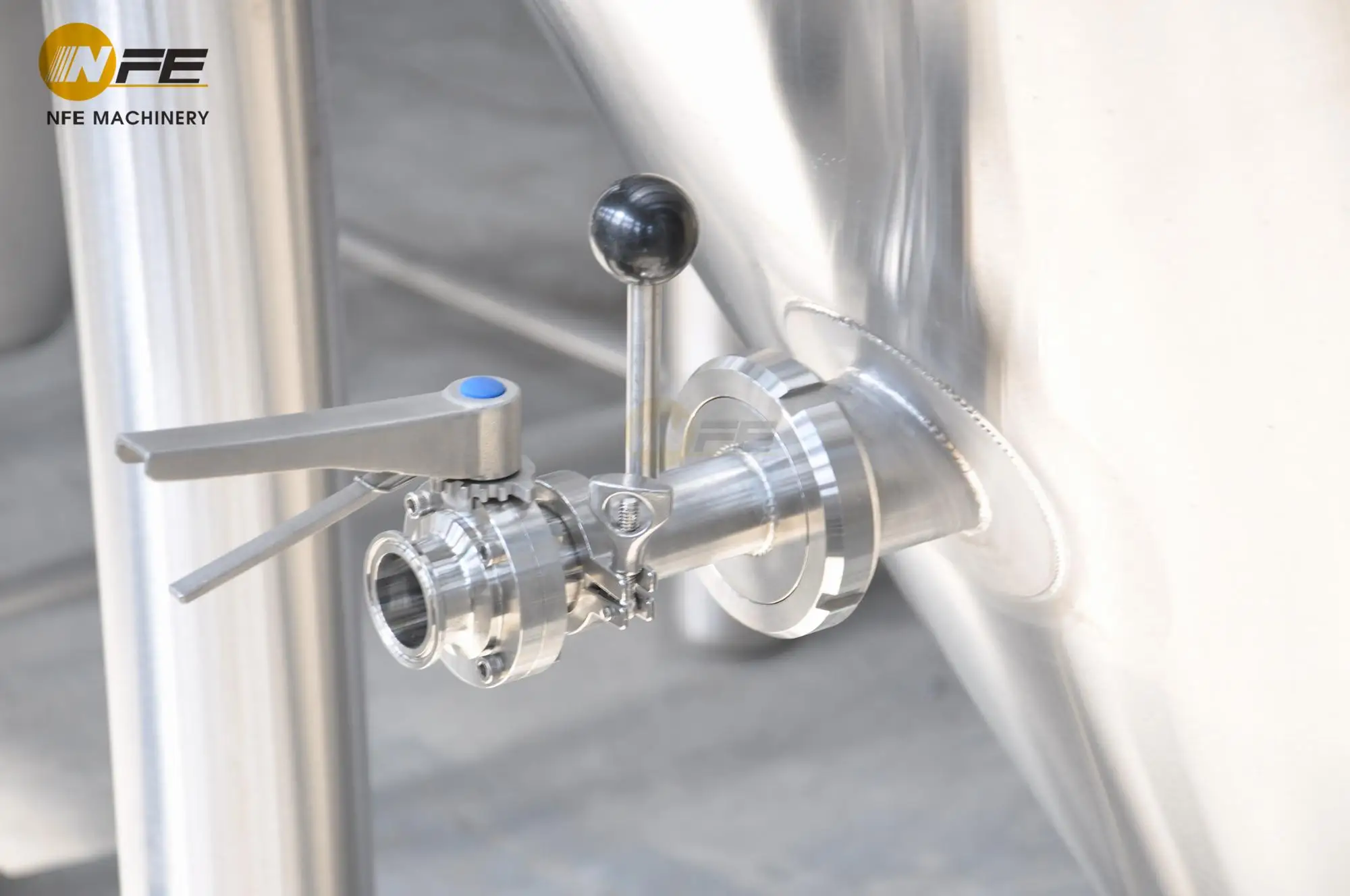

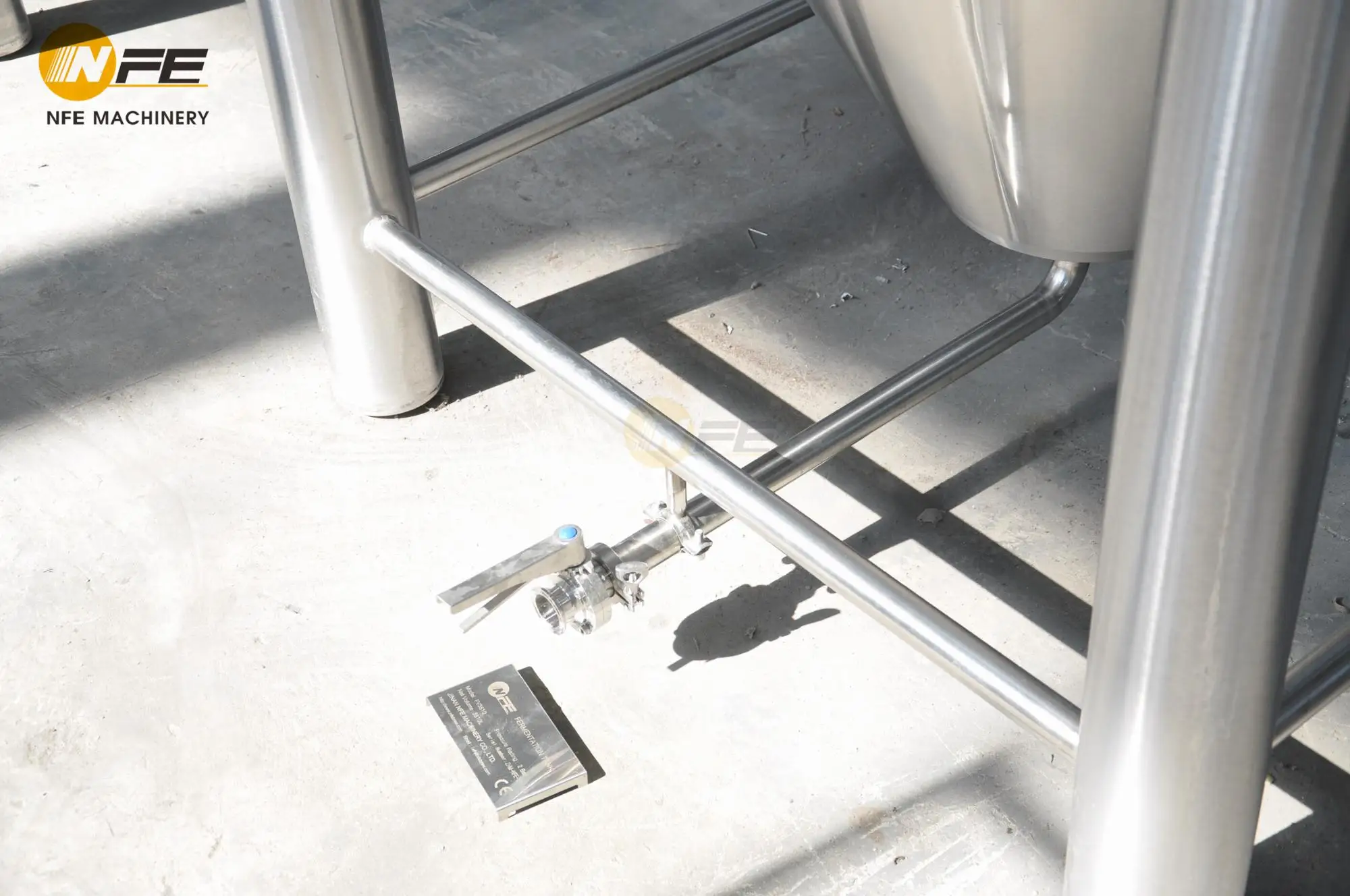

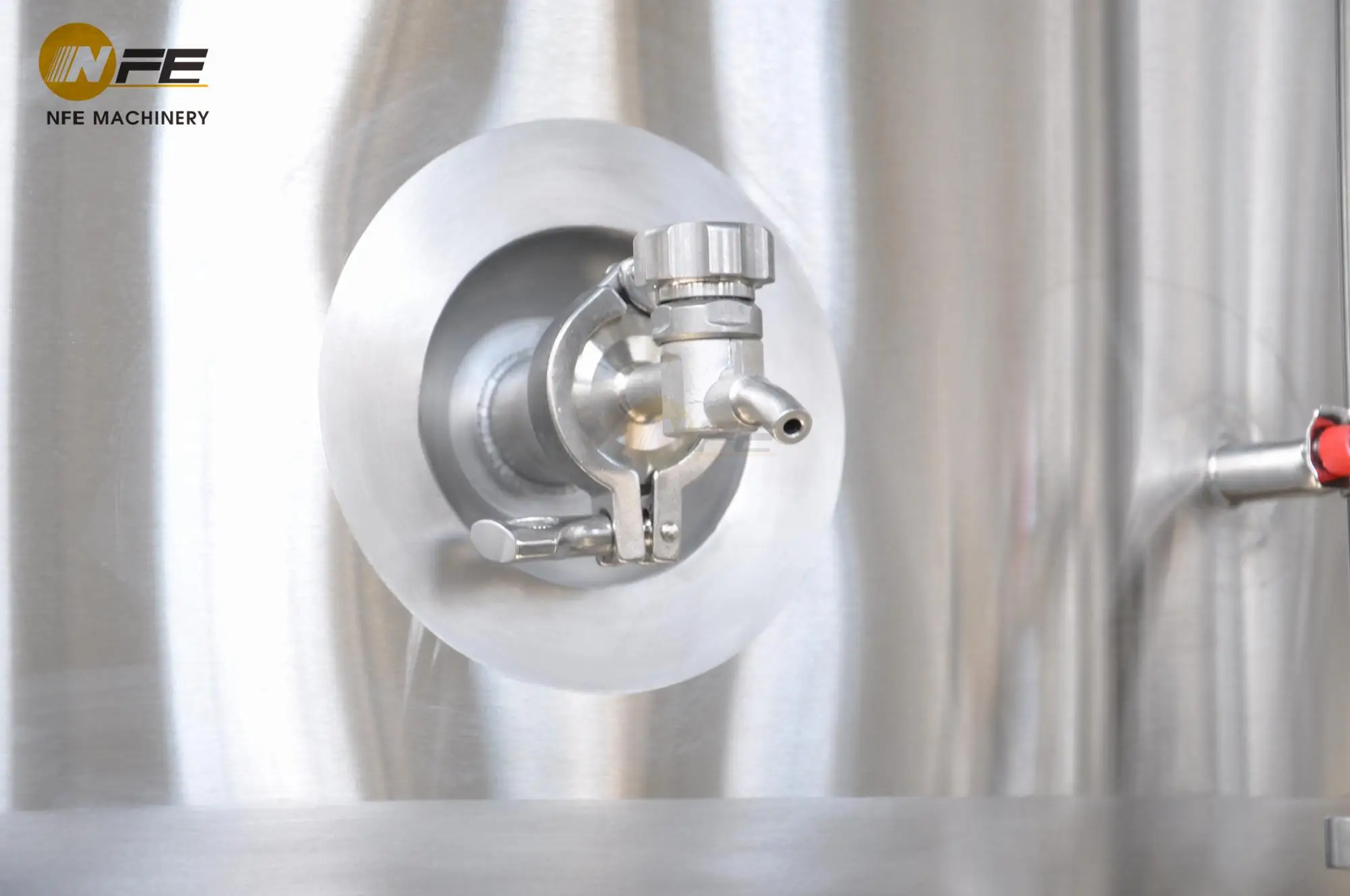

| Accessories | Sample Valve x1; Pressure relief/vacuum valve x1; Temp. sensor / thermometer x1; Rotating racking arm with butterfly valve x1; Bottom outlet with butterfly valve x1; Spraying Ball with down tube x1; Stainless pipe legs with adjustable footpads x4; | ||
Main Features
1) UL & CE Rated Controls and Components.
2) Tanks conform to all ASME pressure vessel ratings and standards.
3) 100% Pressure & , leak testing of all tanks, jackets, and hardpiping. All eletronics and brewhouses pre-assembled and tested before shipping.
4) All brewhouse piping is stainless hardpiping. No plastic piping used in the brewhouse for wort or beer.
5) All control panels are pre-wired and pre-tested.
6)PLC Siemens color touch screens control system.
7)Complete mechanical engineering support, on-site installation, start-up and training support for all systems.
Certifications
An Complete Brewery
Grain Milling Unit
Name: Malt Miller
Brand: NFE
Original: China
With CE certified motor,Double rollers,Rollers distance adjustable.
Brewhouse Unit
Name: Brewhouse system
Brand: NFE
Original: China
2~4 vessels brewhouse for choose.
Heating way:steam/ electric/ direct gas fired heating.
Rock wool insulation and the thickness of insulation:100mm;
Mash tank: hydrator, mixer, steam heating jacket.
Lauter tun: rake, agitator, false bottom, hydrator.
Brewkettle: steam heating jacket, inner steam heating deivce.
Whirlpool tun: whirlpool entry.

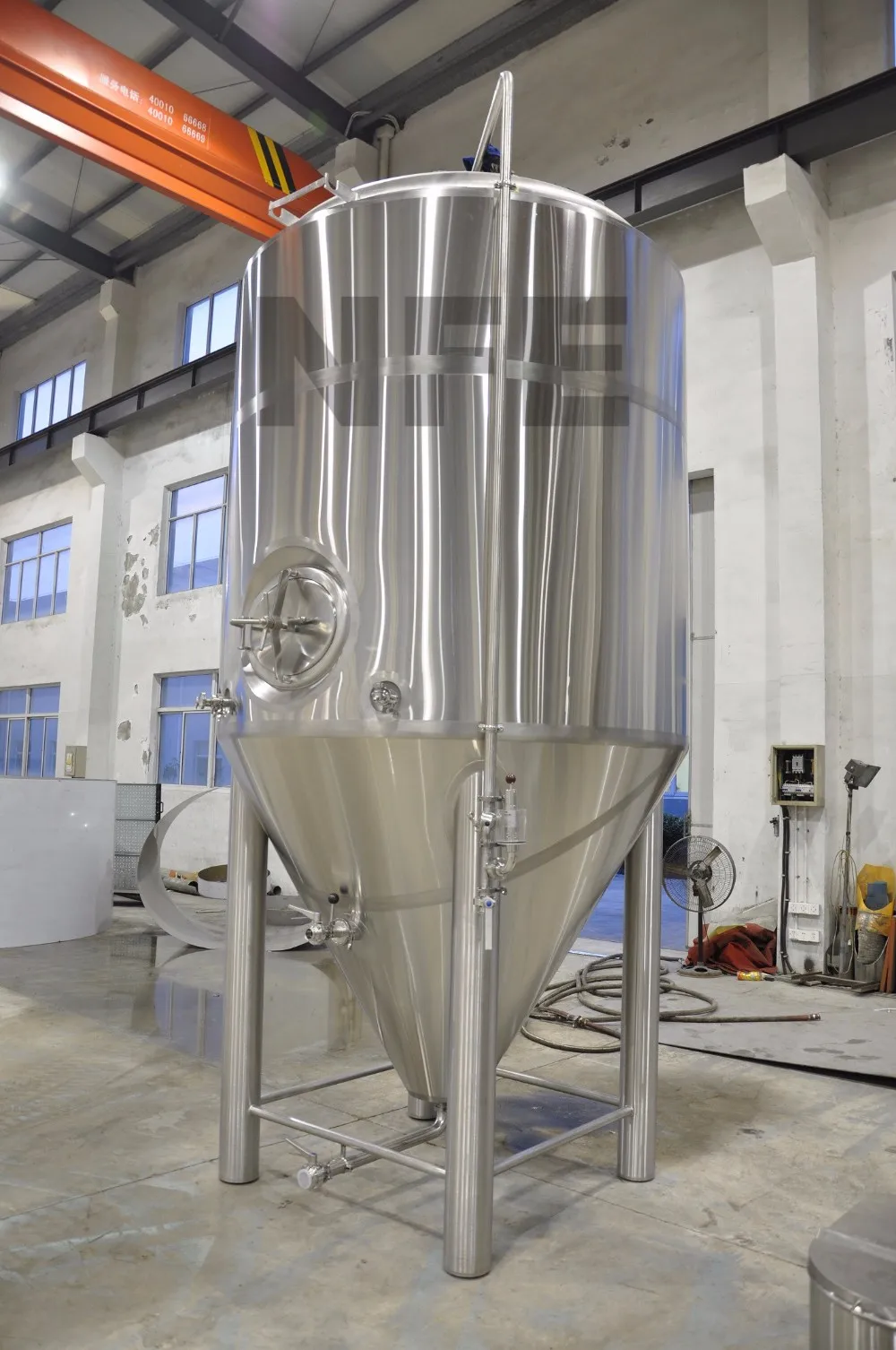

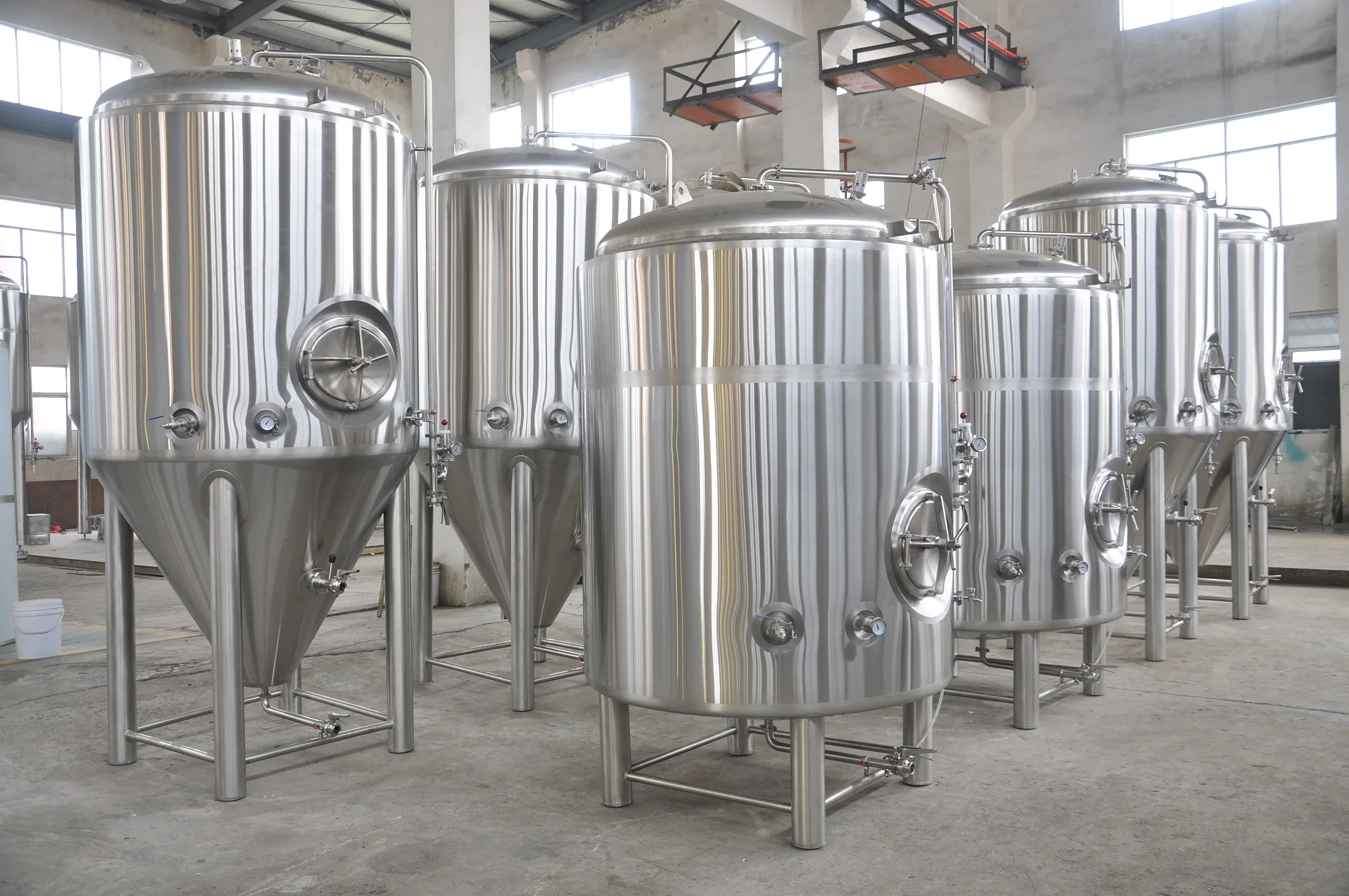

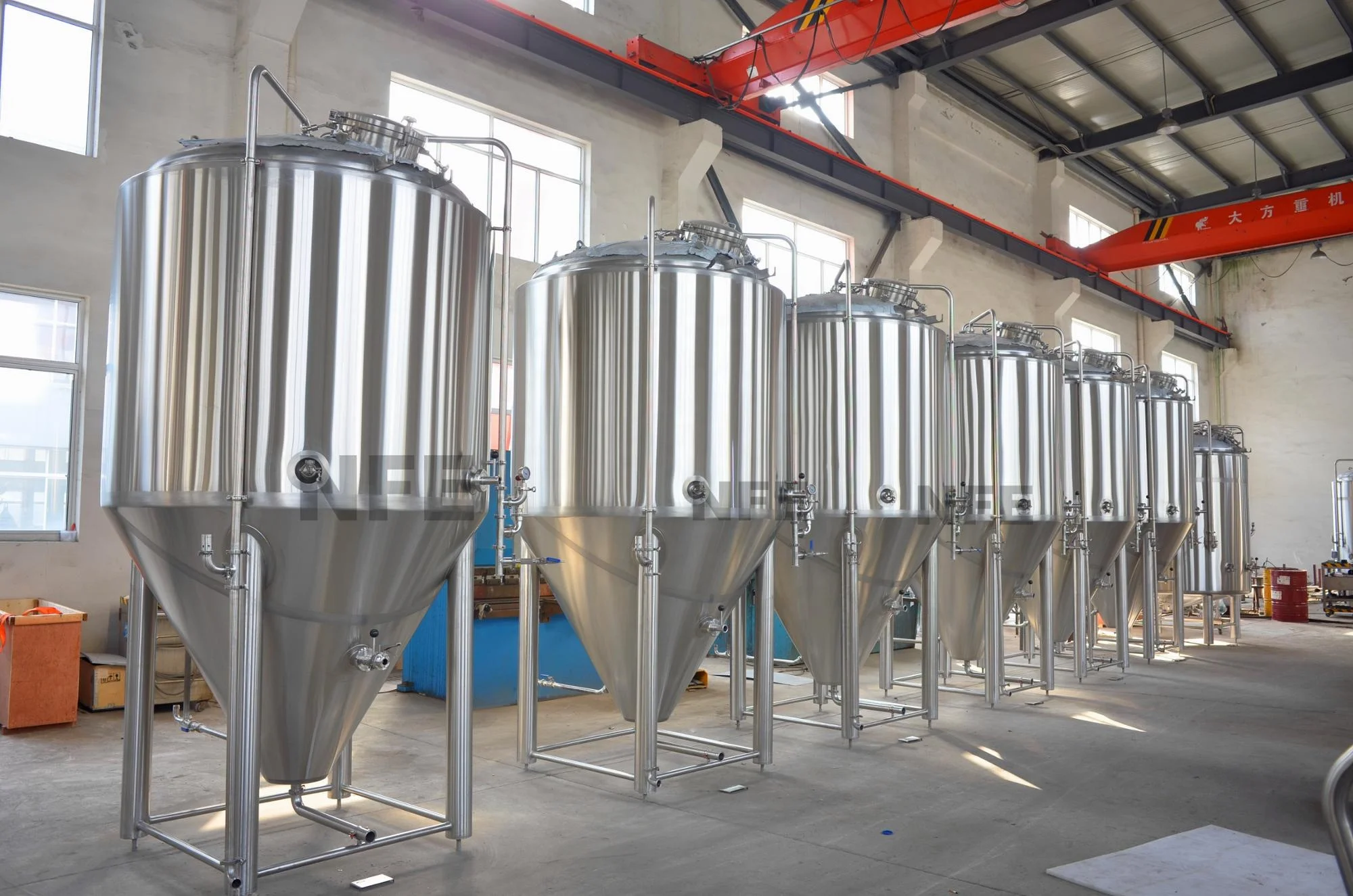

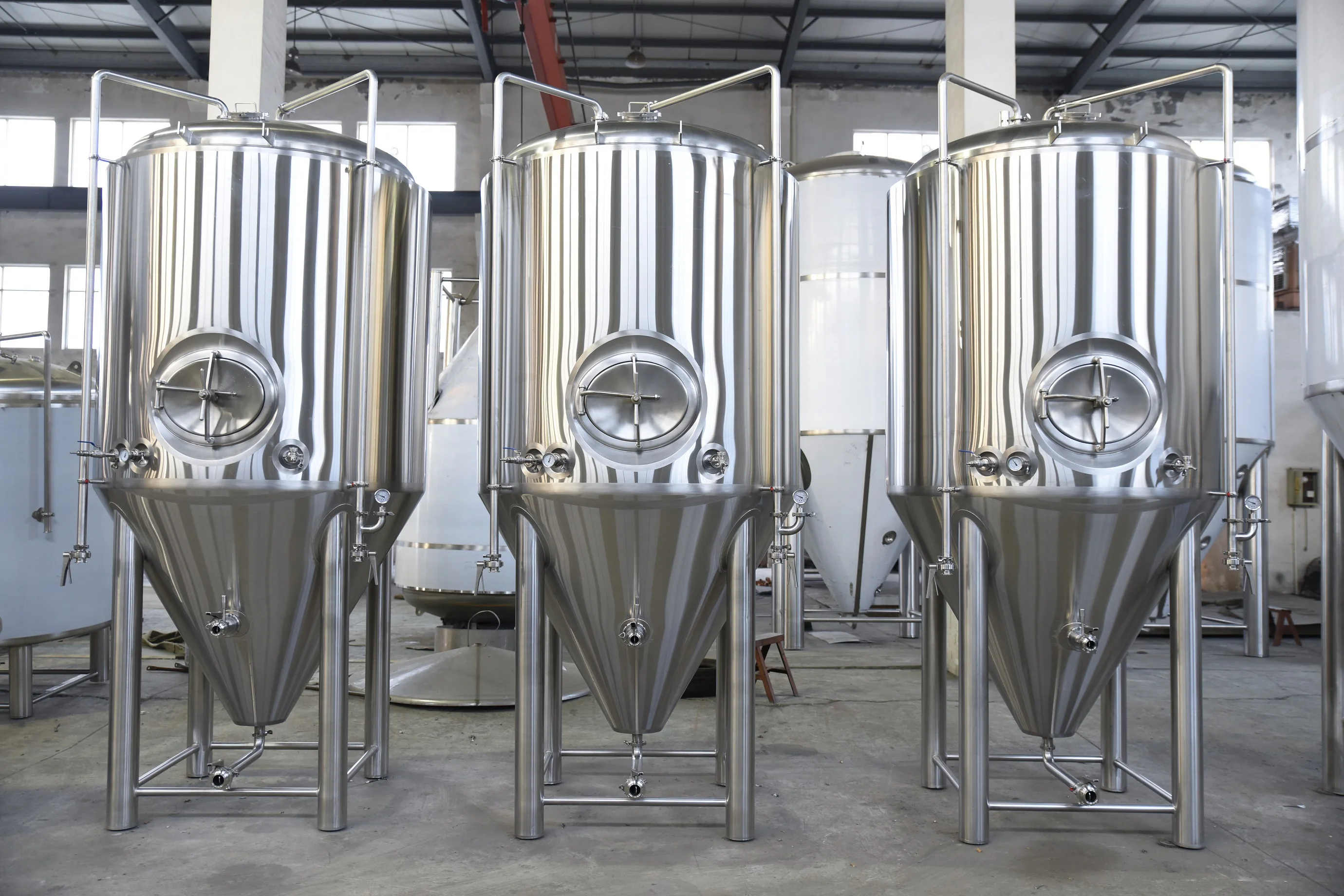

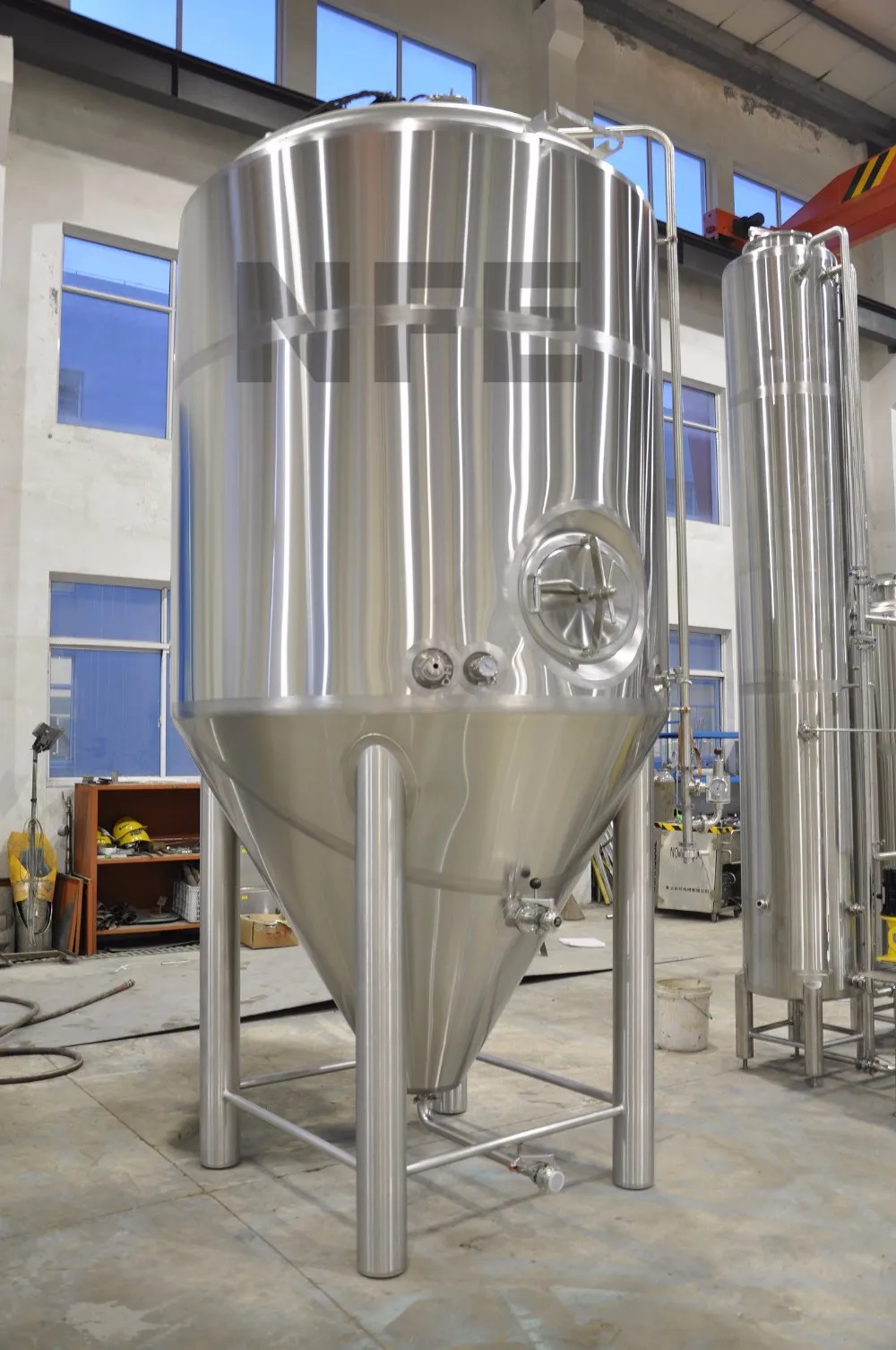

Fermentation Unit
Name: Fermenters
Brand: NFE
Original: China
Stainless steel 304, side man way or top manway;
PU insulation, insulation thickness: 80-100mm;
Inside wall thickness: 3mm, outer shell thickness: 2mm;
CIP Rotary Spray Ball;
Relief valve, mechanical pressure regulating valve, sample valve, butterfly valves;

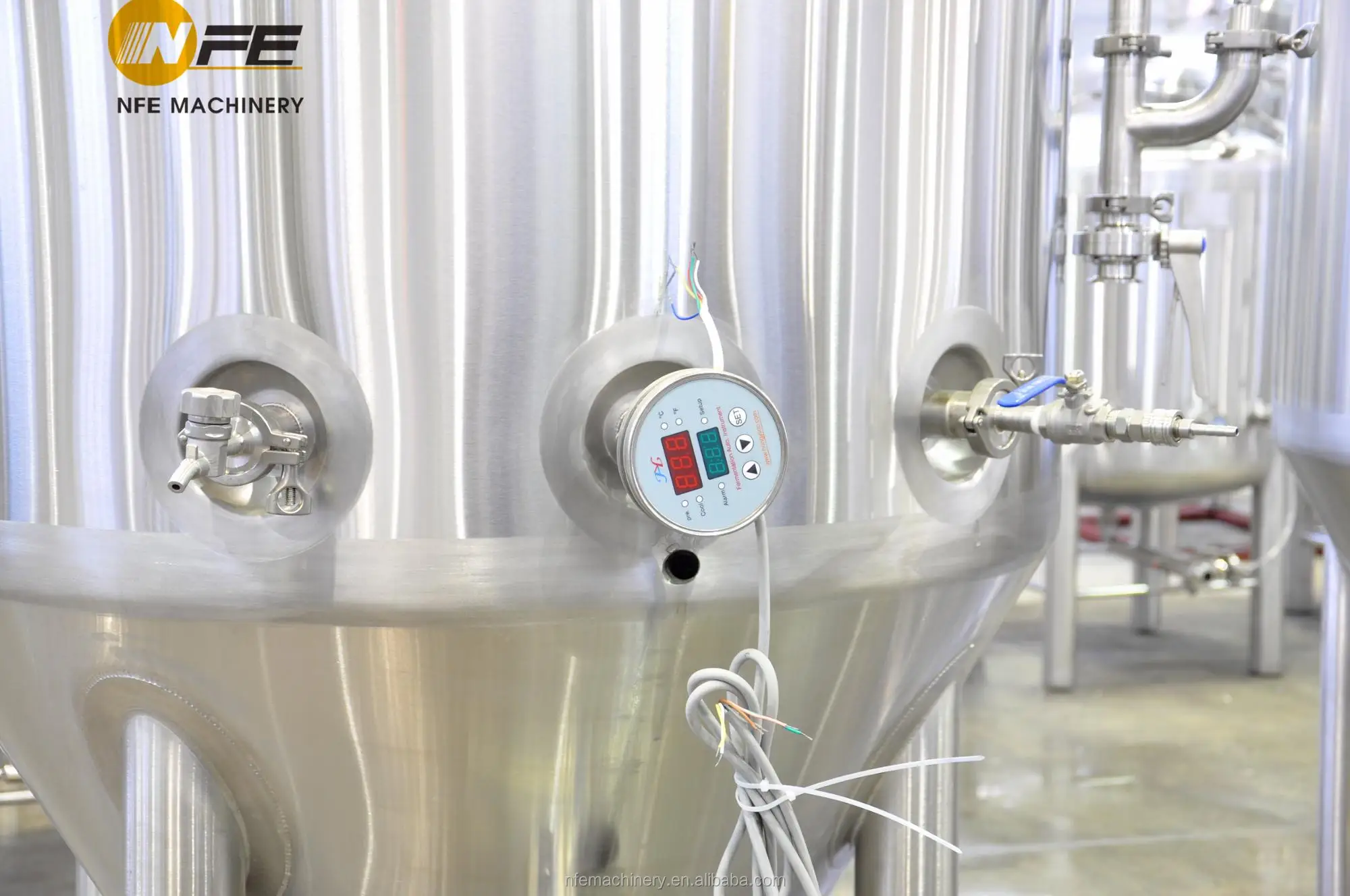

PT100 temperature sensor, with temperature controller;
2 sections dimple plate cooling jacket;
Complete with associated valves and fittings;

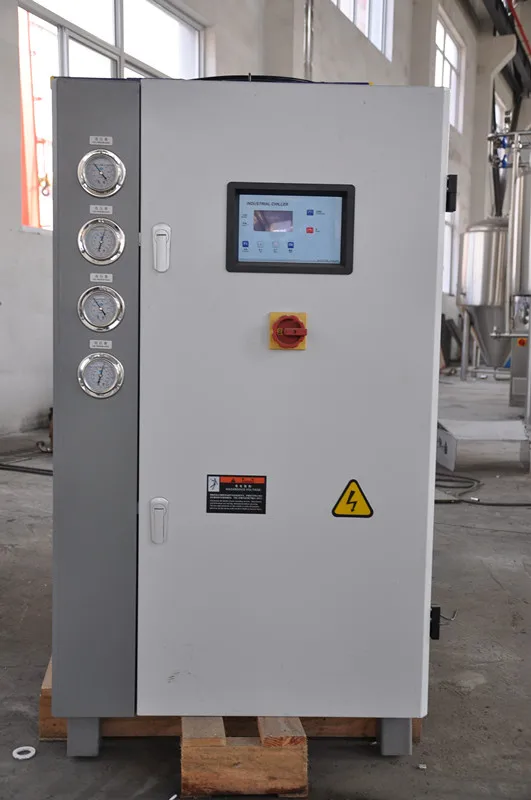

Glycol tank Unit
Name: Glycol tank
Brand: NFE
Original: China
Original: China
Hot/Cold water tank, Glycol tank
Stainless steel 304,
Steam jacket heating or electric heating or direct gas fired heating,
Rock wool insulation, and the thickness of insulation is 80-100mm;
The thickness of inner body is 3mm,
With glass level tube.
CIP Unit
Name: Bright beer tank
Brand: NFE
Original: China
Brand: NFE
Original: China
Sterilization tank;
Alkali liquor tank;
Sterilize vehicle;
CIP pump;
Pipes and valves;
Control box.
Control Unit
Name: Control System
Brand: NFE
Original: China
Manual button control or PLC control;
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
* All tanks will be packaged with soft protection material and mounted on strong carbon steel frame.
* All accessories and spare parts will be packaged with seperated box.
* After loaded into containers, all equipments will be well fixed to the containers.
Company Information
Customers visiting
we are welcome to visit our factory, and our Brew Pub is ready to feeling the brewing.
1000L BREWERY
30BBL BREWERY
15BBL BREWERY
7BBL BREWERY
500L BREWERY
4000L BREWERY
Our Exhibition
CBC Shanghai
October,2016
CBC BrewExpo in Washtington DC, USA
April,2017
Drinktec in Munich, German
September,2017
