IP67 protection rating for the entire gauge; can work up to 1m underwater;
Double layer reinforced anti-fogging glass;
316 Stainless steel bezel with convex glass;
Easy installation with multi-plug socket connection design;
Selection of red or yellow backlight;
Default working voltage: 12V; -Compatible also with 24V for stepping motor and LCD type gauges; -Require an extra resistor to work with 24V for cross coil type gauge.
Application
52mm water level gauge, kus fuel level gauge for caravan,trucks, tractors, and construction machinery.
Product Description
Fixing dimension: 52mm
Indicating Range: Empty-Full
Working Voltage: 12V/24V
Signal: 240~33Ω or 0~190Ω
Choice between red and yellow backlight
Protection grade is IP67, the whole body is completely waterproof;
Excellent antifogging function;
316 Stainless steel bezel with curved glass;
Convenient Installation by multi-pliug socket connecting way;
Accessories: matched with cables, Installation Instruction

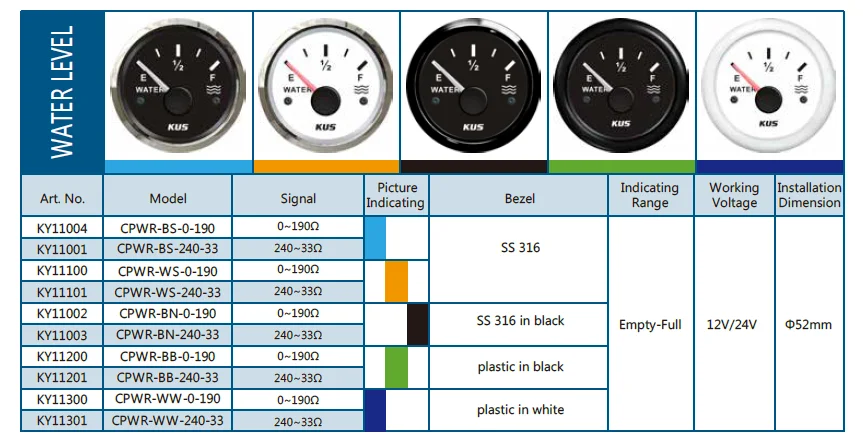

Price Reference
Item
Model No.
KUS P/N
Unit Price(USD)
Sample
20-49pcs
above 50pcs
1
CPWR-BS-0-190
KY11004
34.75
9.14
8.79
2
CPWR-BS-240-33
KY11001
34.75
9.14
8.79
3
CPWR-WS-0-190
KY11100
34.75
9.14
8.79
4
CPWR-WS-240-33
KY11101
34.75
9.14
8.79
5
CPWR-BN-0-190
KY11002
34.75
9.14
8.79
6
CPWR-BN-240-33
KY11003
34.75
9.14
8.79
7
CPWR-BB-0-190
KY11200
34.75
9.14
8.79
8
CPWR-BB-240-33
KY11201
34.75
9.14
8.79
9
CPWR-WW-0-190
KY11300
34.75
9.14
8.79
10
CPWR-WW-240-33
KY11301
34.75
9.14
8.79

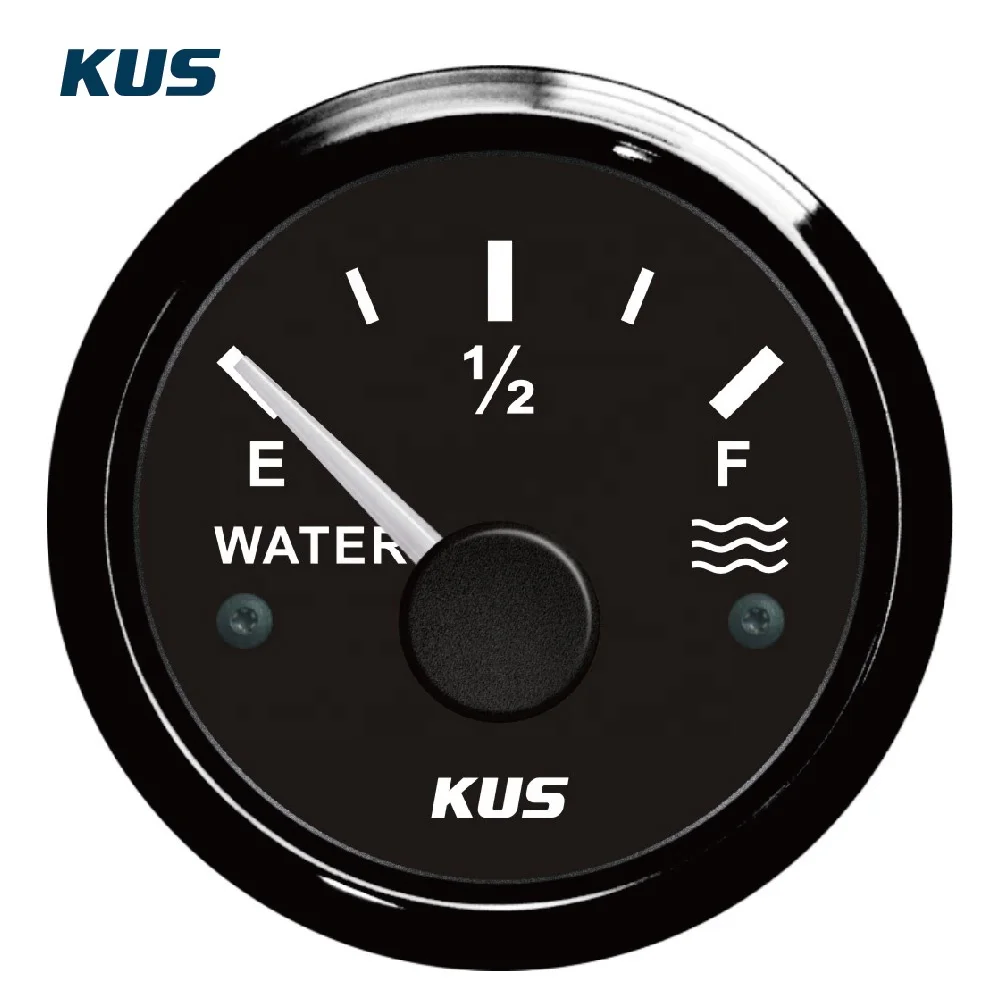

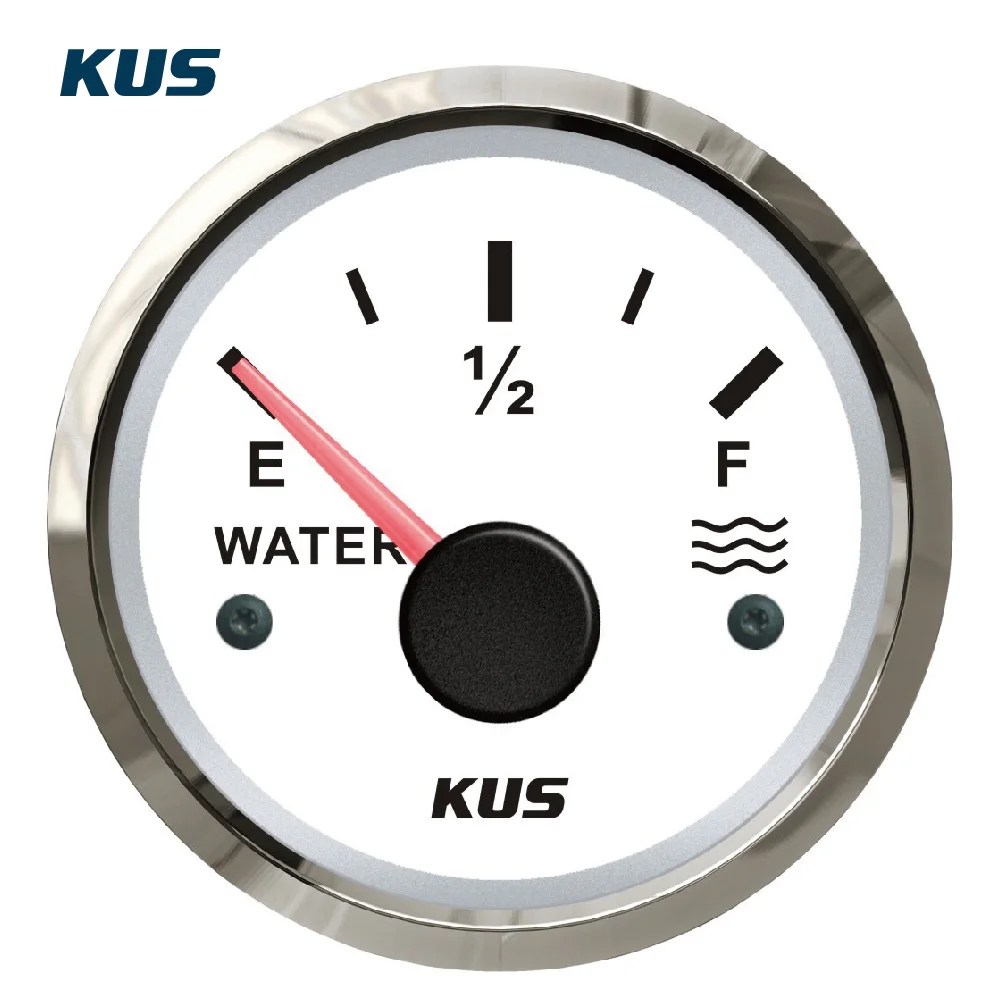

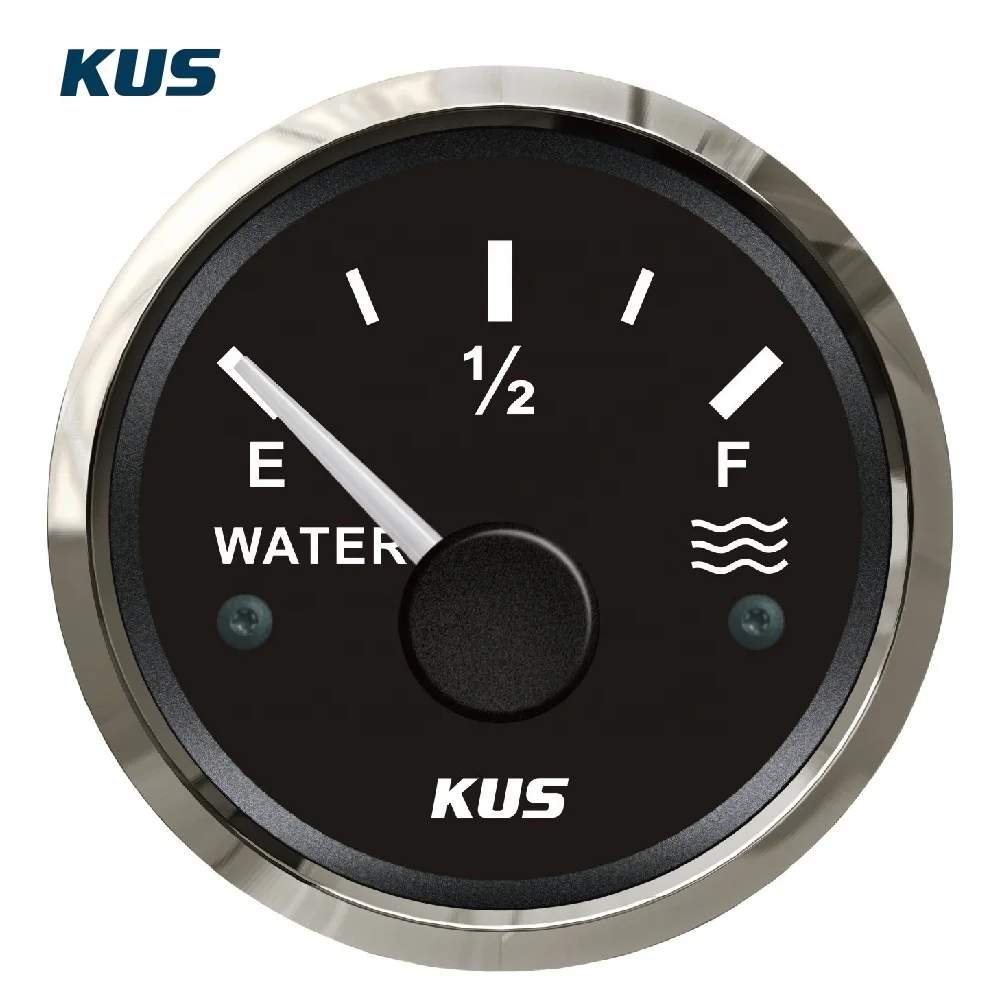

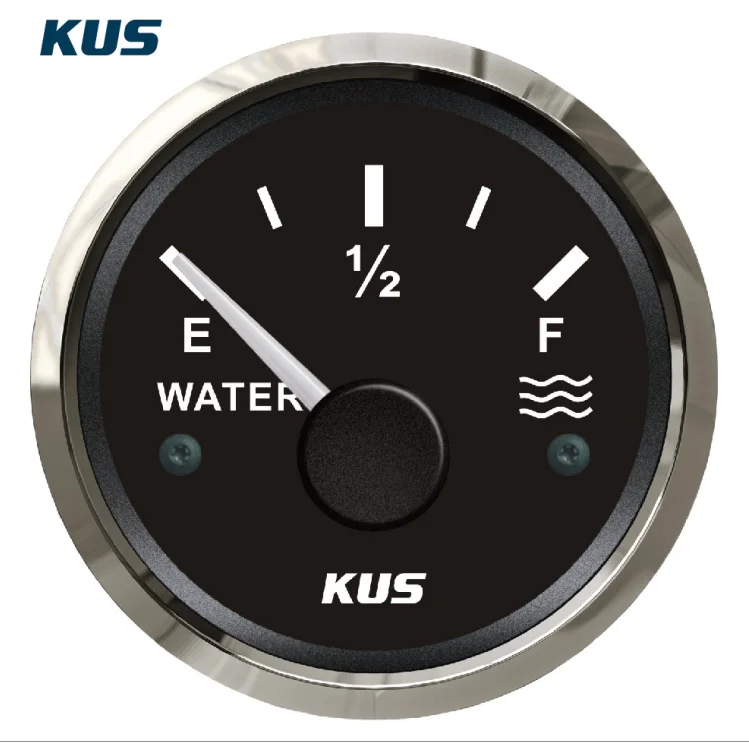

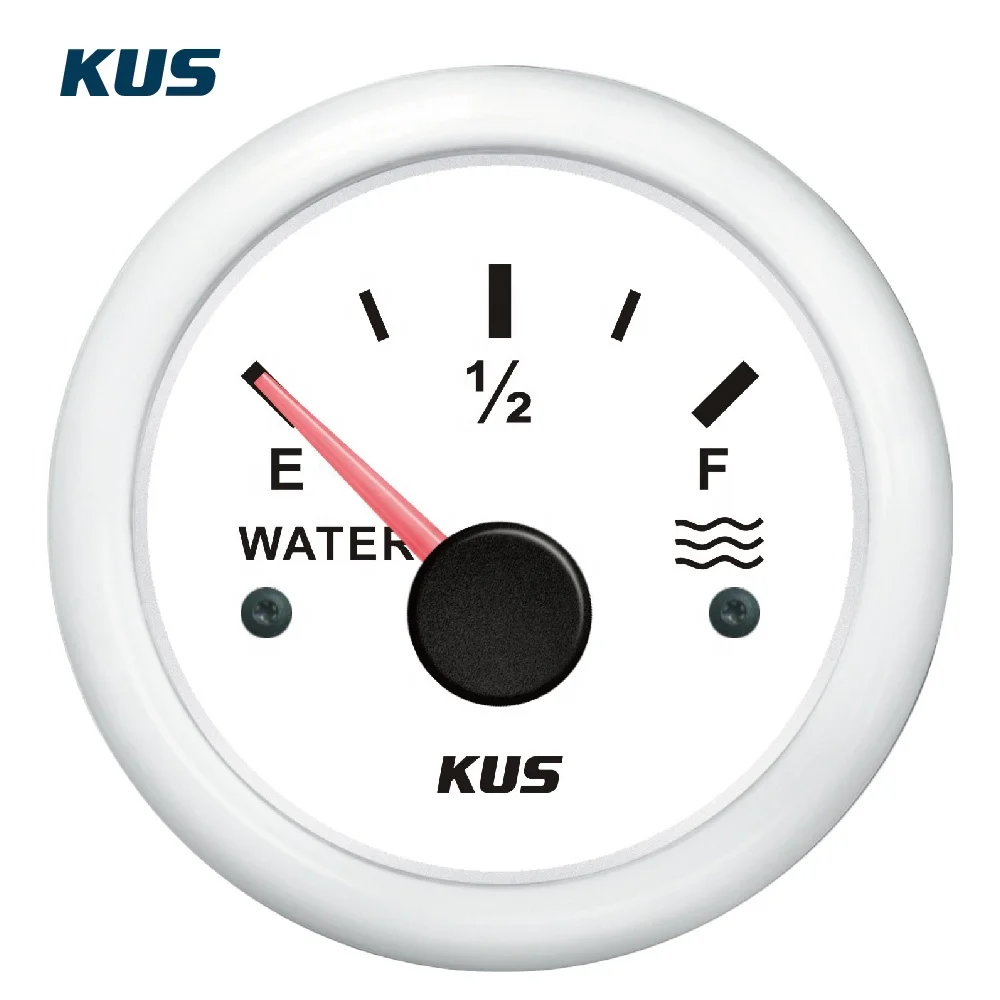

Product Photo
Workshop
Certifications
FAQ
Q: What is the operating voltage for the gauges?
A: The gauge can work with both 12V and 24V systems. When connecting to a 24V system, certain gauge will require a drop resistor on the connection between the power and the gauge.
Q: How to test if the level gauge is operating correctly?
A: 1.Make sure power to the gauge is not on. 2.Disconnect the black wire on the gauge to the sender. Leave enough wire at the gauge end to work with. 3. Turn on the power to the gauge. 4.Inspect the: 1) American standard gauges (240-33 ohms) will show Empty. Ground the black wire, and the needle will go to Full. 2) European standard gauges (0-190 ohms) will show Full. Ground the black wire, and the needle will go to Empty.
