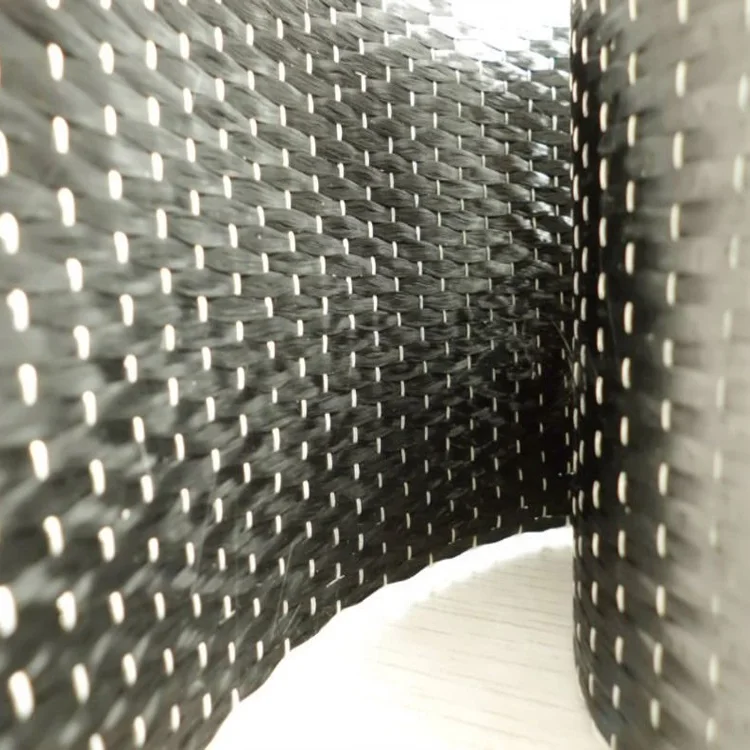

Unidirectional Carbon Fiber Fabric for Construction
- Category: >>>
- Supplier: Hitex Insulation (ningbo) Co. Ltd.
Share on (62027520166):
Product Overview
Description
Unidirectional Carbon Fiber Fabric for Construction
Product Description
Unidirectional carbon fiber fabric is a type of carbon reinforcement that is non-woven and features all fibers running in a single, parallel direction. With this style of fabric, there are no gaps between fibers, and those fibers lay flat. There is no cross-section weave that divides the fiber strength in half with another direction. This allows for the concentrated density of fibers that provide maximum longitudinal tensile potential—greater than any other weave of fabric. For comparison, this is 3 times the longitudinal tensile strength of structural stee at one-fifth of the weight density.

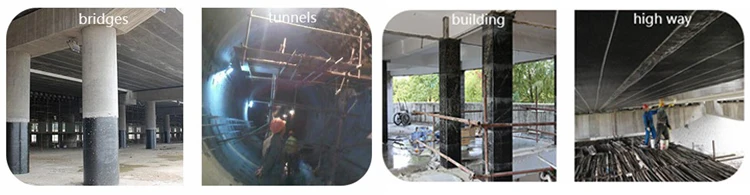

Application
l Construction Field.
l Aerospace Area.
l Sporting Goods.
l Mechanical Equipment.
l Ship Building.
l Automobile
l Advertising Panels
Features
l High Tensile Strength And Light Weight.
l Abrasion And Corrosion Resistance.
l High Electric Conductivity.
l High Elastic Modulus.
l High Temperature Resistant.
l Weave Ways : Unidirectional Woven.
l Width Can Be Customized.
Specification
Specifications | I | I I | ||||||
Areal Density | 200g/m2 | 300g/m2 | 400g/m2 | 600g/m2 | 200g/m2 | 300g/m2 | 400g/m2 | 600g/m2 |
Thickness | 0.111mm | 0.167mm | 0.2mm | 0.44mm | 0.111mm | 0.167mm | 0.2mm | 0.44mm |
Tensile Strength | ≥3400Mpa | ≥3400Mpa | ≥3400Mpa | ≥3400Mpa | ≥3000Mpa | ≥3000Mpa | ≥3000Mpa | ≥3000Mpa |
Tensile Modulus | ≥240GPa | ≥240GPa | ≥240GPa | ≥240GPa | ≥210GPa | ≥210GPa | ≥210Gap | ≥210Gap |
Elongation | ≥1.7% | ≥1.7% | ≥1.7% | ≥1.7% | ≥1.5% | ≥1.5% | ≥1.5% | ≥1.5% |
* Other specification fabrics not included above are upon requested

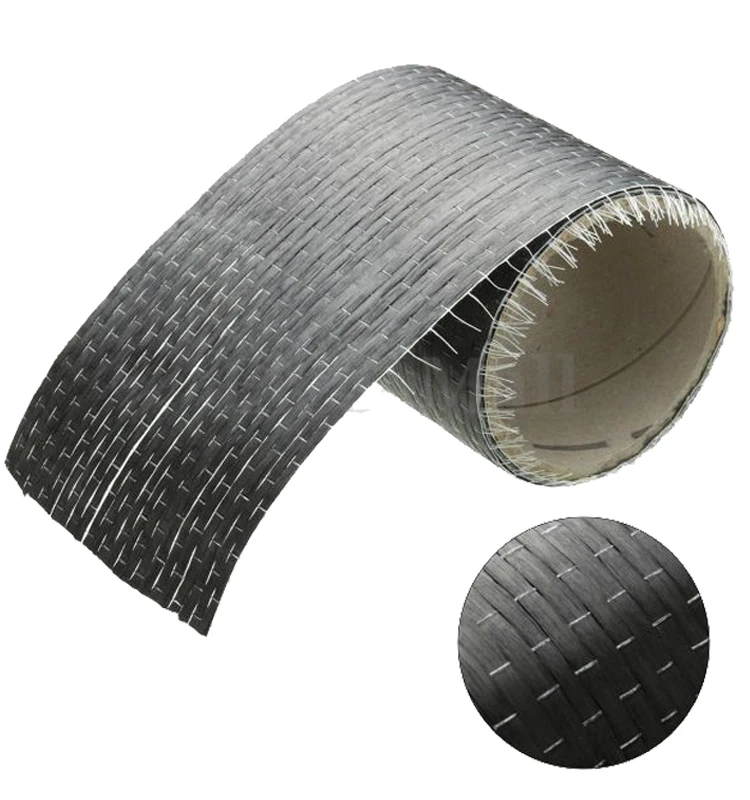

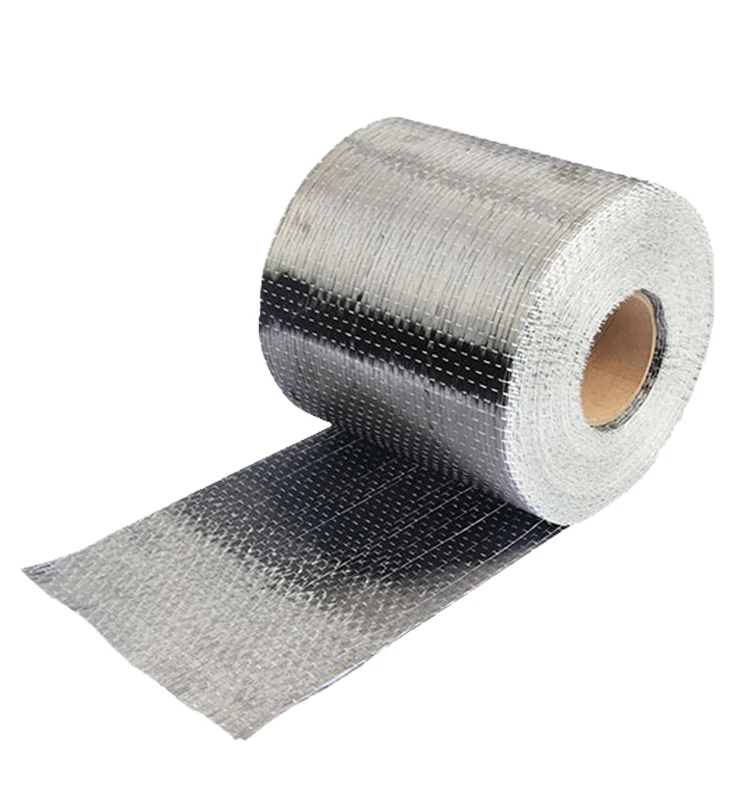

Detailed Images
