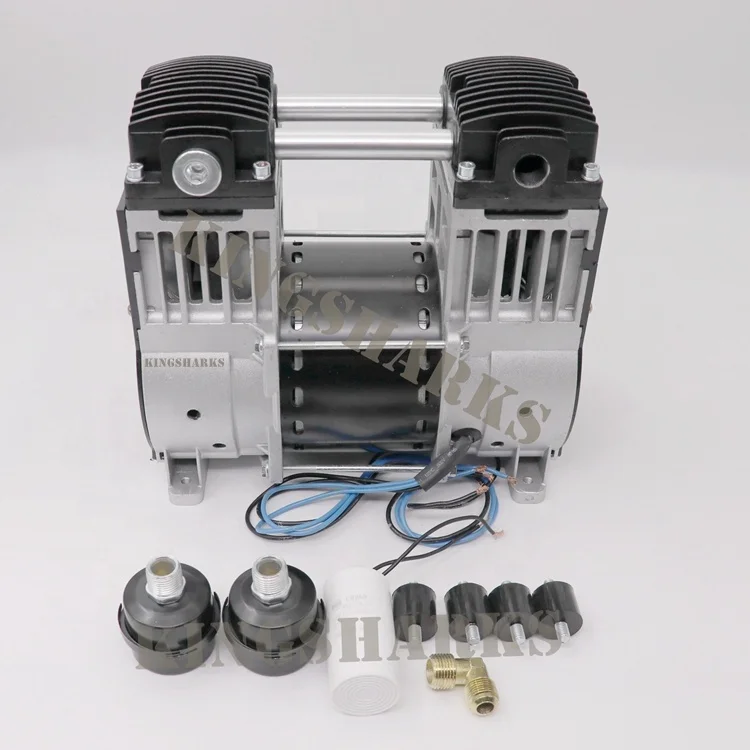

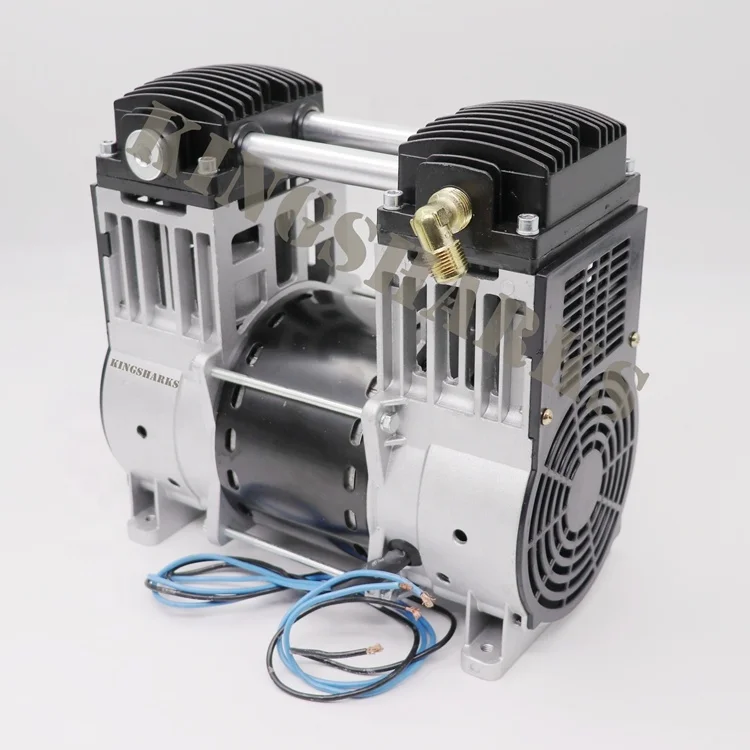

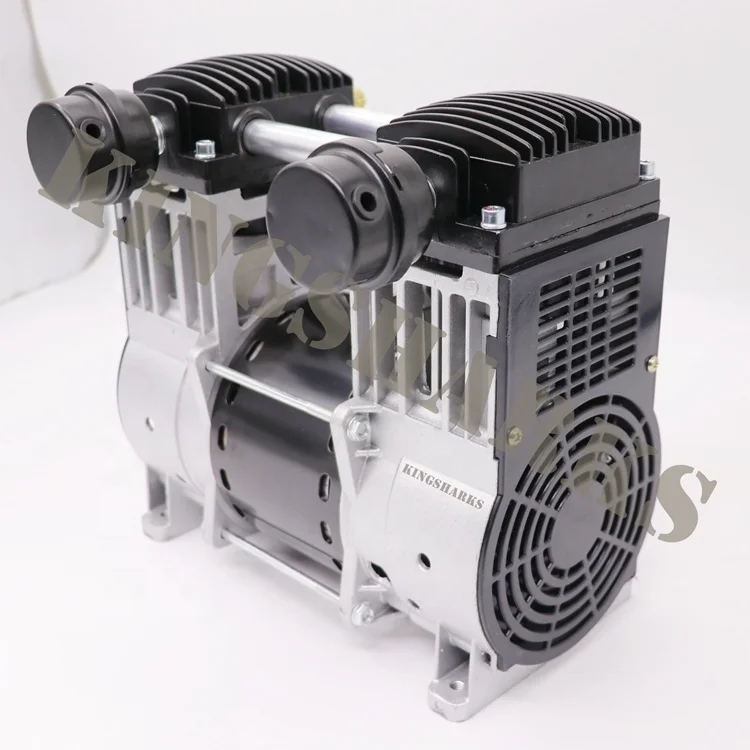

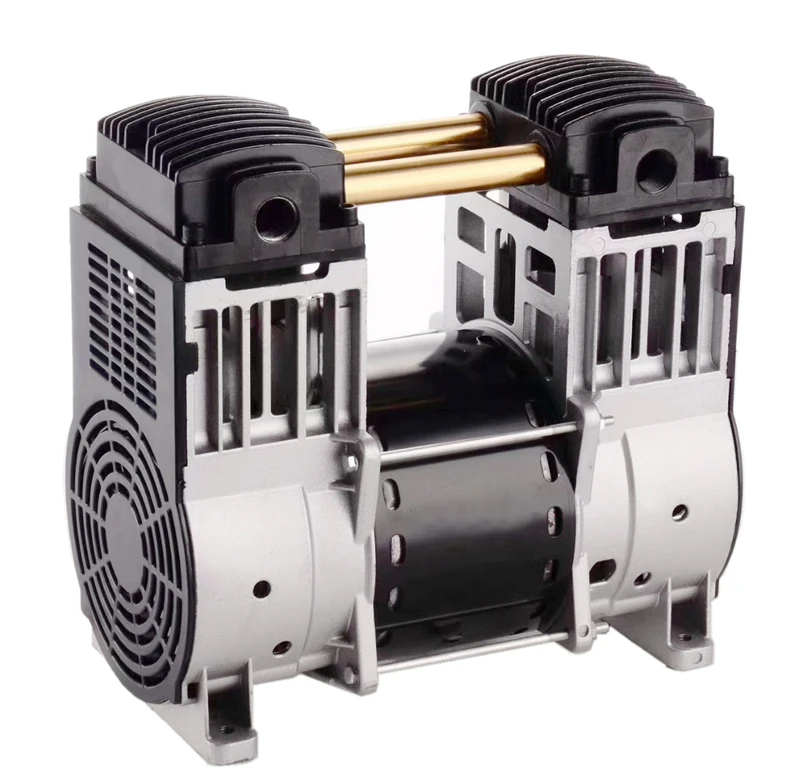

SH1600 Oil Free Air Compressor Pump Head

ITEM NO

SH1600

         Air flow rate
        (L/min@bar)

            Technical Specification

Name

Oil free air compressor

324 L/min@0 bar 240 L/min@2 bar
210 L/min@4 bar
189 L/min@6 bar
140 L/min@8 bar

Voltage :100V 110V/120V/220V/230V/380V ;
Power: 1600 W ;
Pressure : Continuous 7.0 bar ;
                Intermittent : 8.0 bar ;
                Restart : 1.0 bar
Noise : ≤70dB(A) ;
Speed: 1440rpm / 1700rpm ;
Temperature : -5℃-40℃ ;
Thermal protector : 135℃

With Overcurrent overload protector

Packing

2 pcs /carton

Dimension

305*156*288mm

Weight

18kg
