mobile mini mix wet concrete batching plant with silo 60 ton
US $48000-$50000
Widely used mini concrete batching plant for sale
- Category: Concrete Batching Plant >>>
- Supplier: Zhengzhou Jinsheng Construction Machinery Co. Ltd.
Share on (62027568618):
Product Overview
Description
Widely used mini concrete batching plant for sale
Product Attribute
Concrete Batching Plant Main Attribute
Product Details
Our products have the following six characteristics, which enable us to lead other
domestic and foreign manufacturers
Product Description

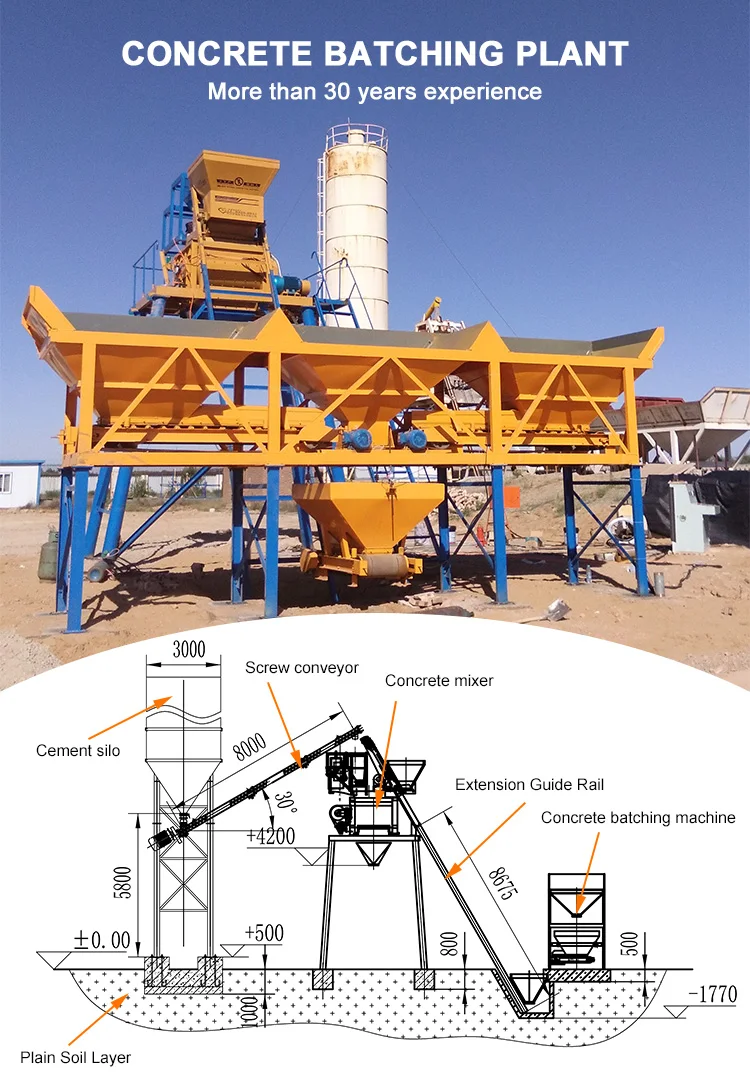

HZS concrete batching plant is also called concrete mixing plant, concrete mixing station. It includes horizontal twin-shaft compulsory concrete mixer, concrete batching machine, cement silo and screw conveyor, belt conveyor or skip hopper, and control room. It can produce a variety of concretes, such as plastic, dry hard concrete with high production efficiency, short mixing time, and easy operation. HZS concrete batching plant is widely used in large and medium-sized building construction, road and bridge, and precast plants. It is the ideal plant for the production of commercial concrete.
Product Parameters
The orange part of the current product parameters, click on the parameters and view the product description.
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
|---|---|---|---|---|---|---|---|---|---|
| Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
| Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
| Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
| Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | belt conveyor | Skip Hopper | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
| Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
| Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
| Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
| Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×200T | 4×200T |
| Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
| Total Installed Capacity(kw) | 60 | 78.5 | 111 | 145 | 110 | 198.06 | 210 | 230 | 288 |
Related Products
You can choose the following machine for a whole production line.
Manufacturer Procedure
Production workshop display
Customer Training
We offer systematic comprehensive training for the customer.
Zhengzhou Jinsheng Construction Machinery Co., Ltd.
We are a comprehensive enterprise which integrates researching, manufacturing, market developing and service for concrete batching plant equipmentand concrete mixer. Jinsheng employees are passionate spirit, we will provide first-class products to customers and strive for best services. View details
Contact us For more details about price, packing, shipping and discount. E-mail: zzjs(@)concretemixermanufacturer.com
Tel / Whatsapp: +86-132 1306 1333
WeChat: concrete-plant
Tel / Whatsapp: +86-132 1306 1333
WeChat: concrete-plant
Q: For providing you the suitable quotation we need to know the following information?
A: 1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product? Once we get your answers,we can provide you the best quotation immediately. Remarks: The price will depend on different models. Reply message you will get 5% discount price.A
Q: What about Warranty of the products?
A: Jinsheng Construction Machinery grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will replace or repair the defective parts freely at our discretion.A
Q: The reason you choose Jinsheng Construction Machinery?
A: 1. Professional manufacturer of supplying construction equipment including concrete batching plant, concrete mixer, cement silo, concrete truck and stabilized soil mixing plant.
2. Experienced and professional R&D team and manufacturing team;
3. Professional sales team consisted of dedicated, dynamic and innovative people with international version.
4. Professional logistics service ensuring safety and timely delivery of products all over the world through ocean, airline, road and railway.
5.Contact us for more details about price, packing, shipping and discount.
