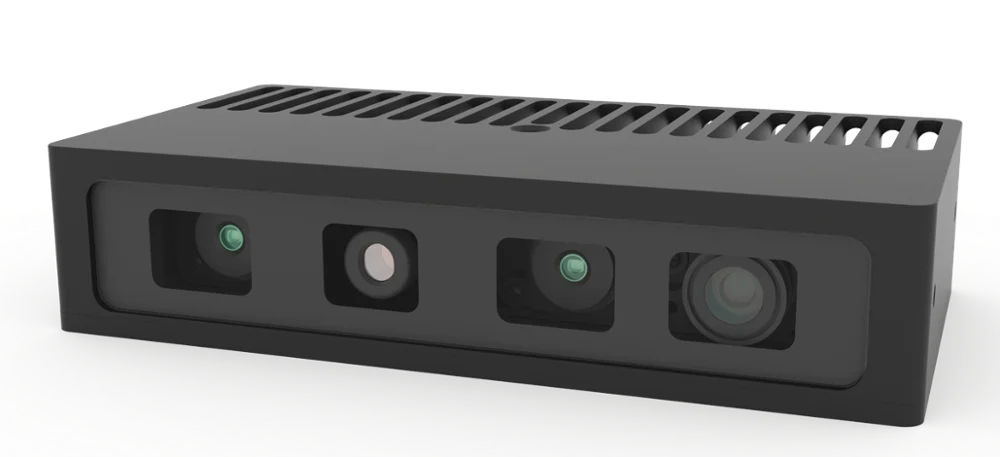

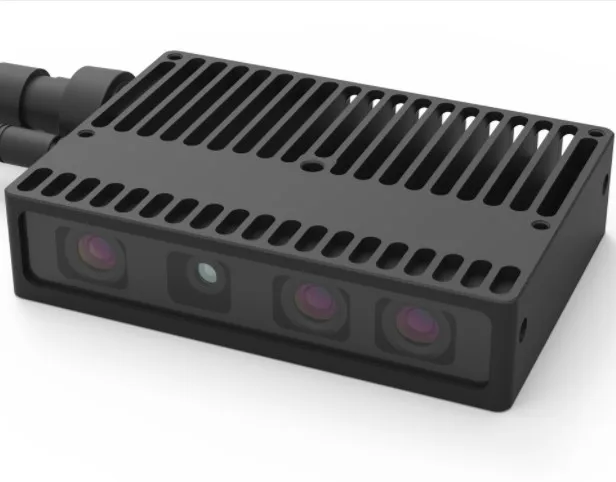

3D camera Robot navigation obstacle avoidance structured light VR/AR binocular depth sensor camera

Product features

The 3D camera uses independent intellectual property active binocular vision technology, based on the common binocular vision principle, coupled with infrared structured light-assisted projection, which can obtain more depth of field cameras and stronger environmental adaptability than traditional binocular vision.

Product Features

1: Active Binocular Technology for Independent Intellectual Property

2: Output RGB image, depth map, point cloud or grayscale image

3: Multi-platform support - windows / linux / android / ros

4: depth resolution up to 960p level 1120*920

5: Maximum 15fps depth frame rate

6: 0.5-6m measuring distance

7: Measurement accuracy is at least 0.25% of the distance

8: Support for embedded computing - the host only runs the driver

9: Laser safety reaches level 1

10: Easy to integrate into customer terminal product design

11: Customized service for mass production customers

Applications:

Robot vision 2D and 3D SLAM

3D content generation

Industrial measurement, parcel monitoring, population statistics.

3D motion control

Full 3D capture technology

Technical Parameters:

Size: 115*26*33

Range: 0.5-6m

Field of view (horizontal/vertical): 56/46 degrees

Resolution Depth: 1120*920 RGB: 560*460

Frame frequency depth 7fps@1120*920; 15fps@560*460 RGB15FPS

Measurement accuracy: 0.25%-1%

Multi-device without interference: support

Laser safety: * a class

Output format: depth map / point cloud image, RGB image / grayscale image

Power interface: USB2.0

Voltage / power consumption: 5v / 3w

Temperature: Storage: 0-70 degrees Operation 0-60 degrees

Host operation: Linux/Win/Androia/ROS

SDK: Free SDK/OpenNI2
