Digital Portable Veterinary Ultrasound Scanner Diagnostic System For Pig And Dog

Product Overview

Description

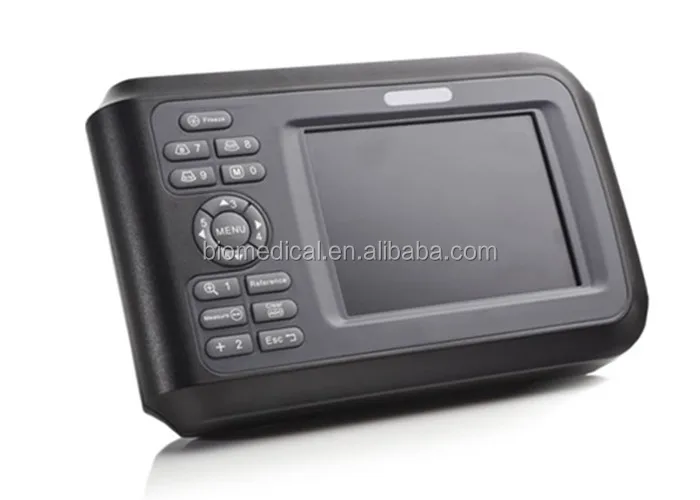

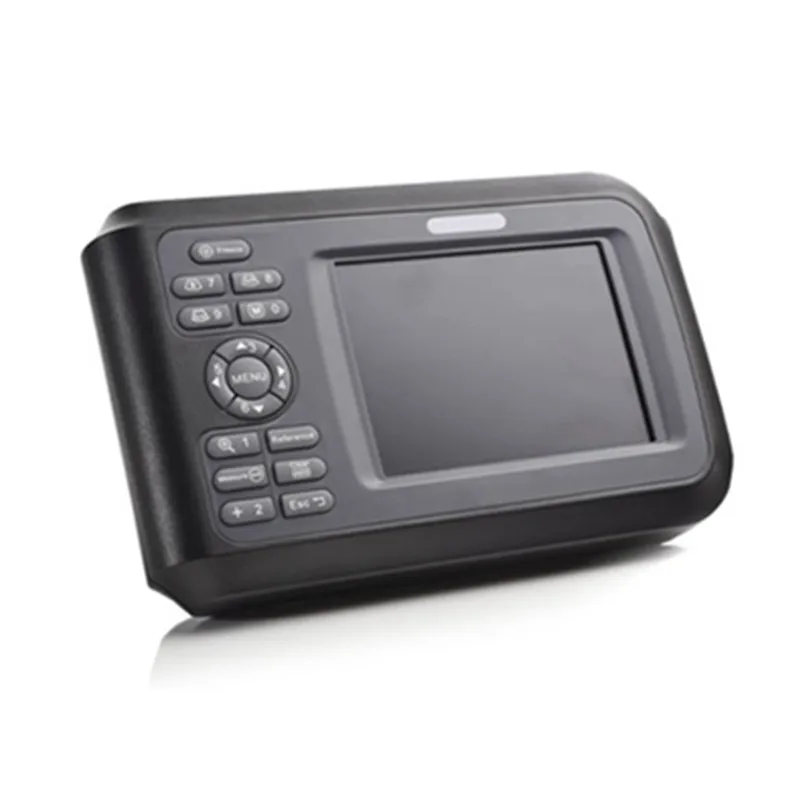

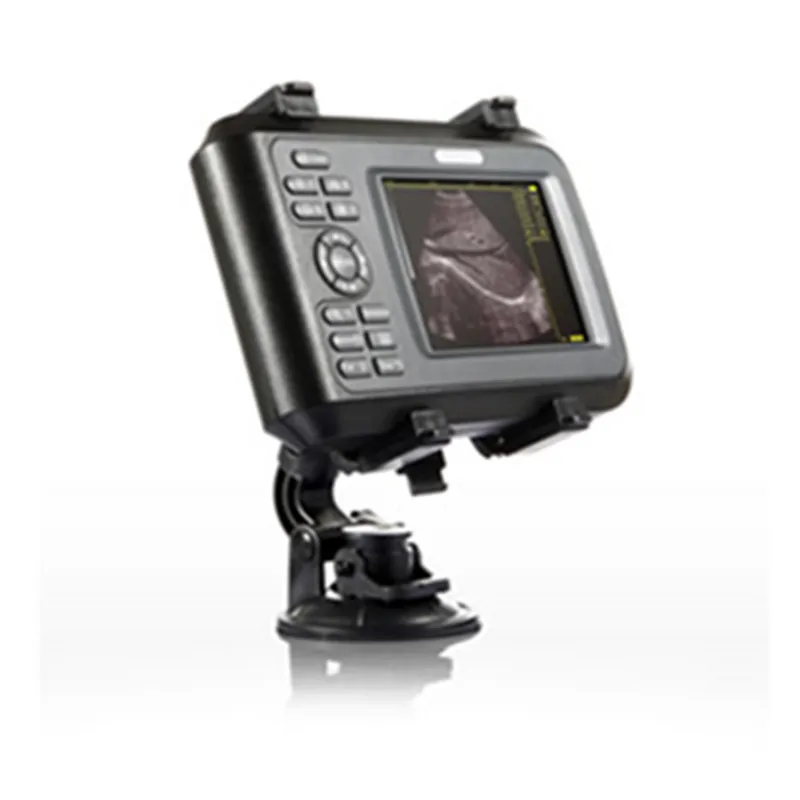

Digital Portable Veterinary Ultrasound Scanner Diagnostic System For Pig And Dog





This handheld black and white ultrasound equipment adopted the convex,It is Suitable for diagnosis on horses, cows, sheep, pigs, cats and dogs and other animals, which is high resolution linear/convex/micro convex ultrasound scanning diagnostic equipment.Built-in rechargeable battery, small and light .Convenient to carry suitable farms and pet hospitals.

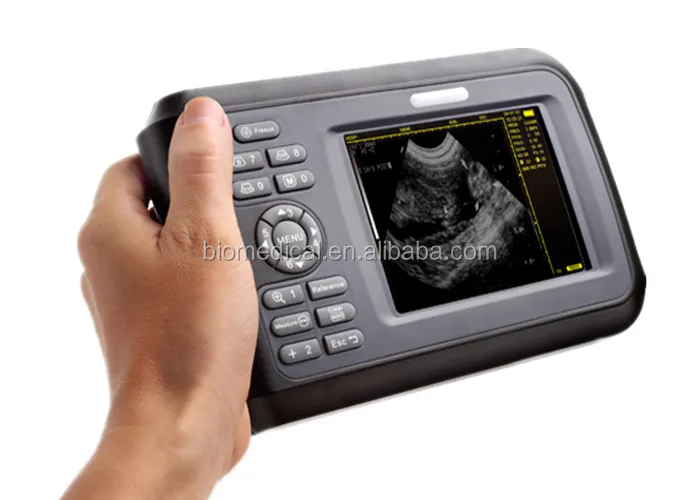

Handheld full digital black and white ultrasonic scanner



Main Features

1. Small size, light weight ( 700 g), handheld

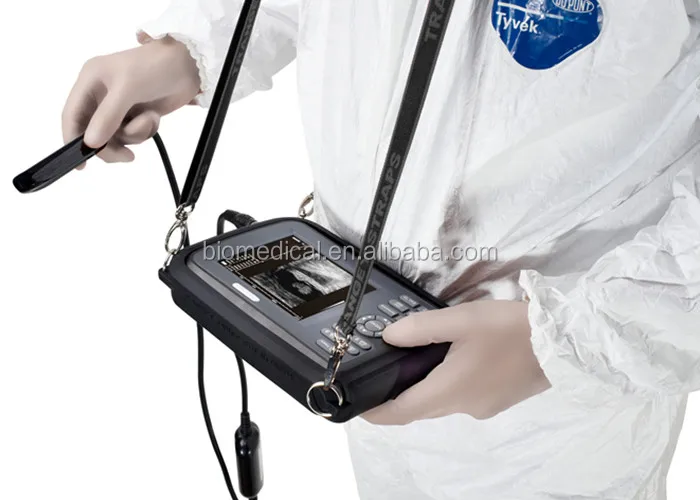

2. Compact main body with should & wrist belts, free hands

3. Rubber protector around the scanner against dirt and impact from the outside

4. Splash water

5. Li-ion rechargeable battery can be removed easily. Battery charging time is about 2 hours.

6. Both battery and AC powered.

MODEL		VETERINARY     ULTRASOUND SCANNER

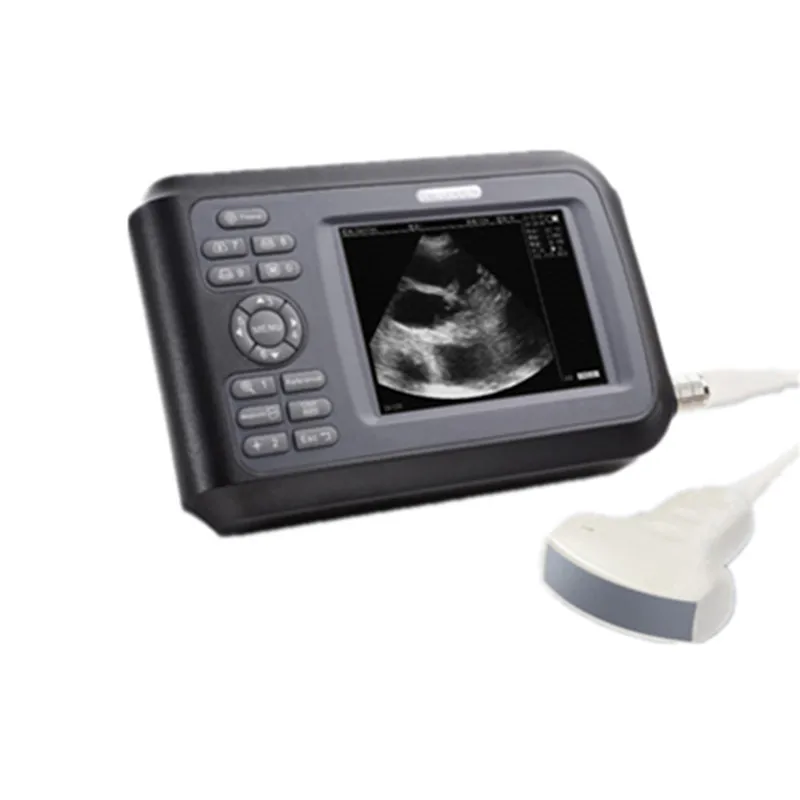

Probe		linear probe	convex probe	micro-convex probe

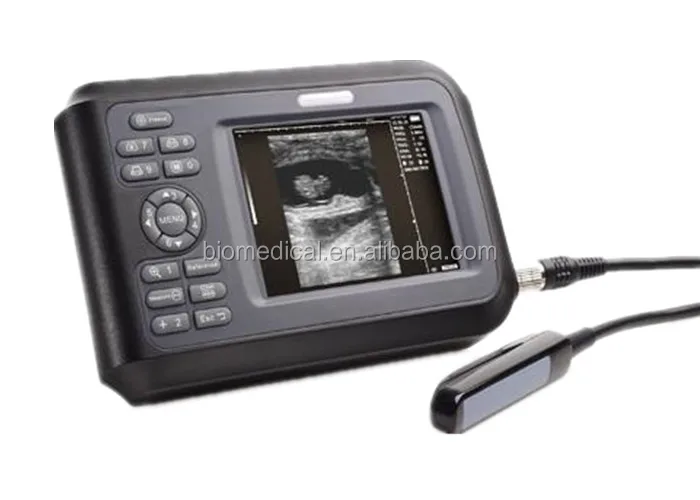

		6.5MHz     Rectal probe
Detect Depth(mm)		≥90	≥160	≥100
Resolution(mm)	Lateral	≤1 (Depth≤60)	≤3 (Depth≤80)	≤3 (Depth≤60)
			≤5 (80<Depth≤130)
	Axial	≤1 (Depth≤80)	≤1 (Depth≤80)	≤1 (Depth≤60)
Blind zone(mm)		≤3	≤6	≤5
Geometric     position precision	Horizontal	≤5	≤7.5	≤7.5
	Vertical	≤5	≤5	≤5
Monitor size		5.5 inch TFT color LCD
Dimensions		230*120*42mm
Weight		700g
keyboard		backlight key
Display mode		B, B+B,B+M, M, 4B
Image gray scale		256 levels
Image storage		64 GB USB disk storage
Dynamic range		0~120dB adjustable
Cine loop		≥400 frame
Output interface		VIDEO(PALD,NTSC),USB2.0
Image reservation		Up/down, left/right
Probe frequency		2.5MHz-7.5MHz
Focus position		dynamic electron focusing
OB Reservation		BPD,GS,CRL,HC,AC,EDD,GA,FW
Application		professional software packgae in Obstetrics,Gynecology,Urology,Cardiology and Small parts
Image Process		Histogram, Color encode, GAMA, Image Smoothen
Frame correlation		Adjustable
Measurement		Distance, circumference, area, volume, heart rate. GA,EDD
Notation		Date, time, name, sex, age, hospital name,Full screen words edit
output report		Measurement
Battery Continuous working		≥3Hours
