Custom high efficiency 72 cell solar plates 36V 300W 350W Sunpower Mono Photovoltaic Monocrystalline Polycrystalline Solar Panel
- Category: >>>
- Supplier: Shenzhen Sunsun Solarenergy Limited
Share on (62027844309):
Product Overview
Description
Recommend Products
All of the following ltems have in Stock, Please Click the Link to Purchase, More than 10pcs, Welcome to send us message for Discount!!!
Product Information

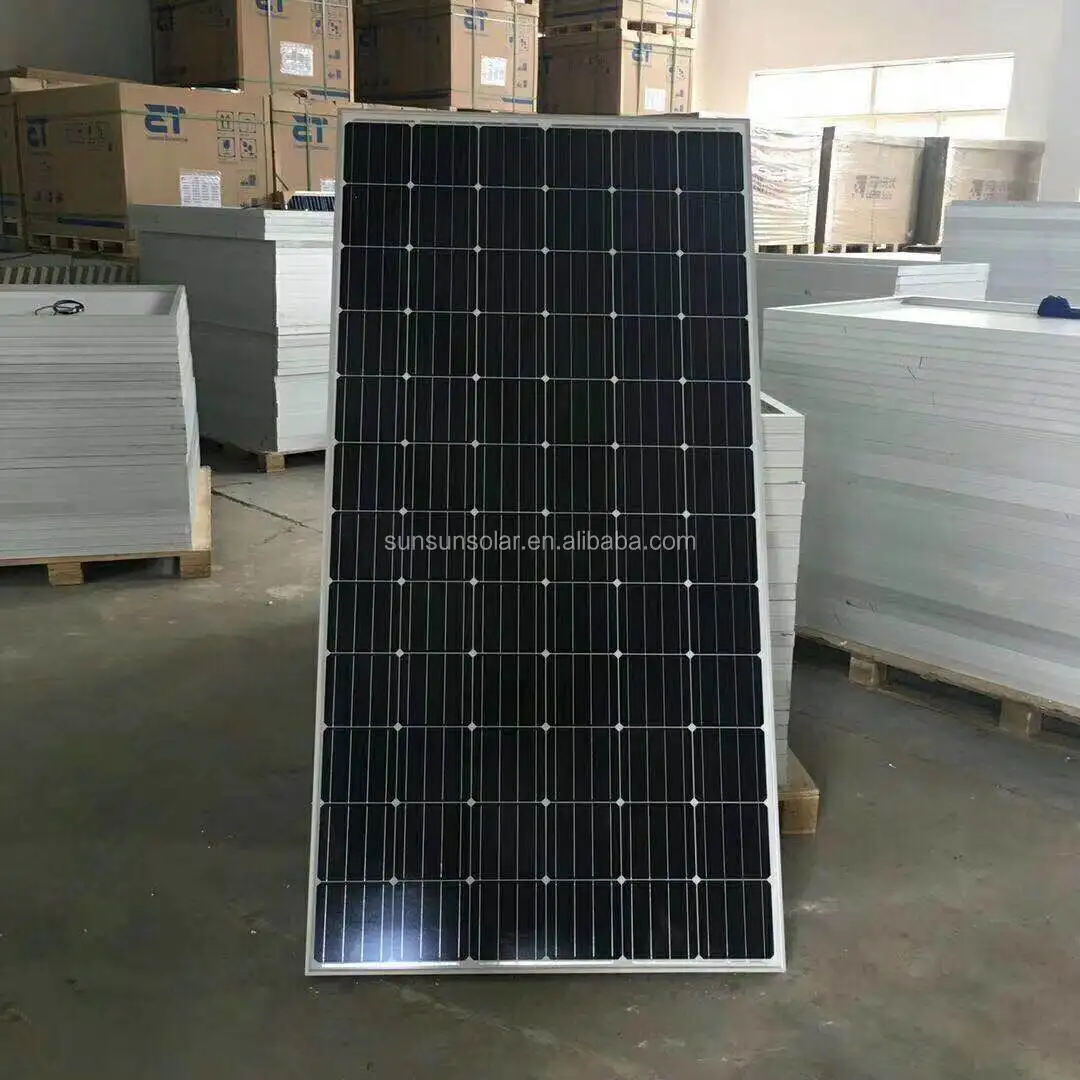

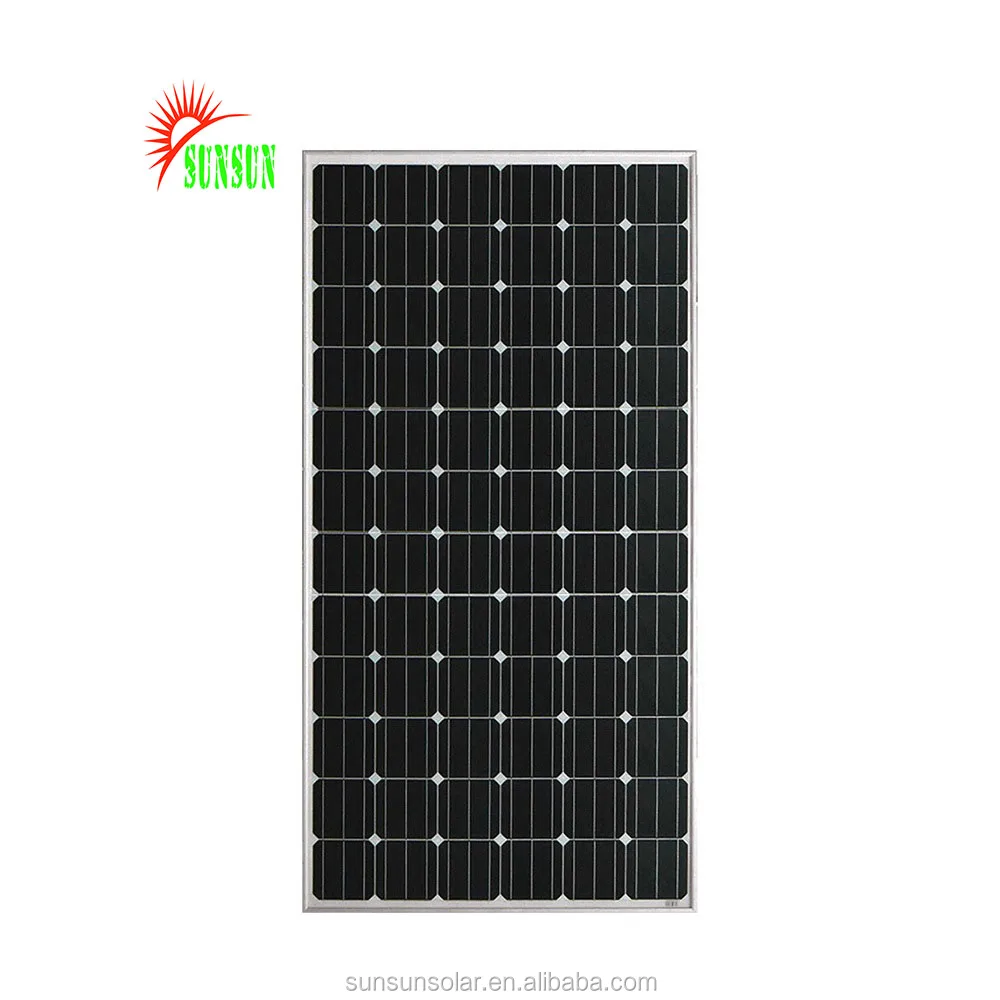

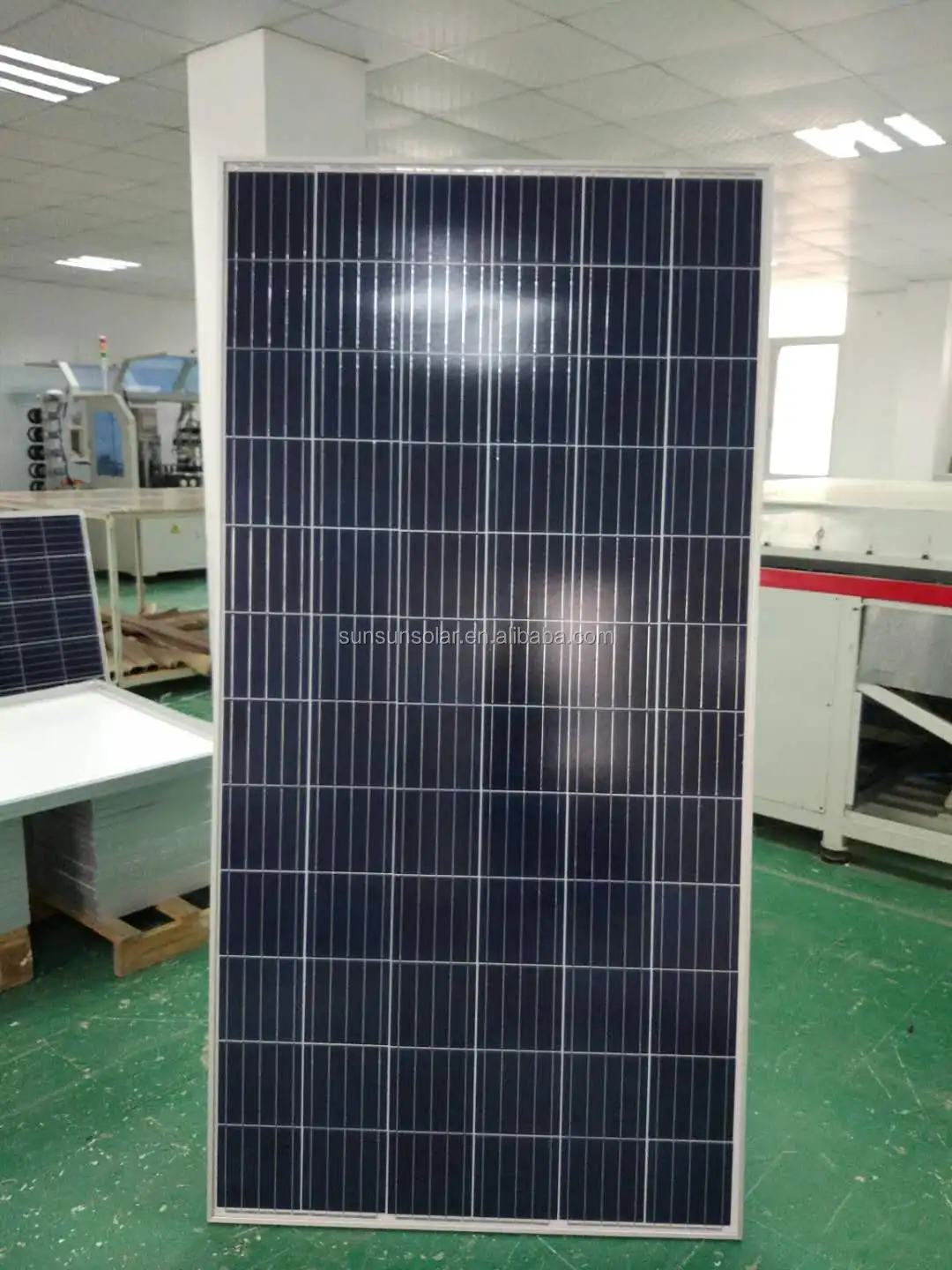

72 cell series solar plates 36V 330W 320W 330W 340W 350W Mono Photovoltaic Solar Panel
High module conversion efficiency
(up to 20%), through superior cell technology and
leading manufacturing capability
Positive tolerance
Guaranteed tolerance from ±3% ensures
power output reliability
Excellent weak light performance
Excellent performance under low light environments
(mornings, evenings, and cloudy days)
Withstand high wind and snow loads
Entire module certified to withstand high wind loads
(2400 Pascal) and snow loads (5400 Pascal) *
(up to 20%), through superior cell technology and
leading manufacturing capability
Positive tolerance
Guaranteed tolerance from ±3% ensures
power output reliability
Excellent weak light performance
Excellent performance under low light environments
(mornings, evenings, and cloudy days)
Withstand high wind and snow loads
Entire module certified to withstand high wind loads
(2400 Pascal) and snow loads (5400 Pascal) *
Model | SS-P360WP |
Optimum Operating Voltage (Vmp) | 36.0 V |
Optimum Operating Current (Imp) | 10.00A |
Open - Circuit Voltage (Voc) | 42.3 V |
Short - Circuit Current (Isc) | 10.06A |
Maximum Power at STC (Pmax) | 360 W |
Cell Efficiency | 20% |
Operating Module Temperature | -40 °C to +85 °C |
Maximum System Voltage | 1000 V DC (IEC) / 600 V DC (UL) |
Maximum Series Fuse Rating | 20 A |
Power Tolerance | ±3 % |
Solar Cell | Poly-crystalline |
No. of Cells | 72 (6 × 12) |
Dimensions | 1950× 980× 50mm |
Weight | 26.0 kgs |
Front Glass | 3.2 mm tempered glass |
Frame | Anodized aluminum alloy |
Junction Box | IP67 rated |
Output Cables | TUV (2Pfg1169:2007), UL 4703, UL 44 |
Optional | |
Connectors | Optional |
Nominal Operating Cell Temperature (NOCT) | 45±2°C |
Temperature Coefficient of Pmax | -0.44 %/°C |
Temperature Coefficient of Voc | -0.33 %/°C |
Temperature Coefficient of Isc | 0.055 %/°C |
