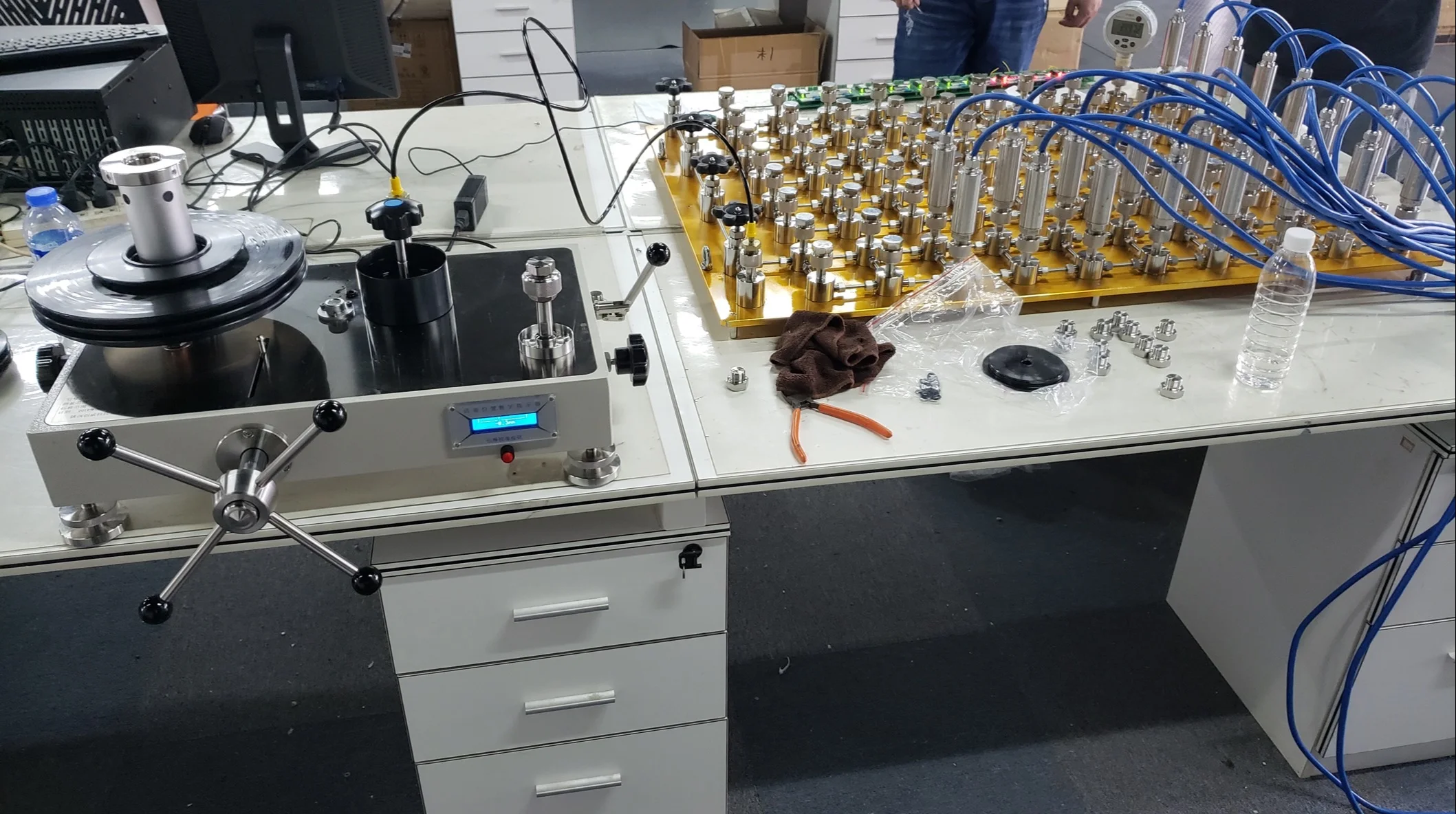

Description Working Principle Mechanical dead-weight testers or primary standards are the most accurate reference instruments for pressure. Their functional principle is based on the physical principle of pressure = force/area. Mass pieces placed on the top of a piston-cylinder system are the source of a precisely defined force. By producing a certain (counter) pressure inside the pressure balance an equilibrium is achieved: the mass pieces, including the free-running piston of the piston-cylinder system, are floating, which will lead to a very accurate pressure at the test port.
Application 1.primary standard for defining the pressure scale in a range of up to 160MPa 2. pressure reference for factory and calibration lab for the testing, adjustment and calibration of pressure measuring instruments.
.
Specification
Pressure range: 50~2500 bar Accuracy: 0.005%F.S.; 0.01%F.S.; 0.02%F.S.; 0.05% F.S.
Able to test two gauges synchronously; Applied the fast pressure plug; no oil leakage;
Abrasive resistance is improved because of the high-tensile and high-hardness wolfram carbide material;
The piston rod is anti breakage structure.
The piston system configures Eddy current displacement sensor,adopts integrated double row LCD digital cursor display ( which is firstly invented in China), therefore piston position can be observed anytime, which is sensitive, intuitional,accurate.
With pre-pressure pump, it can fill oil to large capacity gauge, several gauges or long distance calibration pipeline system.
The tester junction with stop valve and piston stop valve, so it can be used as independent pressure source, when piston stop valve is closed .
Quality Gurantee
Company Information
Shaanxi Creat Wit Technology Co., Ltd. (CW) is high-tech enterprise in Shaanxi province, China, founded in July, 2006.
It is mainly engaged in developing, manufacturing and selling the thermal industries calibration equipment, such as dead weight tester, temperature measurement and other calibration instruments.
