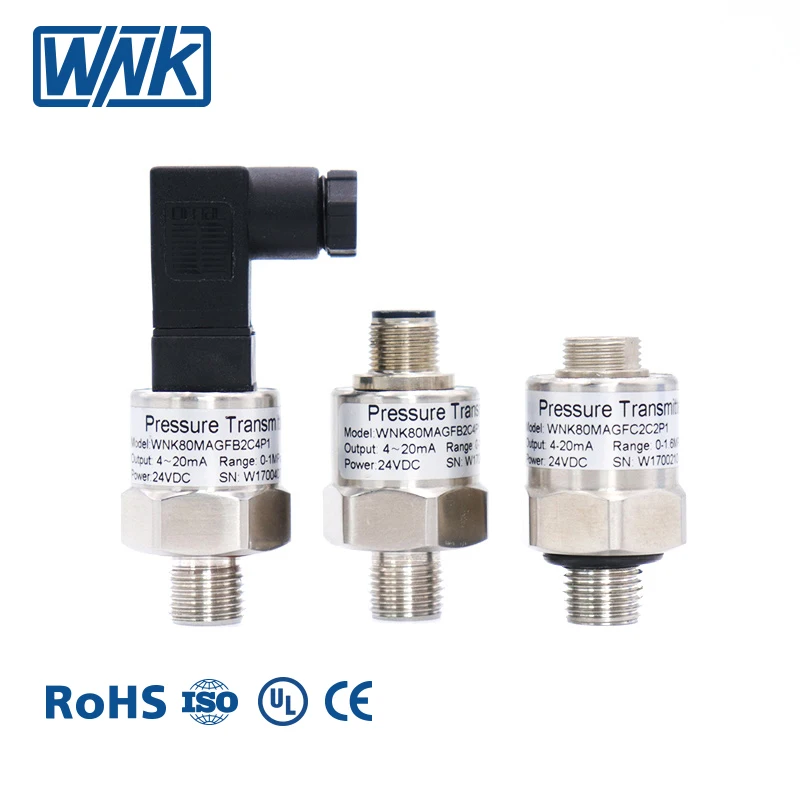

 WNK 4-20mA 1-5V 0-60bar Vacuum Absolute Pressure Sensor For Water Air Gas



Product Description

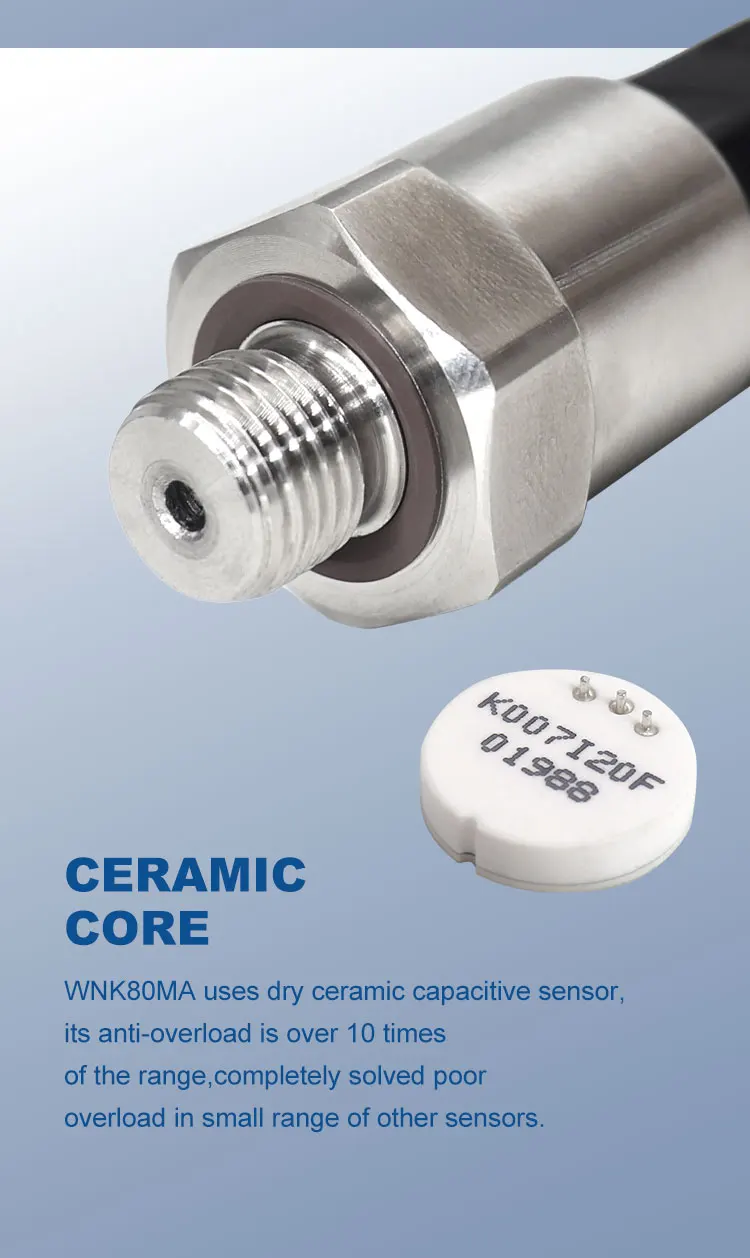

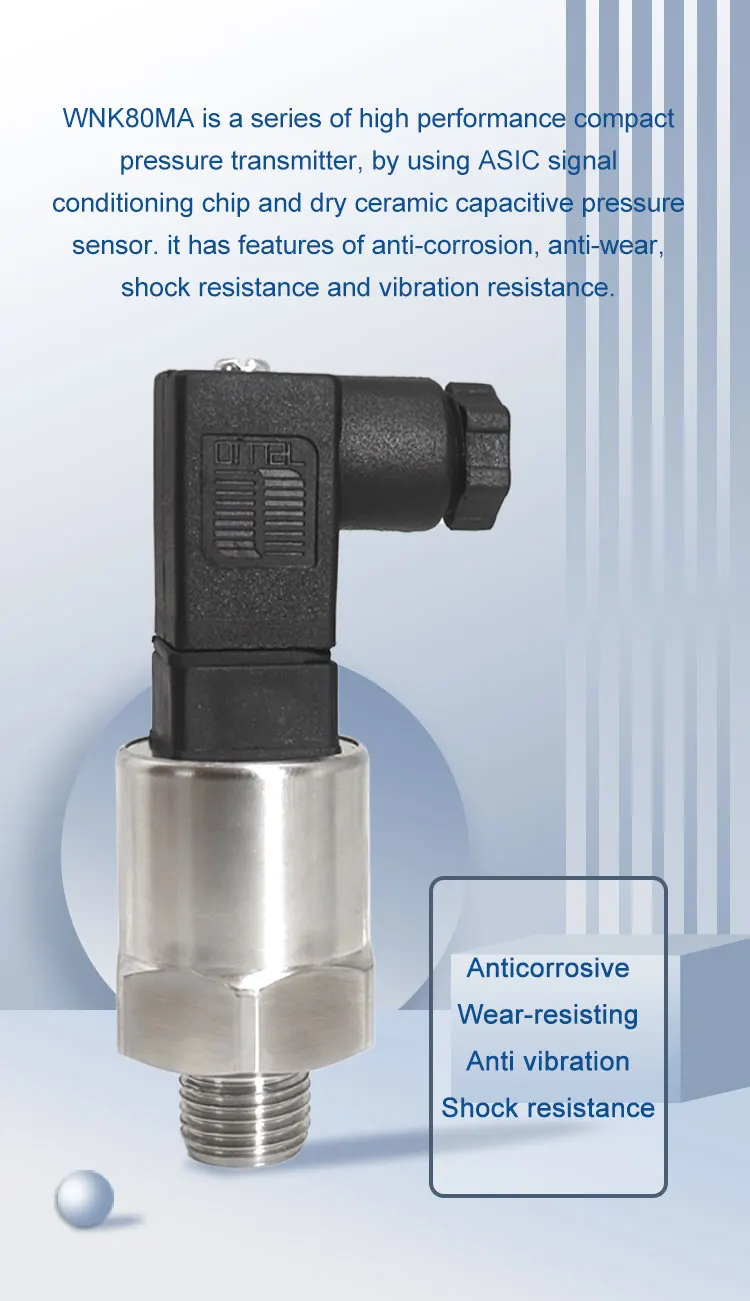

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

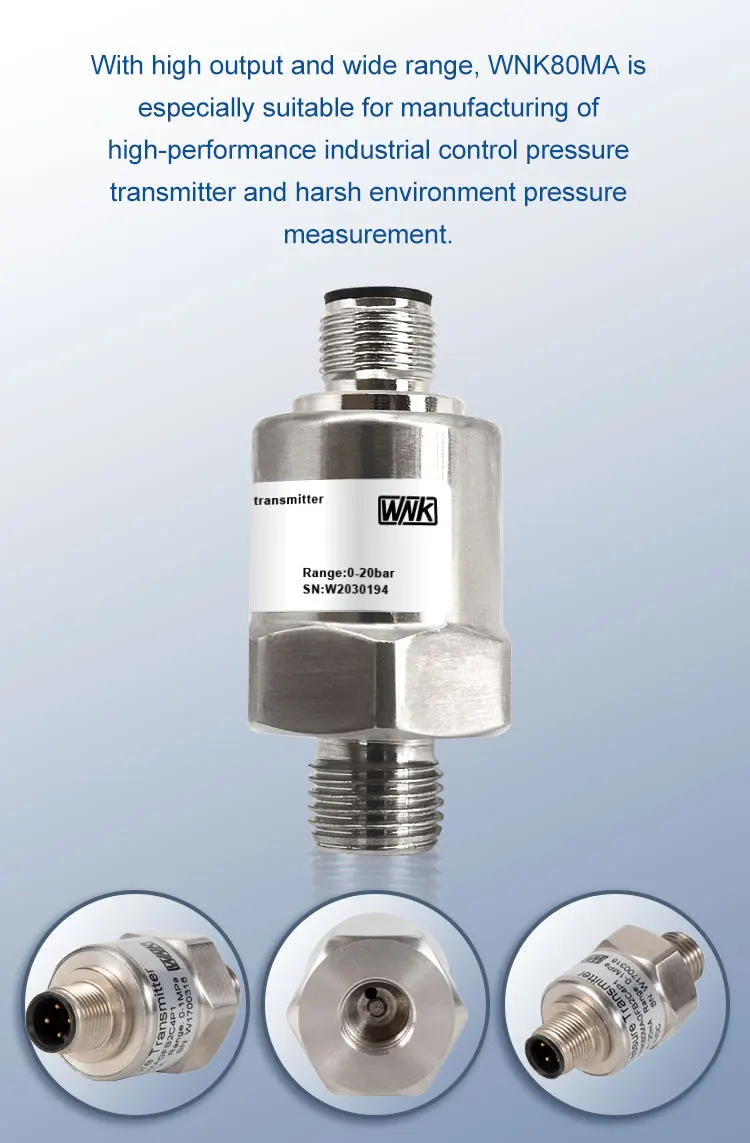

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

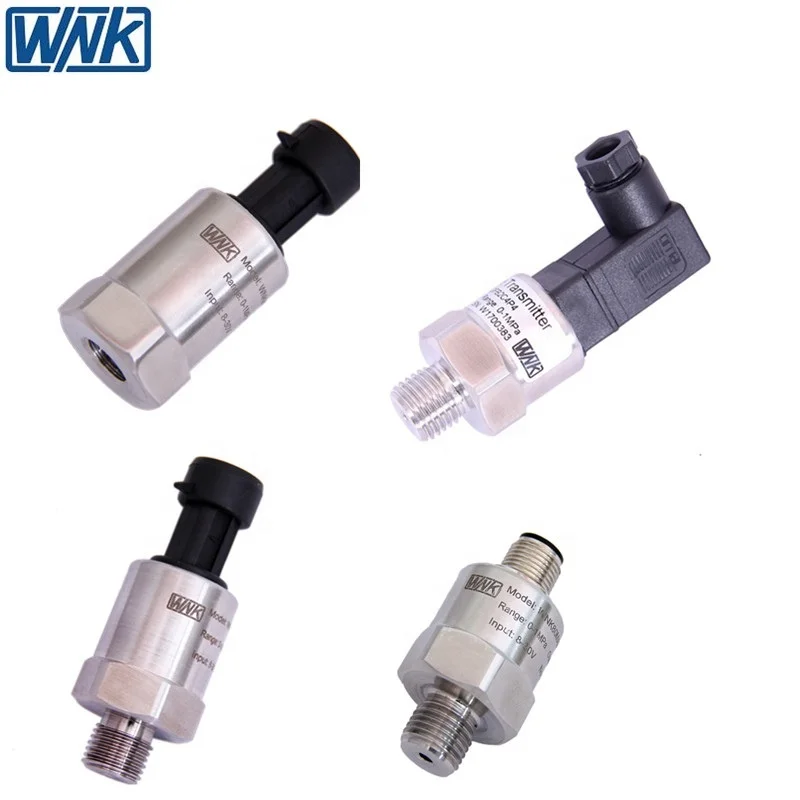

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter



Applicable media


Liquid, Gas


Pressure range


0-60bar


Pressure measurment


Gauge Pressure, Absolute pressure, Sealing pressure


Output


4-20mA/0.5-4.5V/1 -5V/0-10V/I2C , Customization


Accuracy(linearity,Hysteresis and Repeatability)


1%F.S.(Typical)


Power supply


24VDC/12VDC/5VDC/3.3V


Compensation temperature


-20~85ºC


Ambient temperature


-40~125ºC


Working temperature


-40~125ºC


Temperature drift(zero)


±0.15% F.S. (-20~85ºC)


Temperature drift(full range)


±0.15% F.S. (-20~85ºC)

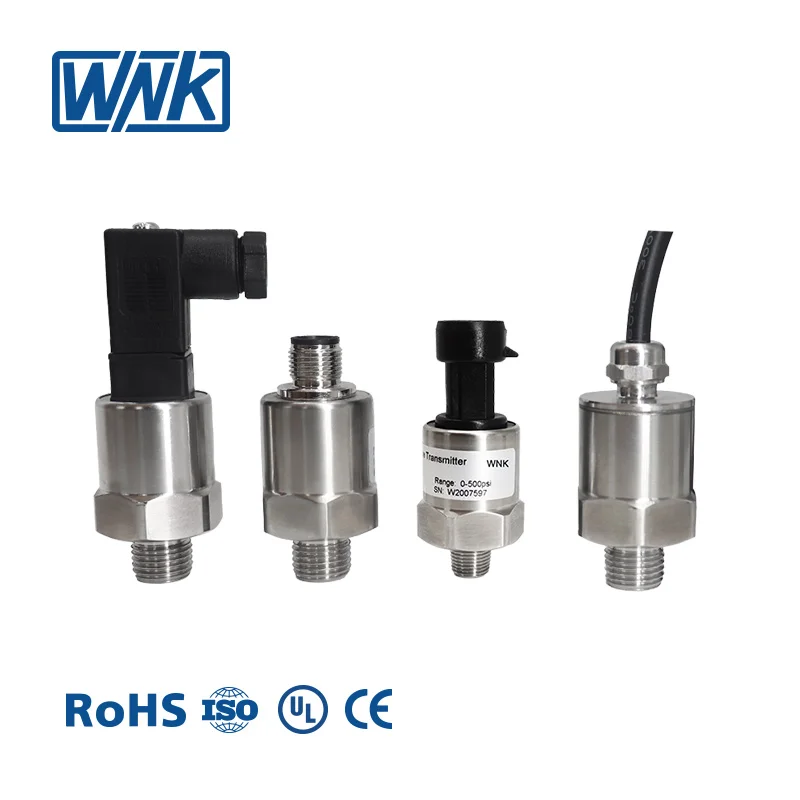

power(electrical) connect

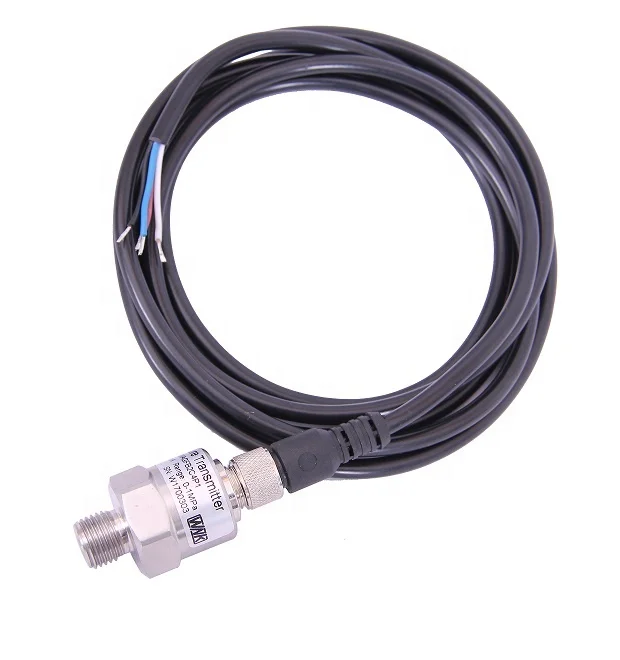

Parkard, M12,  DIN43650, Cable outlet


Mechanical connection


G1/4, 1/4NPT, 1/8NPT,  M12*1.5, customize


Housing material


304 stainless steel(inner core is 316 stainless steel)


Protection


IP65













Product Spec

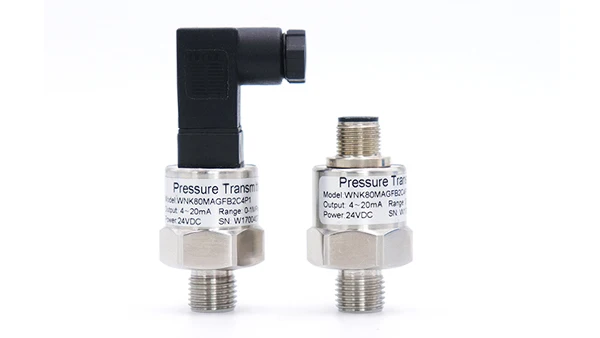

 18

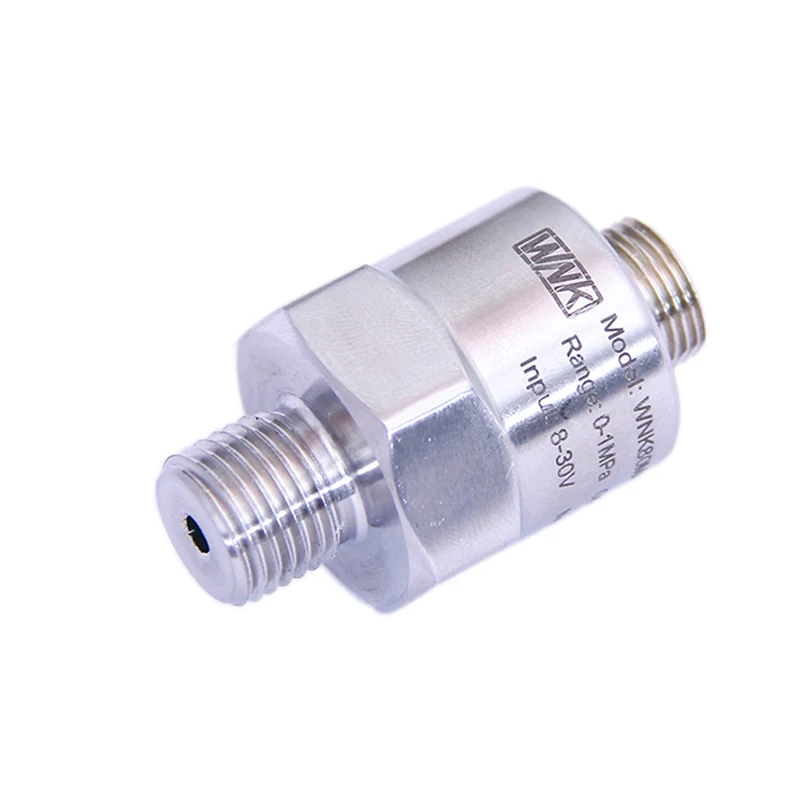

WNK-80MA(3)







Connection


















Company Information


1





Exhibition


2





3





4








Our Certificate


5


6






Packaging & Shipping


4











FAQ











A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.






Q: What's your quality control system?




A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.








Q: What is the warranty of your products?




A: 12 month from shipment date, for non-man-made damages.







Q: Shipping and Delivery




A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.


Large orders are recommended to ship by sea
