Hot Chamber Die Casting Machine For Zinc

Product Overview

Description

Hot Chamber Die Casting Machine For Zinc, with Siemens PLC and Japanese valves , well known brand "EAGLE" machine with steady performance  and competitive price , professional export staff ensures the prompt sea shipping and customs affairs , skillful engineer ensures prompt after-sales service !



please click each picture below for more details



 Why choose us ?

1. More than 25 years history
2. Competitive price with high quality
3. Overseas service available
4. Self owned estate guranteed long development
5. Own patent techinics and CE
6. Normal models of  machines in stock
7. Leading enterprise of die casting machine in China

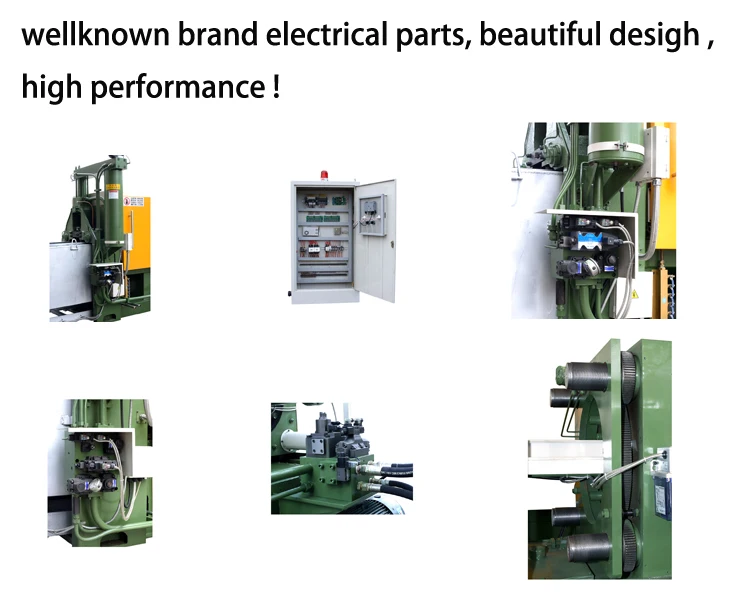

8. Wellknown brand of valves,electronics and Simens PLC

9. many models from 12 ton to 4000 ton for choose



Please click the picture below,  you can watch the video of our factory profile , or the video on "homepage of our website" .  Thank you!!

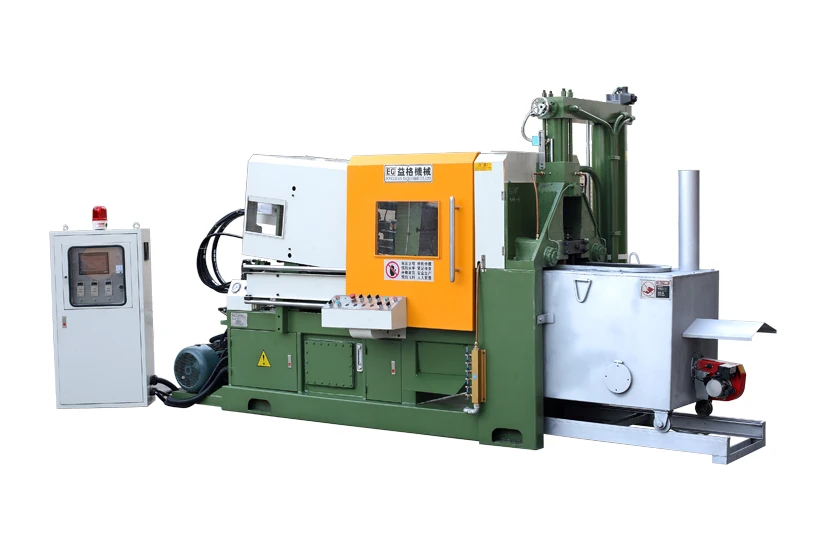

Hot Chamber Die Casting Machine For Zinc



EG280A HOT CHAMBER DIE CASTING MACHINE
Project	clamping force	clamping stroke	ejector power	ejector stroke	mould thickness (smallest-largest)	molding board size	inner space between tiebar	tiebar diameter
Parameter	2800	460	158	100	250*650	860*860	560*560	110
Unit	kN	mm	kN	mm	mm	mm	mm	mm
Project	injection place	injection force	injection stroke	traverse stroke	hammer diameter	injection weight	crucible capability	power of motor
Parameter	0-125	158	200	200	70/80	3.8/5	110(720)	18.5
Unit	mm	mm	mm	mm	mm	kgs(Zn)	L(kg/Zn)	Kw
Project	system working pressure	furnace/ fuel	energy consumption/electric cooker	oil box capability	injection nozzle heating power	machine weight	machine size
Parameter	14	6.3	42	500	5	11000	6410*1800*2500
Unit	Mpa	kg/h	Kw	L	Kw	kgs	mm







Eagle die casting machine most advantagement :

1. Strong locking force and injection force

2. High efficiency, saving power

3. Low oil temperature contorl

4. Auto computer control , easy operation

5. Correspondingly fast, high and stable quality

6. Automatic lubrication system, improve machine life.

7. Fast and steady gear mould adjustment , guarantee machine long life.

8. Professional service for all customers

9. CE standard ,  many patents

10. More than 25 years experiences













FAQ of  Hot Chamber Die Casting Machine For Zinc



Eagle die casting machine most advantagement :





1  computer controled system ,can store more than hundreds mould number ,and have fuction of memeory .



2  Two-stage injection adjustment can meet the high quality castings .



3  Very fast mould locking function,the production cycle is reduced effecrively .



4  The proportional flow rate control is adopted for slow speed injection,and fast slow can be adjusted by NC. It helps

    runner system achieved best results in gas discharging ,and greatly raised products rate for die castings .



5  Good injection performance ,large ejection force ,and high die casting force ,good die casts solidification .



6  Unique energy saving design for proportional type of hydraulic system ,and it makes any adjustment freely achieved

    their best status ,such as speed pressure in movement of mould opening /locking ,ejector and nozzle clamping unit .



7  Adopt computer control for automatic mould adjustment ,and is easy in operation .Precision for positon control reached 0.1mm
