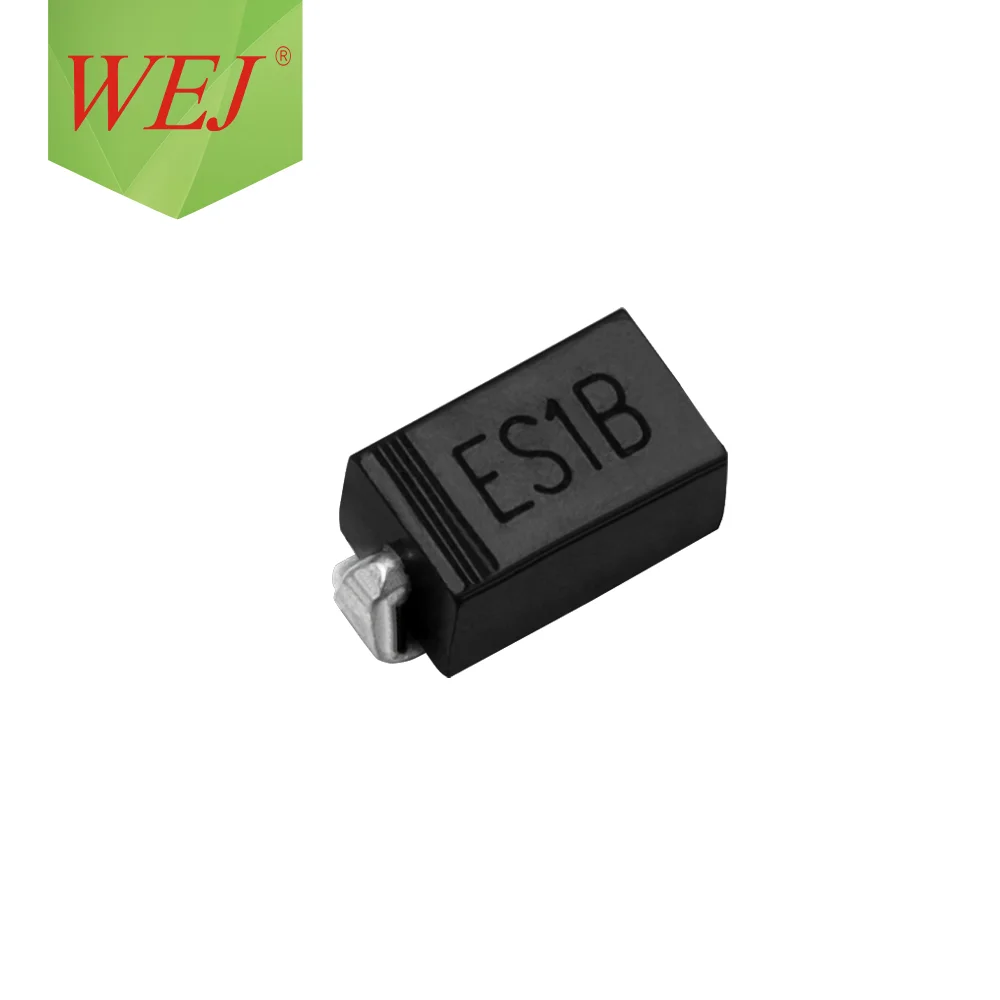

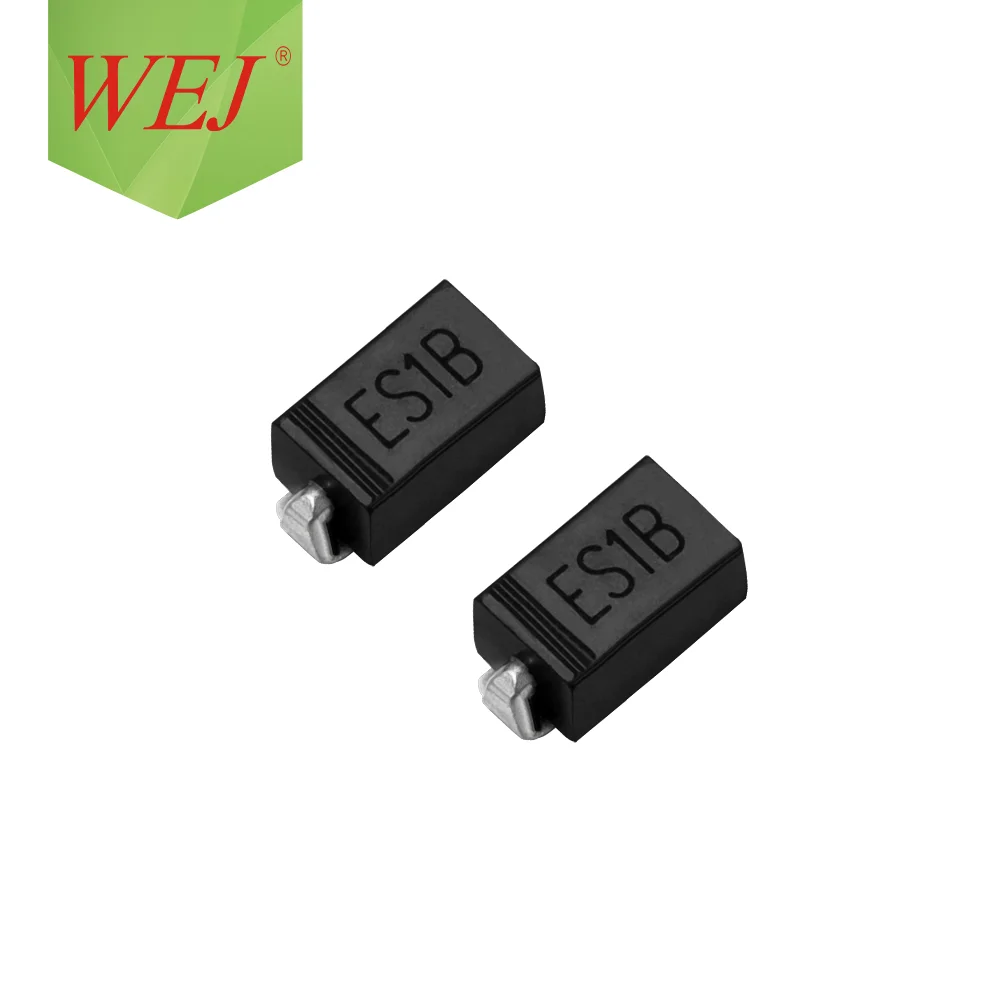

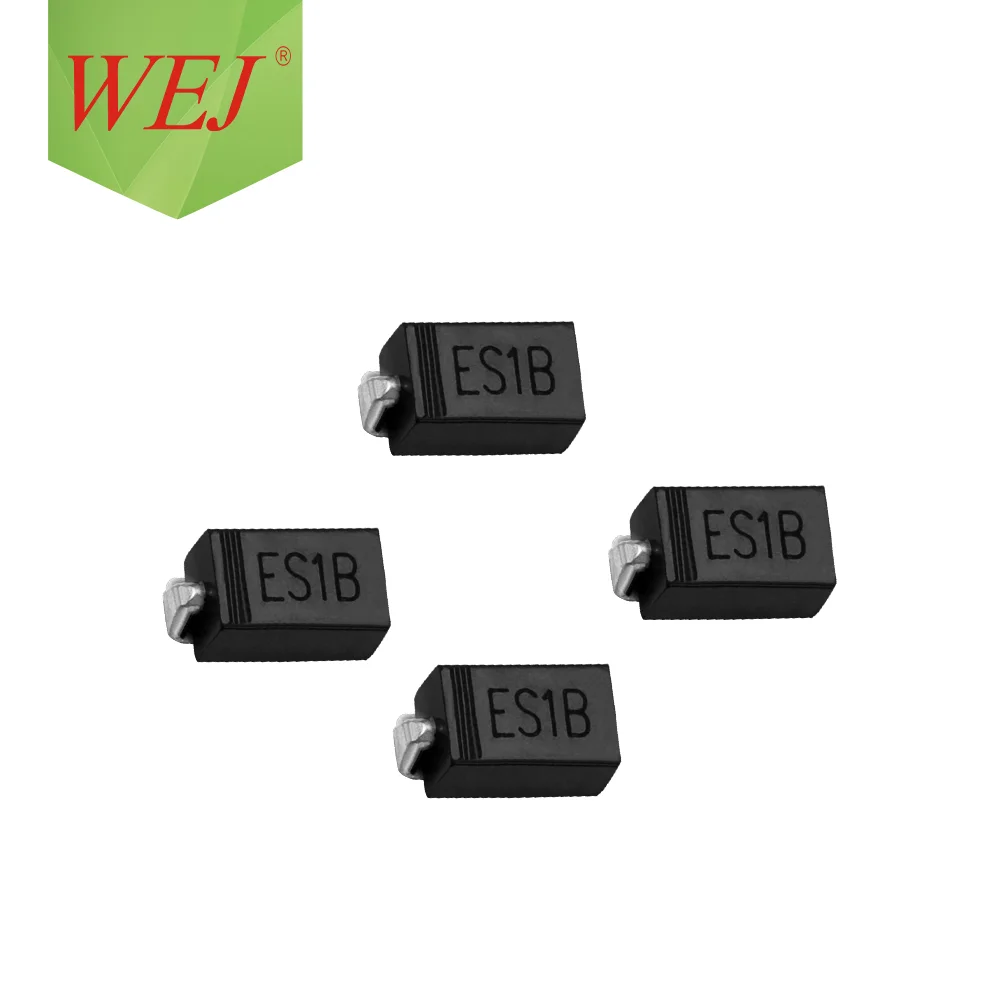

ES1A ES1B ES1C ES1M Surface mounted super fast rectifier 1A 1000V SMA/DO 214AC

Product Overview

Description

ES1A ES1B ES1C ES1M Surface mounted super fast rectifier 1A SMA/DO-214AC package

Features:

 1. Glass passivated junction chip

  2. For surface mounted application

  3. Low profile package

  4. Built-in strain relief

  5. High surage capability

  6. High temperature soldering guaranteed: 260℃/10 seconds/at terminal/complete device

  7. Superfast recovery time for high efficiency





Mechanical data

1. Case: Molded with UL-94 class V-0 recognized Flame Retardant Epoxy

 2. Terminals: Plated axial lead, solderable  MIL-STD-202E ,mothed 208C

 3. Polarity: Color band denote cathode end

 4. Weight: 0.002 ounce, 0.064gram



Maximum Ratings & Eletrical Characteristic

Ratings @ Ta=25℃  ambient temperature unless otherwise specified

Single phase,half wave,60Hz, resistive or inductive load

For capacitive load derate current by 20%



Parameter		Symbols	ES1A	ES1B	ES1D	ES1G	ES1J	ES1K	ES1M	Unit
Maximum Current Peak Reverse Voltage		V rrm	50	100	200	400	600	800	1000	V
Maximum RMS Voltage		V RMS	35	70	140	280	420	560	700	V
Maximum DC Blocking Voltage		V DC	50	100	200	400	600	800	1000	V
Maximum Average Forward Rectified Current 3/8'  lead length at TA=100℃		I (AV)	1.0							A
Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load		I FSM	30							A
Maximum Instantaneous Forward Voltage at rated forward current		VF	0.95				1.3			V
Maximum DC Reverse Current at rated DC blocking voltage	Ta=25℃	IR	10.0							uA
	Ta=100℃		100							uA
Maximum Reverse Recovery time		Trr	35							nS
Typical Junction capacitance		Cj	20							pF
Typical thermal resistance		R ja	60							℃/W
Operating and Storage Temperature Range		Tstg	-50℃ to +150 ℃							℃
