New arrival FLIULAIR type Compressed Air Dryer Filter for Air filtration process
Product Description
WHAT'S COMPRESSED AIR FILTER?
Comrpessed Air filter is a purifying equipment, which works with compressed air dryers (refrigerated air dryer or adsorption air dryer) and air compressor to get the dried and purified compressed air.

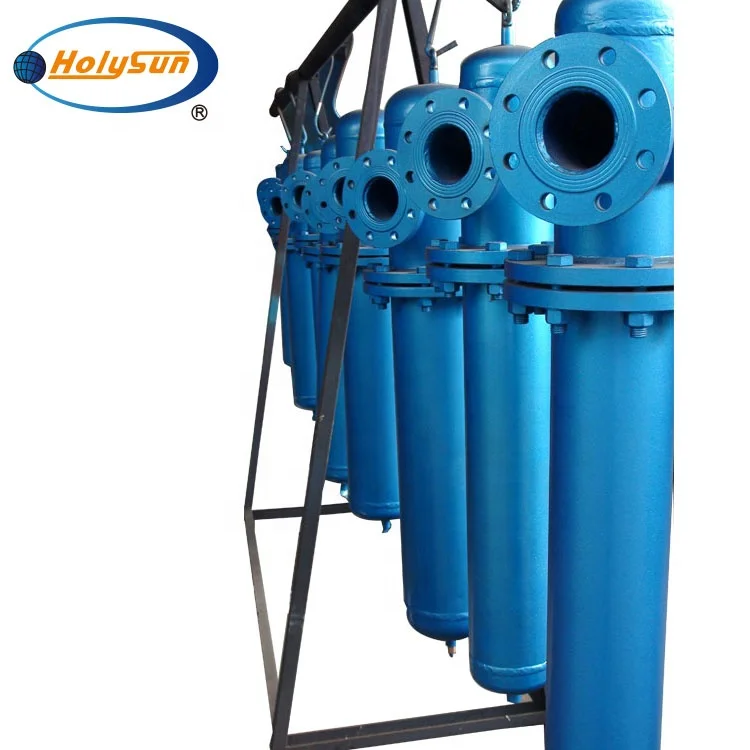

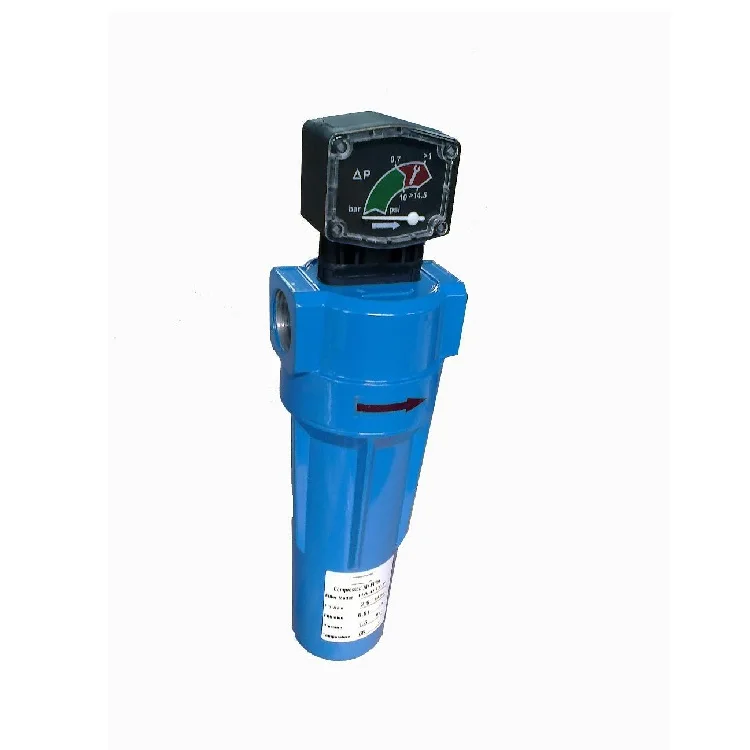

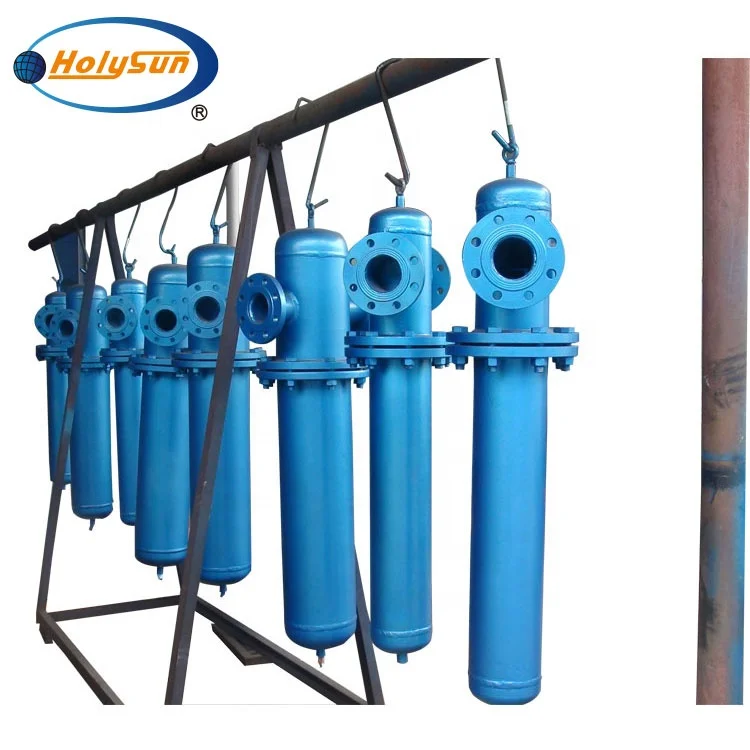

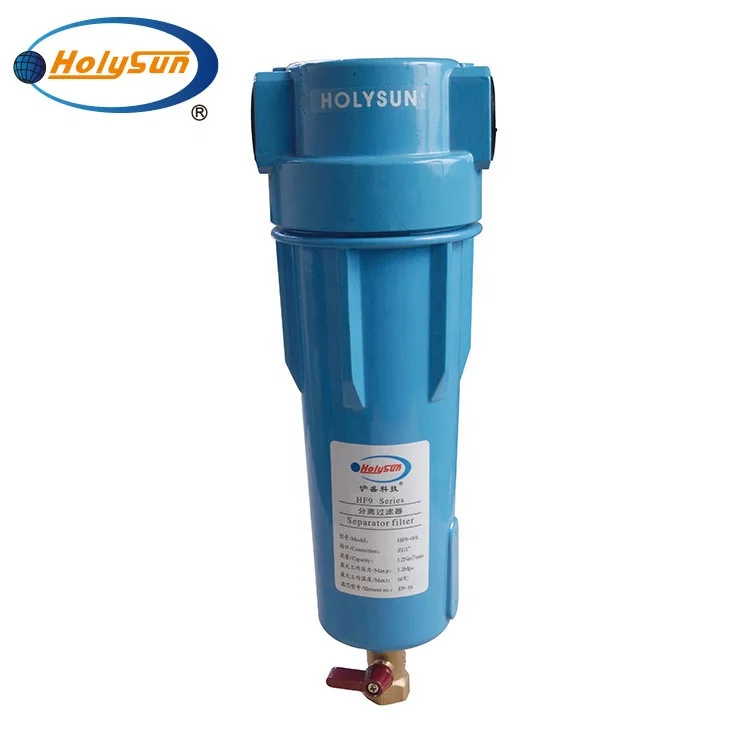

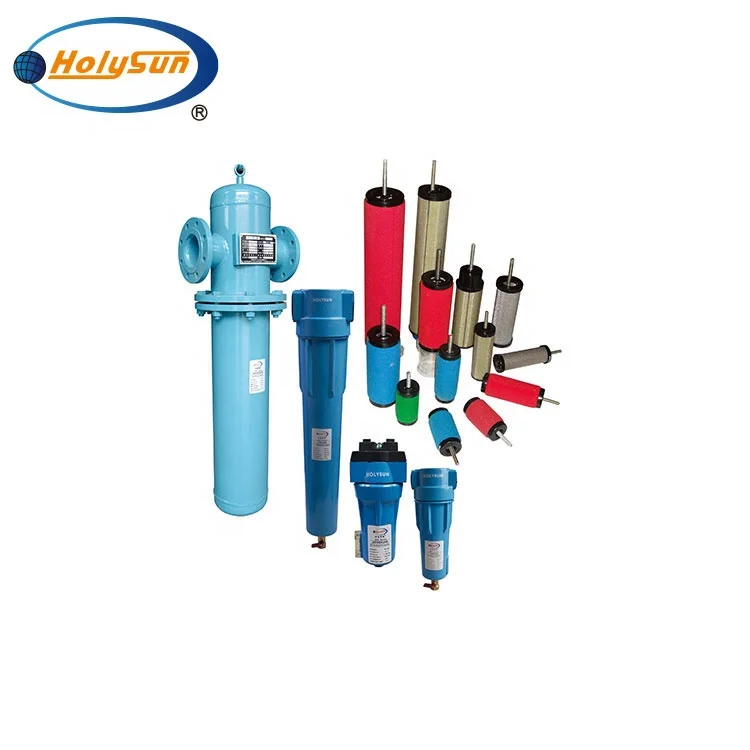

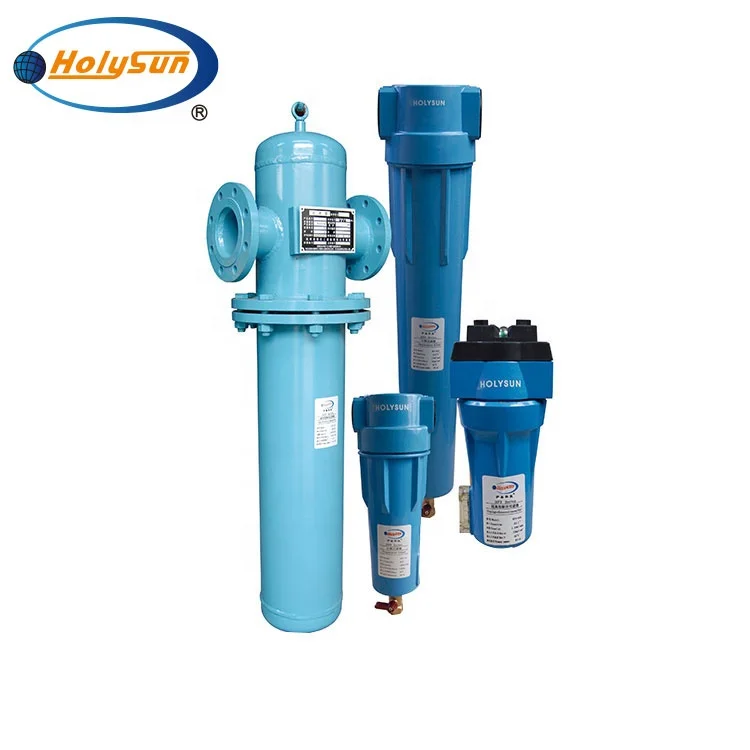

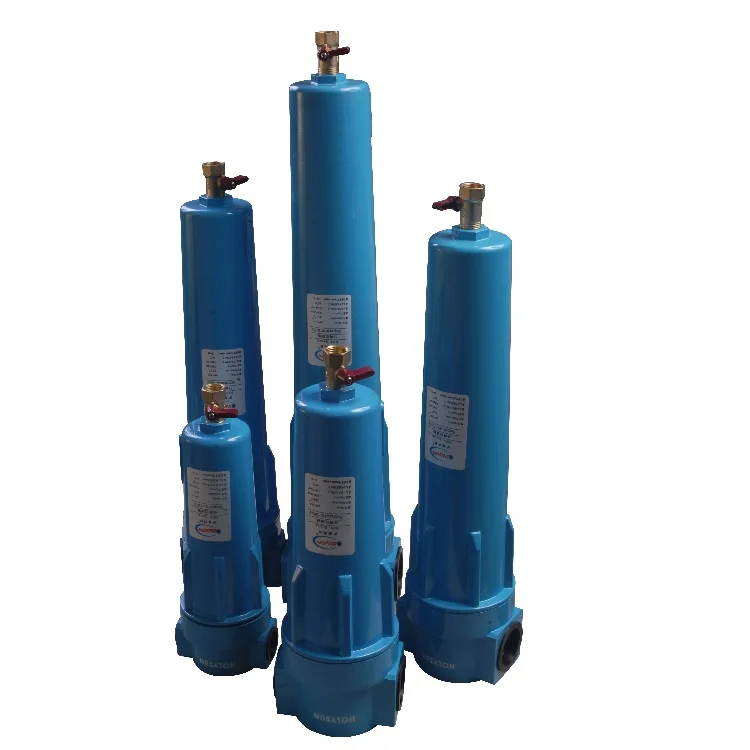

PRODUCT SHOW

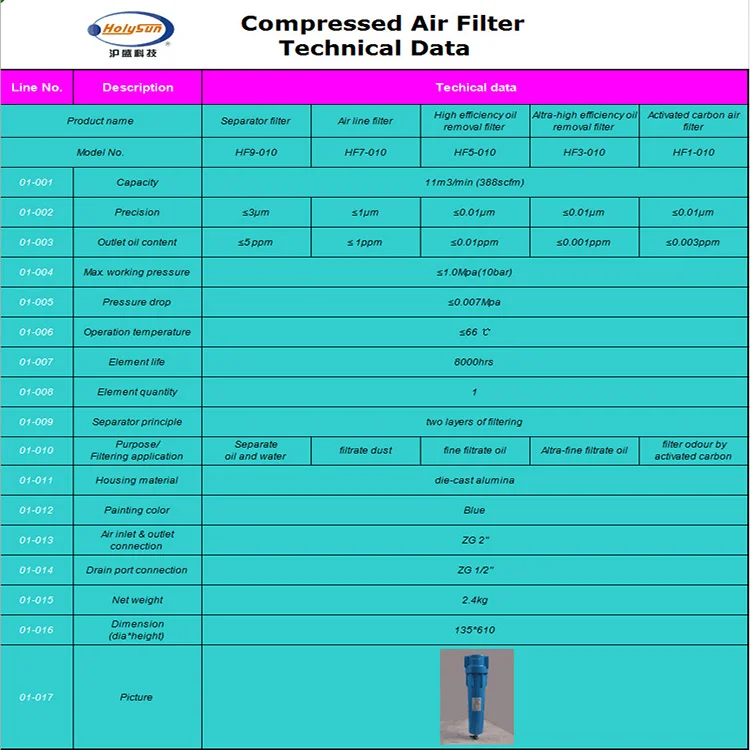

HF9/7/5/3/1-010 TECHNICAL DATA
HOW IT WORKS?
Compressed air from air dryers goes into the air filter through its "air inlet", than the element(s) inside the housing aborb dust, oil, contaminent of the compressed, desorb liquid water through the drain, the purfied compressed air goes out to the pipe through its"air outlet".
HF SERIES TECHINCAL DATA
NOTE: (1)Filter efficiencies have been established in accordance with CAGI standard ADF 400 and are based on 100°F(38℃). (2)Filter efficiencies have been established in accordance with CAGI standard ADF 500 and are based on 100°F(38℃).
STRONG POINTS

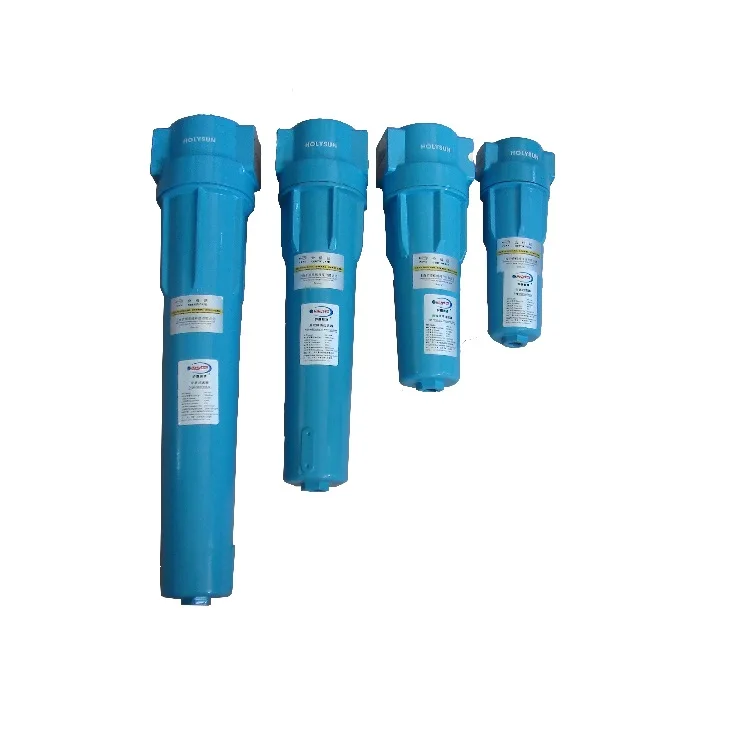

Grades: totally 5 grades--HF9,HF7,HF5,HF3,HF1 with different precision.
Corrosion resistant cores:Stainless steel for added structural integrity,Low resistance to flow,Seam welded for extra strength.
New housing with compact design,it can be series-parallel connection in order to save spaces.
Piston type elements to housing seal:prevents unfiltered air through filter directly.
New “matrix blended fiber”media:Large,effective surface area_inproves capture rate-ensures high efficiencies,Large open area minimizes pressure drop Coated,closed cell form sleeve:Resists chemical attack from oils and acids;Ensures high efficiencies by preventing re-entrainment of coalesced liquids.
Chemically resistant end caps bound to media with specially formulated adhesive silicone free.
HOW TO CHOOSE CORRECT MODELS?
When the pressure is not 7kgf/cm², please use the flow of the following list, then ÷ the correction factor of the filter's min. inlet pressure. Don't choose the filter according to the pipe connection, should choose according to the actual flow needed.
RECOMMENED CONFIGURATION AND INSTALLATION
Company Information
Packaging & Shipping
FAQ
1. What is the power supply? Can a special power supply be customized? A: The conventional power supply is 220V/60Hz, 380V/50Hz; 115V/50Hz, 220V/60Hz, 380V/60Hz can be customized, and the production cycle should be extended. Please confirm with the customer service for specific requirements!
2. What is the working pressure? A: The normal pressure is 7~10kg (0.7~1.0MPa).
3. Is it more than 10kg (1.0MPa)? Can it be customized? A: Yes, the high pressure can be customized.
4. Can the dryer be adapted to corrosive gases? A: No, the conventional dryer is suitable for non-corrosive compressed air purification.
5. What is the control method for the dryer? A: The conventional cold dryer uses several instrument controls.
6. What is the control method for the dryer? A: The conventional dryer is controlled by a microcomputer program.
7. Can the machine be made into a PLC control method? A: Yes, our strong design team can tailor the solution for specific project requirements, and PLC can also be compiled according to actual requirements.
8. What kind of refrigerant is your cold dryer? A: We use invironmental friendly refrigerant of R-407C, R-134a etc.
9. Do you have a discount on your price? A: We have favorable price for dealer, if you're in the compressed air market, we can talk to get a discount base on the qty.
10. Why are your prices more expensive than others? A: We promise to use the new compressor, the Dutch Joke electric row, the high quality copper tube, we guarantee the source of each accessory, to ensure that every production process has passed 100% inspection.100% of the finished machine has passed 3 inspections to ensure that our machine runs stably. So the price is slightly higher!
11. What qualification certificates do you have? A: HOLYSUN has a production license, CE, ISO, China Top Ten Famous Brands and various patent certificates.
12. What is your market distribution? A: 60% in China and 40% in exports.
