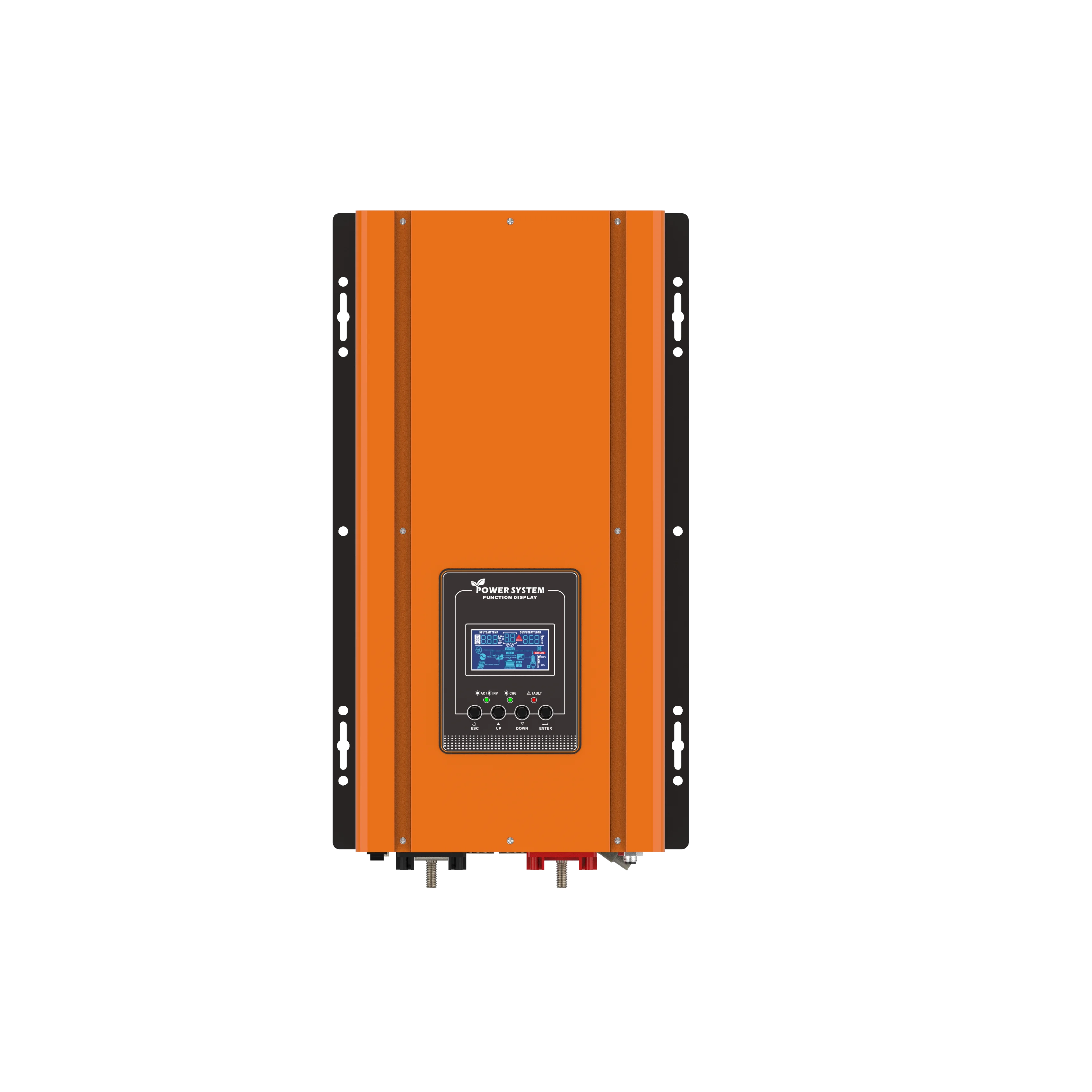

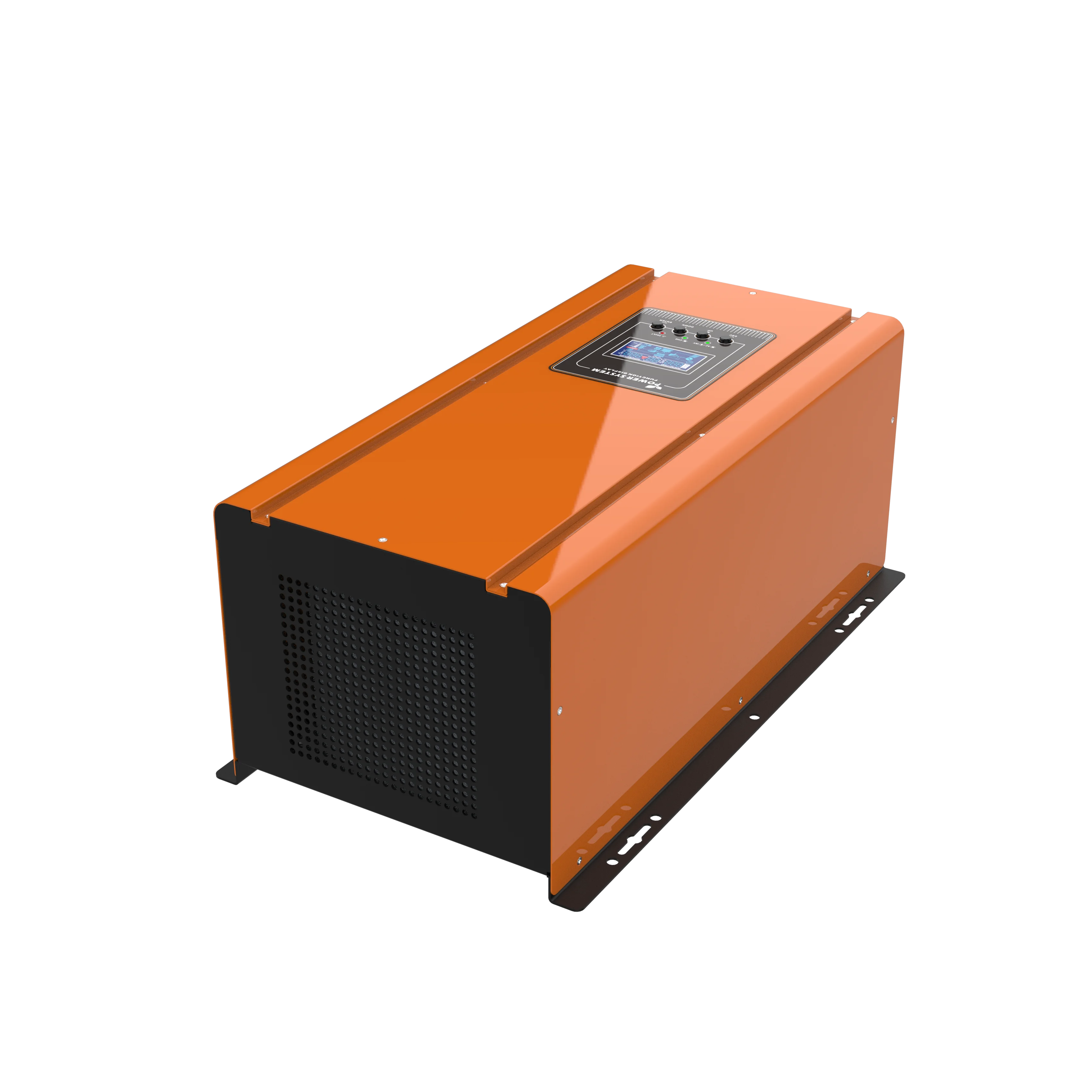

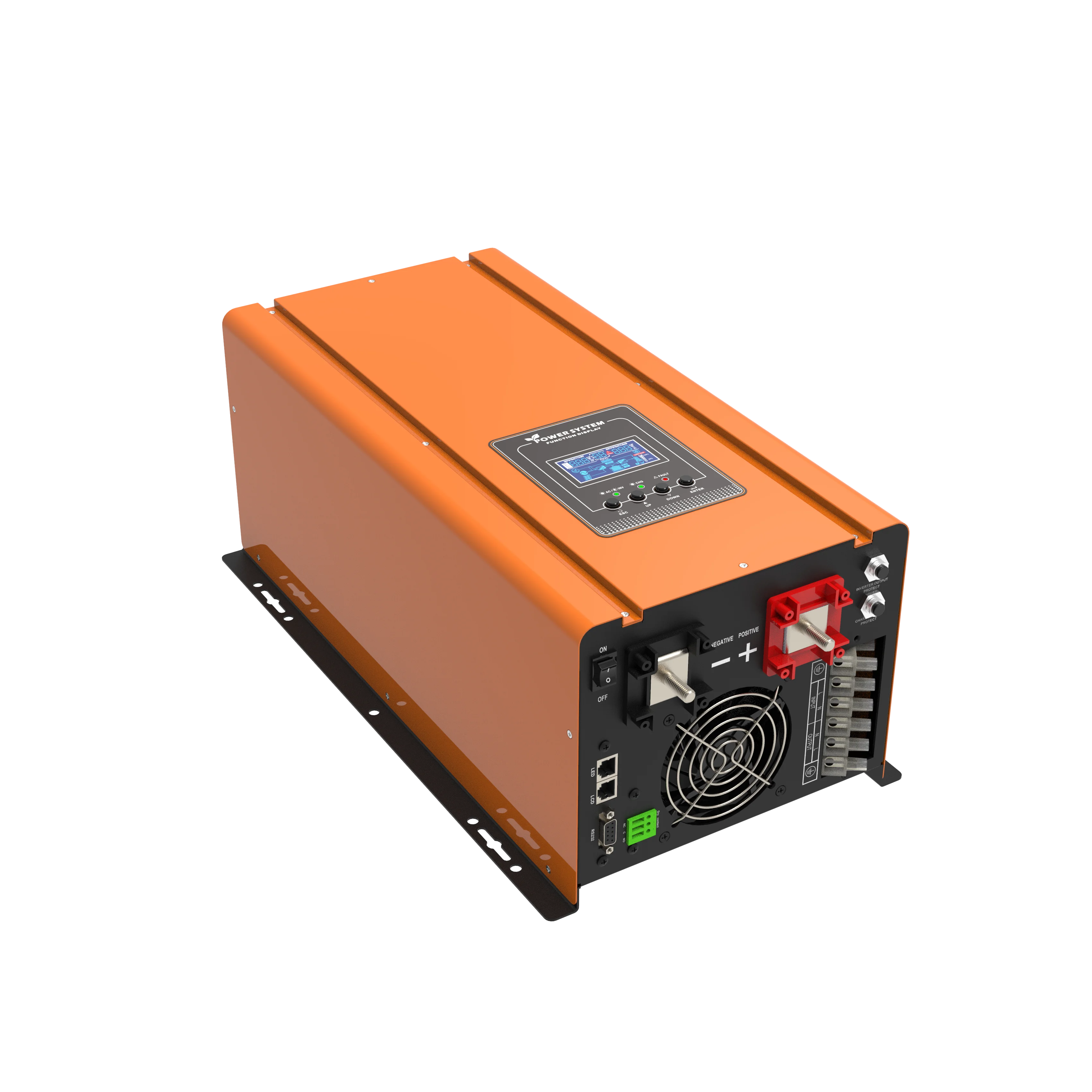

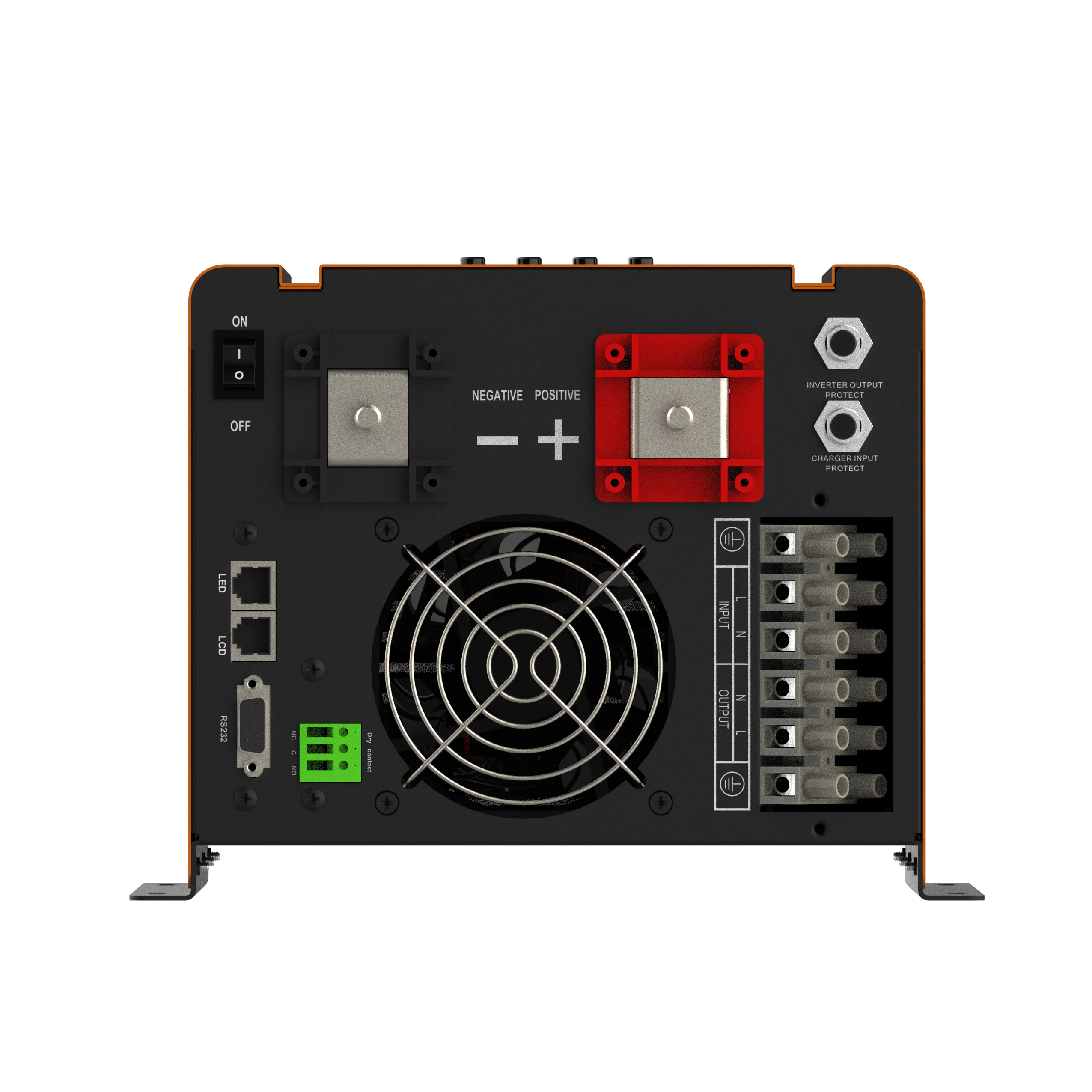

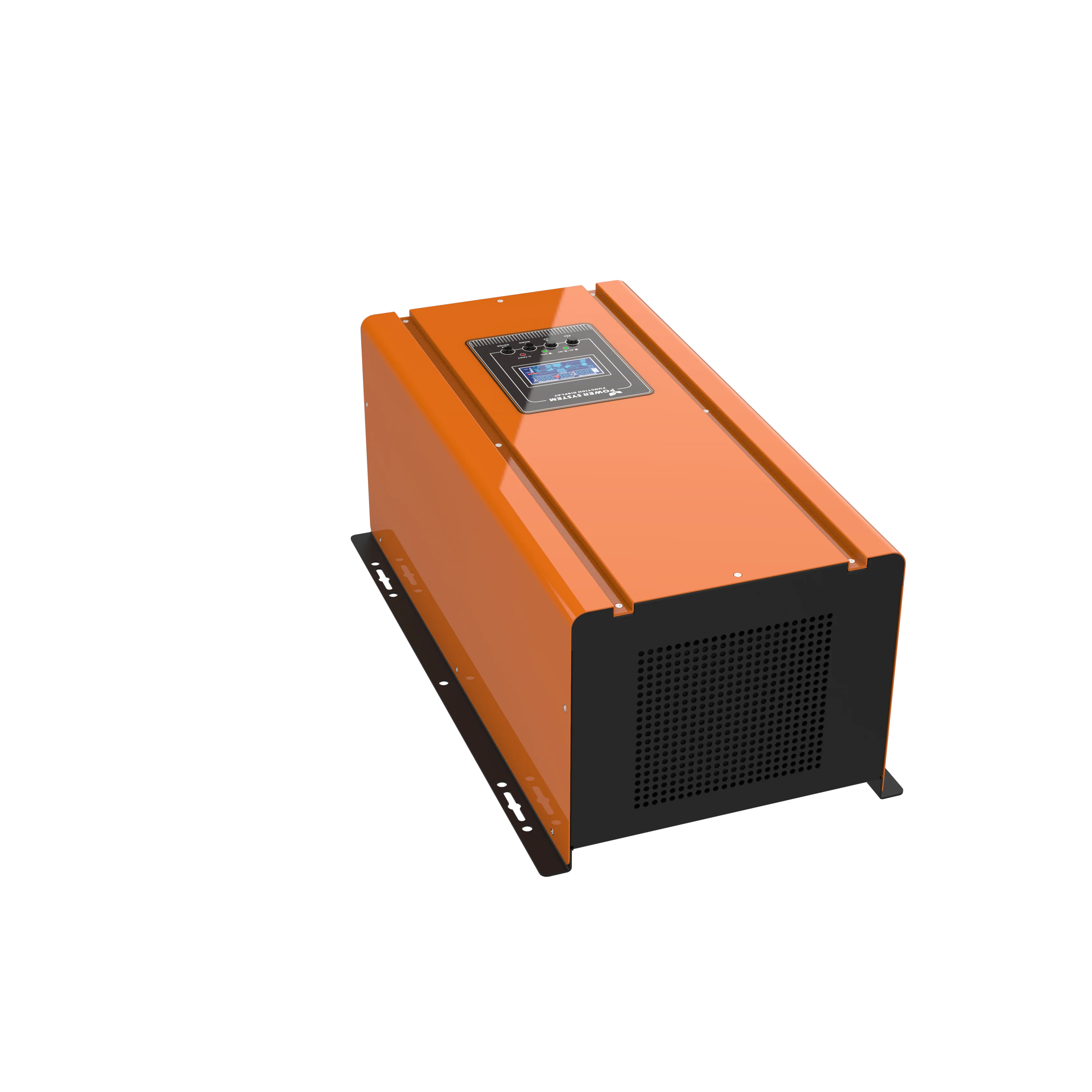

RP series 12Vdc to 230 3000W Pure Sine Wave Inverter/charger for lead acid and lithium battery

Model

1012E

2024E

3024/48E

4024/48E

5024/48E

6024/48E

Rated Power

1000W

2000W

3000W

4000E

5000W

6000W

Transfer time

Typical 10ms

Invert mode

Norminal output volt

120Vac/230Vac(100Vac~120Vac;200Vac~240Vac)

Output frequency

50Hz+/-0.3Hz;60Hz+/-0.3Hz

Output wave

Pure Sine Wave

Output overload

105%<load<120%+/-10%:Fault(turn off output after 10s)

120%<load<150%+/-10%:Fault(turn off output after 3s)

150%<load+/-10%: Fault(turn off output after 1s)

Short circuit protection

Software protection

Norminal efficiency

>88%

Power Factor

0.9~1

Line mode

Input voltage range

Narrow range

Wide range

Norminal output voltage +/-15%

Norminal output voltage +15%,-23%

Input frequency

40~70Hz

Input Wave form

Sine wave(Utility or generator)

Short circuit protect

Circuit breaker

Output overload

120%<load<150%+/-10%:Fault(turn off output after 60s)

150%<load+/-10%: Fault(turn off output after 1s

Over charge protect shutdown

16V for 12V(*2 for 24V,and *4 for 48V)

Efficiency online

>95%

AC charge

Charge current can be set(5A down/up setting)

Selection of battery charging voltage type

Battery type

Fast V

Float V

Gel U.S.A

14.0V

13.7V

A.G.M1

14.1V

13.4V

A.G.M2

14.6V

13.7V

Sealed lead acid

14.4V

13.6V

Gel euro

14.4V

13.8V

Open lead acid

14.8V

13.3V

Calcium

15.1V

13.6V

De Sulphation

15.5V for 4 hours then off

Lithium

14.7V

Other

User-defined

battery

Input

12V

24V

24V/48V

24V/48V

24V/48V

24V/48V

Voltage range

12V(10V~16V)+/-0.3V;/*2 for 24V/*4for 48V

Low DC warning volt

12V(10.5V+/-0.3V);/*2 for 24V/*4for 48V

Low dc cut-off volt

12V(10V+/-0.3V);/*2 for 24V/*4for 48V

Other

Operating temp range

0~40℃

Humidity

0~95%

Noise

<50dB

Dimension(mm)

422*217*210

574*345*197
