- IP67 motion sensor pwm solar charge controller 12V 24V with infrared motion sensor & microwave motion sensor

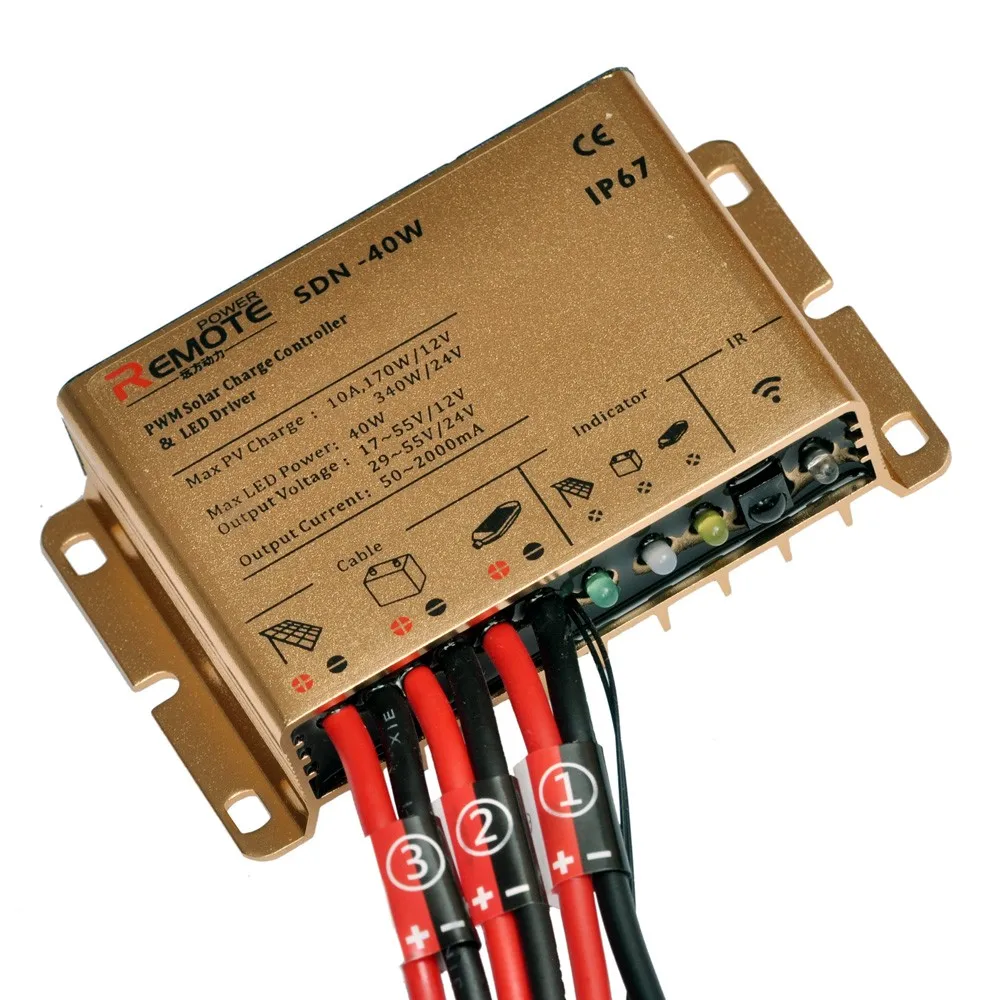

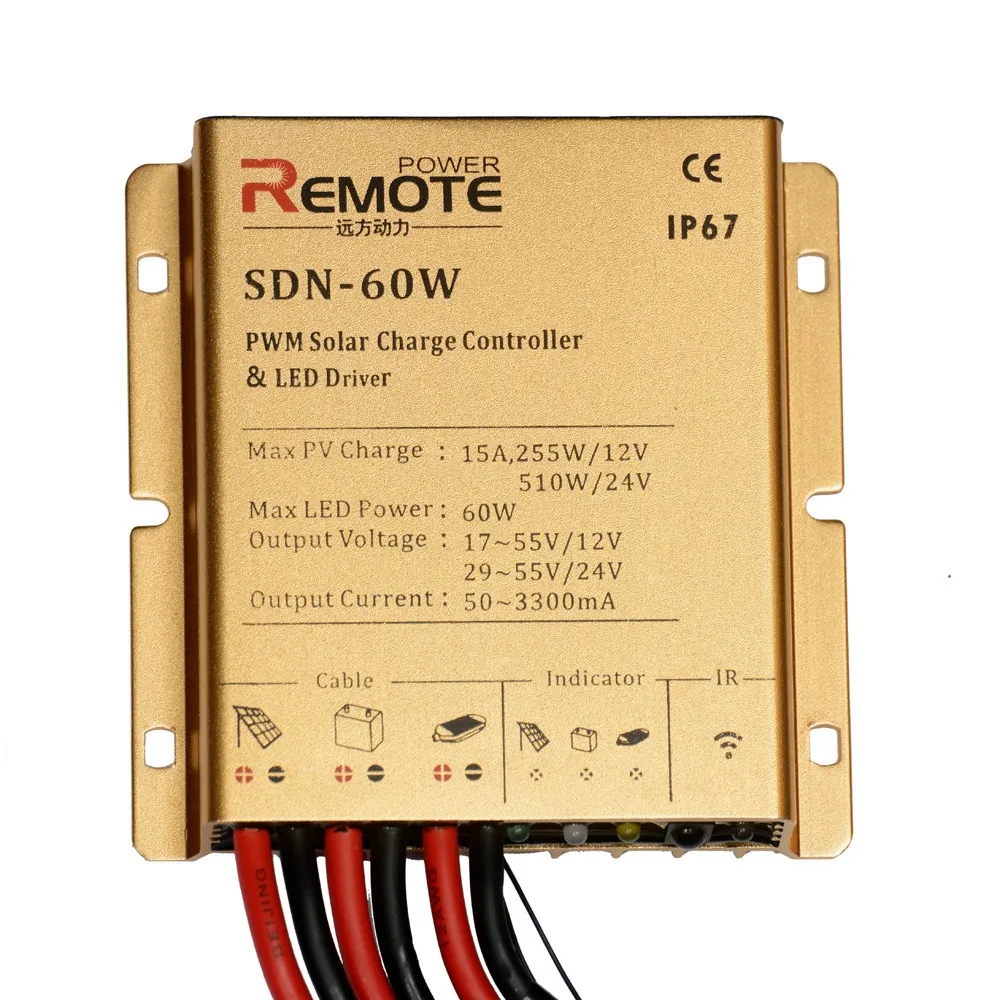

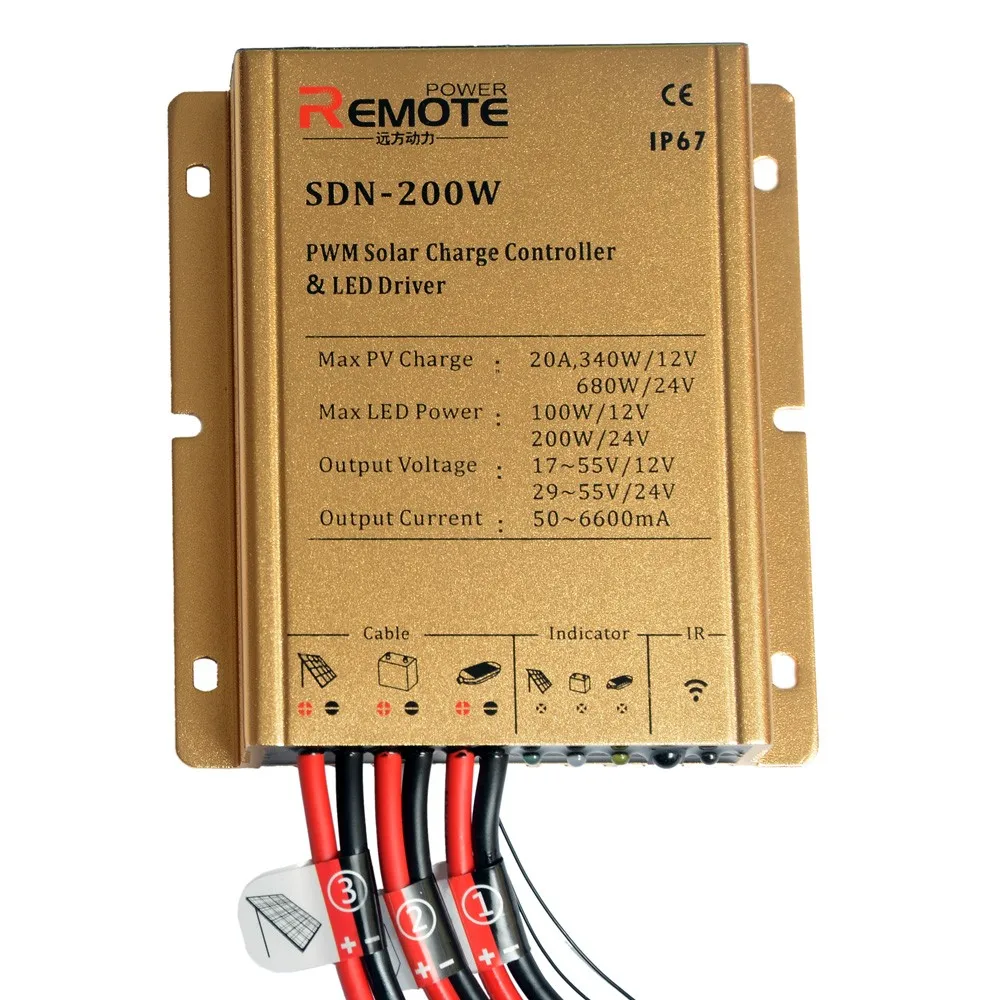

IP67 motion sensor pwm solar charge controller 12V 24V with infrared motion sensor & microwave motion sensor
- Category: >>>
- Supplier: Beijing Remote Power Renewable Energy Technology Company
Share on (62028484832):
Product Overview
Description
Product InformationPWM solar controllers with infrared motion sensor & microwave motion sensor

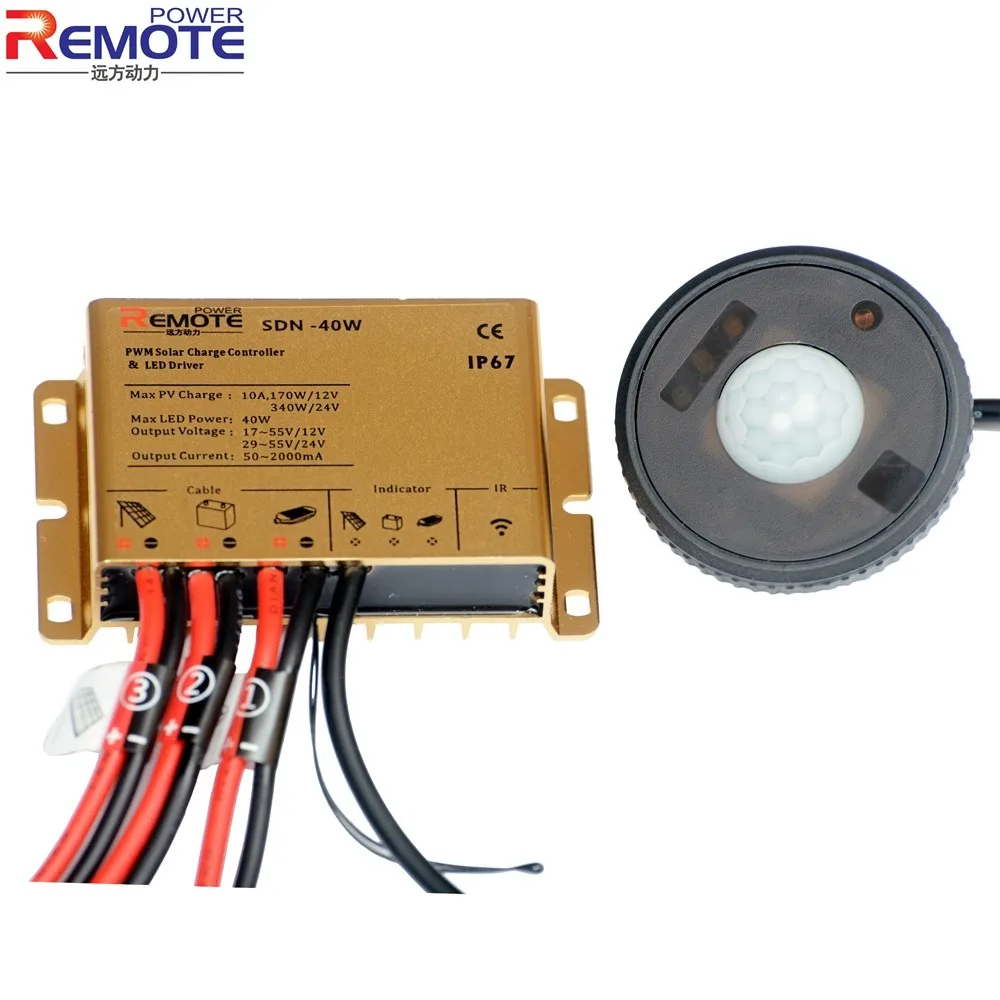

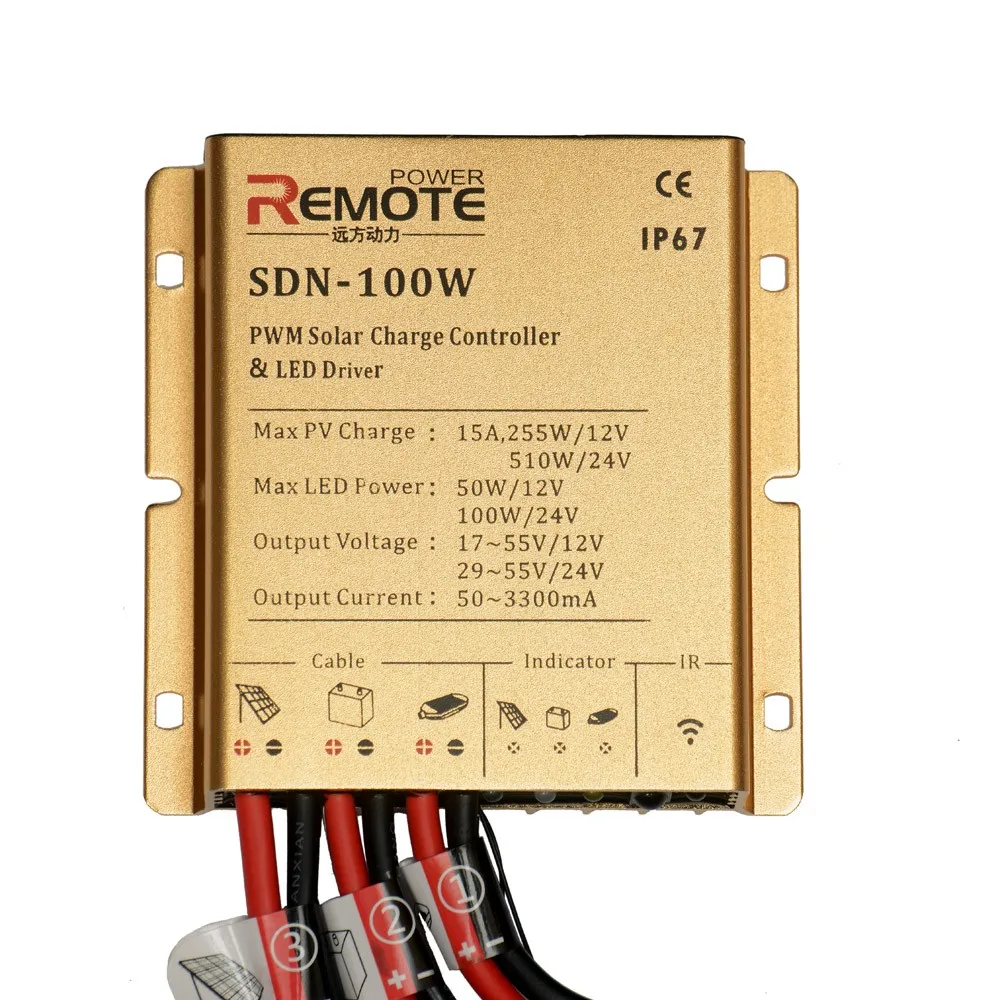

PWM solar controllers with infrared motion sensor & microwave motion sensor
Specification
| Motion Sensor Controller & LED Driver | |||||
| Model | SDN-40W-EX-MV | SDN-60W-EX-MV | SDN-100W-EX-MV | SDN-150W-EX-MV | SDN-200W-EX-MV |
| SDN-40W-EX-IR | SDN-60W-EX-IR | SDN-100W-EX-IR | SDN-150W-EX-IR | SDN-200W-EX-IR | |
| System voltage | 12/24V Auto | ||||
| Output Power | 40W/12V 40W/24V | 60W/12V 60W/24V | 50W/12V 100W/24V | 75W/12V 150W/24V | 100W/12V 200W/24V |
| Discharge Method | Boosting Constant Current | ||||
| Output voltage | 17~55V/12V;29~55V/24V | ||||
| Output waveform | ≤600mV | ||||
| Max input current | 10A | 15A | 15A | 20A | 20A |
| Max output current | 2.0A | 3.3A | 3.3A | 6.6A | 6.6A |
| Output constant current precision | <3%(typical),above 80% rated power<1% | ||||
| Typical efficiency | 92~96% | ||||
| Work temperature | -35~55℃(-40~90℃ customized) | ||||
| No load current | ≤5~15mA | ||||
| Temperature compensation | -5mV/℃/2V(charge voltage,over discharge voltage compensation) | ||||
| Control mode | PWM+smart High Frequency Modulation software | ||||
| Dimensions (L*W*H) | 88x53x21mm | 88x83x21mm | 110x100x25mm | ||
| Install Hole size | Φ3.5 | ||||
| weight | 0.18kg | 0.26kg | 0.5kg | ||
Main Features
PWM solar controllers with infrared motion sensor & microwave motion sensor
1. 4 Times periods Load Control(Timer+ Dimmer)
2. Intelligent system for environmental
3. monitoring, automatic
4. adjustment of power, effectively extending the battery life
5. Automatic 12v/24v Detection
6. Three-stage battery charging with PWM
7. Compatible with Gel, AGM, Lead
8. acid, Lithium(LiFePO4 &Li-ion) or your own battery
9. type(DIY)by remote control setting.
10.Waterproof IP67, Aluminum housing for better cooling
11.Max output efficient of 96%
12.-40℃~+55℃ Wide temperature range
13.Motion sensor function with microwave or Infrared
14.Rs485 communication port can be added before factory(optional)
Applications

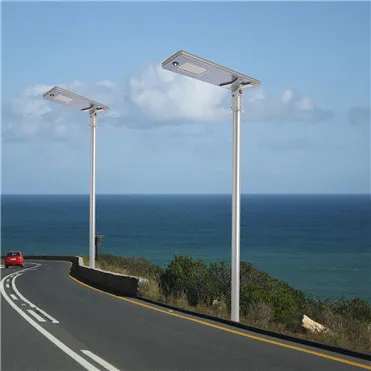

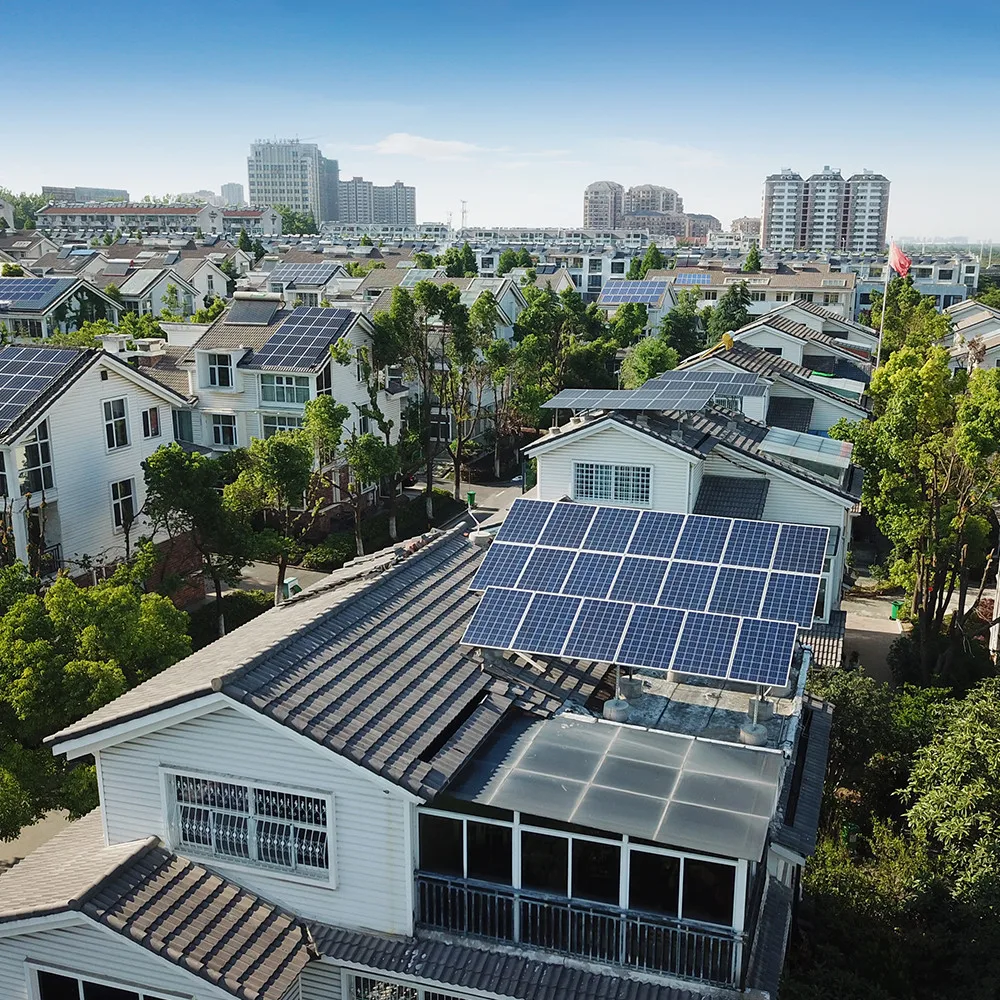

Off-grid home system&solar street light
Certifications

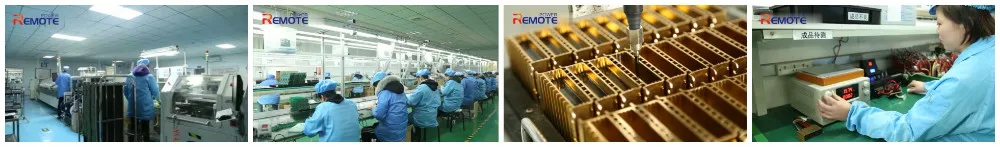

Company Information
Beijing Remote Power has established in 2005 in BeiJing of China, and now we have 8 branches in China. In 2015, we have successfully been in China stock market, and our stock code is 831501.
