pvc water supply Pipe auto Belling machine, Auto belling machine:

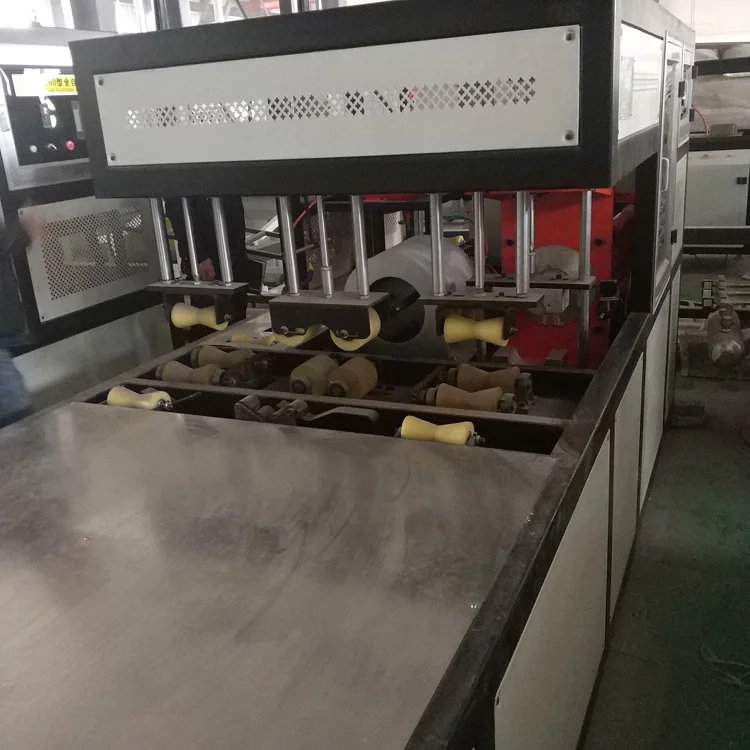

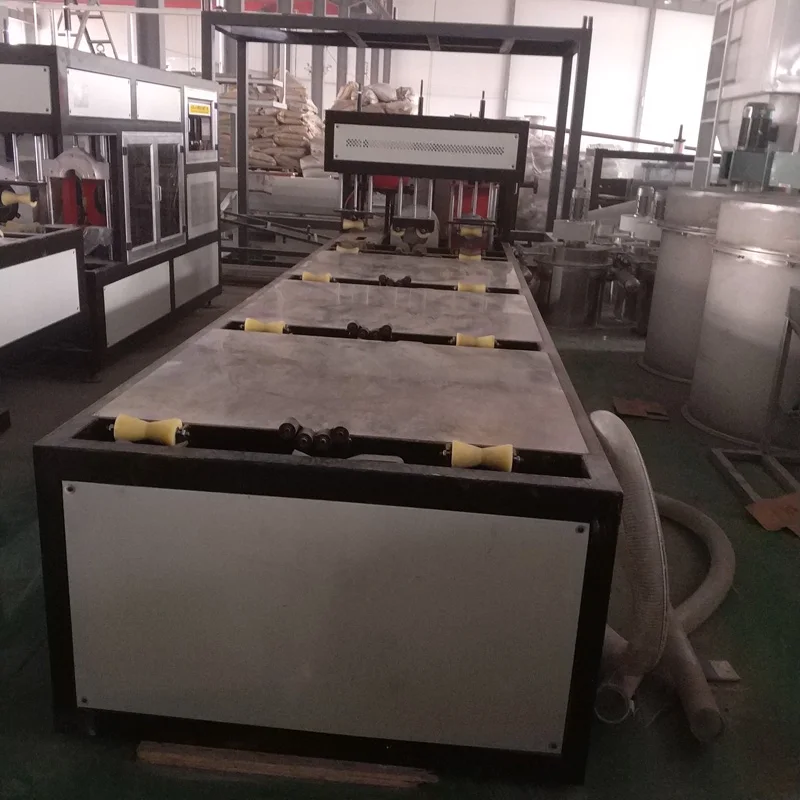

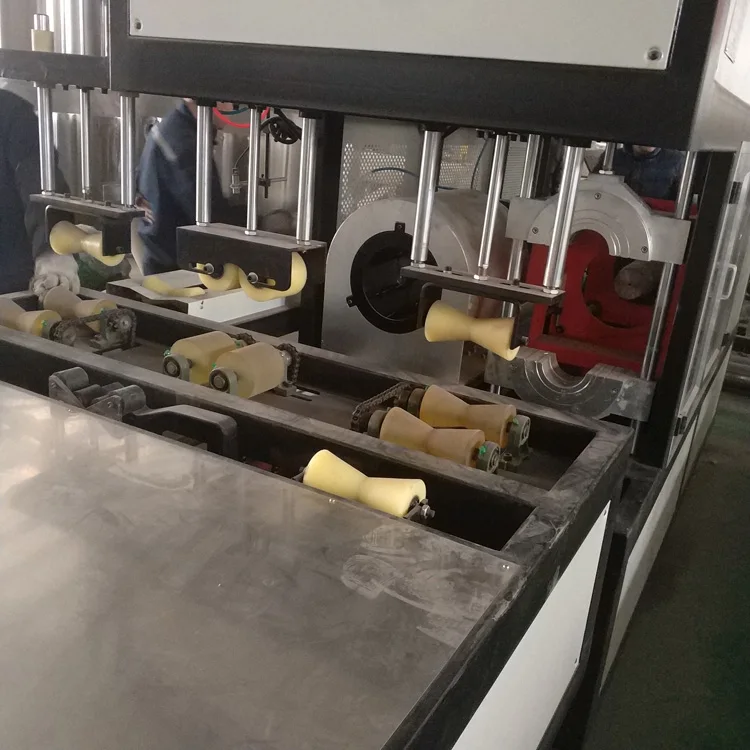

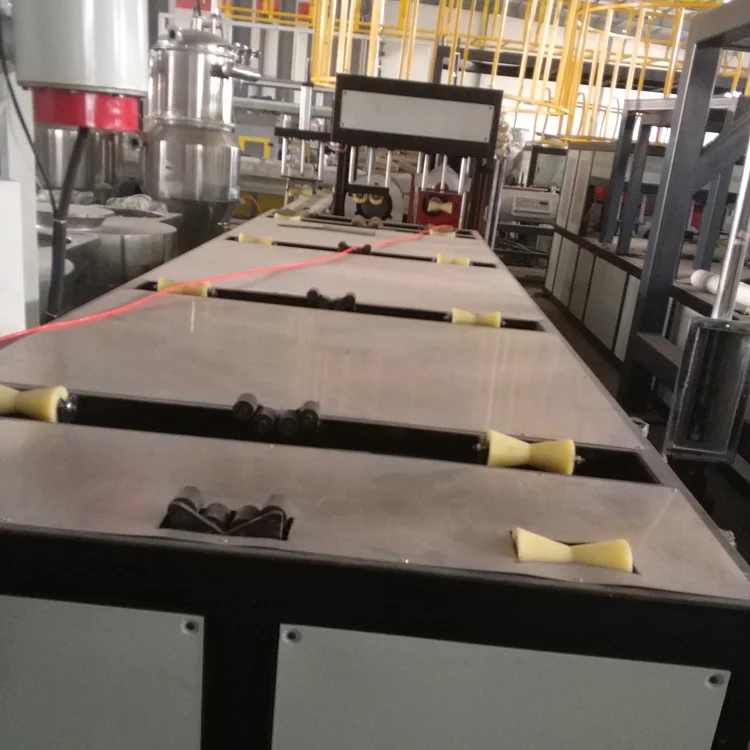

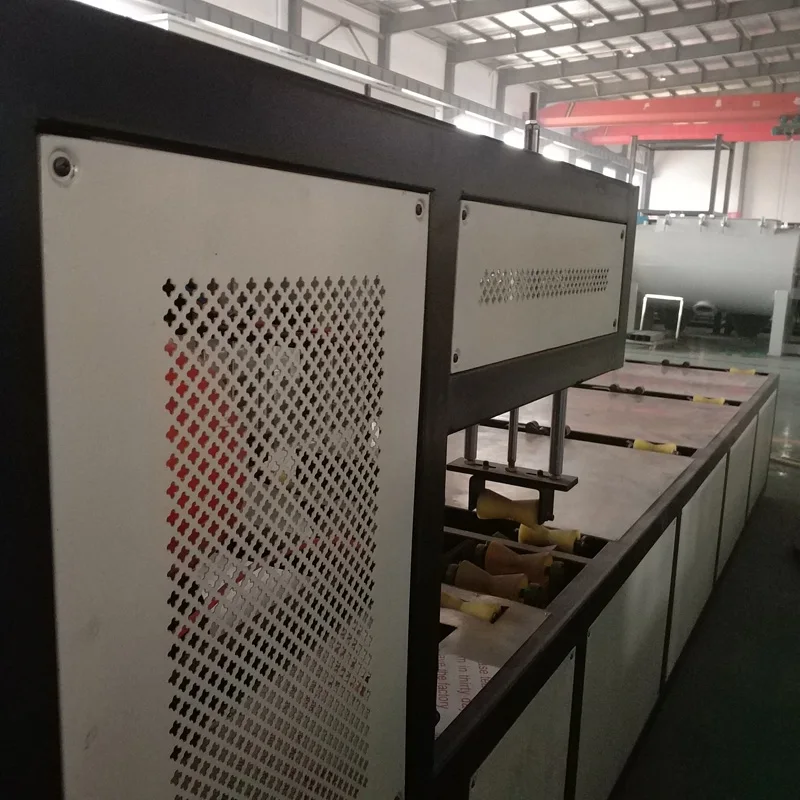

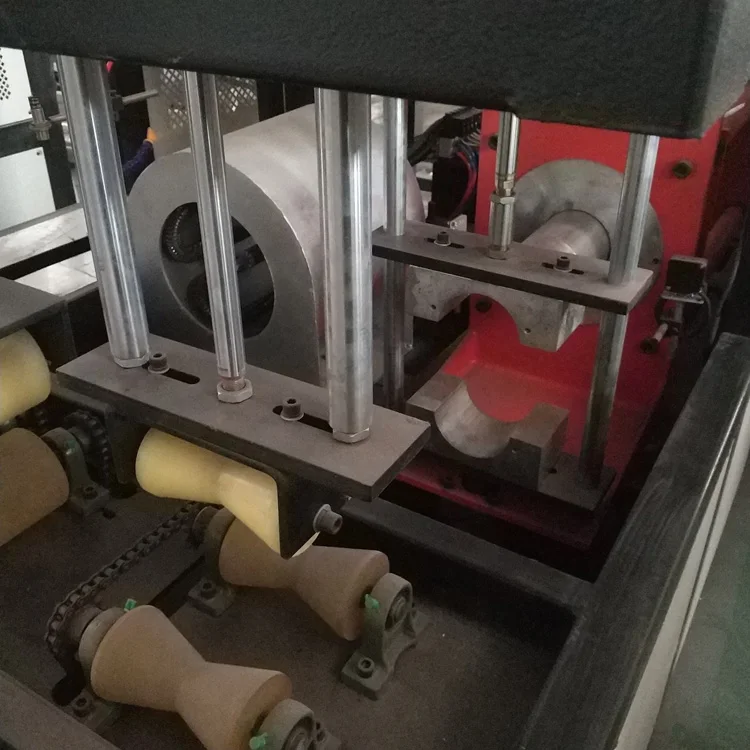

SGK series Full-Auto Pipe Belling-machine with drawing device and program interface concerned is used with extruding machine SGK series Full-Auto Pipe Expander with drawing device and program interface concerned is used with extruding machine. It is also used solitarily. While expanding pipes, the machine adpots translation. The action is steady and correct. It does not damage pipe materials. The machine adopts electric heating type. Each oven is equipped with heating core. The shaping method adopts expanding-end shaping. The size of pipe mouth is correct. On its panel, there is a transfer swith of expanding solvent type socket(Straight port ) and expanding seal loop typepiepe socket(R port). The choice of expanding pipe types is very convenient. The technological adaptability is strong. All the key electric control elements are imported. The system characterisitics are steady and reliable
Model
Pipe Diameter
Heating Method
Belling Method
Heating power
Dimension
SGK110
50-110mm
Electric heating
Mould physical expansion
10.5kw
7500x1400x1750mm
SGK160
50-160mm
Electric heating
Mould physical expansion
10.5kw
7500x1400x1750mm
SGK200
50-200mm
Electric heating
Mould physical expansion
10.5kw
7855x1350x1900mm

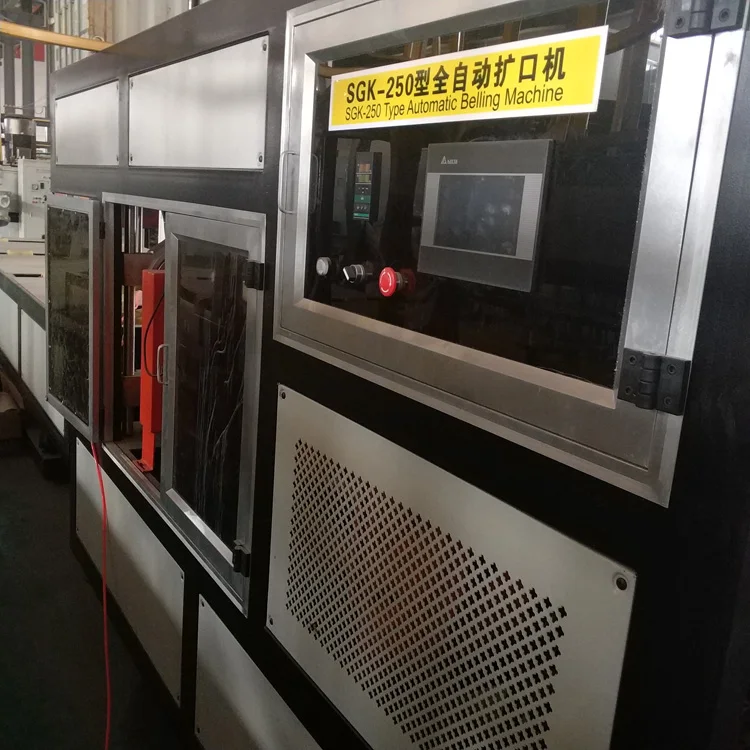

SGK250
110-250mm
Electric heating
Mould physical expansion
10.5kw
7830x1620x1700mm
SGK315
160-315mm
Electric heating
Mould physical expansion
14kw
8050x1750x1900mm
SGK450
200-450mm
Electric heating
Mould physical expansion
18kw
8290x2090x2080mm
SGK500
315-500mm
Electric heating
Mould physical expansion
18kw
8500x3050x2100mm
SGK630
400-630mm
Electric heating
Mould physical expansion
22.5kw
8615x3125x2500mm

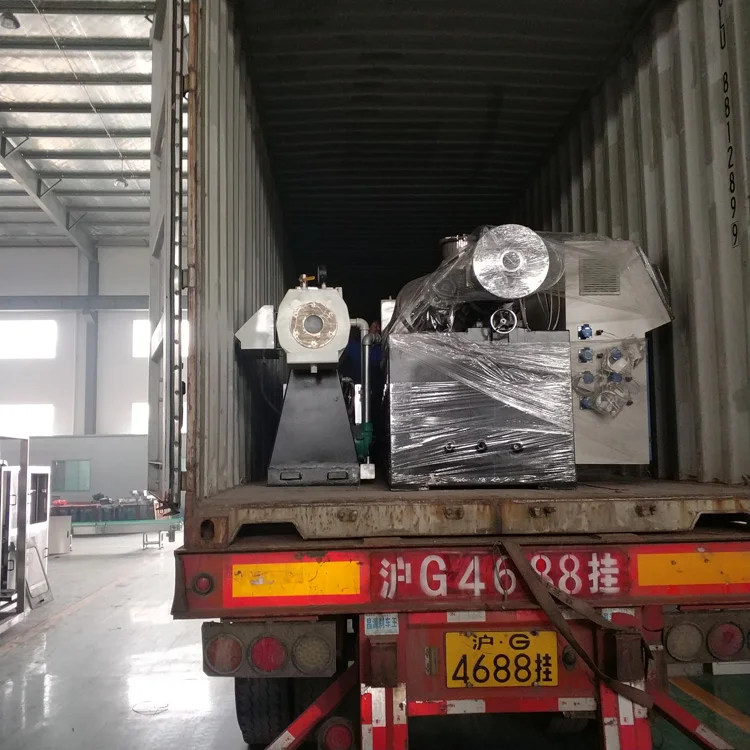

Packaging & Shipping
Our Services
The sample service
1. We can send you the video of the running machine.
2. You are welcome to come to visit our factory,and see the machines running.
3.If we get the permission of the customers who have bought the machines from us,we can provide you their contact information and you can go and visit.
Customized service
1.We will give our professional suggestions and factory layout design according your
situation: the workshop area,material,power,filling type,the kinds of the bottlesand so on.
2.We provide turn-key project .
Installation service
We will send our engineers to your factory to help you installing the machines and also train your staff until they can operate the machine well.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
After-sales service
1.We provide one year warranty for machines.
2 .24x7 hours technical support for life-long
3. All needed wearing parts or maintenance spare parts after warranty time will only need our production cost and willdeliver to you in 7 days by courier.
4.Our business information will be confidential to any third party unless you permit .
