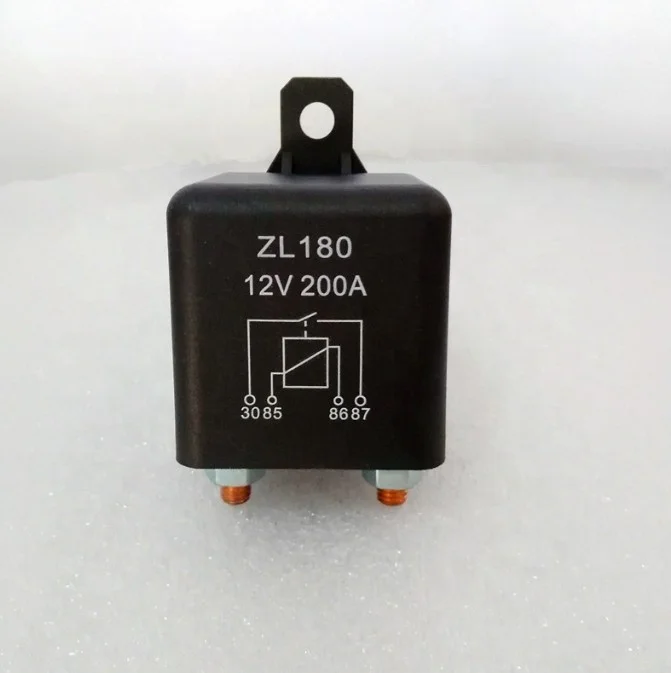

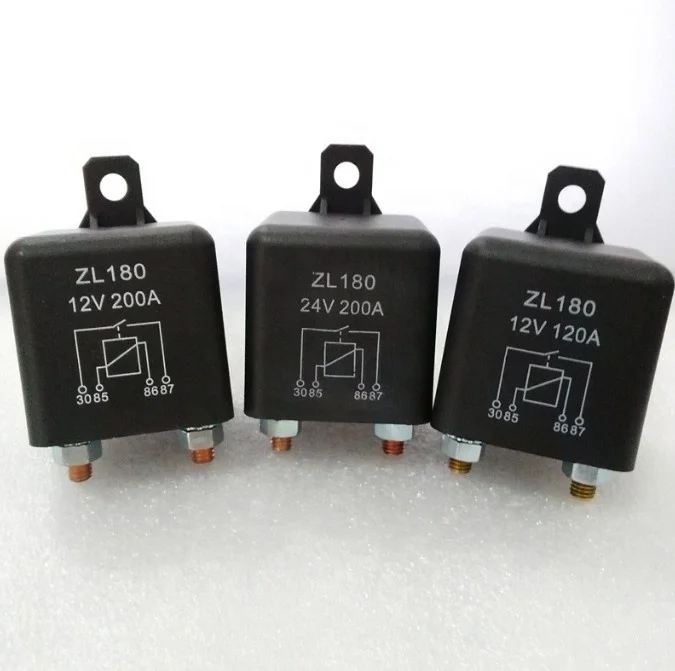

High power relay ZL180 200A 12V 24V 48V high current relay



In the model, H(A) represents normally open, B(B) represents normally closed, and no represents conversion;

The vehicle relay pin number, 85 and 86 are coil pin, the applied control voltage (such as 12VDC) can make or break, 87 is normally open pin, and 30 is common pin.

Please refer to the wiring diagram according to the above tips to avoid errors and reduce work efficiency.

Model: ZL180 200A

Product features: large capacity, can switch 200 amperes current;
Standard contact forms available are: 1 normally open

Low working temperature: - 40 to + 110 ℃

Product use: automotive. Engineering vehicles. Rv and other large vehicles start, a variety of large current control system

Length * width * height (mm) : 45.0*45.0*45.0+18

Contact form: 1H

Low contact capacity: 200 a / 14 VDC / 110 VDC/AC220V

Coil voltage: 6VDC,12VDC, 24VDC, 48VDC

Coil power (W) : 4.8w 2.4w

Life (times) : electrical 1*100000

Mechanical 1 * 10000000

Medium pressure: 1000VAC between open contacts

1000VAC between coil contacts

Low temperature: - 40 ℃ ~ + 110 ℃

Installation: fast connection, socket type

Weight: 100g
