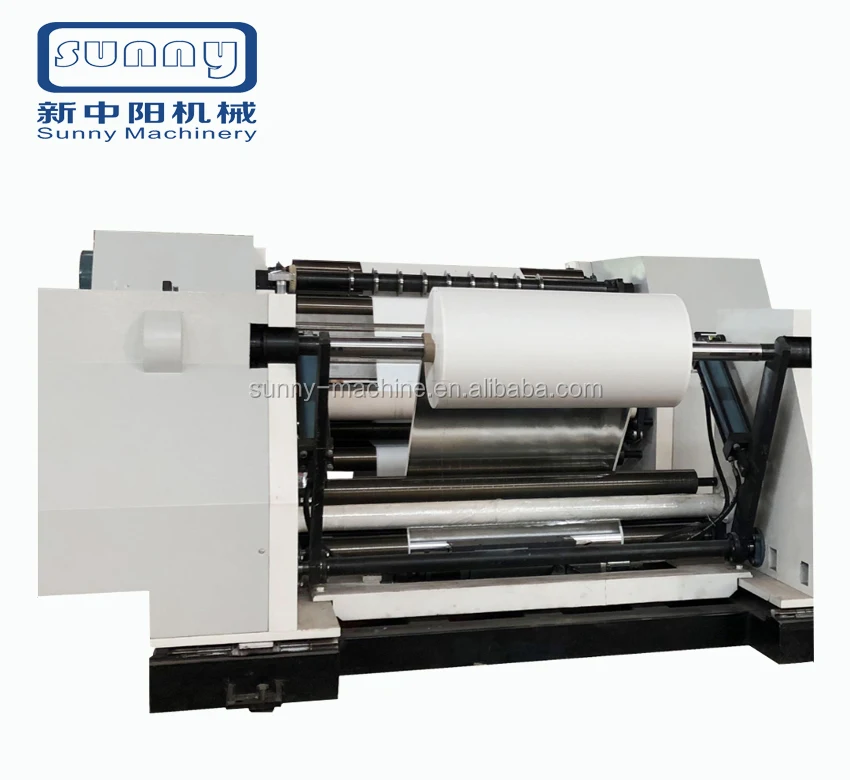

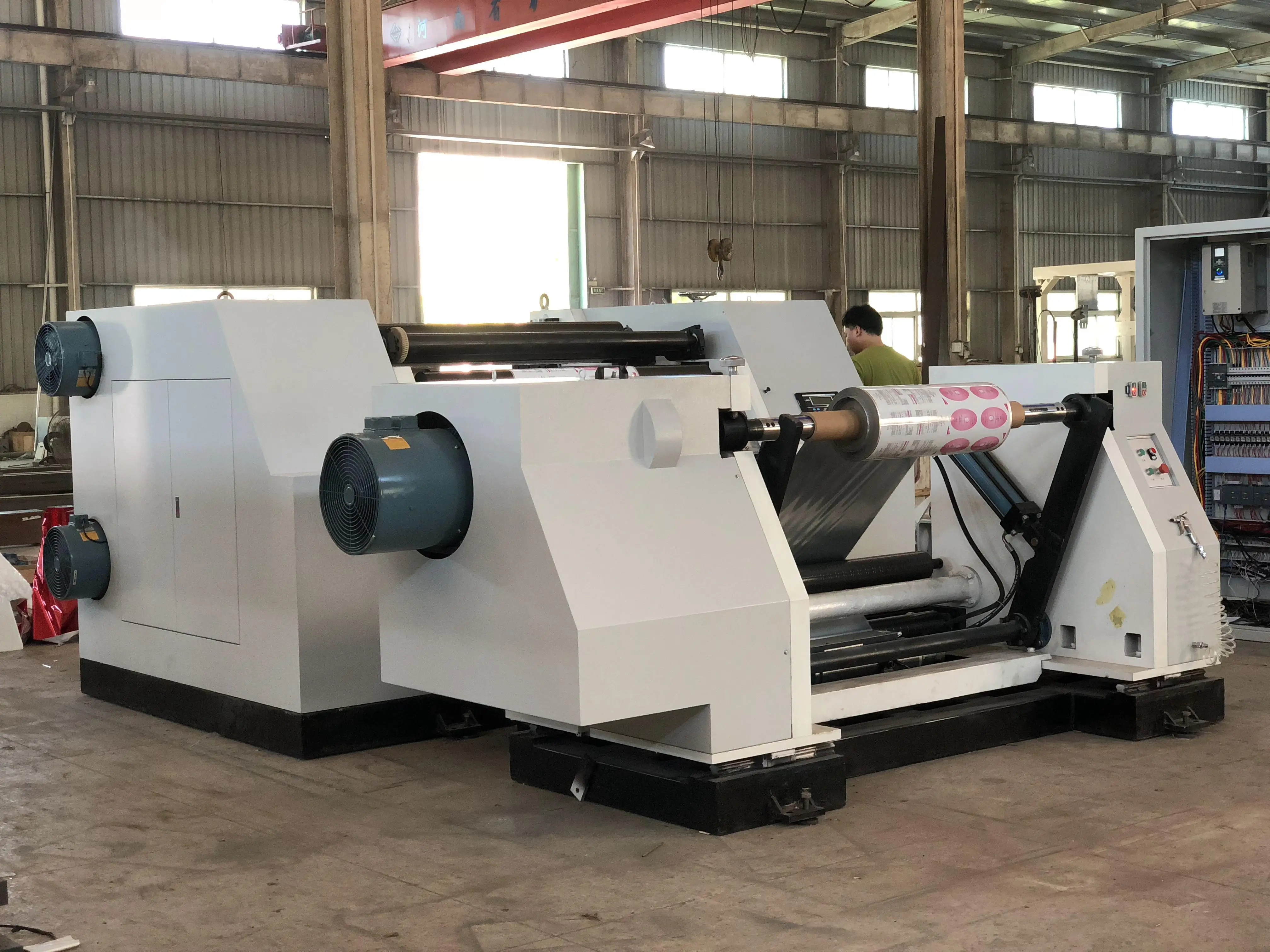

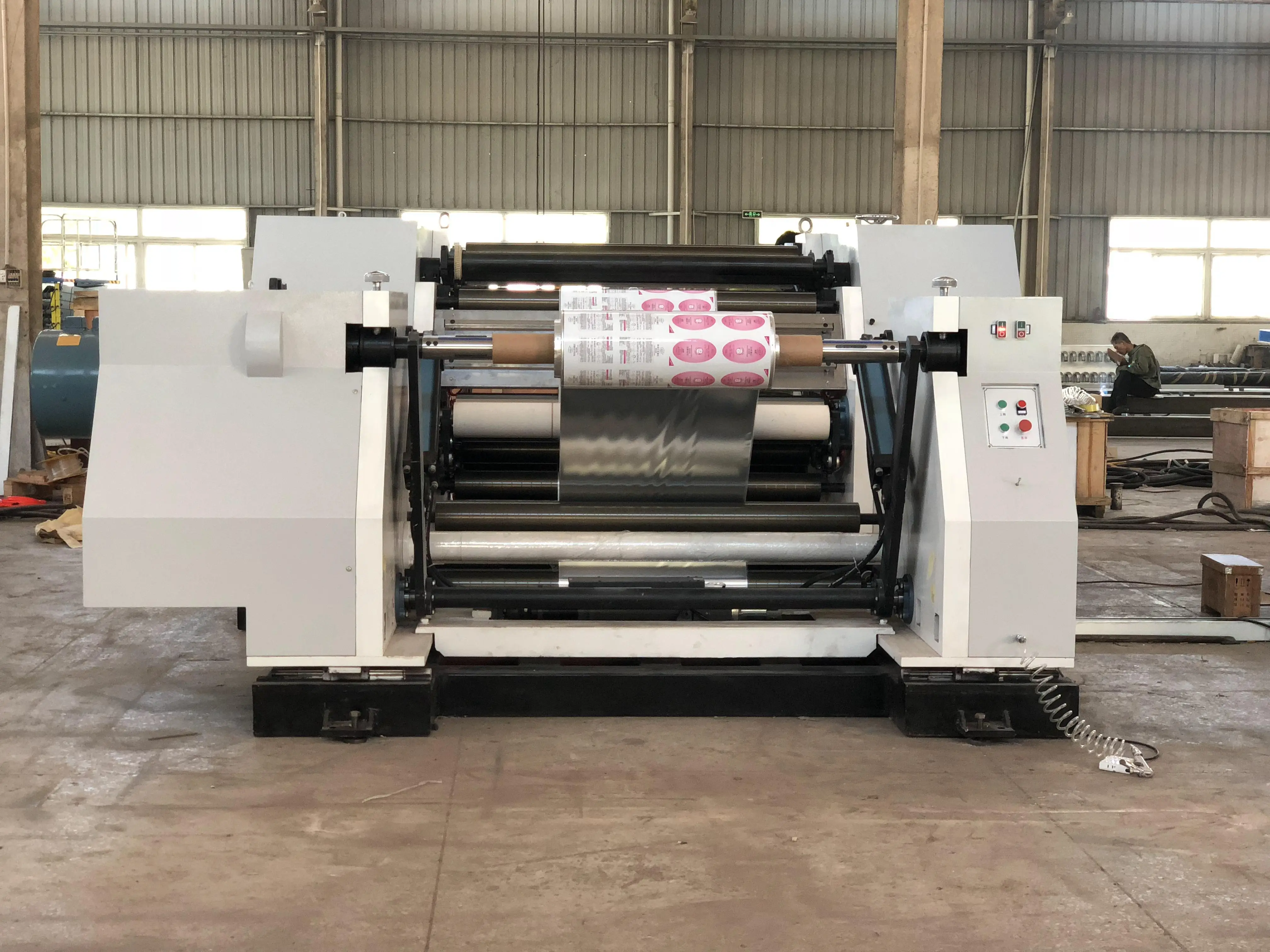

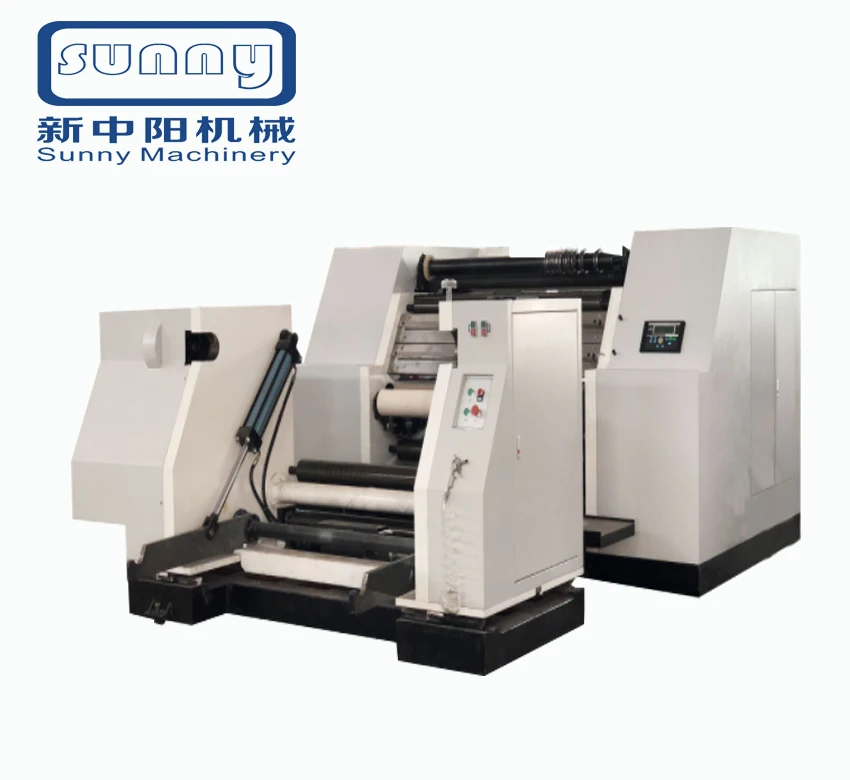

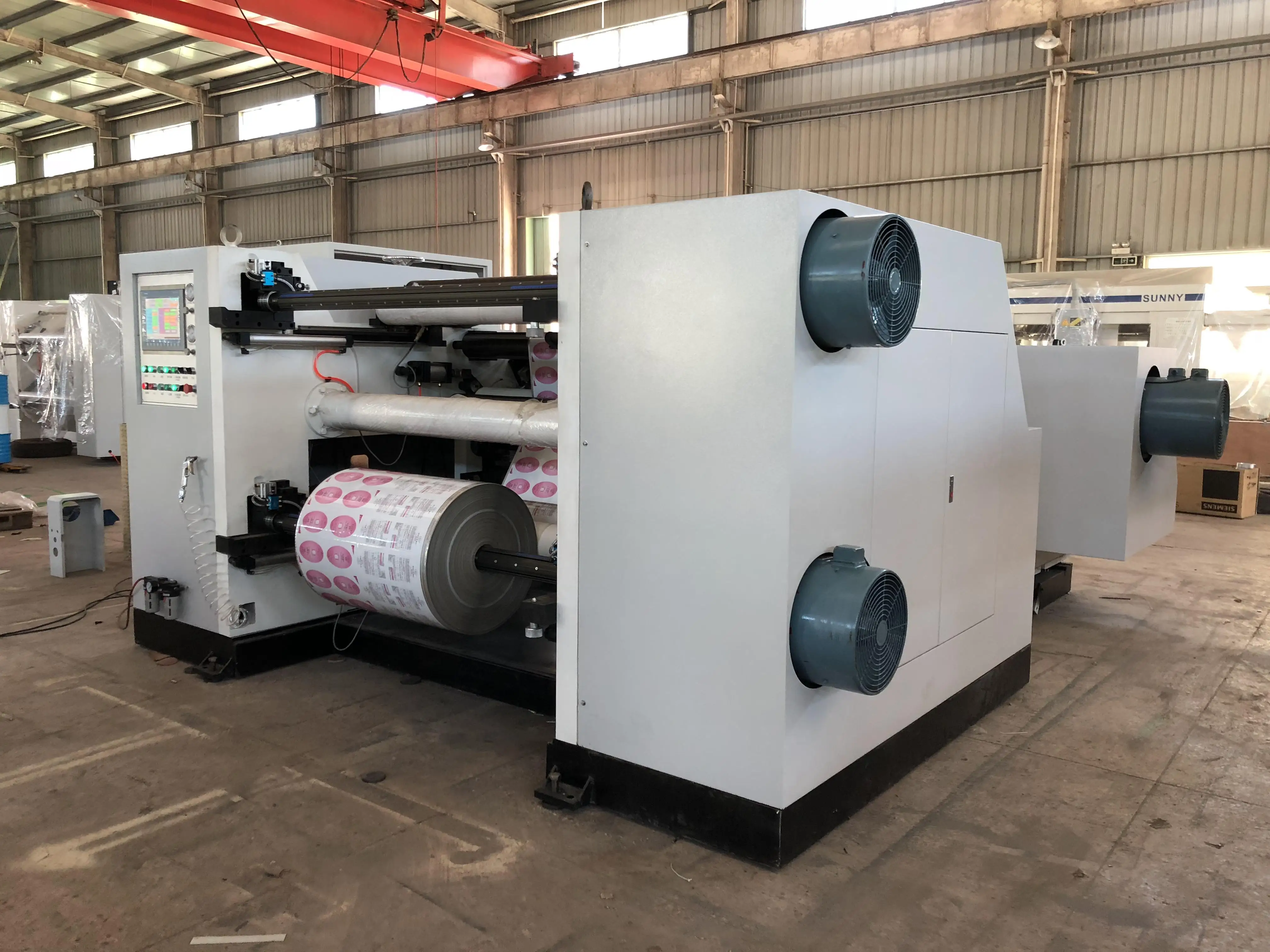

Automatic Aluminum Foil Laminated Paper Slitting Machine Paper Slitter Rewinder Machine

Product Overview

Description

 Automatic Aluminum Foil Laminated Paper Slitting Machine Paper Slitter Rewinder Machine





Application:

This machine is suitable for slitting production aluminum foil laminated paper, metalized paper and paperboard.









Main Techinical Parameters



Material width: 1300-1350mm

Slitting width: 70-114mm

Idler roller width: 1450mm

Machine speed: Max.400m/min

Run speed: Max. 350m/min (more than 200g / m² speed above 150 m / min)

Unwind diameter: Max.φ1500mm (Φ3″,Φ6″ Air-shaft)

Rewind diameter: Max.φ850mm (Φ3″,Φ4.7″ Air-shaft)

Unwind motor: 22KW

 Main traction motor: 15KW

Rewind motor: 7.5KW (2sets)

External dimension: L 4800mm x W 2500mm x H 1850mm



Company Information:

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 20 years of experiences.

Our company has been developing and moving towards a greater competitive advantage by continuously improving technology and innovation.

All project will be serviced by our expertise in Mechanical Engineer Department, Assembly Department, Electrical Department, Software Programming Department, so we can offer our clients with our top standard machinery, also we can make all kinds of modifications according to customer specific requirements.

Our machineries are sold in many countries including India, Indonesia, Thailand, Vietnam, Brazil, Poland, Korea, Italy, Philippines, Singapore, Russia, Malaysia, Pakistan and so on.
