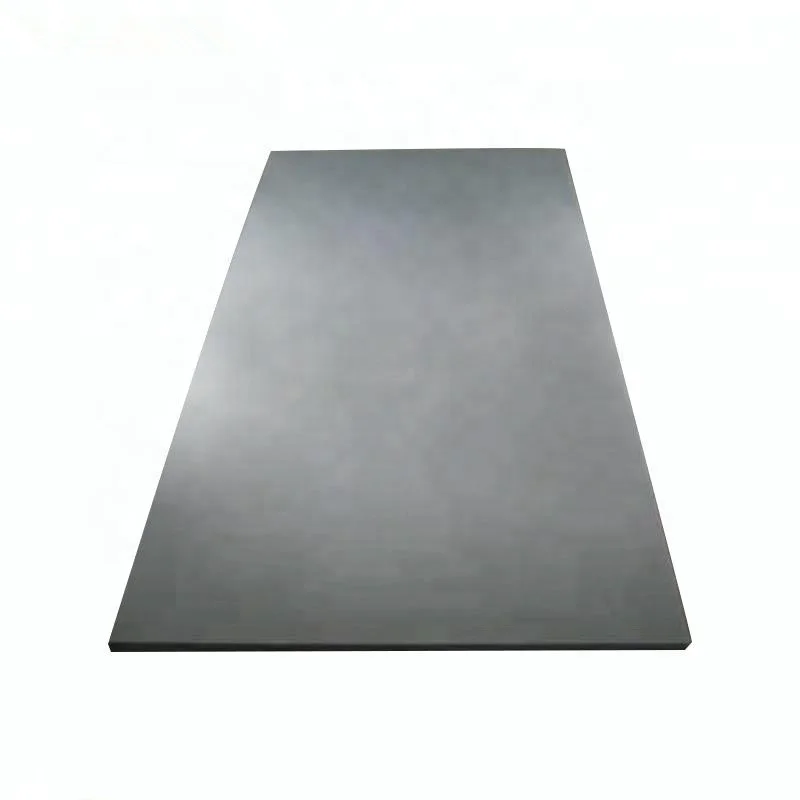

Высококачественный лист из молибденового сплава с холодной прокаткой, отполированный, 2,286 мм, цена на вакуумную печь
- Category: Molybdenum >>>
- Supplier: Shaanxi Getwick Metal Technologies Co. Ltd.
Share on (62029138212):
Product Overview
Description

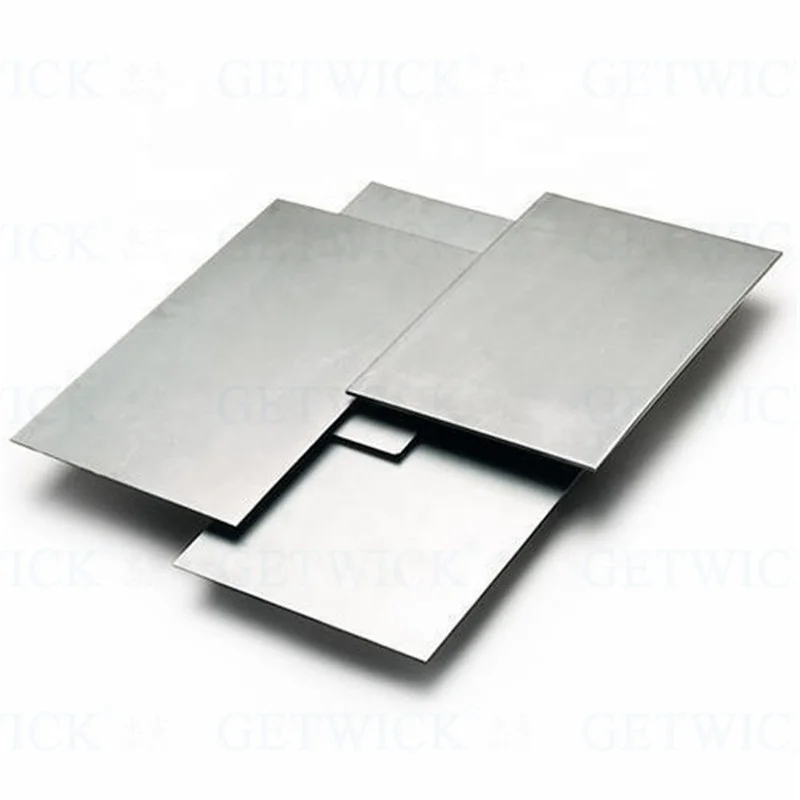

High quality cold rolling annealed Polished 2.286mm molybdenum alloy sheet plate for Vacuum Furnace Price
Product Overviews
Product information
Item | pure moly sheet molybdenum metal plate suppliers and mu metal sheet |
Standard | ASTM B386, GB/T3876 |
Grade | Mo1, 361 |
Material | 99.95% min. Mo |
Density | 10.2g/cm3 |
Melting Point | 2610 Centigrade |
Using temperature | 1400 Centigrade max. |
Size | Thick 0.025mm min. x W600mm max. x L3000mm max. |
Processing | Cold rolled, Stress relief annealing, Hot rolled |
Colour | Black or bright |
Package | Standard wooden case as your request |
Feature
1. Low thermal expansivity
2. High using temperature
3. Good corrosion resistence
4. High strength
5. Low electrical resistivity
Surface:shiny, acid pickling, satin, or as-rolled condition; dependent upon thickness and width parameters.Normal condition: cold-rolled bright, acid pickling, polished.
Size
Chemical requirements
Element | Ni | Mg | Fe | Pb | Al | Bi | Si | Cd | Ca | P |
Concentration(%) | 0.003 | 0.002 | 0.005 | 0.0001 | 0.002 | 0.0001 | 0.002 | 0.0001 | 0.002 | 0.001 |
Element | C | O | N | Sb | Sn | Mo |
|
|
| |
Concentration(%) | 0.01 | 0.003 | 0.003 | 0.0005 | 0.0001 | balance |
|
|
| |
Normal specification we can provide:
Molybdenum Plate/Sheet /Foil/Strip | ||
Thickness(min) mm | Width(max) mm | Length(max) mm |
0.025~0.09 | 150 | 1000 |
0.1 | 350 | 1500 |
0.12 | 400 | 1500 |
0.15 | 420 | 1500 |
0.2 | 450 | 2000 |
0.3~1 | 550 | 2500 |
1.5~5 | 500 | 2000 |
5~25 | 500 | 1500 |
Tolerance Chart(mm) | |||||
Thickness | Width | Length | |||
Range | Tolerance | Range | Tolerance | Range | Tolerance |
0.1~0.15 | +/-0.1 | 50~200 | +/-1 | 100~1500 | +/-3 |
0.15~0.30 | +/-0.02 | 50~200 | +/-1 | 100~1500 | +/-3 |
0.3~0.5 | +/-0.03 | 50~200 | +/-1 | 100~1800 | +/-3 |
0.5~0.7 | +/-0.04 | 50~500 | +/-2 | 100~2000 | +/-3 |
0.7~1 | +/-0.05 | 50~600 | +/-2 | 50~2000 | +/-3 |
1.0~2.0 | +/-0.05 | 50~600 | +/-2 | 50~2000 | +/-4 |
2.0~3.0 | +/-0.05 | 50~550 | +/-2 | 50~1500 | +/-5 |
3.0~4.0 | +/-0.1 | 50~550 | +/-3 | 100~1500 | +/-5 |
4.0~5.0 | +/-0.1 | 50~550 | +/-3 | 100~1500 | +/-5 |
Production Process
Product Uses
Application
1.Used for producing molybdenum targets, boats, discs, etc.
2. Used as protection cover in glass coating industry
3. Used for the electronics industries, such as intergrated circuit, information storage, LCD, laser storage, electronic control device, etc.
4. Mainly used as heat shield and reflection shield in high temperature furnace industry, such as vacuum furnace, sapphire growing furnace, etc.
Production Flow
Packaging

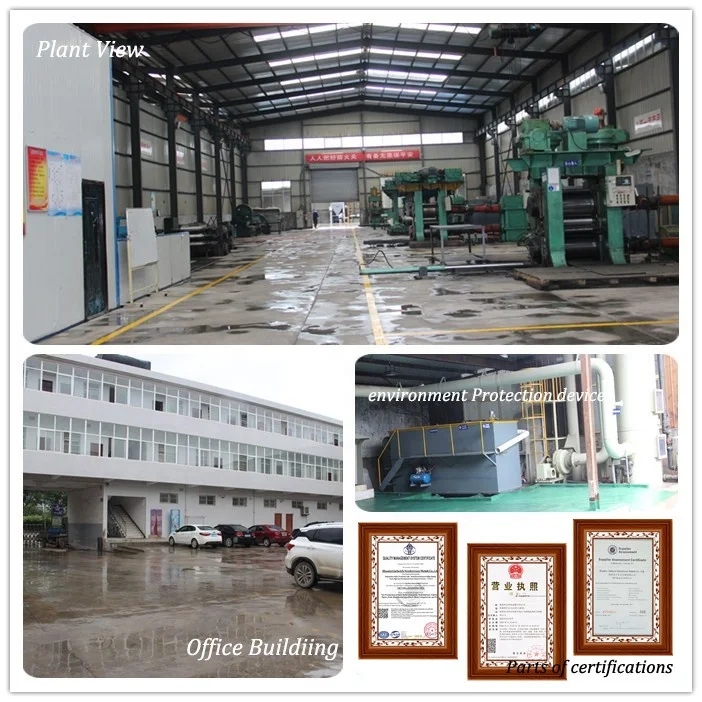

Our Company
