1. This series of machines have the functions of washing and dewatering, Arbitrary choice of the wash cycle, the number of cleanings, dehydration time, etc. For a wide range of fabrics. The device uses a variable frequency drive, speed adjustment smooth, flexible, low noise; equipment used back drainage structure to solve the problem of clean laundry;
2. Large-screen computer version control, strong function, flexible and professional. 40 sets of program memory.Manual controller , when the computer controller failure, you can switch to the emergency operating system, manual operation, complete the washing.
3. Inner drum made of high quality stainless steel welded strength, punching sided, double-sided polishing and reduce fabric wear
4. Mechanical equipment used under suspension spring shock structure, low noise, wash and high speed extract excessive smooth, no need the base.
5. Floating Viton sealing, completely isolated from the water, and the pH of the material penetration and protect bearings, improve life
6. Large-diameter, stainless steel deep-style doors fitted clothes, effectively prevent the clamp pull linen, while reducing the labor intensity of the operation; narrow popular in Europe and America, the big door, to ensure reliable sealing of the door.
7. In vitro using the automatic refueling device, ergonomically mechanics, reduce maintenance labor intensity, can delay life.Products are mainly suitable for hotels, restaurants, laundry, washing hospital linen, tablecloths, towels and other linen use
| Model | XGQ-30F | XGQ-35F | XGQ-50F | XGQ-100F |
| Washing capacity(KG) | 30 | 35 | 50 | 100 |
| drum dimension(mm) | Φ900×480 | Φ920×500 | Φ1070×580 | Φ1200×870 |
| roller speed(r/min) | 45 | 45 | 45 | 45 |
| high extract speed(R.p.m) | 780 | 780 | 780 | 700 |
| motor power(kw) | 4 | 4 | 5.5 | 7.5 |
| frequency power(kw) | 5.5 | 5.5 | 7.5 | 11 |
| steam pressure(Mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| steam consumption(kg) | 25-28 | 28-30 | 40-50 | 80-100 |
| Heating power(kw) | 18 | 18 | 25 | 50 |
| The rated voltage(v) | 380 | 380 | 380 | 380 |
| Wear rate | ≤4‰ | ≤4‰ | ≤4‰ | ≤4‰ |
| Water consumption(L/kg) | ≤14L/kg | ≤14L/kg | ≤14L/kg | ≤14L/kg |
| shock(mm/s) | ≤7 | ≤7 | ≤7 | ≤7 |
| noise(dB(A)) | ≤80dB(A) | ≤80dB(A) | ≤80dB(A) | ≤80dB(A) |
| air pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| air connect (mm) | Φ6 | Φ6 | Φ6 | Φ6 |
| Inlet(mm) | Φ50 | Φ50 | Φ50 | Φ50 |
| Outlet(mm) | Φ120 | Φ120 | Φ120 | Φ140 |
| Dimension(mm) | 1360x1360x1800 | 1360x1360x1800 | 1580x1550x1960 | 1750x2050x2250 |
| Weight(kg) | 1550 | 2100 | 2650 | 3600 |

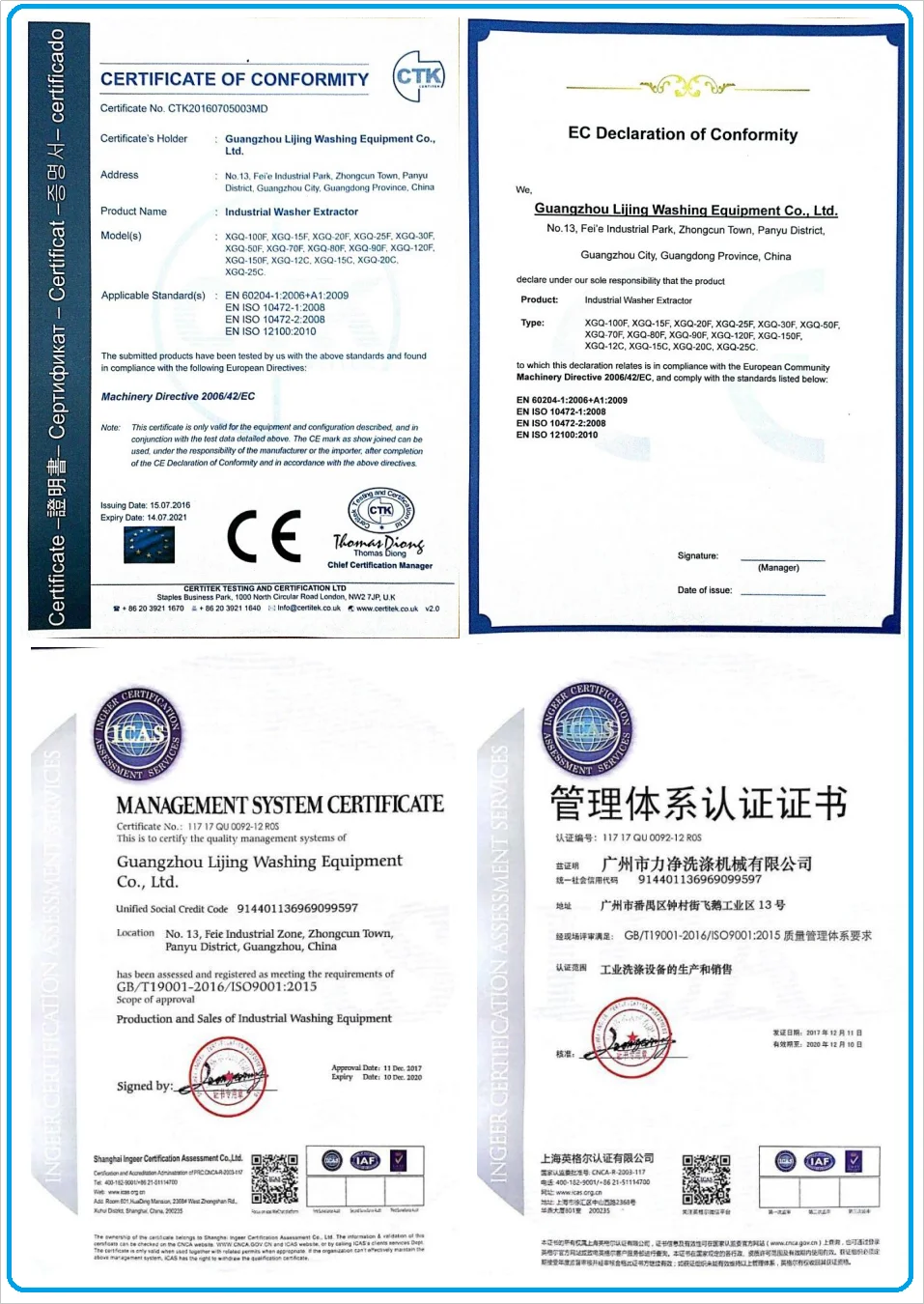

CE and ISO 9001 Certificate


Customer Show

Our Advantages
1. We are a professional manufacturer.have much successful laundry projects experiences
2. We supply the high quality machines.with competitive price
3. Rapid response of after-sales service
4. Some models of the machines have wearing part.we will add extra one for free when we delivery.
5. One year warranty
