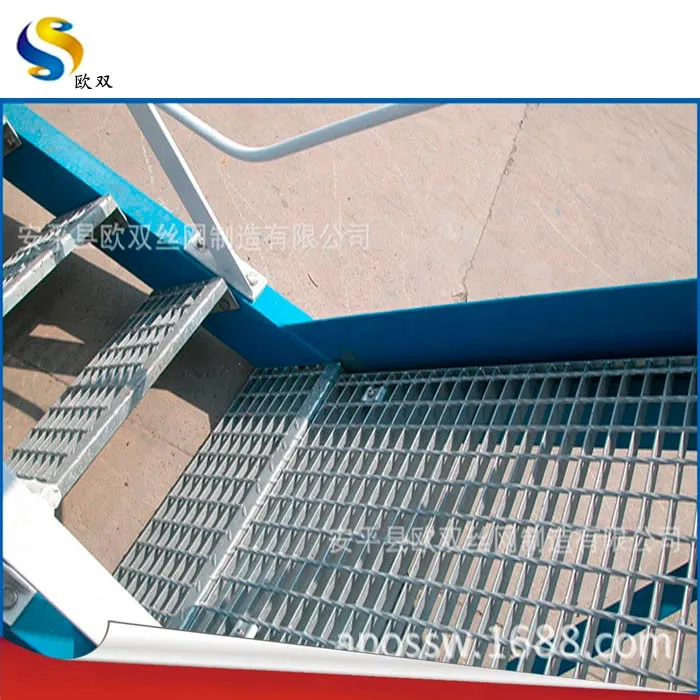

Floors aluminum Expanded Metal Grating for walkways
- Category: >>>
- Supplier: Anping County Ou Shuang Wire Mesh Manufacturing Co. Ltd.
Share on (62029411654):
Product Overview
Description
Aluminium Grating - Strong yet lightweight
Aluminium Grating is recommended for corrosive applications where light weight is important, and/or quality of appearance is paramount.
Manufactured in 6063-T6 Aluminium, Grating is manufactured in either stock panels, or customised to length, and can be utilised in an array of applications; both industrial and architectural.
Aluminium Grating is available in a range of cross bar and load bar combinations.
Aluminium Grating allows the building or project designer to incorporate a functional element, which also has an aesthetic appeal.
Often used in environments where moisture and therefore rust is a potential issue.

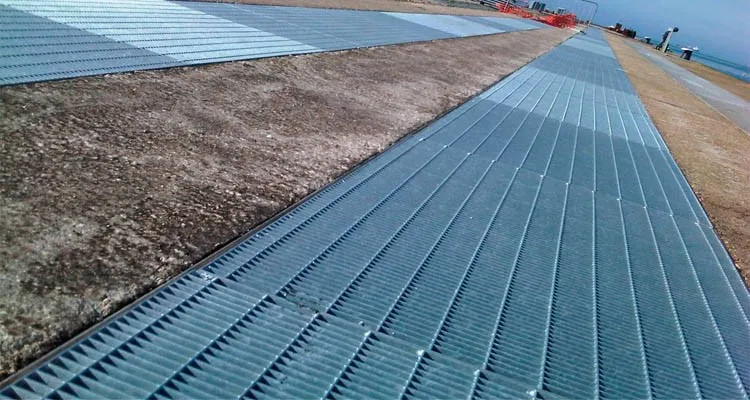

Alternatively Aluminium Grating can be used in architectural applications as a false ceiling or as a facade or landscape feature.
Aluminium Grating allows the building or project designer to incorporate a functional element, which also has an aesthetic appeal.
Aluminium Grating is recommended for corrosive applications where light weight is important, and/or quality of appearance is paramount.
Manufactured in 6063-T6 Aluminium, Grating is manufactured in either stock panels, or customised to length, and can be utilised in an array of applications; both industrial and architectural.
Aluminium Grating is available in a range of cross bar and load bar combinations.
Aluminium Grating allows the building or project designer to incorporate a functional element, which also has an aesthetic appeal.
Often used in environments where moisture and therefore rust is a potential issue.
Alternatively Aluminium Grating can be used in architectural applications as a false ceiling or as a facade or landscape feature.
Aluminium Grating allows the building or project designer to incorporate a functional element, which also has an aesthetic appeal.
Product Description
1. Description
(1) Structure: Welding with flat steel and cross/round bars with certain distances.
(2) Features: High strength, light structure, high bearing.
(3) Surface: The hot dipped zinc coating gives the product excellent anti-corrosion.
2.Specification\t
Common Specification of Steel Grating\t
Remarks: Special Material, Special High Zinc Coating and New Style can be Customized.\t
Material Standard\tASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,
\tMild steel & Low carbon steel, etc

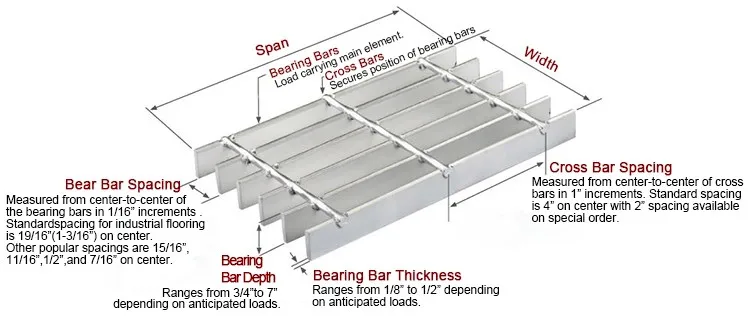

Bearing Bar\t25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10.....100 x10mm etc;
(Width x Thickness)\tI bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
\tUS standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch\t12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
\tUS standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch\t38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface Treatment\tUntreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.

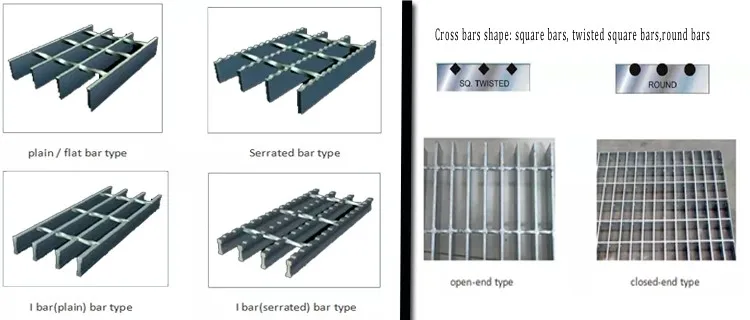

Grating Style\tPlain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Packing\t(1) Bandage and Paperboard: Generally applies to neat steel plate;
\t(2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
\t(3) Steel Pallet: Traditional export packing.
Payment Term\tT/T, L/C, Western Union, Credit Card, Alibaba Trade Assurance
Grade | 201,202,304,304L,309S,310S,316,316L,316Ti,317L,321,347H,409,409L,410,420,430,etc. | |||
Thickness | 0.3mm-60mm | |||
Width | 1000mm,1219mm(4feet),1250mm,1500mm,or as your requirements | |||
Length | 2000mm,2440mm(8feet),2500mm,3000mm,3048mm(10feet), 5800mm, 6000mm or as your requirements | |||
holes size | 1-100mm |

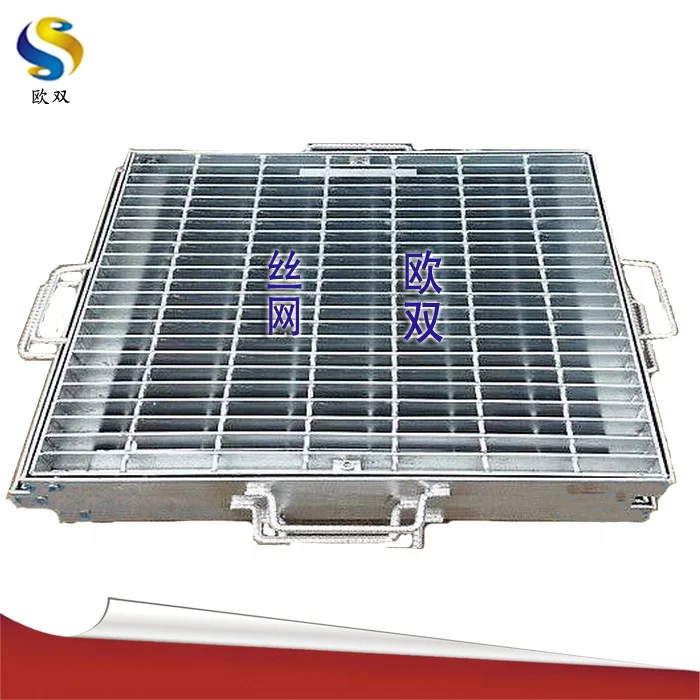

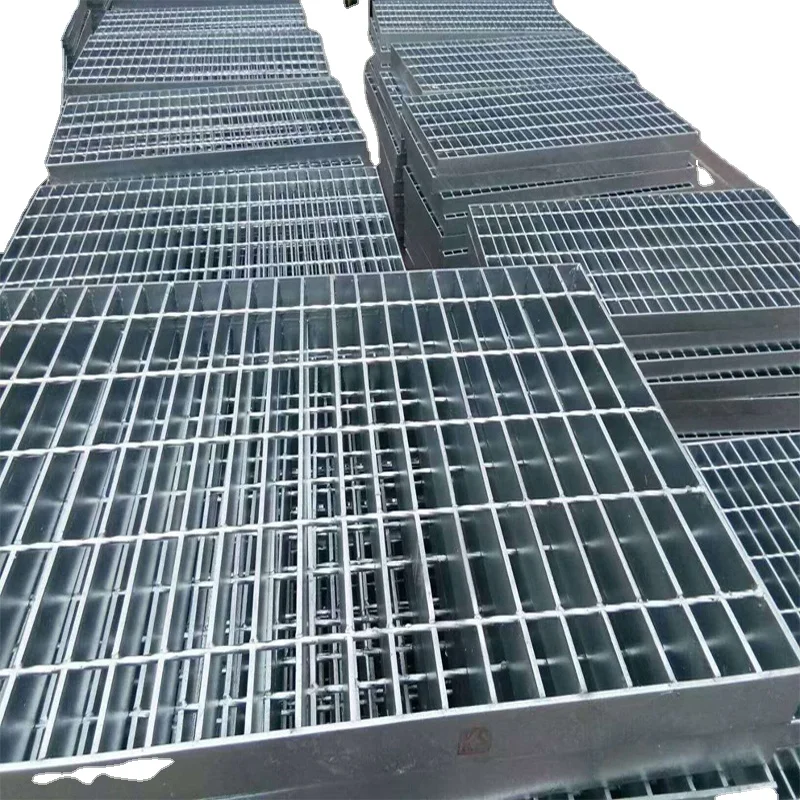

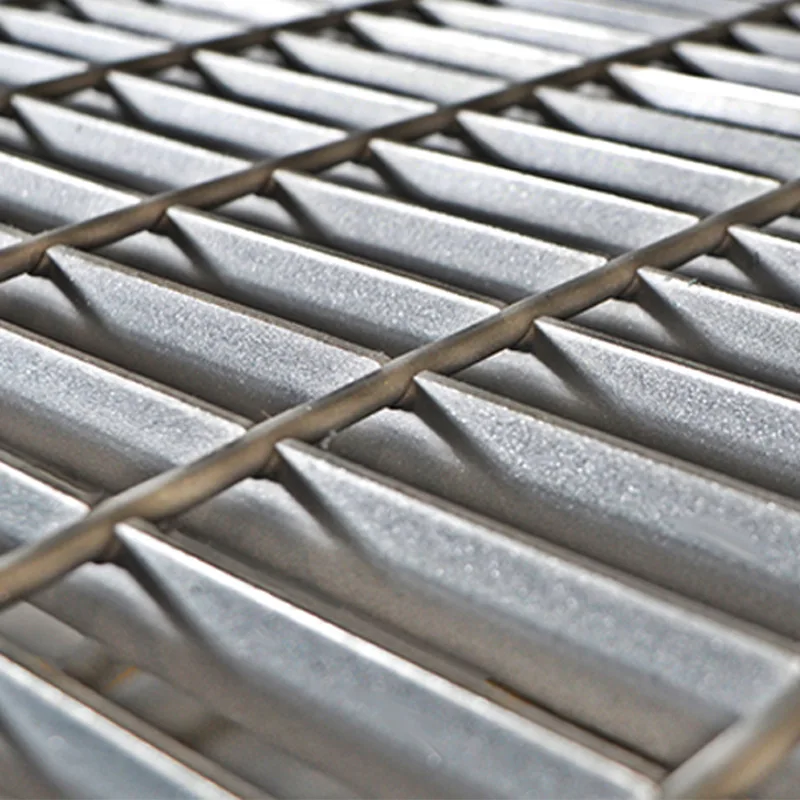

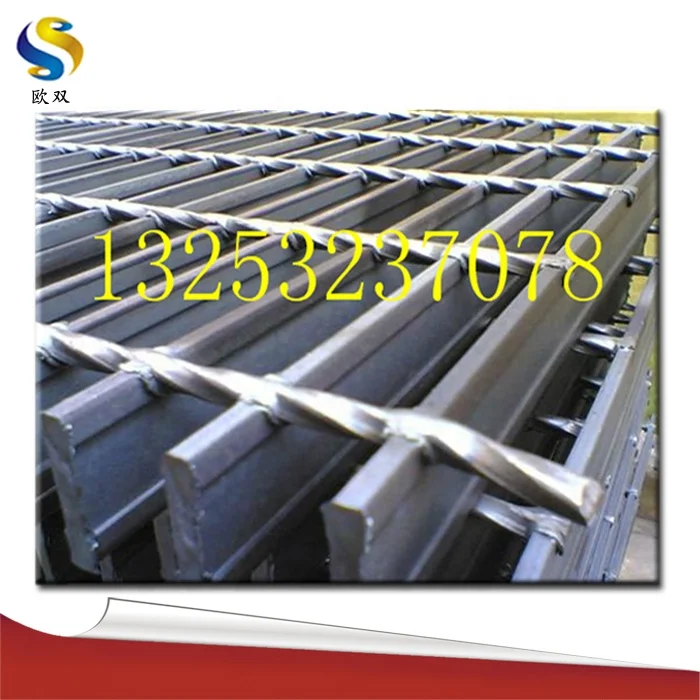

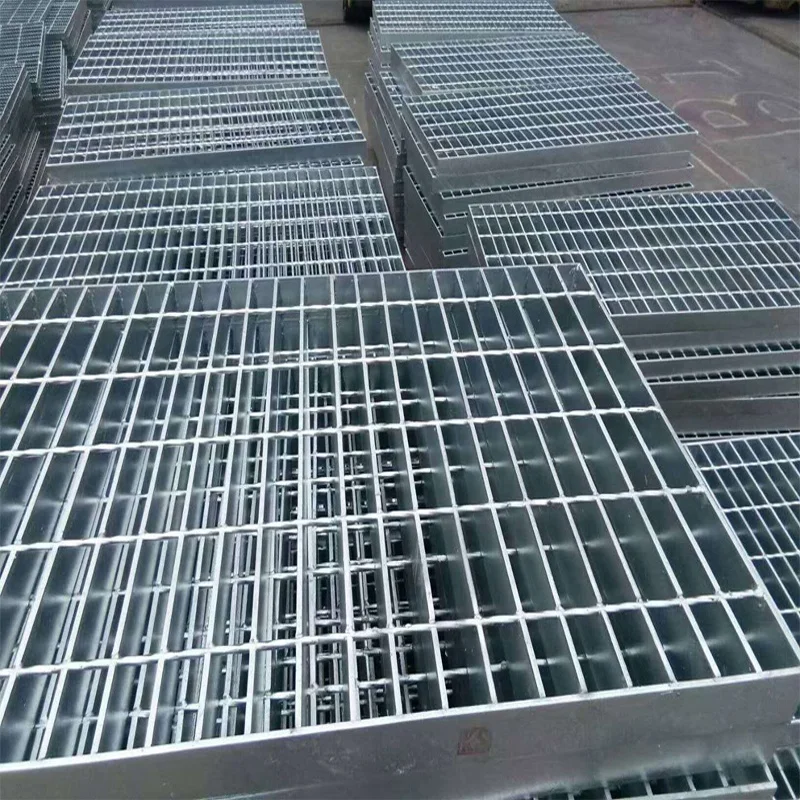

Detailed Images
what is steel grating ?( Malaysia Standard anti-slip type steel grating ) -- Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.
Product Name: Steel grating, Bar grating, Steel grid plate, Steel frame lattice,Steel grid plate net, welded steel bar grating, Serrated Steel Grating
Material: Low carbon steel sheet, Galvanized sheet, Stainless steel sheet, Aluminum sheet etc
Surface treatment: hot dip galvanized, painting, polished
Feature:
1. High strength and light structure
2. Powerful anti-corrosion, durable and long
working life.
3. Beautiful appearance, bright surface.
4. No drit-rain-snow deposit, automatic cleaning,
easy maintenance.
5. Good ventilation, day-lighting, heat-dispersing,
resistant to sliding and explosion.
6. Easy installation and disassembly.
Packing & Delivery
FAQ
Popular Questions
1. Lead Time?
7-10 days per container, Challenge the industry's fastest time!
2. Quality Guarantee?
15 days to return payment if any quality problem!!!
3. Price?
We are manufacturer since 2013. In this industry, our price is very competitive.
4. Any reports with your products?
Yes, formally issued Quality Test Report & Mill Test Report will be come with every batch of our grating.
5. Various Payment Way:
1. Telegraphic Transfer(T/T); 2.Letter of Credit(LC); 3. Credit Card; 4. Western Union 5. Alibaba Trade Assurance......
