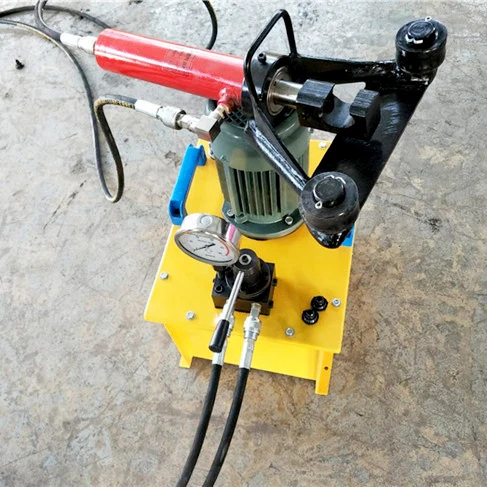

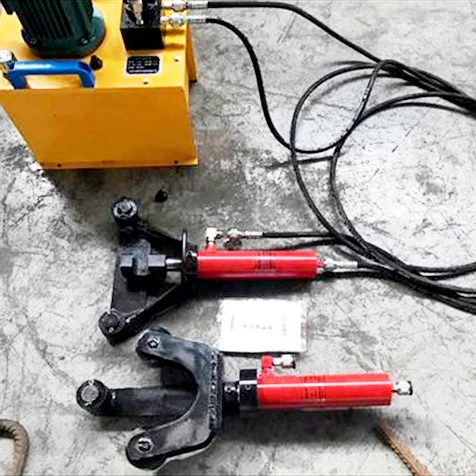

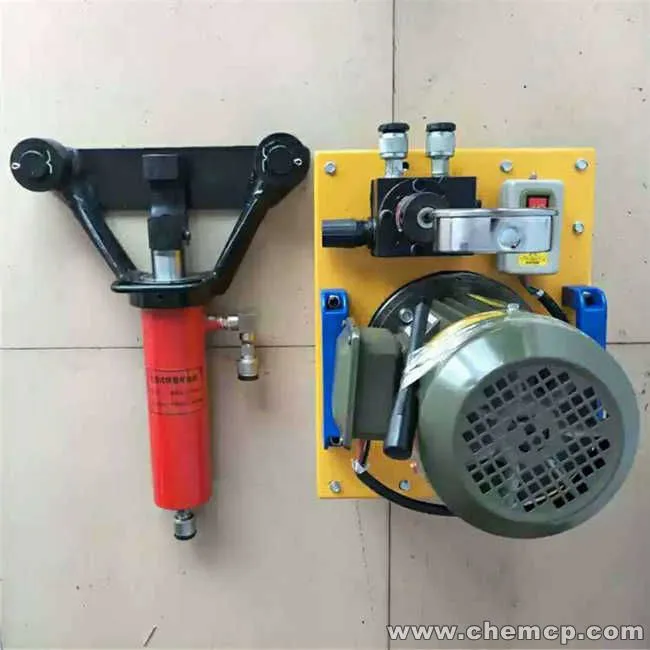

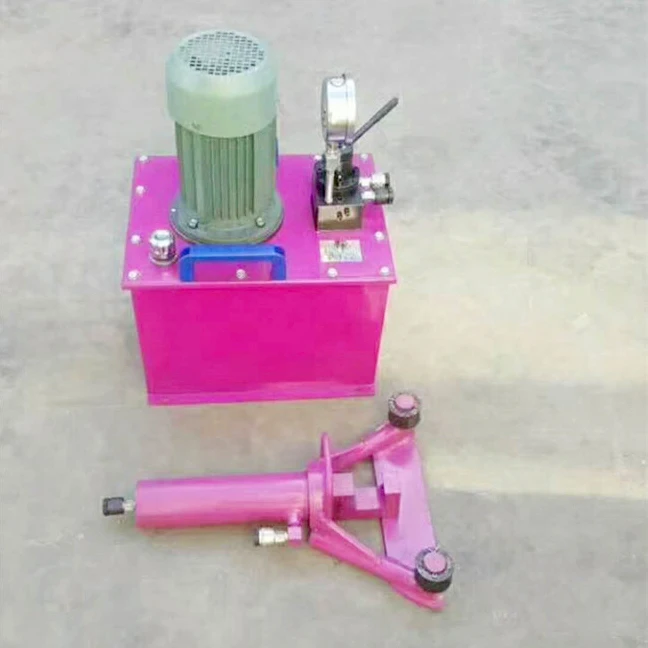

electric hydraulic pipe bending machine

1) The whole structure is simple, the operation is convenient, the stability is good, the reliability is high, the quality of rebar bending is guaranteed, and the working efficiency is improved;

2) Suitable for the site work such as the it is difficult for the common bending machine to reach after the steel bar is bound or the concrete is poured;

3) Use ultra-high pressure hydraulic system drive and the bending force is large. The maximum one is 40mm rebar;

4) The machine does not need to replace the working head, it can bend and straighten the rebar. The speed of bending and straightening is fast;

5) The machine is simple operation, labor saving and easy to move.

Certifications

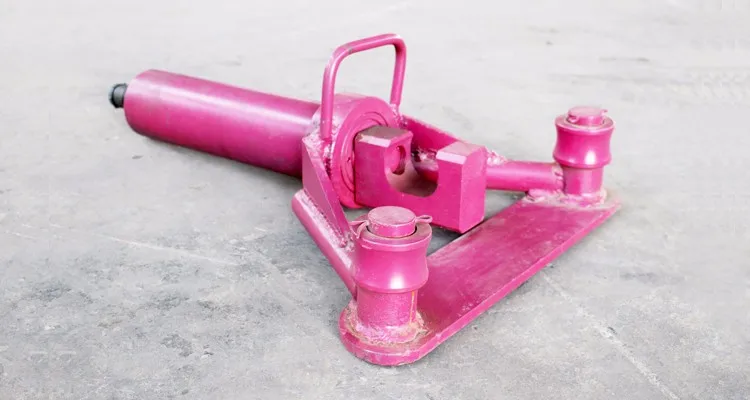

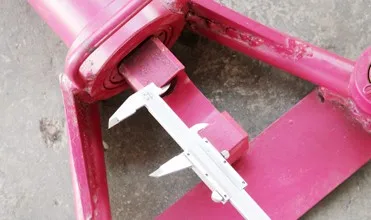

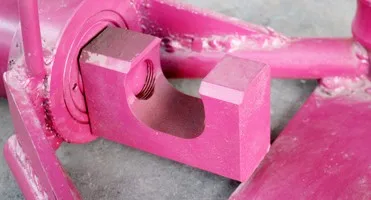

Detailed Images

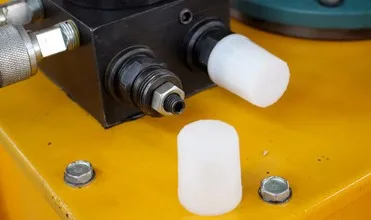

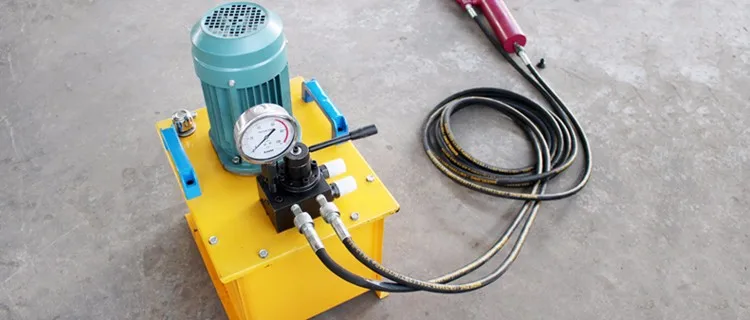

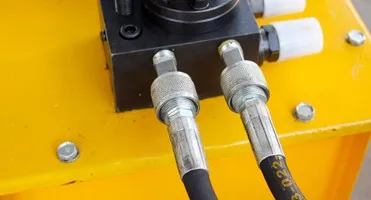

Machine Parts

Bending range: 14-40mm
Bending angle: 90 ° (WU-32, bendable 180 °) bending can be stopped at any angle.
Bending thrust: 10T-20T
Electric oil pump power: 1.5 kW 0.75 KW
Voltage: 380V (optional 220v)
Work pressure: 63mpa
Bending machine dead-weight: 12-14kg

Work efficiency

1000-2000 pcas can be bended in 18 hours of a day.And a rebar uses 5-10 seconds. In order to further optimize the solution to the difficult problems of field construction, our company designed this kind to improve work efficiency. The portable steel bar straightener, which reduces the barbarous construction and can complete the field construction with high quality fastly and effectively, makes the field construction no longer difficult.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

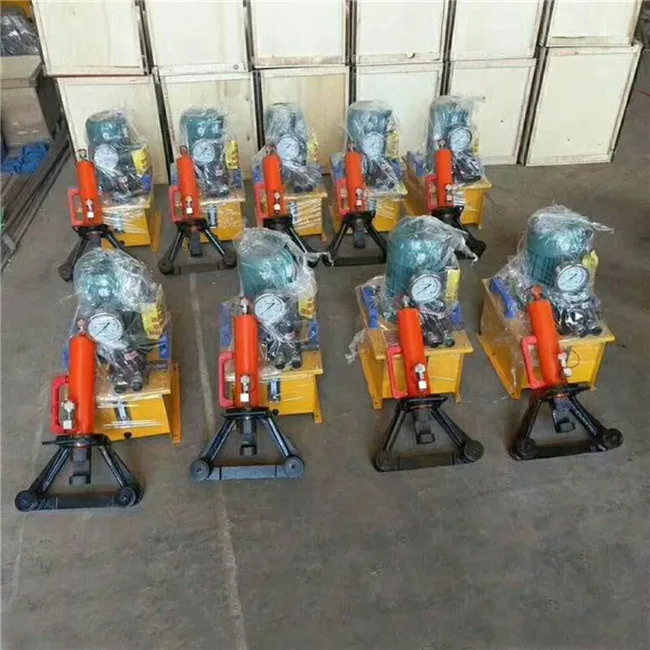

Packing & Delivery

Packaging
Size	650(L) * 550 (W) * 850 (D)
Weight	65KG
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
