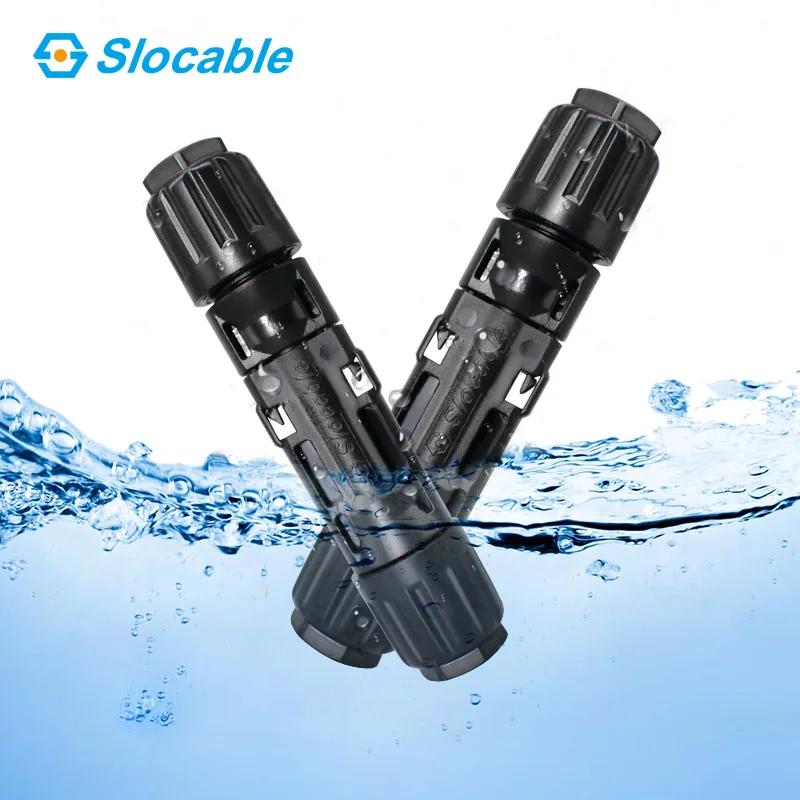

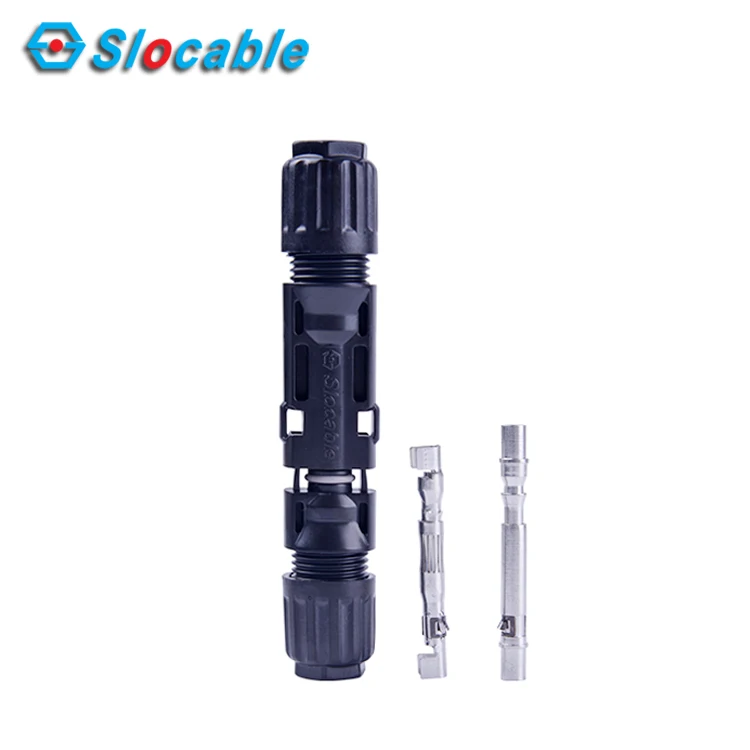

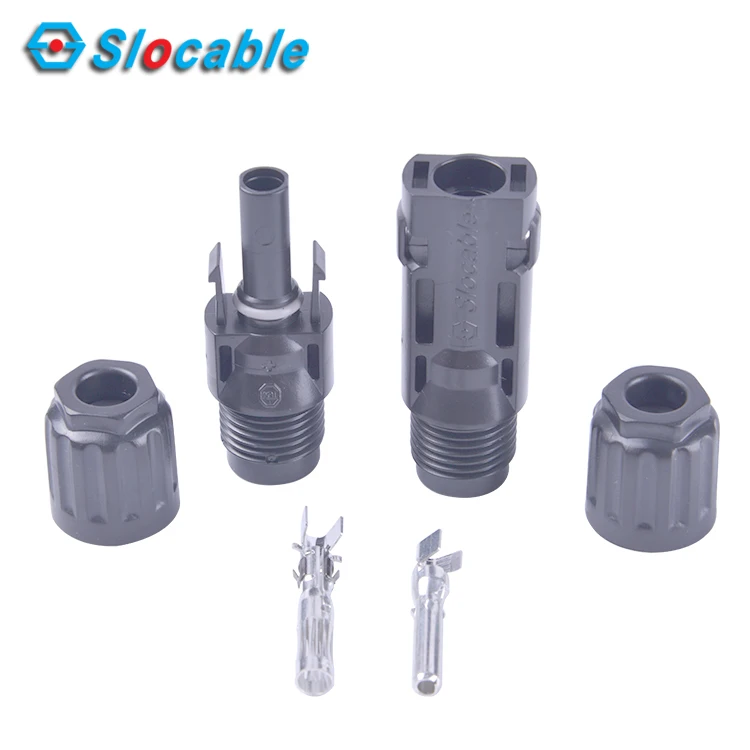

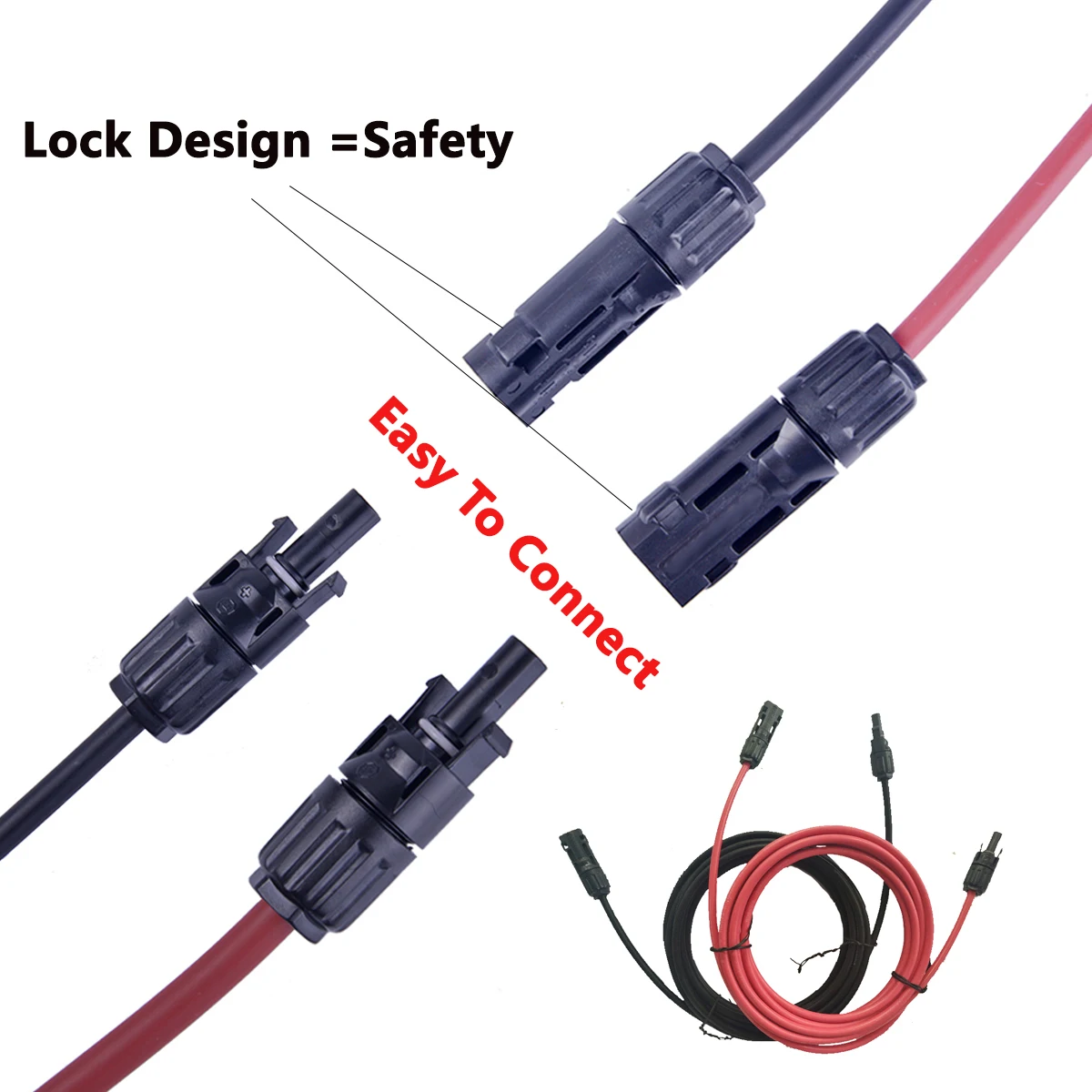

Slocable TUV approved Solar PV system 40A 50A dc solar connector for 12awg/10awg/8awg wire

Product Overview

Description











TUV approved 30A 50A Solar PV system solar connector leads



Description:

·Simple on-site processing

·Mating safety provided by keyed housings

·Mutiple plugging and unplugging cycles

·Accomodates PV cable with deferent insulation diamaters

·High Voltage and Current carrying capacity

·TUV and CE approved

·Competitive price

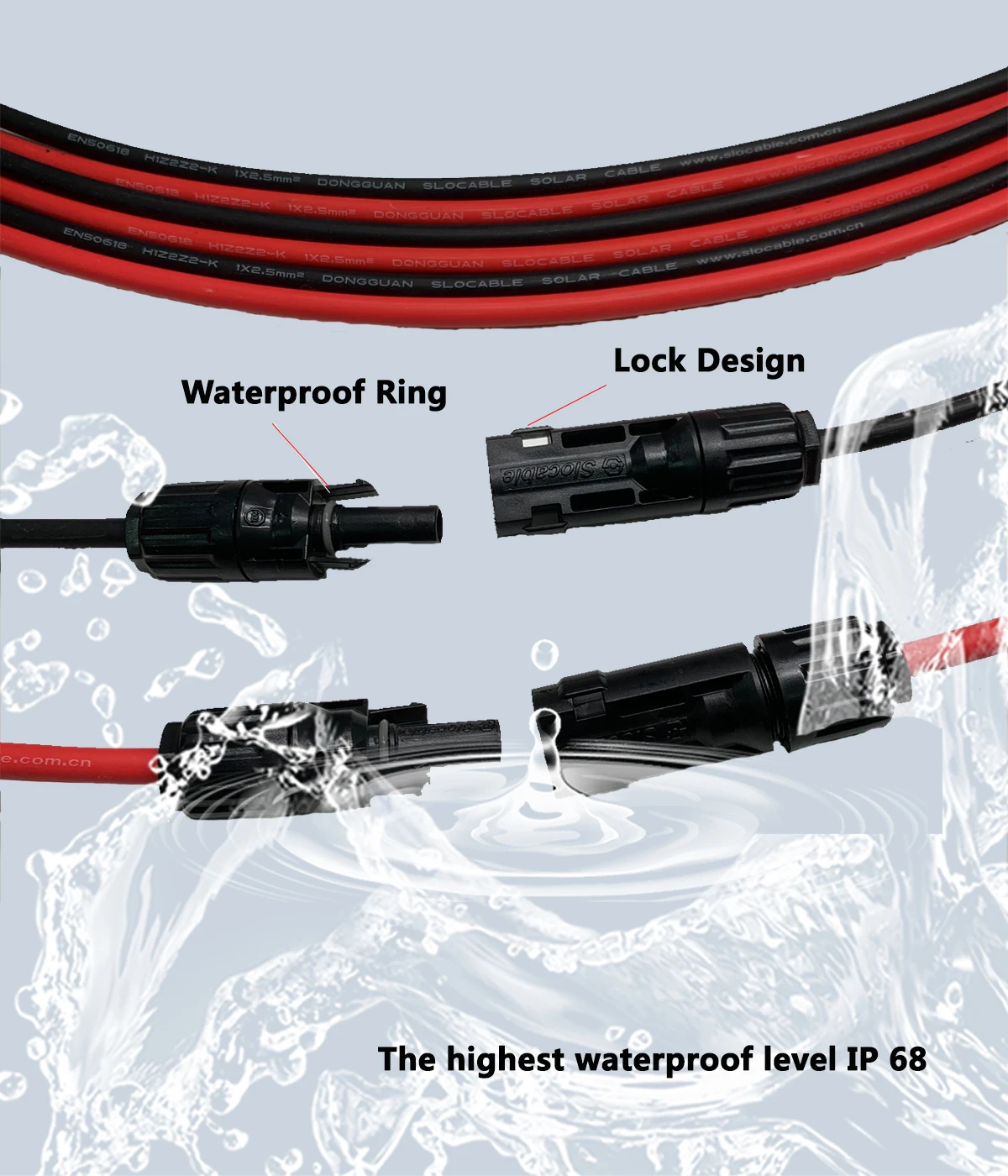

·IP68 strongly waterproof







Technicale Data:

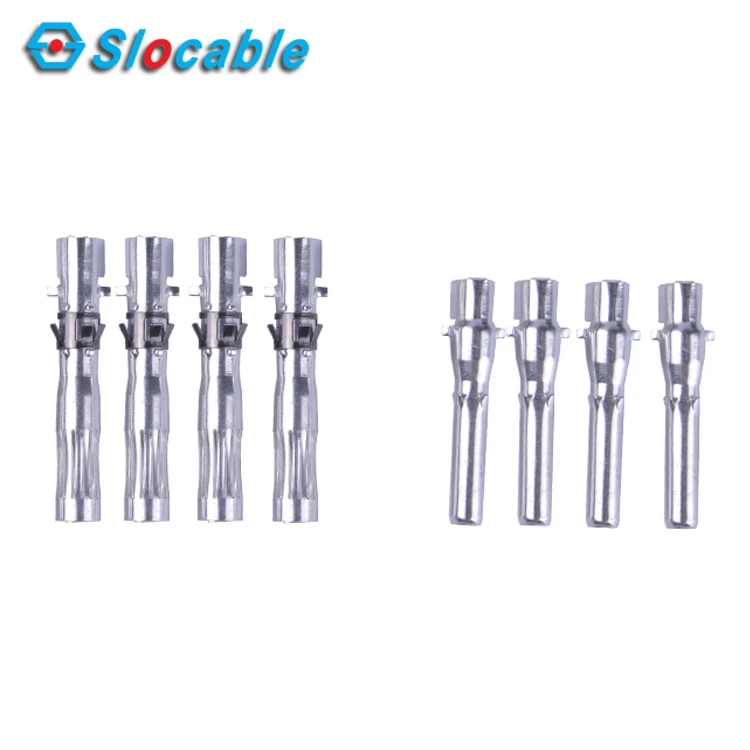

Insulation Material:	PPO	Contact material:	Copper,Tin plated
Rated current:	40A(2.5mm2-6mm2 cable)	Insertion force:	Max. 50N
Rated Voltage:	1000V/1500V DC	Withdrawal force:	Min. 50N
Test voltage:	8kV(50Hz,1min)	Ambient temperature  range:	-40℃~+90℃
Contact resistance:	<0.5mΩ	Flame class:	UL94-V0
Waterproof protection:	IP68	Connecting system:	Crimping connection
Overvoltage degree:	CATIII/2	Suitable cable cross  section:	2.5/4/6/10mm2,  14/12/10/8AWG















Quality Comparison:





















Our Projects :

Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?

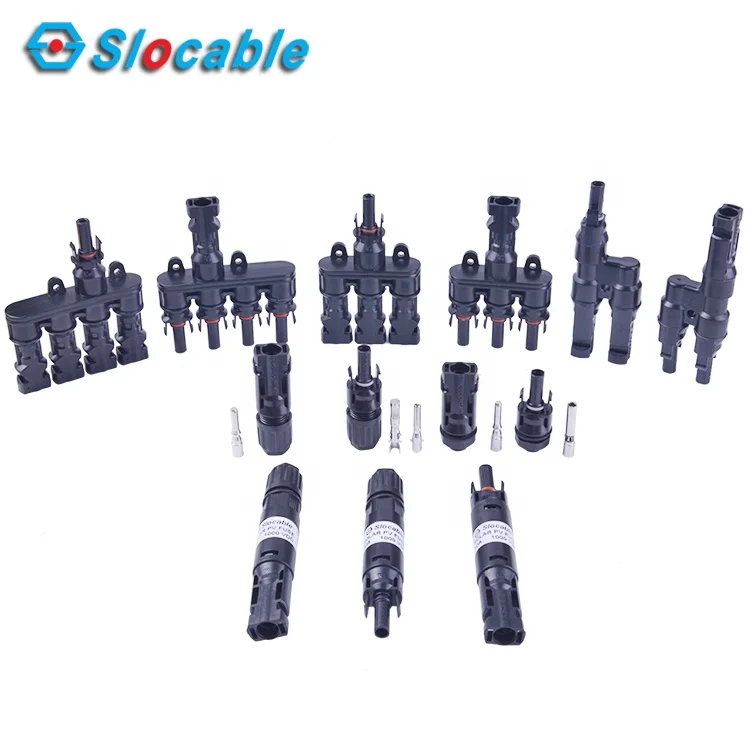

Solar Cables, Solar Connectors, PV Fuse Holder,Circuit breakers and other solar relative products.We're the Manufacturer with more than 13years experience.

Q2: How can I get the Quotation of the products ?

1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.

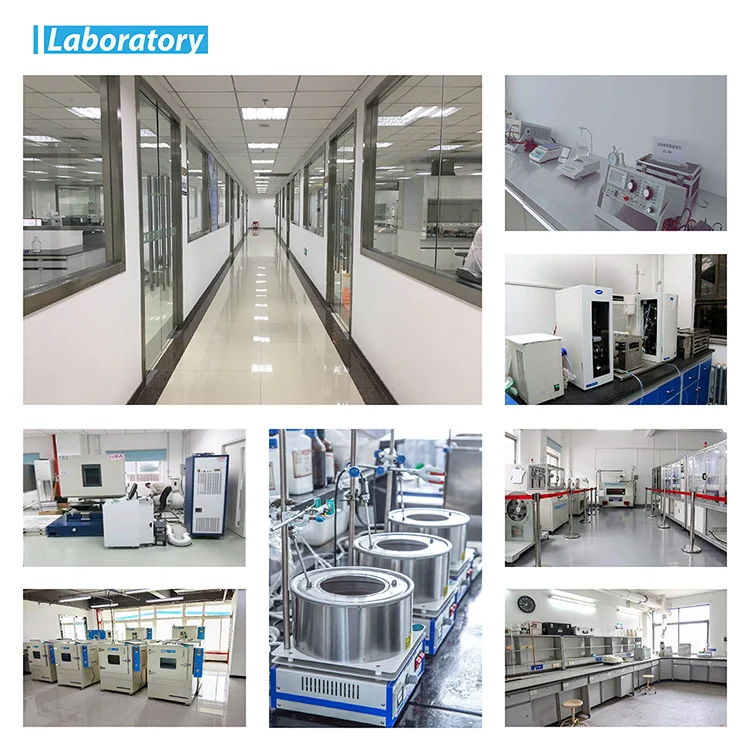

3)Quality Control Department specially responsible for quality checking in each process.

Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.

What's more, our R&D team will give you the professional suggestions.

Q5: How Could I get the Sample?

We are honored to offer you samples,Samples is free provided,but need pay the courier freight.

If you have a courier account, you can send your courier to collect samples.

Q6: How long is the delivery time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.



If any inquiry, feel free to let me know !
