Full automatic sterilizer powder vial filling machine for different powder

Product Overview

Description

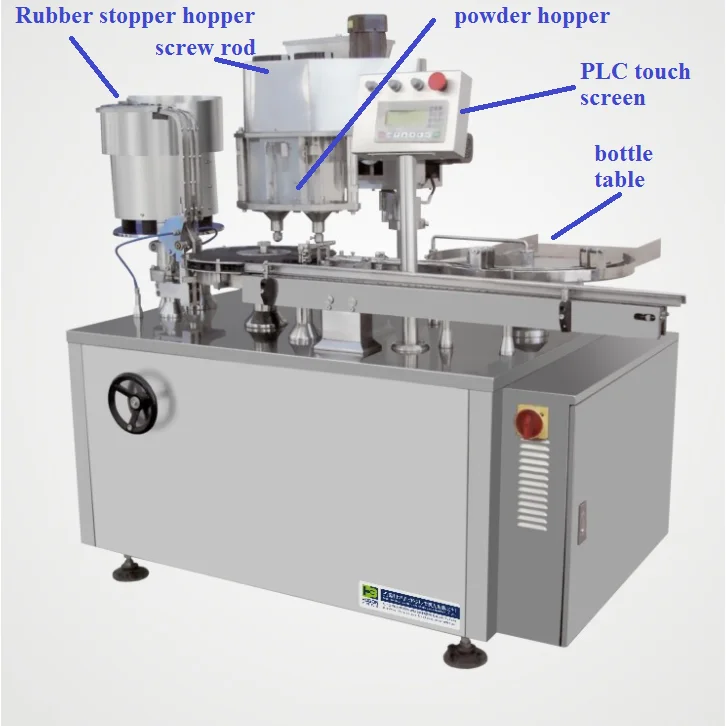

ZD-II-120 Sterilizer Powder filling stopper machine



1. Technique parameters:

Capacity	80-150 bottle/min
Suitable filling dosage	0.5-5g ( design according to customer's requierment)
Motor power	0.37kw
Total power	1.2kw
Filling precision	≤±3%
Power	single phase, 220V, 50Hz
Dimension	1400x1000x1450mm3
Weight	380kg



2. Introduce:

ZD-II-120 Mir-computer double head powder filling, stopper machine . It is suitable for the middle and big capacity factory to manufacture the antibiotic powder. And soon.  This machine will finish filling, stopper in the same machine.

This machine can use in 22mm, 24mm, 30mm diameter antibiotic vial . It and can use the customer made diameter bottle.



3. Function:

1. Advanced control way—import programmable control device control step motor, steady, speed quickly.

2. Stepless speed regulation—adopt Taiwan DELTA frequency transformer, adjust the speed steady.

3. Right filling dosage- adopt high precision three phase mixer type step motor,

4. High working efficiency- filling powder, arrange stopper, put the stopper in the same machine

5. Meet GMP Standard—contact with raw material which use stainless steel.

6. Easy to assemble

7. Convenient adjustments

8. Easy clean
