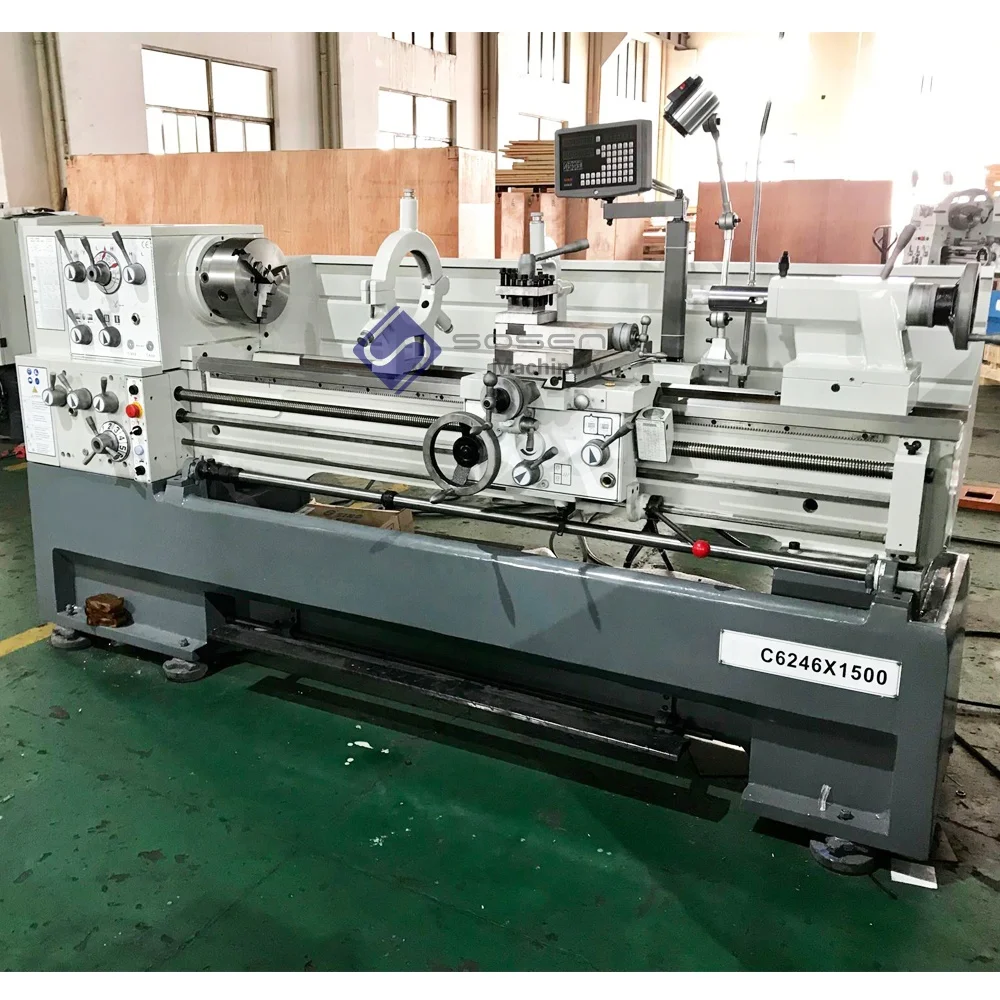

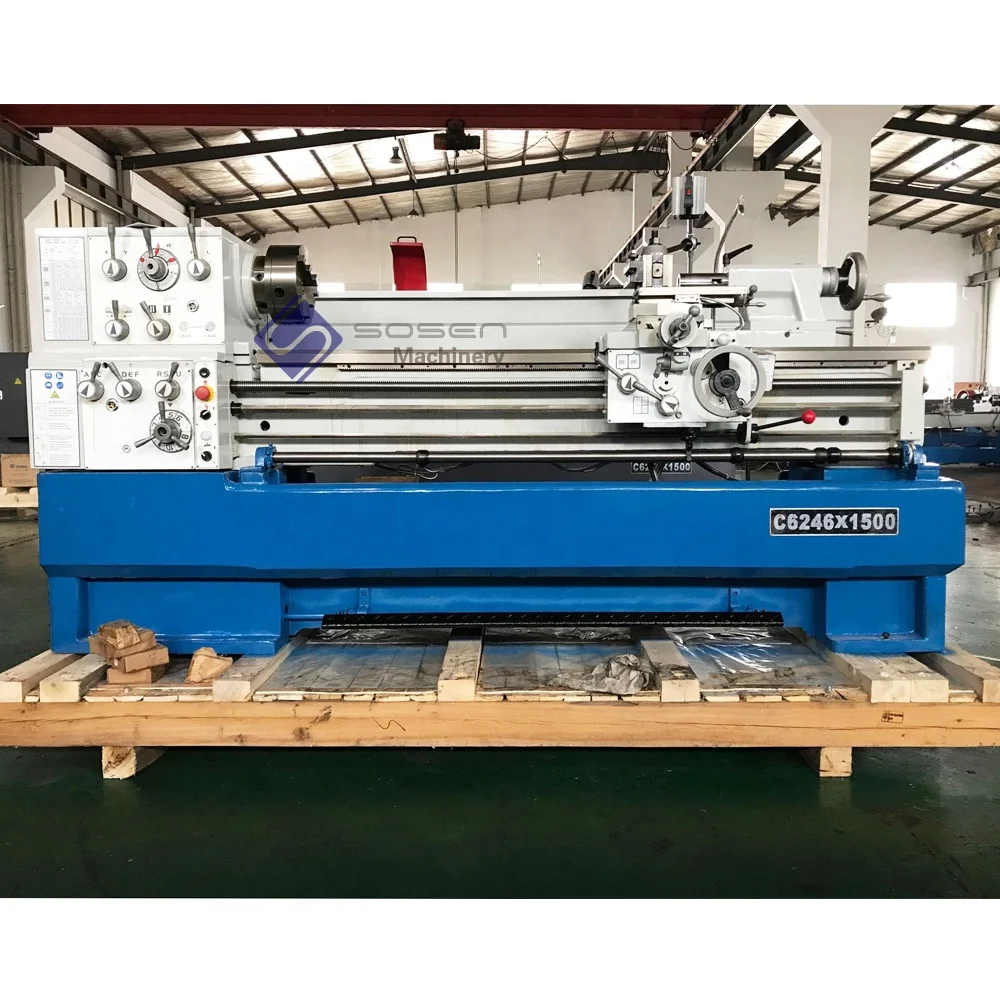

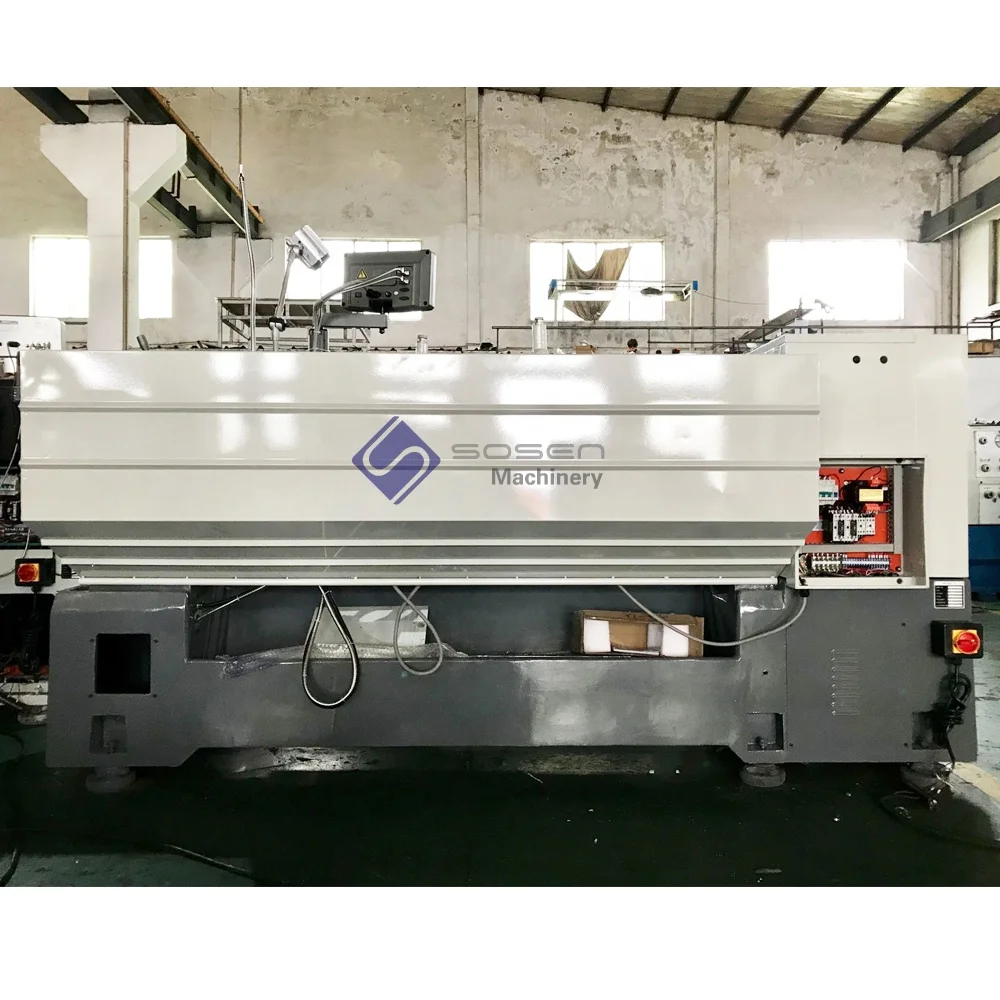

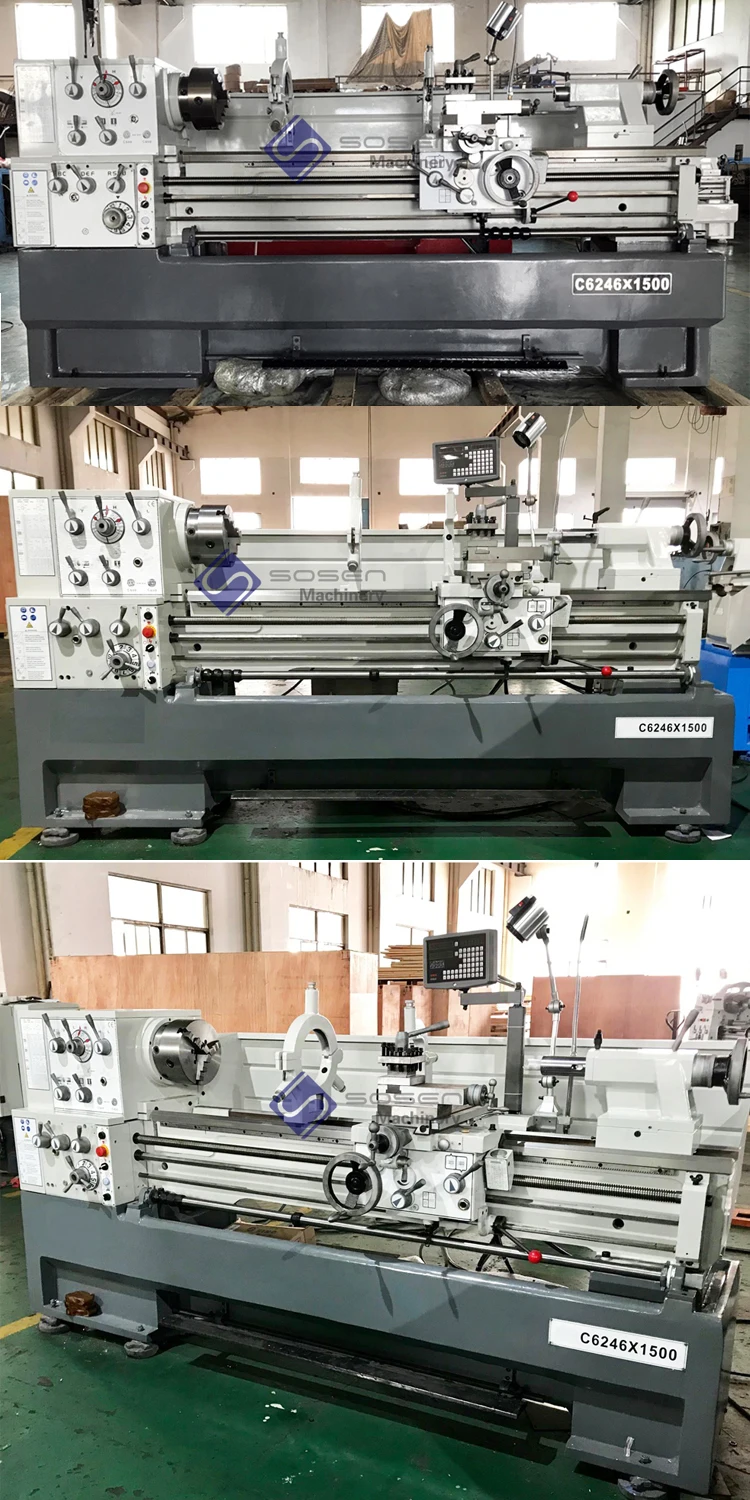

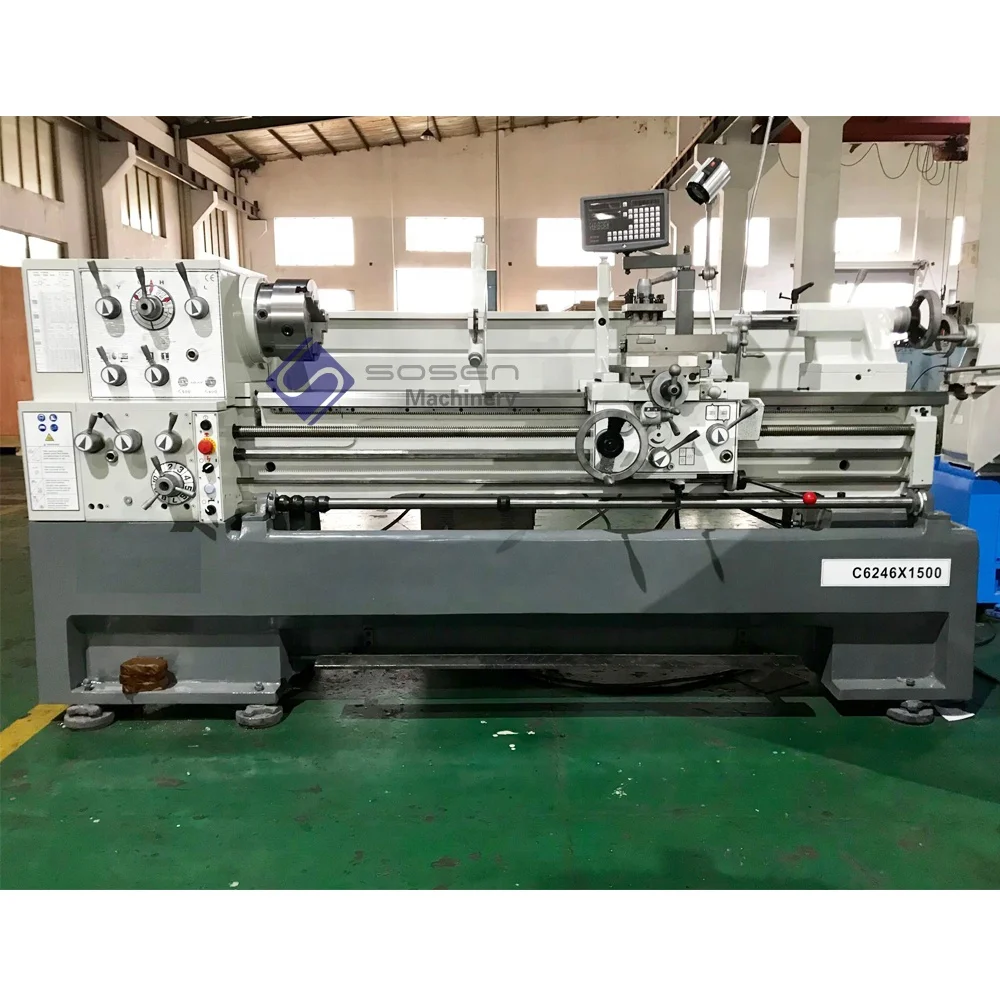

C6246 Manual Conventional Metal Turning Lathe
- Category: >>>
- Supplier: Tengzhou Sosen Co. Ltd.
Share on (62029548009):
Product Overview
Description
C6246 Manual Conventional Metal Turning Lathe
Product Description
Features:
- 2 Axis digital readout system (optional)
- Quick change toolpost with 5 holders (optional)
- Concertina leadscrew cover (optional)
- Gear drive headstock for quick change of spindle speeds
- Precision V-beds are hardened and ground, incorporating a rigid webbed casting
- Foot operated spindle brake with safety cut out switch
- Change gears for metric and imperial thread cutting
- Adjustable taper roller bearings support the spindle
- Inching button is incorporated on the control panel for convenient spindle speed selection
- Enclosed quick action gearbox for thread cutting and auto feeding
- Powered longitudinal and cross feeds
- D1-6 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
- Removable gap bed-way for larger diameter jobs
Specification:
| Model | C6246 |
| Max swing over bed | 460mm(18") |
| Max swing over cross slide | 270mm(10 3/4") |
| Max swing over gap | 690mm(27 1/8") |
| Length of gap | 155mm(6 1/8") |
| Max length of workpiece | 1000mm/1500mm (40”/60”) |
| Width of bed | 300mm(11 13/16") |
| Spindle nose | D1-6 |
| Spindle bore | 58mm(2-1/4") |
| Taper of spindle bore | M.T.#6 |
| Range of spindle speed | 12changes25-2000r/min |
| Max travel of compound rest | 120mm(4 3/4") |
| Maxtravel of cross slide | 290mm(11 3/8") |
| Leadscrew pitch | metric 6mm |
| Maxsection of tool | 25mm×25mm(1×1") |
| Range of longitudinal feeds | 42kinds 0.031-1.7mm/rev (0.0011"-0.0633"/rev) |
| Range of cross feeds | 42kinds 0.014-0.784mm/rev (0.00033"-0.01837"/rev) |
| Metric threads range | 41kinds 0.1-14mm |
| Inch threads range | 60kinds 2-112 T.P.I. |
| Diametrical pitches range | 50kinds 4-112D.P. |
| Module piches rang | 34kinds 0.1-7 M.P. |
| Dia. of tailstock sleeve | 60mm(2 5/16") |
| Travel of tailstock sleeve | 120mm(4 3/4") |
| Morse taper of tailstock sleeve | M.T.#4 |
| Power of main motor | 4kw(5.4HP),optional 5.5kw(7.5HP)3PH |
| Power of coolant pump | 40w |
| Packing size | 2300x1160x1700mm (1000mm D.B.C.) |
| 2800x1160x1700mm (1500mm D.B.C.) | |
| N.W./G.W. | 1645/1910 KGS |
| 1810/2115 KGS |
Standard accessories :
3-Jaw chuck, 4-Jaw chuck, steady rest, follower rest,
face plate, longitudinal automatic trip,
coolant system, brake system, dead center,
oil gun, change gears, operation manual, work lamp
Optional accessories:
SINO DRO 2-axis
Quick change tool post
Live center
Turning tools
Lead screw cover
Toolpost cover
Chuck cover
CE standard electric
Other different models for your reference:

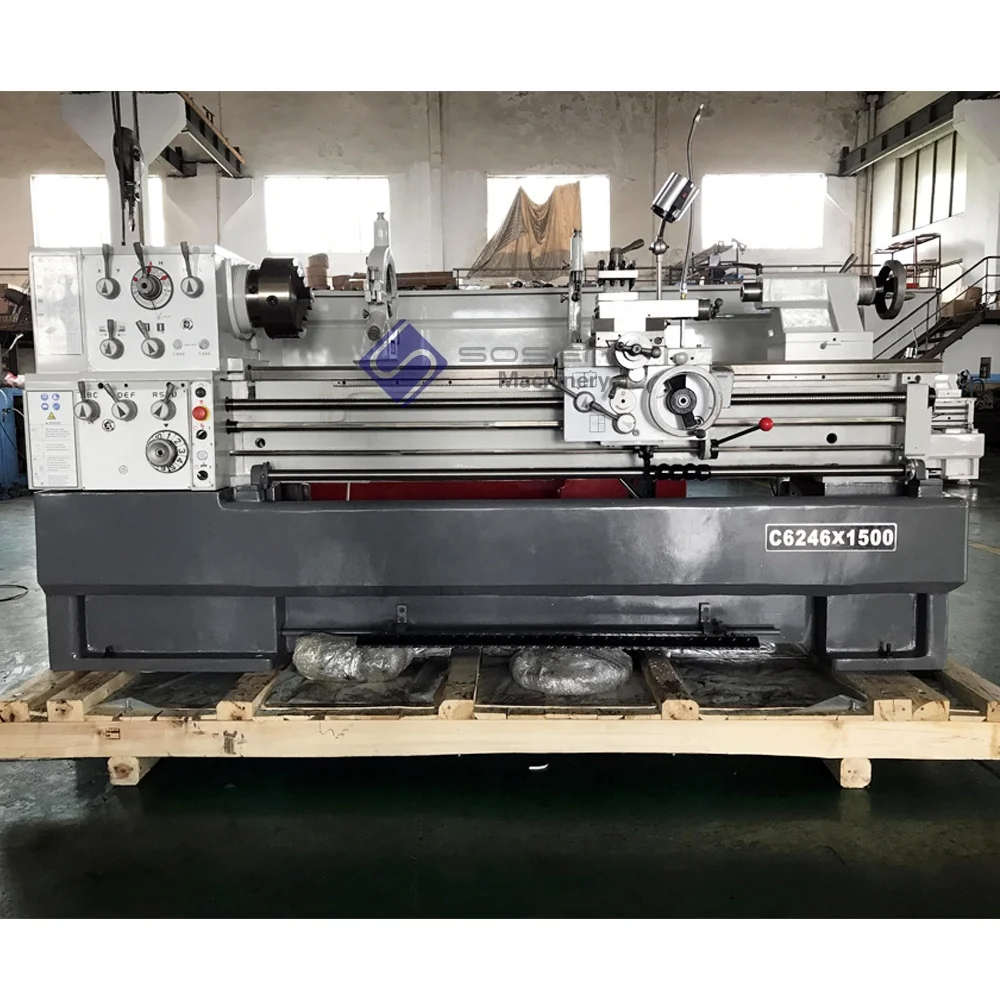

Packing & Shipment
