VanGaa 150W Регулируемое двухцветное студийное осветительное оборудование Профессиональное мягкое Видео Прожектор с линзой Френеля
- Category: LED Stage Lights >>>
- Supplier: Guangzhou,Weijia,Photoelectric,Tech.,Co.,Ltd
Share on:
Product Overview
Description
The Manufacturer
STAGE AND THEATER LIGHTING: The VanGaa PB200W-C lighting fixture is equipped with a 8-inch Fresnel lens and powered by a 200W LED engine. It produces a white wide, soft-edged beam for stage and theatre use at 3200K-5600K
MANUALLY ADJUSTABLE ZOOM: The adjustable Knob are fitted to adjust beam angles between 15 and 60 degrees allowing for a broad stage-filling wash to generating a concentrated pool of light.
STANDARD DMX-512 CONTROL: Offers smooth 0-100% dimming through DMX protocol and includes a LCD display menu to easily select a DMX address as well as any of the fixtures’ operating options.
Impeccable Color Fidelity: CRI 95+ TLCI 95+ Offers Natural, Pristine Color for Broadcast Video, Photography, Television Production and Studio Filmmaking; Color Temperature range of 3200K-5600K, allowing you to produce light that is warmer than typical tungsten fixtures, and cooler than conventional daylight.
PRODUCT SPECIFICATIONS: 8-inch Fresnel lens, CRI 95, 4-button LCD menu, 3-pin DMX In/out, Wired Digital Communication Network, powerCON In/Out to daisy chain power, Multi-voltage operation: AC 100-240V, 50/60Hz, 17.91” x 10.43” x 11.49” / 455x265x292mm, 18.74 lbs / 8.5 kg.
Information | ||
Light source | 1pc 200W Bi color COB LED Lamps | |
Color temperature | Bicolor 3200K-5600K | |
Beam angle | 15-60° manual zoom | |
Noise | under 45db | |
CRI | Ra≥95,OR Ra≥97 | |
Fresnel lens | 200mm/8” | |
DMX channel | 4CH/5CH DMX-512 | |
Related power | 150W AC100-240 V, 50/60 Hz | |
Body dimension | D455*W265*H292mm/ 17.91” x 10.43” x 11.49” | |
Net weight | 8.5KG/18.74 lbs | |

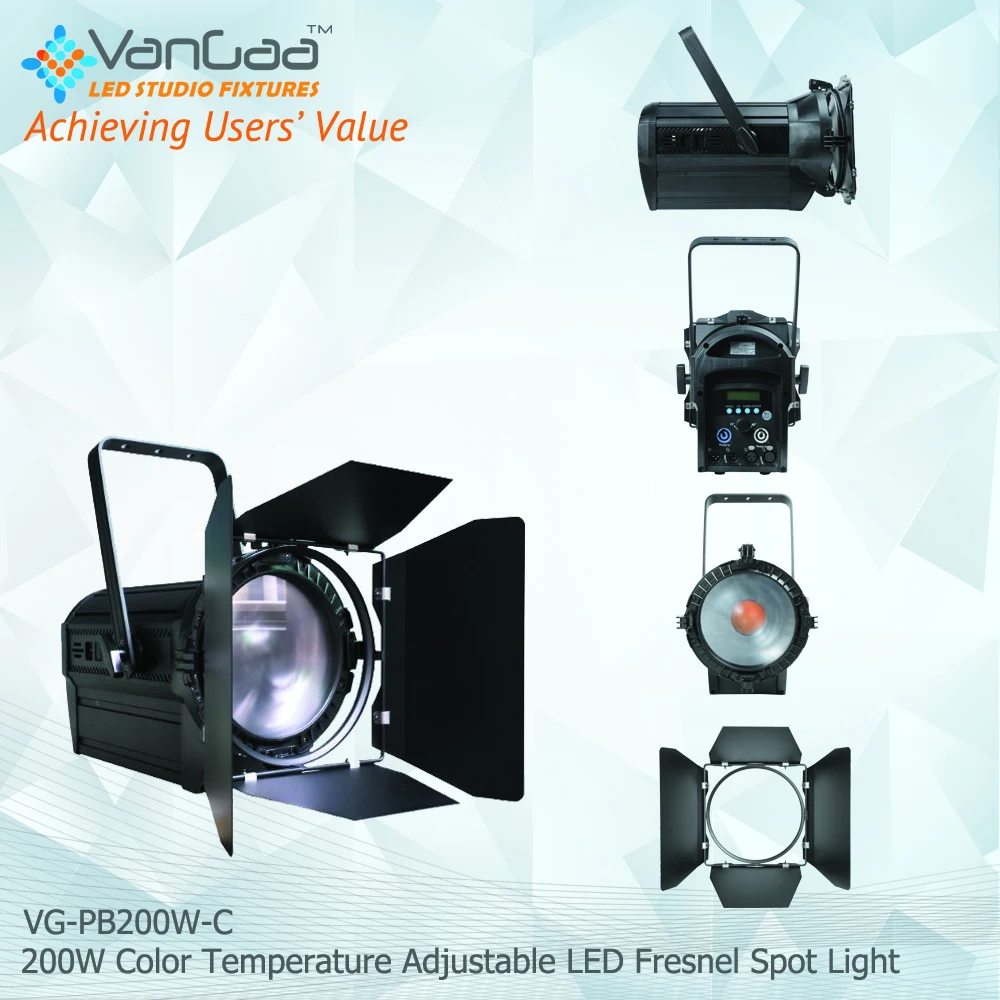

VanGaa 200W PB200W-C Bicolor led fresnel spot light for theater
Designed for various theater studio TV station lighting
Combining the benefits of modern LED light-sources with the features of a traditional stage lighting Fresnel fixture, the VanGaa PB200W-C offers the best of both worlds. Low power consumption, minimal excess heat and long lamp life are combined with a wide zoom range and barn doors to create a pair of truly versatile fixtures. Create soft-edged beams for highlighting or illuminating the stage..
Designed for various theater studio TV station lighting
Combining the benefits of modern LED light-sources with the features of a traditional stage lighting Fresnel fixture, the VanGaa PB200W-C offers the best of both worlds. Low power consumption, minimal excess heat and long lamp life are combined with a wide zoom range and barn doors to create a pair of truly versatile fixtures. Create soft-edged beams for highlighting or illuminating the stage..
A Professional Lighting Kit for TV Station

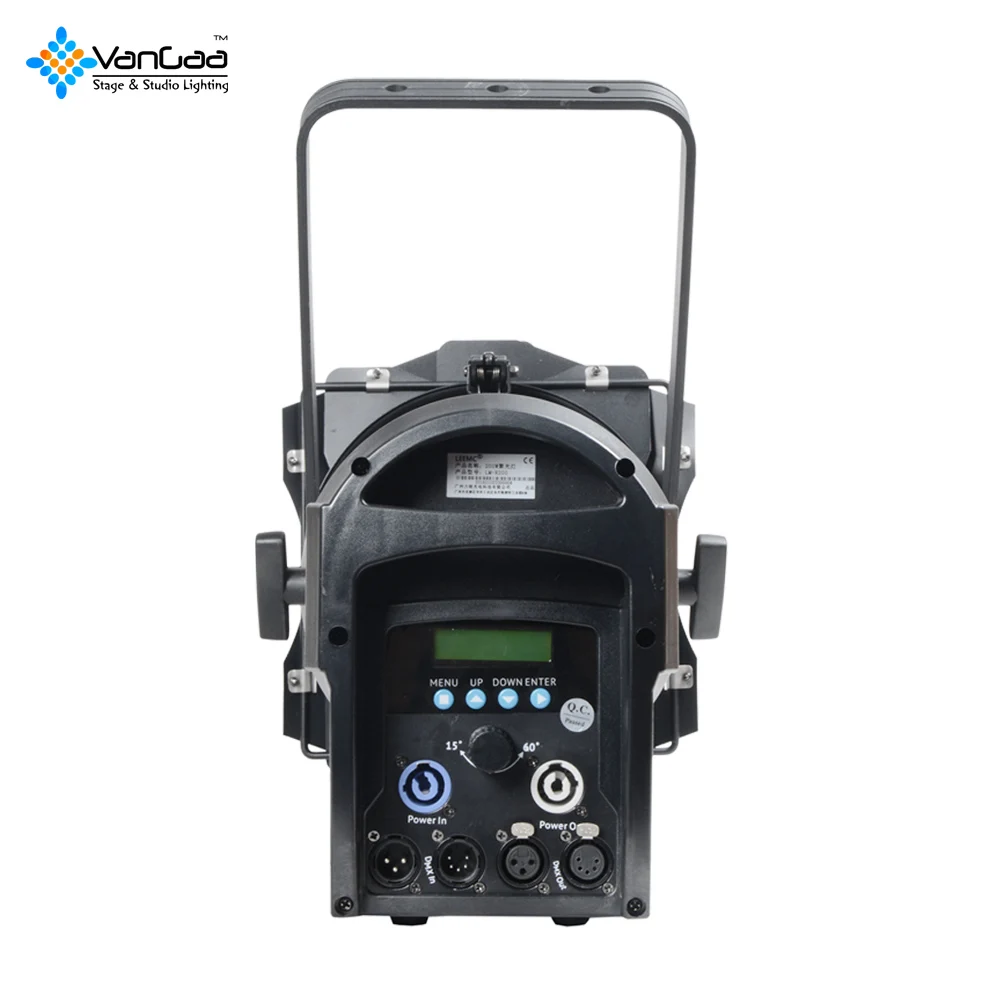

Control
* 3-pin+5-pin DMX In/Out and powerCON In/Out
* 4-Button LCD Operational Menu
Warm White
warm white works much better where you are looking for softer light. It's particularly well suited to lounges, living rooms and traditional kitchen, like country styles, where the white light contrasts too much with the rest of the room.
Cold White
3500K-4100K is a neutral white light and its good for photography. 4800K-5000K is recommended for make up application and photography as it is not too warm or too cool.
VanGaa LED Studio Fresnel Light Series
Product Description
●The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;
●Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;
●Use the LED video projector scheme, the light energy saving 80%;
●Because of almost no infrared radiation, it has greatly improve work environment.
Technical Specifications
Light Sources
* LED: 1pc 200W High CRI COB Bicolor LED Lamps
* Lifespan: 50,000h
* Color: 3200K-5600K
Optics
* Beam angle: 15-60degree
* Dimmer: 0-100% linear dimmer
Light Output
* Luminous flux: 9775.3lm
* Illuminance: 2700 Lux (6m 15°)
* Optimal projection distance: 5-30m
Control
* Control mode: DMX-512; Auto run
* DMX channel: 4CH, 5CH
* Display of control panel: LCD display + 4 buttons
* LED: 1pc 200W High CRI COB Bicolor LED Lamps
* Lifespan: 50,000h
* Color: 3200K-5600K
Optics
* Beam angle: 15-60degree
* Dimmer: 0-100% linear dimmer
Light Output
* Luminous flux: 9775.3lm
* Illuminance: 2700 Lux (6m 15°)
* Optimal projection distance: 5-30m
Control
* Control mode: DMX-512; Auto run
* DMX channel: 4CH, 5CH
* Display of control panel: LCD display + 4 buttons
Power Supply
* Related voltage: AC100V-240V, 50/60Hz
* Related power: 150W
Construction
* Body dimension: D455*W265*H292mm
* Net weight: 8.5kg
* Shell color: black
* Shell material: aluminium die casting
Working Environment
* Working temperature: -25-40℃
* Cooling: Radiator and Fan
* Protection rating: IP20
Standard Configuration Spare Part List
* Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
* User manual: English version user manual
Optional Configuration Spare Parts List
* Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)
* Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)
* Related voltage: AC100V-240V, 50/60Hz
* Related power: 150W
Construction
* Body dimension: D455*W265*H292mm
* Net weight: 8.5kg
* Shell color: black
* Shell material: aluminium die casting
Working Environment
* Working temperature: -25-40℃
* Cooling: Radiator and Fan
* Protection rating: IP20
Standard Configuration Spare Part List
* Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
* User manual: English version user manual
Optional Configuration Spare Parts List
* Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)
* Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)
Production Images
Product package:
Thick woodboard
Long hinge
Quality aluminum alloy
Best rubber wheels
Panel Light Series
Company Profile
About us
Guangzhou VanGaa lighting Co,Ltd , Founded in 2014,Located in Huadu district of Guangzhou City. Well trained staff, strict
quality control, and professional sales team, provide excellent before sale and after sale service.
* Manufacturer / Factory
* Accept OEM & ODM
* Qualified with CE, ROHS, FCC certificates
* One store service from product to your door
* Our goal : keep growing and expanding with clients
Certificate
ISO certified factory, products strictly in compliance with CE, RoHS standards.
Packing&Shipping
FAQ
Q. Can i order light with my own design and Logo?
A:Definitely yes,we offer custom services according to your specific requirements
Q.what format do you need for logo?
A:PDF,AI,JPG,CDR,PSD etc.
Q. Are there any other related products?
A:Yes，we can purchase Filght case，Lamp hang，Constant force hinge，Slide way，Tripod，Safety rope
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. How to proceed an order for led light?
A: 1 let us know your requirements or application.
2 We quote according to your requirements or our suggestions.
3 customer confirms the samples and places deposit for formal order.
4 We arrange the production.
Q. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: 1 let us know your requirements or application.
2 We quote according to your requirements or our suggestions.
3 customer confirms the samples and places deposit for formal order.
4 We arrange the production.
Q. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: Do you offer guarantee for the products?
A: Yes, we usual offer 1 years warranty to our products( Of course you can opt for a lifetime warranty).After the warranty period, we can continue to provide after-sales service of products and replacement of spare parts
