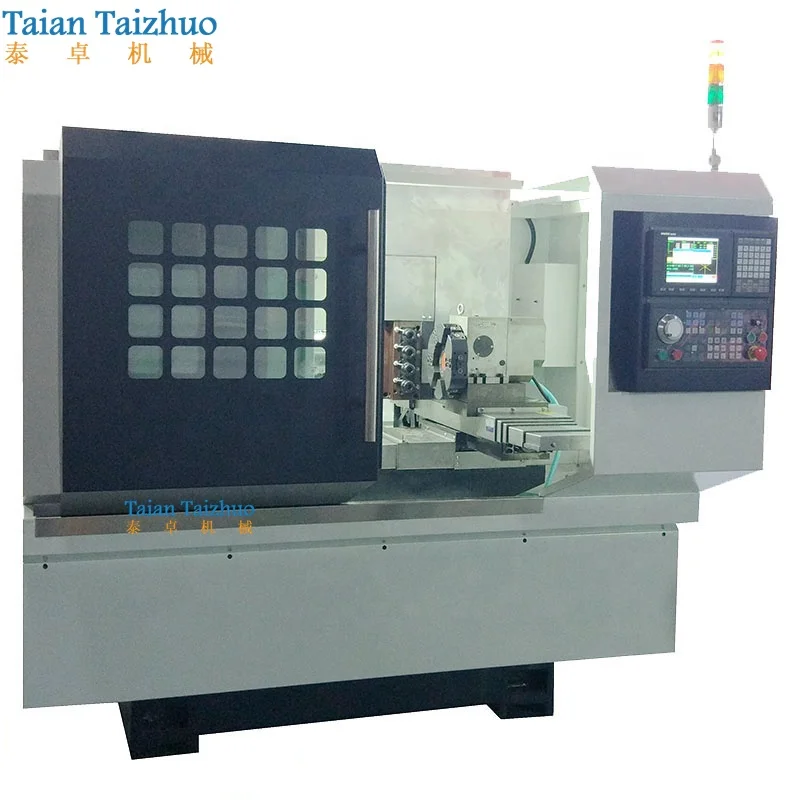

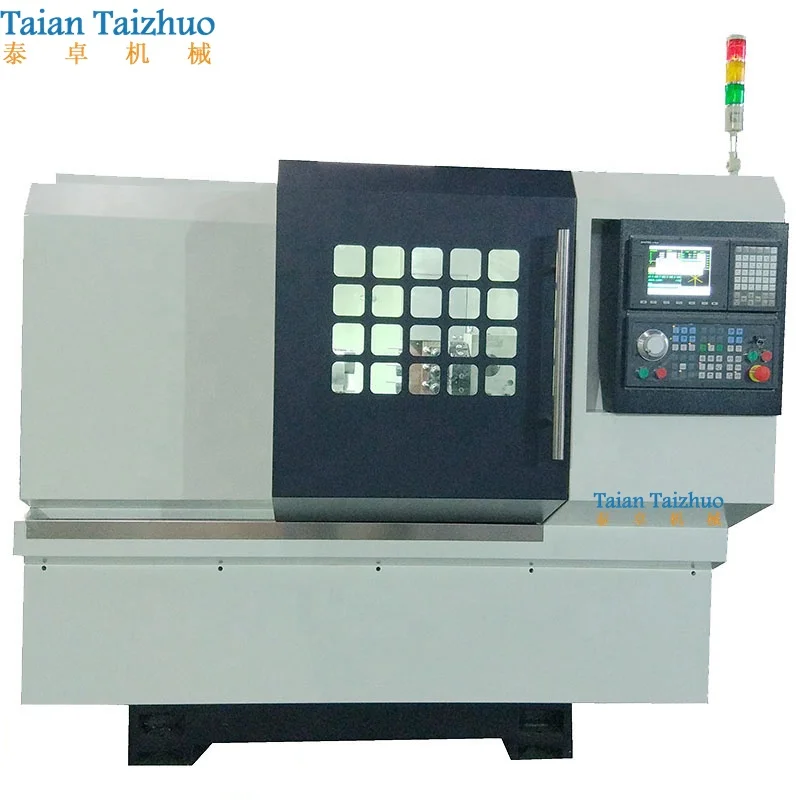

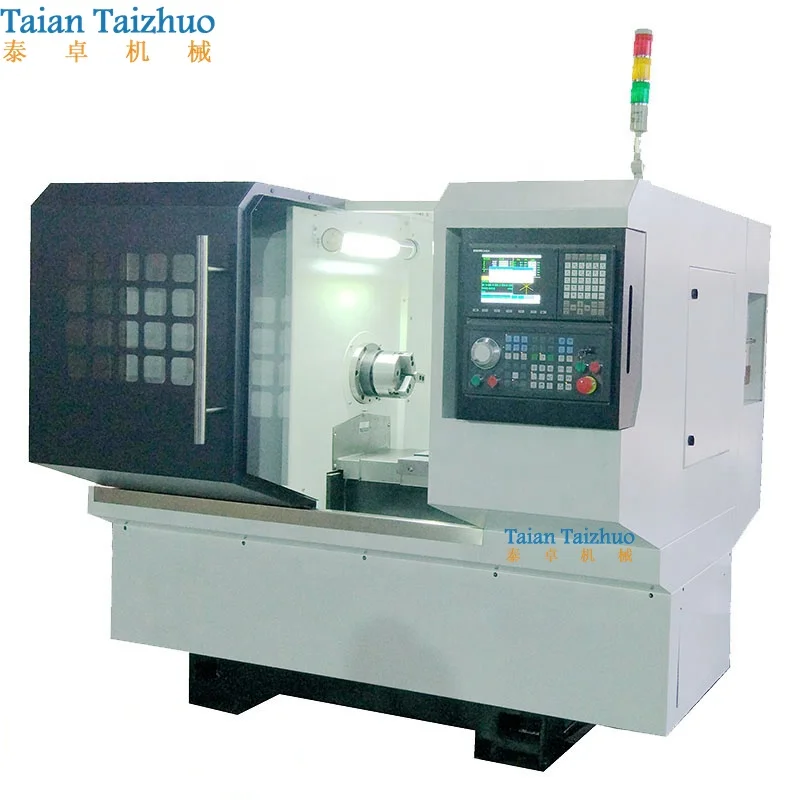

Small Flat Bed CNC Lathe TCK30 CNC Turn Mill Machine
- Category: >>>
- Supplier: Taian Taizhuo Machinery Manufacturing Co. Ltd.
Share on (62029594377):
Product Overview
Description
Product Description
Main Feature:
The Machine Tool is flat bed linear guide Turn-Milling Machine, which has X, Y, Z, C axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine not only can turn excircle, end face, thread of Rod type and Plate type work piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc. many kinks processes. This machine is suitable to process small work piece in a high efficient.
CNC Turning Center TCK30
Item | Unit | TCK30 | ||
1 | Max swing over bed diameter | mm | 300 | |
2 | Max swing over bed of X Axis | mm | 100 | |
3 | X axis travel | mm | 400 | |
4 | Z axis travel | mm | 350 | |
5 | Servo motor power | kw | 5.5 | |
6 | Spindle bore diameter | mm | 56 | |
7 | Spindle tube through hole diameter | mm | 45 | |
8 | Spindle nose type | A2-5 | ||
9 | Spindle speed | rpm | 100-4500 | |
10 | Tool section size | mm | 20x20 | |
11 | Rapid speed (X/Z axis) | m/min | 15/15 | |
12 | Y axis travel | mm | 200 | |
13 | Y axis rapid speed | mm/min | 5000 | |
14 | Live tooling motor | kw | 1.5 | |
15 | Live tooling spindle output axis value | 4 x end face,4x out circle | ||
16 | Turret type | Taiwan 6-station electric turret | ||
17 | Machine net weight | kg | 1500 | |
18 | Machine size | mm | 2280x1650x2100 | |
Standard configuration:
1). Taiwan SYNTEC 22TB cnc controller.

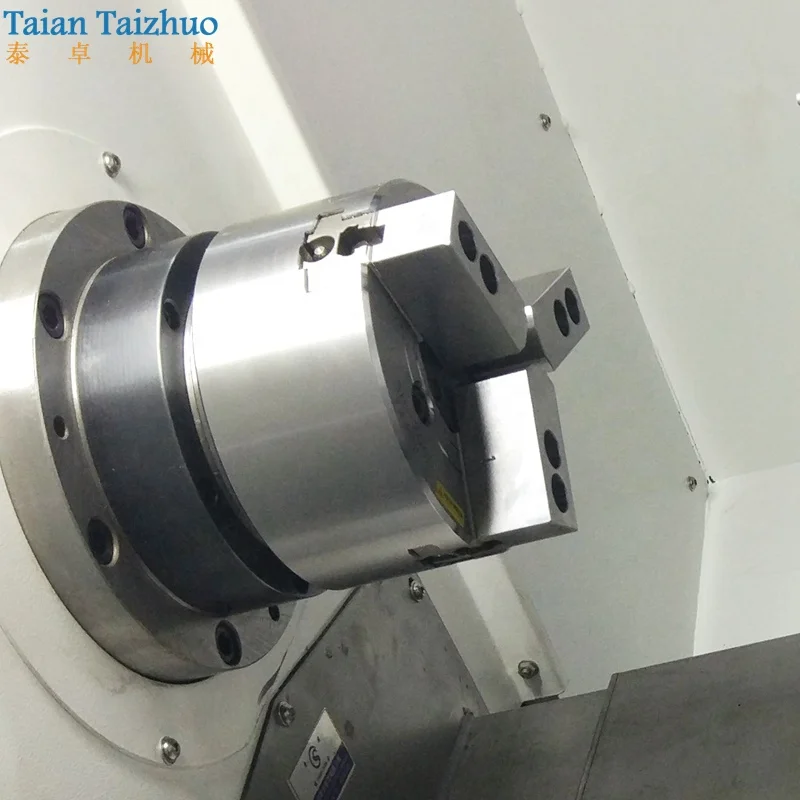

2). Hydraulic hollow chuck with hydraulic station.
3). Servo motor.
4). Servo spindle, C axis function.

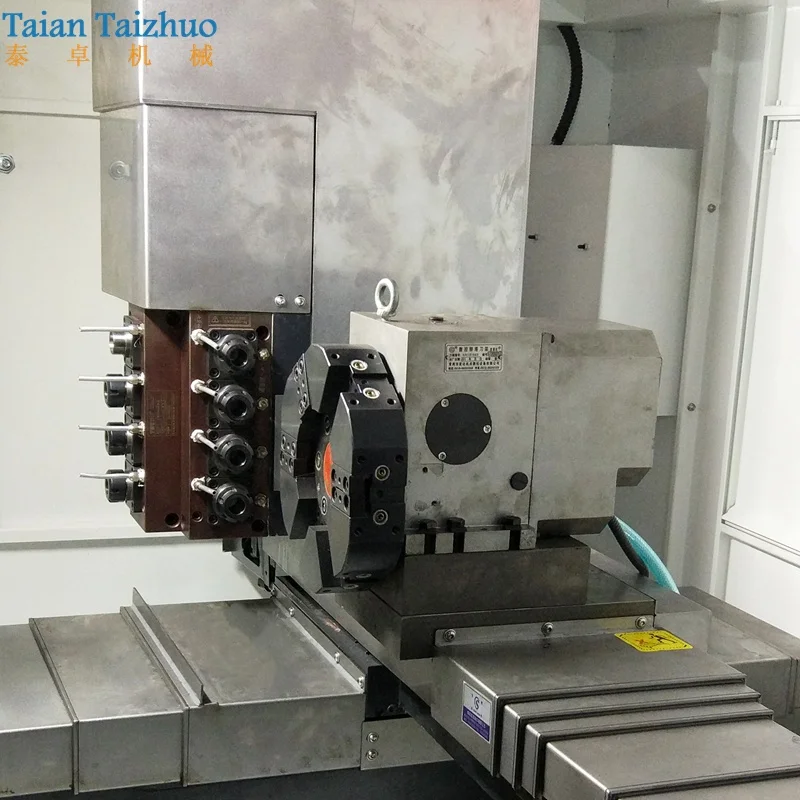

5). Taiwan LIO SHING six-station electric turret.
6). Y axis and power head.
(4 x end face, 4 x out circle)
7). X/Z axis linear guideway.
8). High precision ball screw.
9). Cooling system.
10). Lighting system.
11). Automatic lubrication system.
Optional Configurations:
1). GSK, Siemens, Fanuc, SYNTEC, KND, GUNT.
2). Pneumatic chuck, Hydraulic collet.
3). Gang type tool post, Hydraulic turret.
4). Automatic chip conveyor.
5). Automatic bar feeder.
6). Power head type :
4 in end+4 in side3 in end+3 in side
3 in end +2 in side
4 in end
3 in side
Important note: Please confirm your local voltage with our sales staff before ordering.
Detailed Images
Workpiece Examples
Machine Quality Inspection
To Choose More Models
CNC Lathe Machine CK0640
CNC Lathe Machine CK6432
CNC Lathe Machine CK6150
CNC Machining Center VMC650
CNC Machining Center VMC850
CNC Machining Center VMC1060
Packing & Delivery
Packaging Details
Exporting standard package, water proof, anti-rust and fumigation-free.
Using iron base has good bearing capacity.
Our Company
Taian Taizhuo Machinery Manufacturing Co., Ltd. is a professional manufacturing enterprise engaged in the research, development, production, sale and service of CNC machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.
Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.
Our Customers
Certifications
CE , SGS, Alibaba High-quality Supplier and Made-In-China Gold Supplier.
Our Service
Pre-Sales Service
1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.
After-Sales Service
1. Training how to instal the machine, training how to use the machine.
2. Engineers are available to service machinery overseas.
3. Warranty is one year, we would offer the parts (quality problem) free of charge during this period.
FAQ
Q1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
Q2. How long can I get feedback after enquiry?
We will reply you within 6hrs in working day.
Q3. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q4. What's the main products of your company?
We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.
Q5. Where is the factory located? How can I visit there?
Our factory is located in Tai'an City, Shandong Province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And warmly welcome you to visit us.
Q6.Delivery time
Machines order takes 20 days after deposit payment received. Please inquiry sales.
Q7. What is the package? Is it suitable for shipment?
Machines will be packed by exporting standard package, water proof, anti-rust and fumigation-free. It is very much strong for oversea transportation.
Q8. Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.
Q9. Can I trust you?
Sure, we're Alibaba verified supplier & Alibaba Trade Assurance Suppier.
Q10. How long is the warranty for machines?
Machines warranty is 24 months after receive goods. in Warranty time,we can provide new free parts for changing.Please contact your Taian Taizhuo sales representative for details.
Q11. How' s your after-sale service?
Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.
Q12. Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
Q13. If I can't know how to operate. Can your engineer help me programme well on machine?
Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.
