samsungs lm301b lm301h lm561c lm561h 3000k 4000k led grow light for indoor plants
- Category: >>>
- Supplier: Zhongshan Ruixian Electronics Factory
Share on (62029641757):
Product Overview
Description
Description:

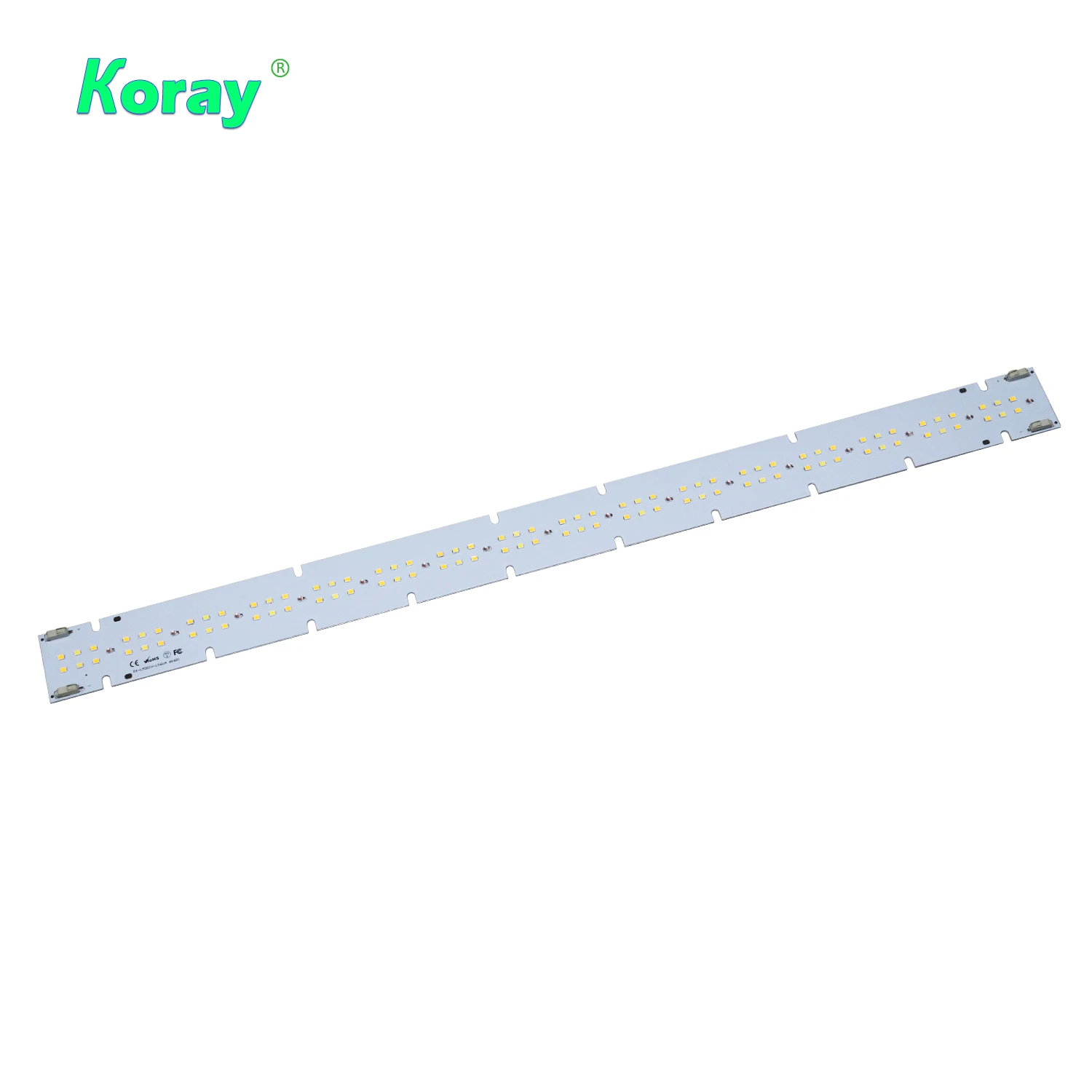

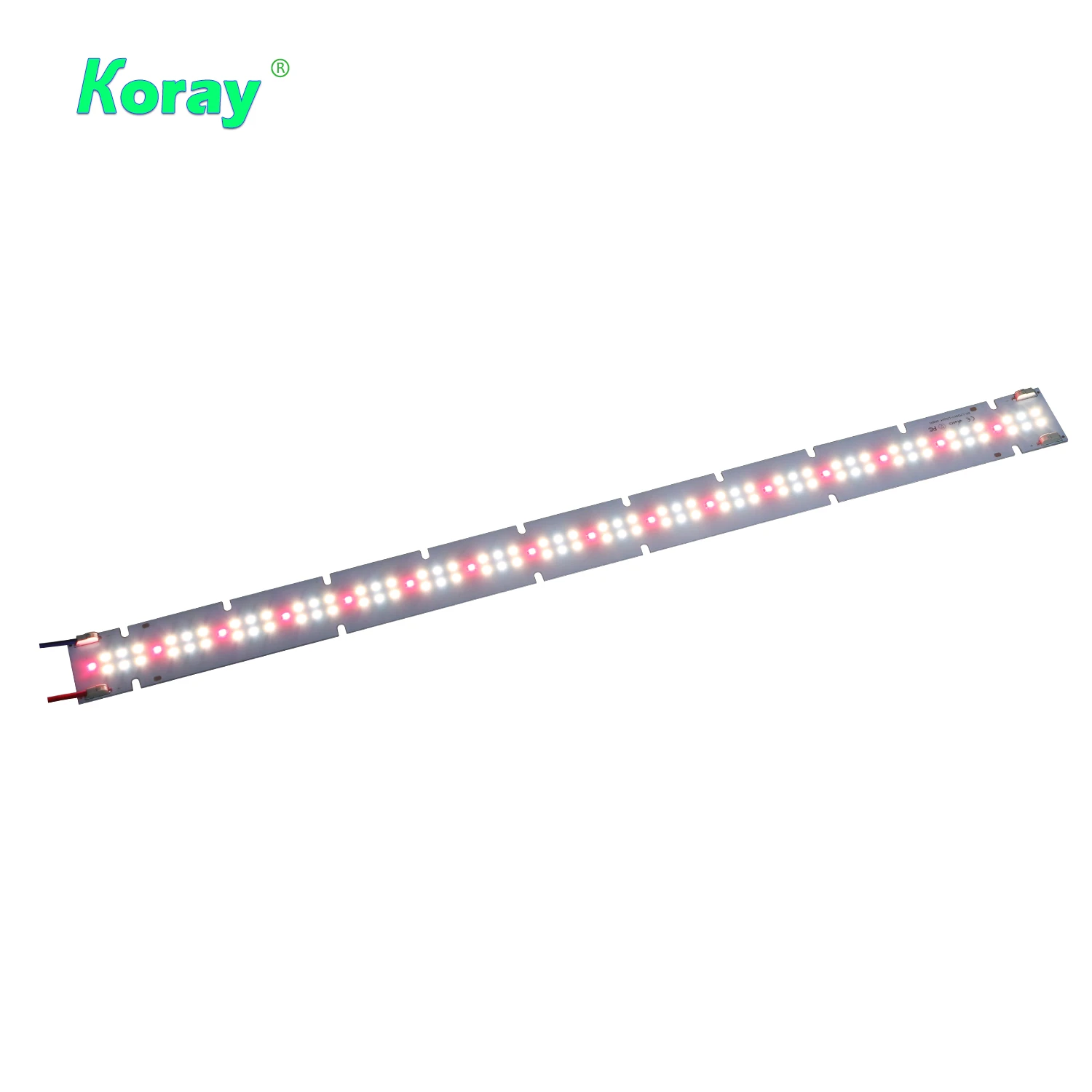

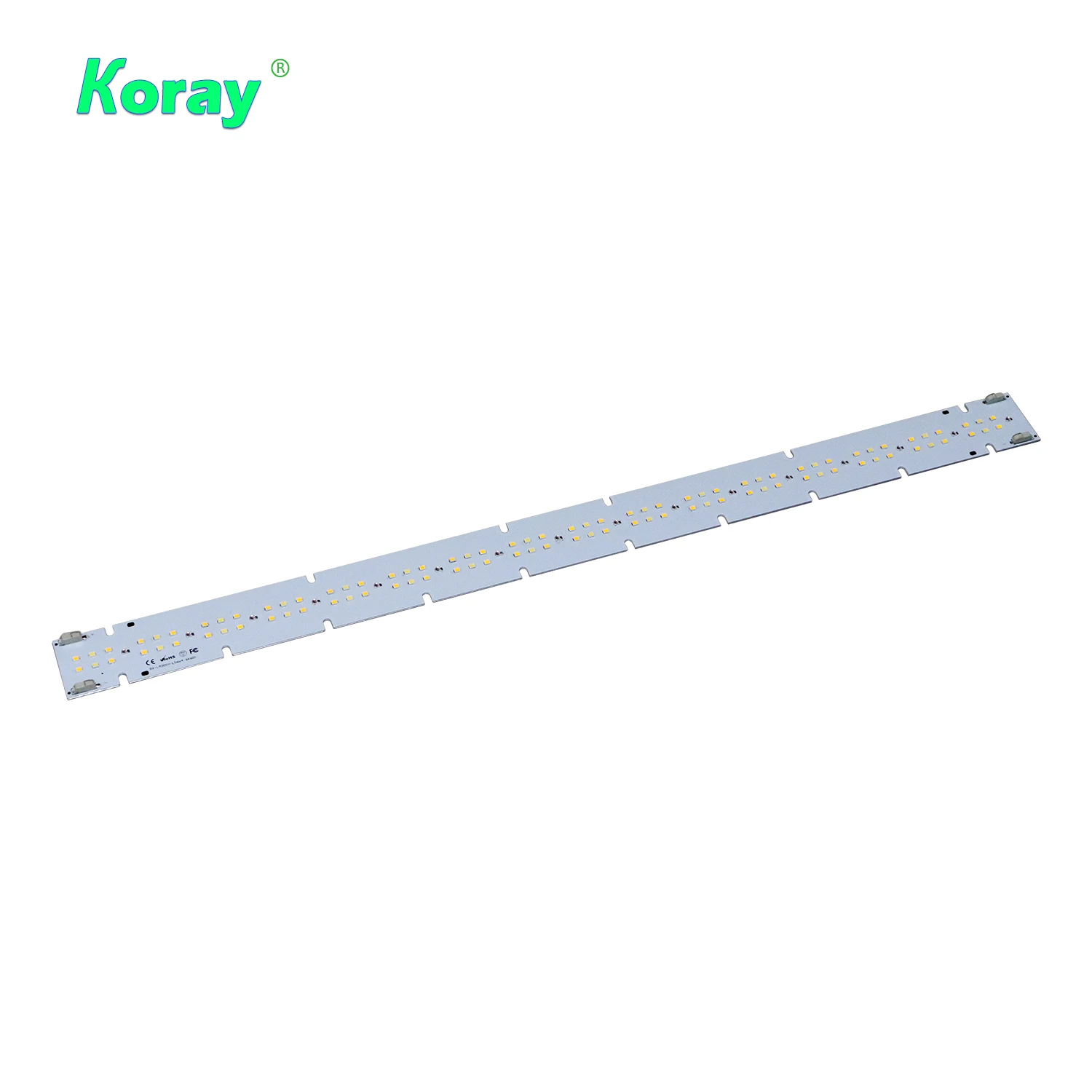

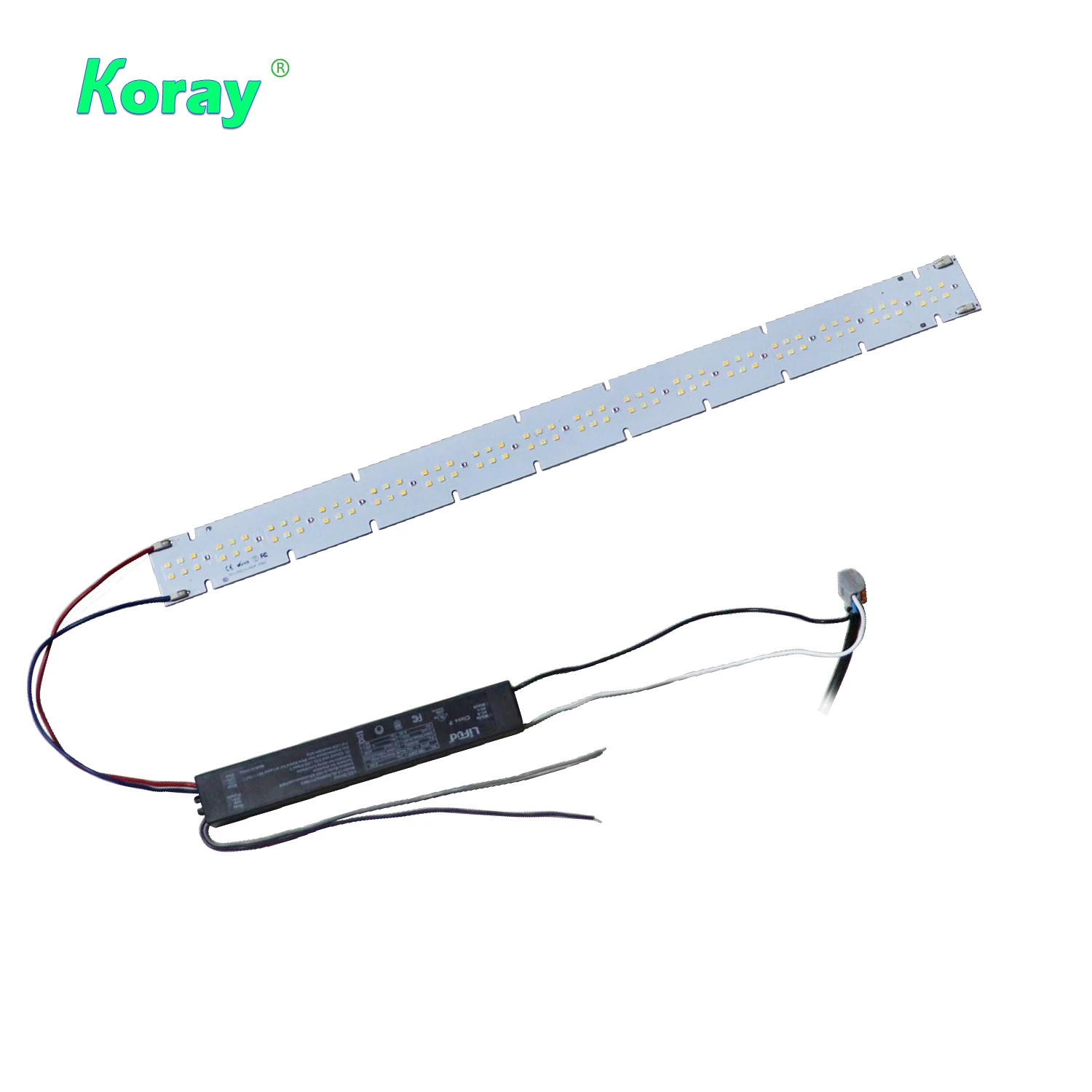

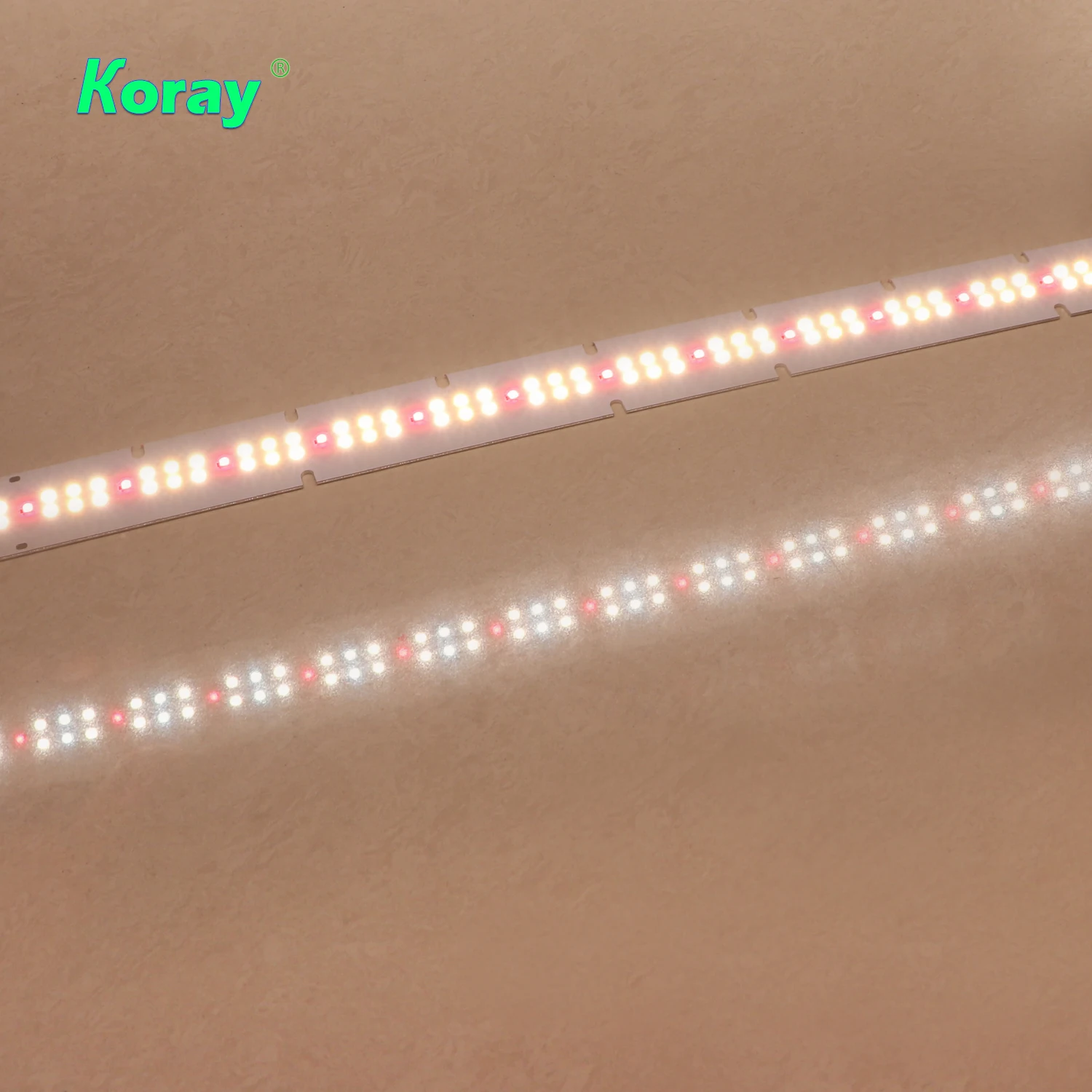

RX-LM301H Horticulture LED linear Full Spectrum Additional hyper red more suitable for plant growth, Applications: Horticultural lighting vertical farm indoor farm, Supplementary lighting greenhouse, Increased Deep red LED full spectrum, designed for balanced growth equipment, stimulates enhanced plant growth compared to Red-blue ratio narrow spectrums.
 | 1.High efficiency plant light Horticulture module, PPF efficiency up to 3.1μmol / J at 20W power 2.Max Power: 70W 3.Preferred spectrum based on plant growth experimentation in the lab 4.Horticulture LED Light Engine LED linear Full Spectrum Additional hyper red 660nm more suitable for plant growth, 5.Length 2ft 561mm, Width 1.6 inches 41mm 6.LED Module Input voltage: 30~45V, input current 0.24~1.6A 7.Service life 50,000 hours 8.CE RoHS FC |
| Model | Dimension LxWxH | Spectral Wavelength | Photon PPFD µmol/m²/s | Luminous flux Radiation Power | Power Test Input | Comment |
| RX-LM301H-L56W4-S5 | 561x41x6mm 22"x3.8"x 2.4" | S5 3400K Ra91 4K43K2 R1 | 203µmol @0.2m 13278Lx | 3388Lm 53umol/s | 0.5A @36.9V | 18.4W 2.9µmol/J Tcp 43 °C |
379µmol @0.2m 24779Lx | 6453Lm 102umol/s | 1A @38.6V | 38.4W 2.7µmol/J Tcp60 °C | |||
585µmol @0.2m 38131Lx | 9769Lm 155umol/s | 1.6A @40.3V | 64W Need install heat sink | |||
| RX-LM301H-L56W4-S6 | 561x41x6mm 22"x3.8"x 2.4" | S6 4000K Ra97 R9=98 | 185µmol @0.2m 11617Lx | 3039Lm 49umol/s | 0.5A @37.4V | 18.6W 2.6µmol/J Tcp 43 °C |
359µmol @0.2m 22545Lx | 5858Lm 96umol/s | 1A @38.9V | 38.9W 2.5µmol/J Tcp60 °C | |||
558µmol @0.2m 34960Lx | 8956Lm 147umol/s | 1.6A @40.4V | 64W Need install heat sink | |||
| RX-LM301H-L56W4-S7 | 561x41x6mm 22"x3.8"x 2.4" | S7 5000K Ra95 5KS6R1 | 176µmol @0.2m 10569Lx | 2804Lm 47umol/s | 0.5A @35.8V | 17.8W 2.6µmol/J Tcp 43 °C |
328µmol @0.2m 19608Lx | 5209Lm 88umol/s | 1A @37.6V | 38.4W 2.7µmol/J Tcp60 °C | |||
487µmol @0.2m 28958Lx | 7512Lm 128umol/s | 1.6A @38.9V | 62W Need install heat sink | |||
| RX-LM301H-L56W4-S8 | 561x41x6mm 22"x3.8"x 2.4" | S8 5200K Ra92 6K3R1 | 219µmol @0.2m 13159Lx | 3642Lm 63umol/s | 0.5A @40.5V | 20W 3.1µmol/J Tcp 43 °C |
425µmol @0.2m 25579Lx | 7024Lm122umol/s | 1A @42.6V | 43W 2.8µmol/J Tcp60 °C | |||
660µmol @0.2m 39441Lx | 10542Lm148umol/s | 1.6A @44.6V | 71W Need install heat sink | |||
Module maximum working temperature: Tcp <75 °C, above test room temperature 20 ° C, service life: 50,000 hours (Note: Tcp <55 ° C) Tolerance range for optical and electrical data: ±10 %. ; The illumination angle is 120°, and the recommended illumination distance is 0.2~0.5m; it meets the Zhaga size requirement. | ||||||
The above data is for reference only!
Dimension:
l Design for balancing plant growth, horticultural full spectrum plant lamp module
RX-LM301H-L56W4-S5 3400K Ra91 General planting spectrum Suitable for most indoor planting | RX-LM301H-L56W4-S6 Additional purple spectrum 4000K, high color rendering Ra97, R9=98 Medicinal planting |
RX-LM301H-L56W4-S7 5000K Ra95 sunshine light spectrum, an additional 660nmSuitable for succulent plants, suitable for ornamental planting | RX-LM301H-L56W4-S8 5200K Ra92 High energy efficiency spectrum, high PPE 2.8μmol/J @43W universal plant growth |
We can customize the spectrum you need according to your requirements. Plant planting lights, biological growth farming lights, if you need special light sources, please contact us.
l Testing report
RX-LM301H-L56W4-S8 PPF Test 0.5A @40.5V 20W 3.1µmol/J | RX-LM301H-L56W4-S6 PPF Test 1A @38.9V 39W 2.5µmol/J 410nm Purple spectrum |
RX-LM301H-L56W4-S8 PPFD Test 1A @42.6V 43W 248µmol/m²/s Test height 0.3m 11.8" | 1A @38.6V 39W Temperature test LF-GLD040YA 1A |
