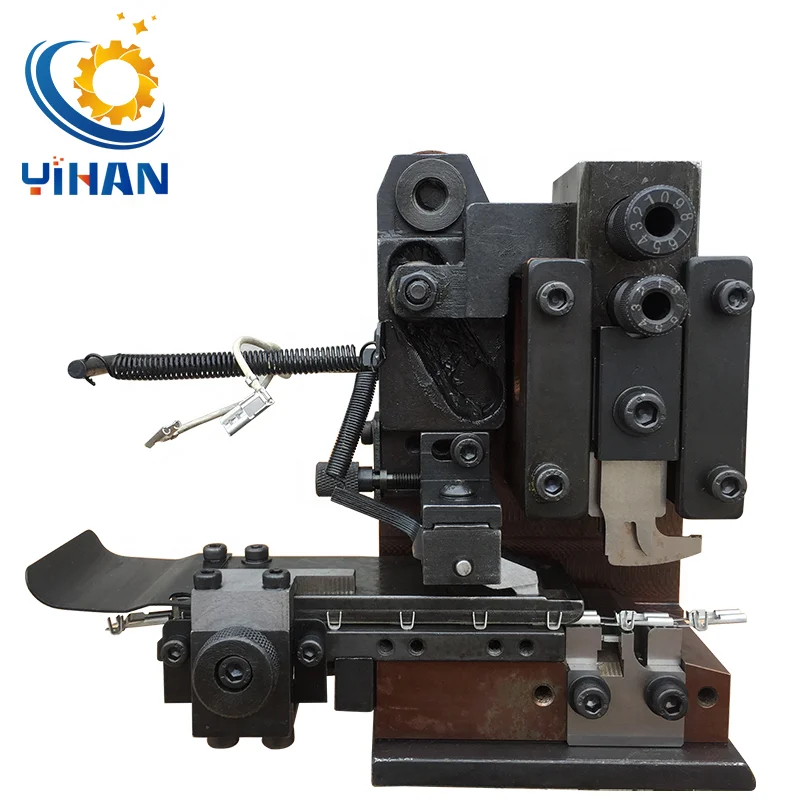

Terminal applicator terminal mould OTP mould/Applicator vertical feed terminal
- Category: Cable Manufacturing Equipment >>>
- Supplier: Yihan,(shenzhen),Automation,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
High quality full automatic wire wut strip twist and terminal crimping machine
Terminal applicator terminal mould OTP mould/Applicator vertical feed terminal
Specification:
- Operrational capacity:continuous terminals
- Net Weight:5.5KG
- Stroke:30mm
Product Features:
- Adapt to a variety of cross-transmission terminal.
- Push terminals adjustable spacing.
- Plastic bag in the rotating blades can fine-tune knob
Cast iron body, durable
tailor-made molds connection to use under the head
Product Description
| Material belt | Single grain type | Horizontal type | Straight type |
| Net Weight | 4.0KG | 5KG | 5.5KG |
| Dimensions | W180*H160*D110mm | ||
| Stroke | 30mm | ||
| Suitable wire range | 0.08-6mm2 | ||
| Shut height | 135.8mm | ||
| Suitable for the material thickness of terminal | 1.2mm(max) | ||
| Feeding mechanism | pneumatic | ||
| Feed step distance | 35mm(max) | ||
| Alignment accuracy | 0.02mm | ||
| Slide Adjustment | 2mm | ||
| Air Pressure | 0.6-0.8mpa | ||
