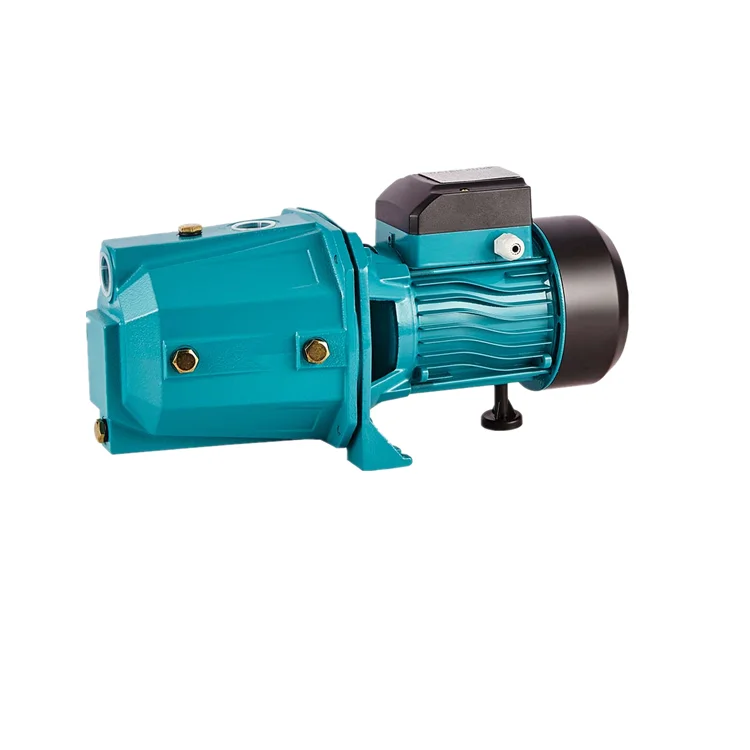

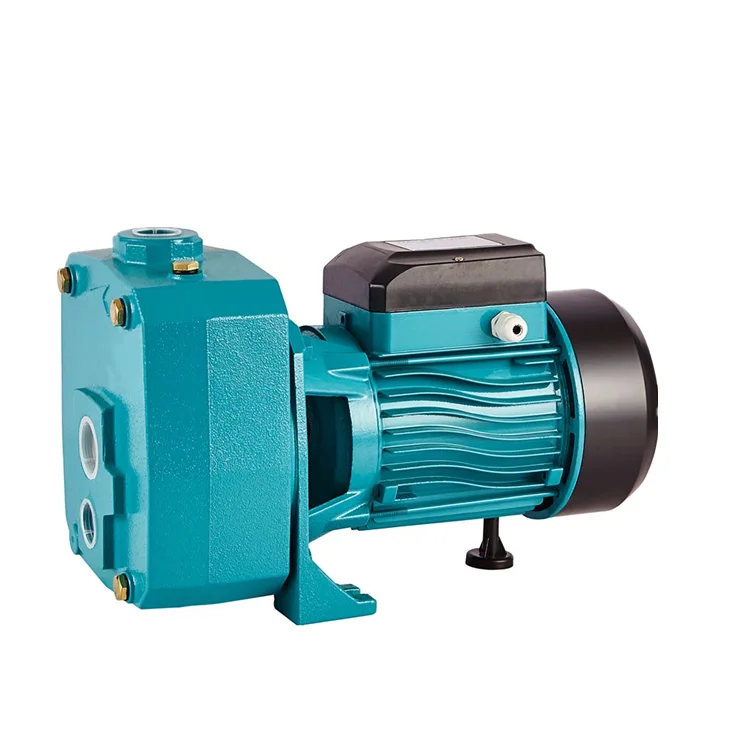

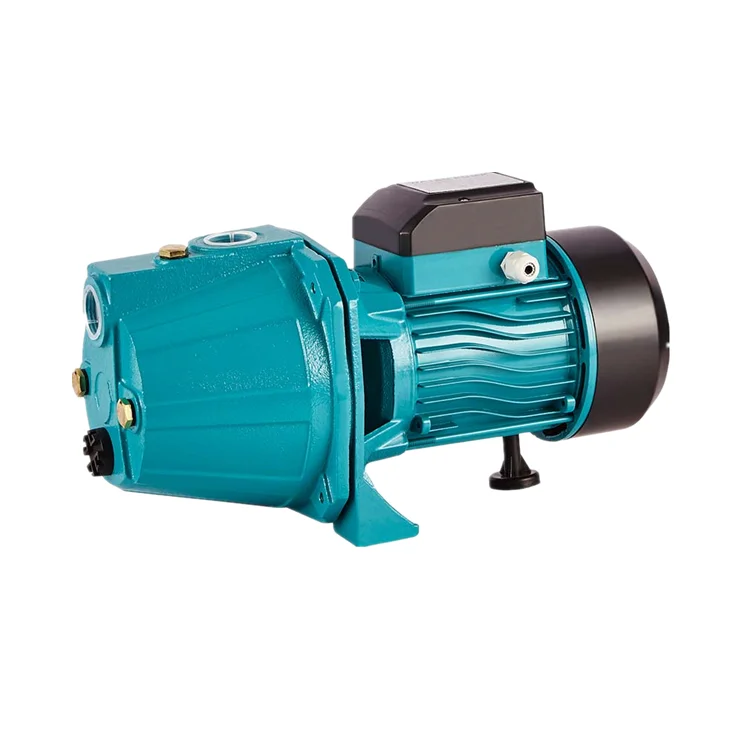

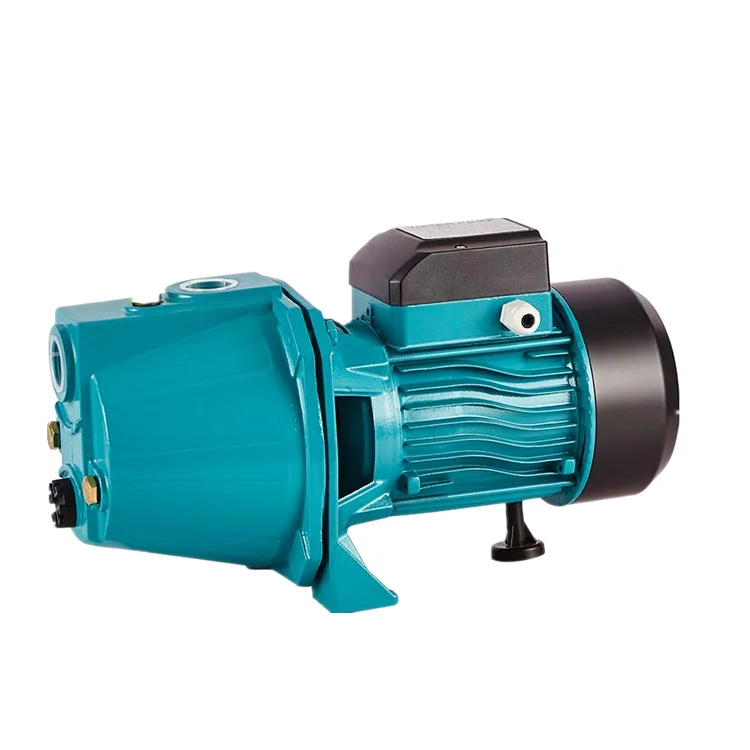

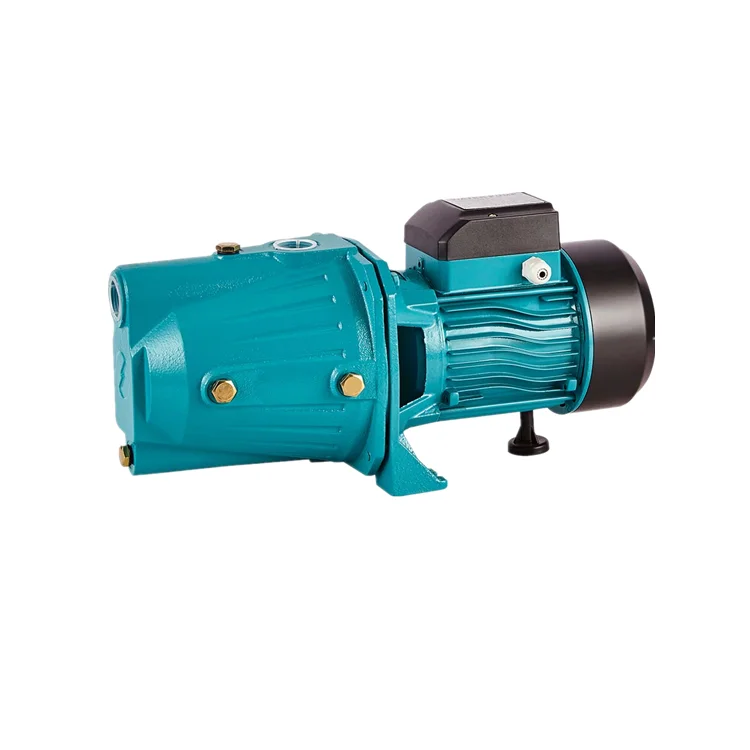

Self Priming Water Pump Copper Wire Brass Impeller Water Jet Pumps
- Category: >>>
- Supplier: Taizhou Ouke Technology Co. ltd.
Share on (62029725797):
Product Overview
Description
Product details
Working Condition Motor
1.For clear water. PH: 6.5-8.5. 1.Degree of protection: IP44
2.Solid impurity no more than 0.1%. 2.Insulation class:B
3.Fluid temperature: 0-40℃. 3.Continuous operation
4.Maximum ambient temperature:+40℃.
Technical Data
| Model | Power (Kw) | Power (Hp) | Max.head (m) | Max.suct (m) | Max.flow (L/min) | Inlet/Oulet | Packing dimension(mm) |
| JET60 | 0.37 | 0.5 | 35 | 8 | 45 | 1"*1" | 480*210*220 |
| JET80 | 0.55 | 0.75 | 40 | 8 | 50 | 1"*1" | 480*210*220 |
| JET100 | 0.75 | 1 | 45 | 8 | 60 | 1"*1" | 480*210*220 |
| JET60S | 0.37 | 0.5 | 35 | 8 | 45 | 1"*1" | 420*210*220 |
| JET80S | 0.55 | 0.75 | 40 | 8 | 50 | 1"*1" | 420*210*220 |
| JET100S | 0.75 | 1 | 45 | 8 | 60 | 1"*1" | 420*210*220 |
| JS60 | 0.37 | 0.5 | 35 | 8 | 45 | 1"*1" | 480*210*220 |
| JS80 | 0.55 | 0.75 | 40 | 8 | 50 | 1"*1" | 480*210*220 |
| JS100 | 0.75 | 1 | 45 | 8 | 60 | 1"*1" | 480*210*220 |
Illustration
Related products
Company Information
Applicance
1.Used for garden and gardening irrigation.
2.Domestic, Civil and Industrial Pumps
3.Water is supplied from wells, lakes, rivers and rivers, etc.
