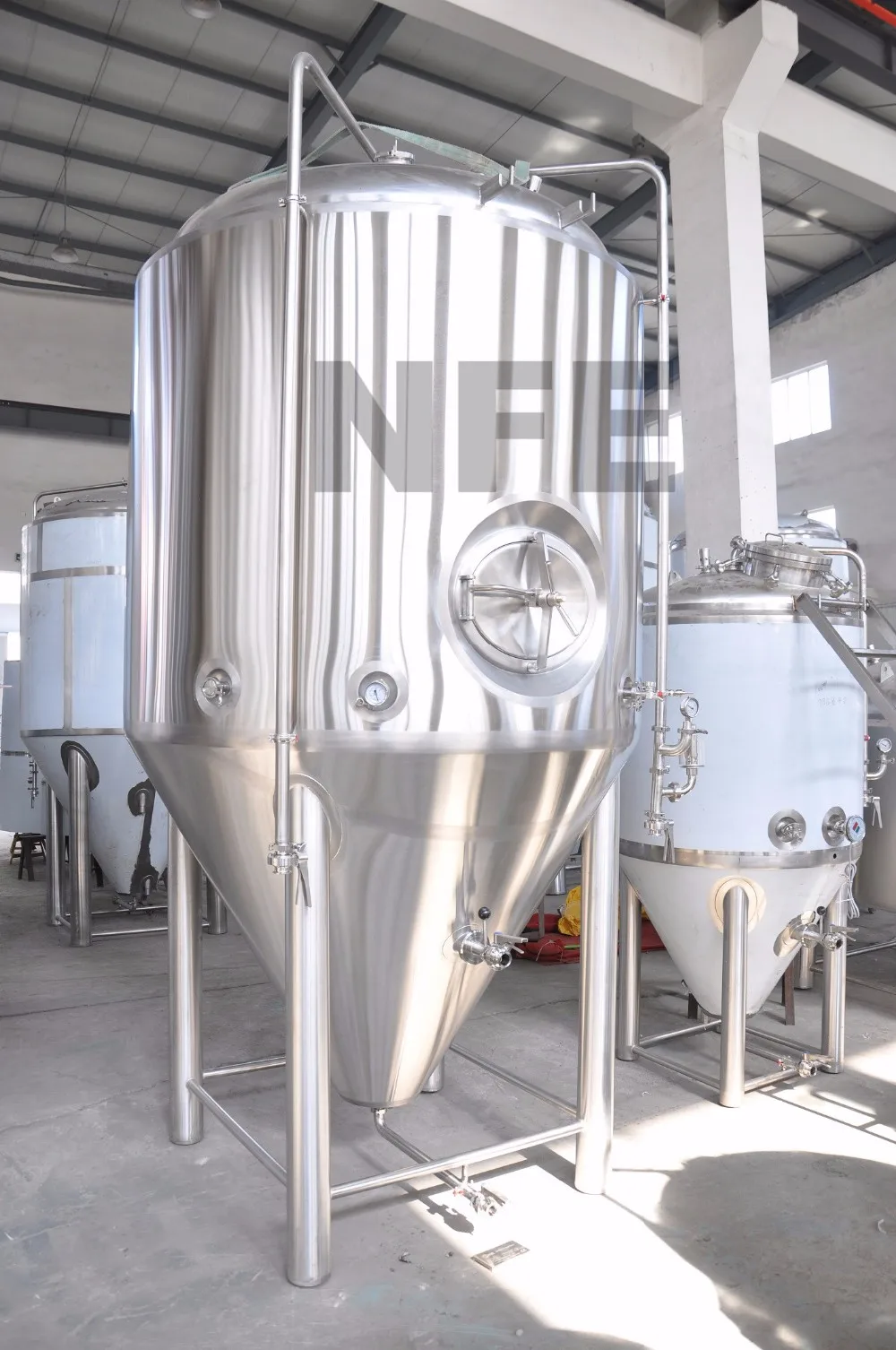

ITEM NAME: Stainless steel 304 cooling jacket conical fermenter tank
Brief Introduction for Cylindro Conical Fermenter,Fermenting Tank,Beer Fermentor
1. Quality: High quality Without driving leakage risk and nice appearance
2. Capacity: Can be customized
3. Processing: Fermenting
4. Thickness: 3mm
5. Volume design: Properly according to the capacity requests
6. Certification: ISO9001 / CE
7. Material: Stainless Steel AISI 304 or AISI 316
8. Warranty: 5 years
1000L beer fermentor configuration(For Example)
1
Total capacity
1280L
2
Effective capacity
1000L
3
Size
D1360*H2290mm
4
Weight
370kg
5
Material
SUS304
6
Exterior shell
2mm
7
Interior shell
3mm
8
Insulation material
PU
9
Insulation TH
80mm
10
Top type
Dished head
11
Manhole Type
Side
12
Manhole size
Φ400
13
Inner cone
60 degree
14
CIP pipe Diameter
Φ32
15
CIP ball(1)
360º Rotating spray ball
16
Temperature sense
PT100 sensor
17
Thermowell diameter
Φ10
18
Inner Polishing
0.2-0.4micron
19
Design pressure
0.3Mpa
20
Cooling type
Dimple cooling jacket
21
Cooling area
2.7 m2
22
Cooling jacket inlet
G3/4
23
Cooling jacket outlet
G3/4
24
Pressure control
Mechanical pressure relief valve
25
Pressure gauge
1pc
26
Rotating Racking arm
1pc
27
Sample port
Φ38
28
Drain outlet
Φ51
29
Safety valve (PVRV)
Φ51
30
CO2 exhaust port
Φ32
31
Hops port
Φ102

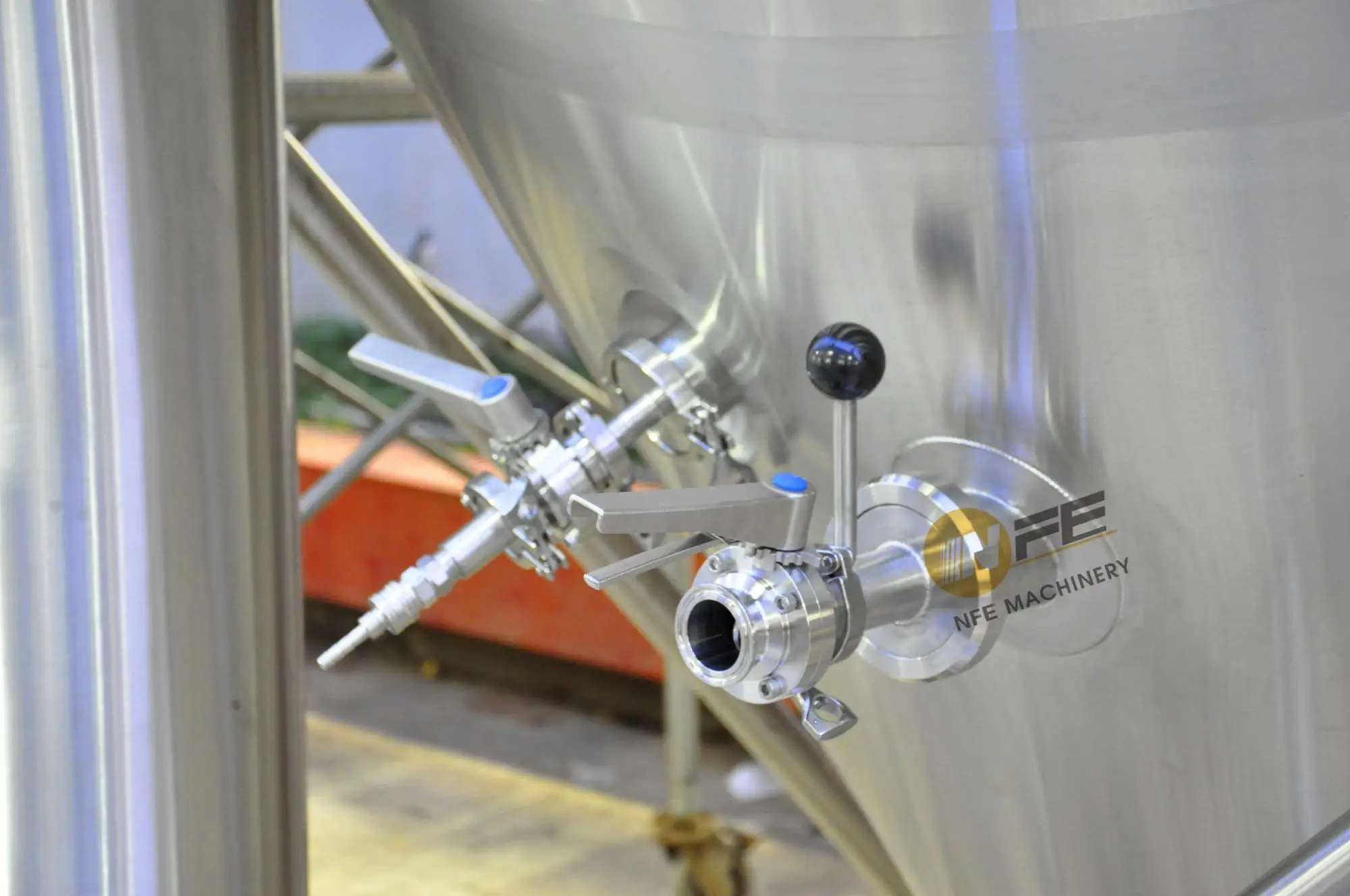

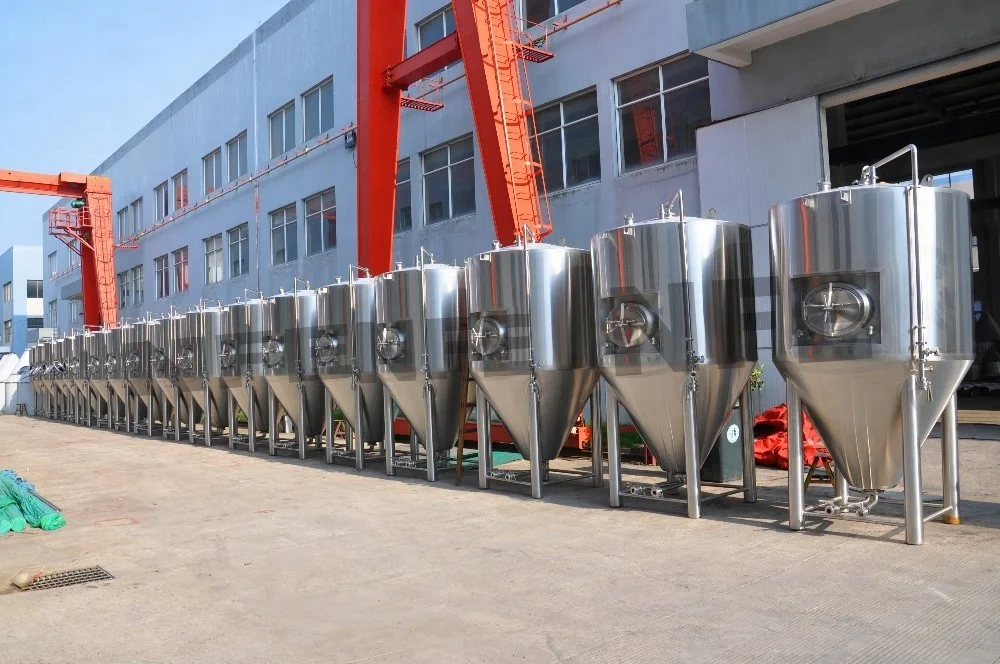

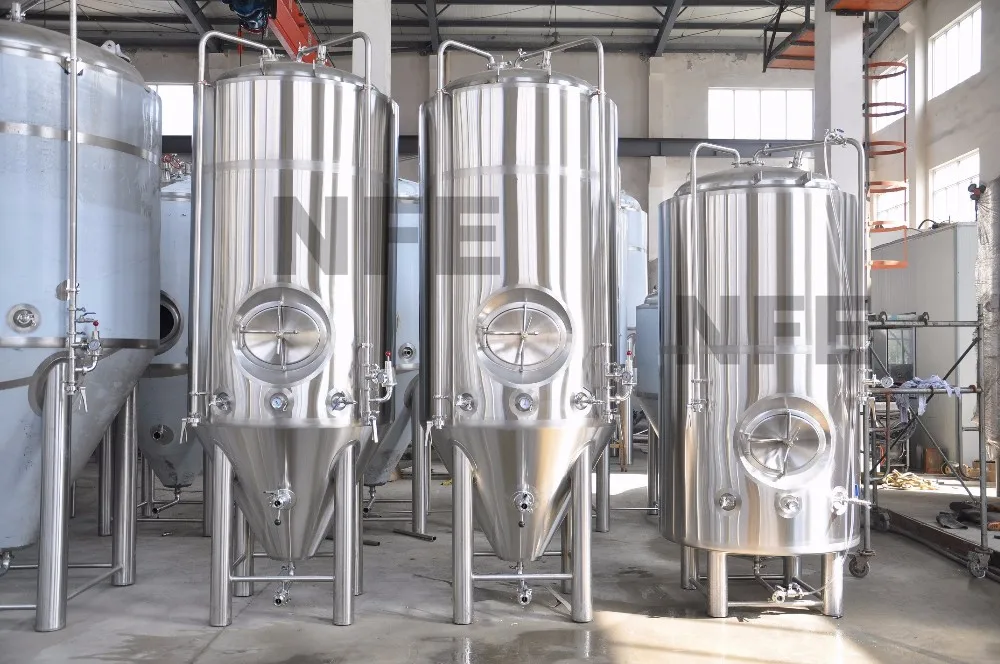

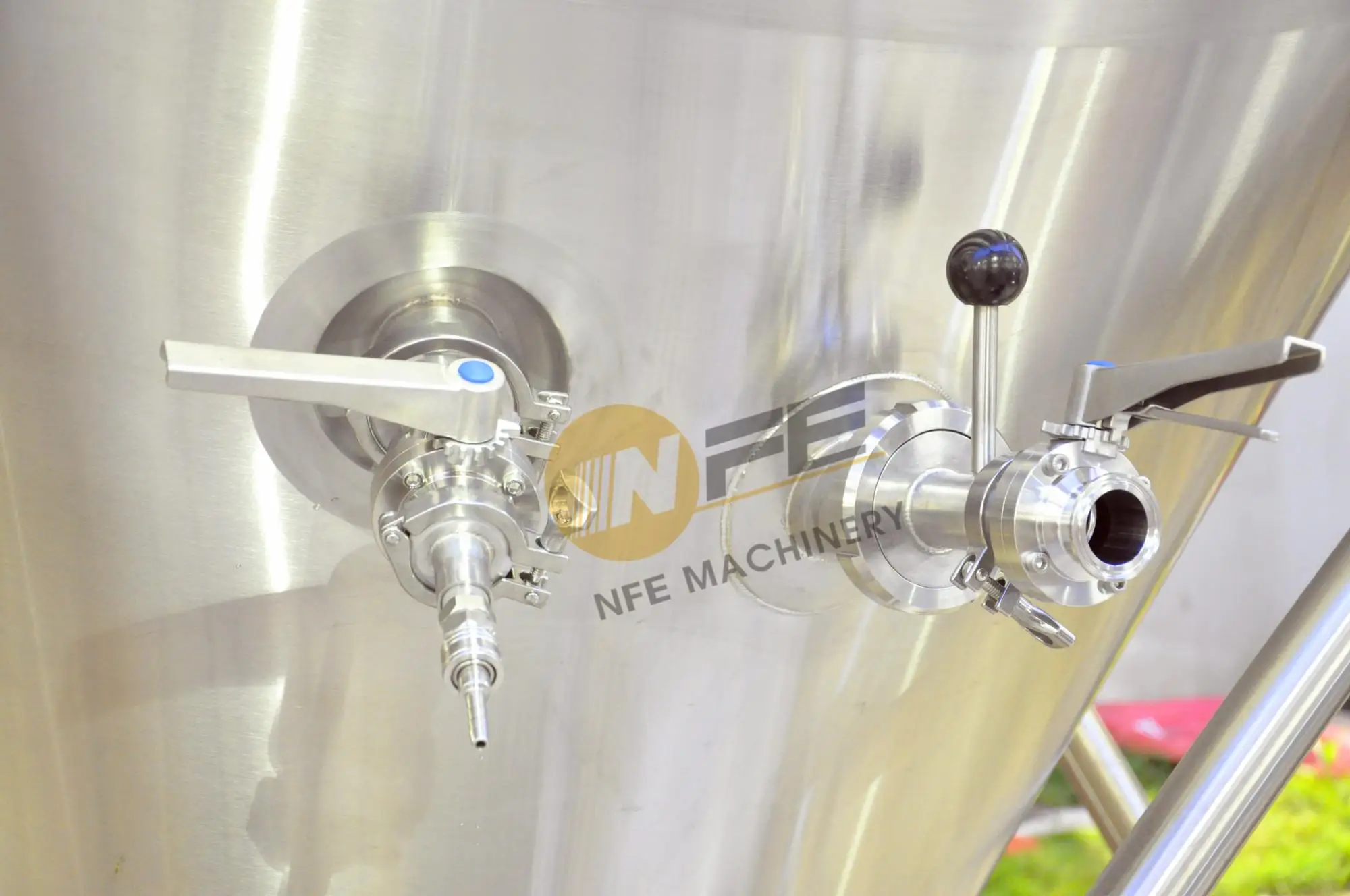

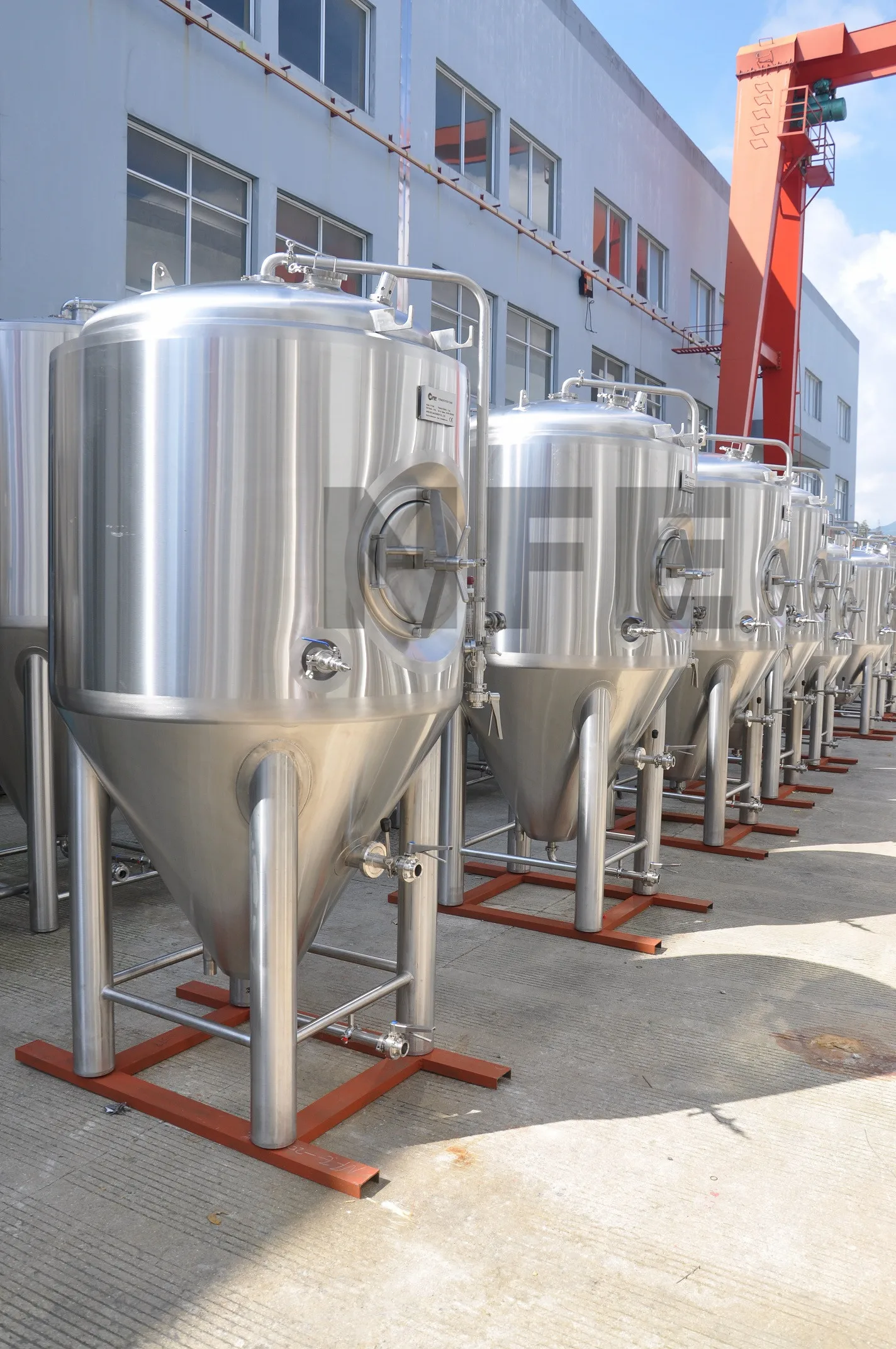

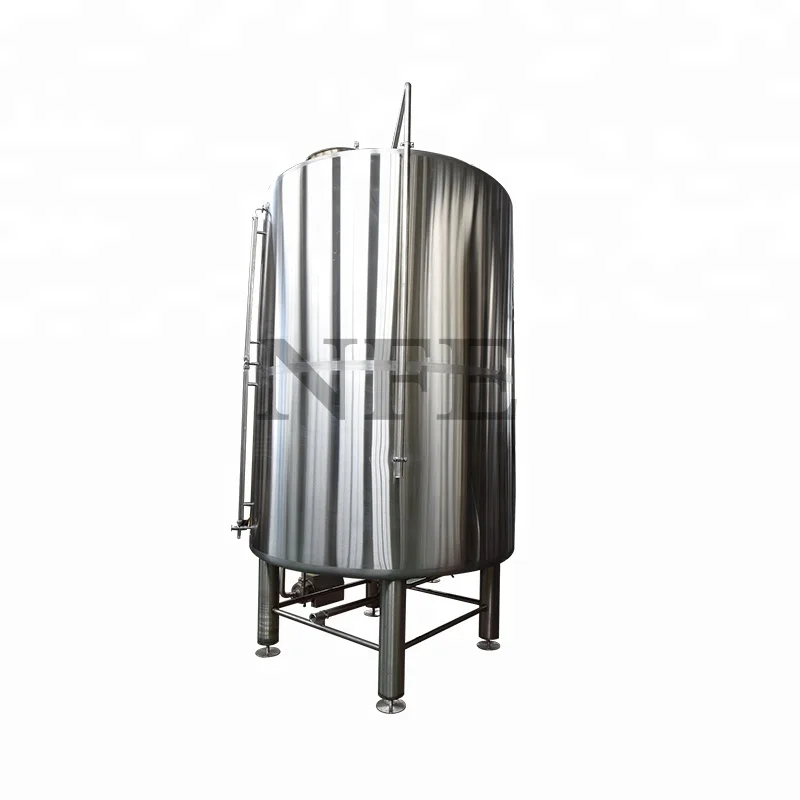

Detailed Pictures for Conical Fermenter,Fermenting Tank,Beer Fermentor
Complete beer brewing equipment
Mashing system
Lauter tun
Mash kettlewhirlpool
Wort pump
Combined pipes
Frequency inverter
Malt miller
Heat exchanger
Oxygen adder
Fermenting tanks
Fermenting tank
Valve pipe
Cooling pipe
Thermal meter
Pressure meter
Cooling system
Ice water tank
chiller
Ice water pump
Pipe & valve
Controlling system
Power controlling cabinet.
Meter controlling board
Refrigerator board

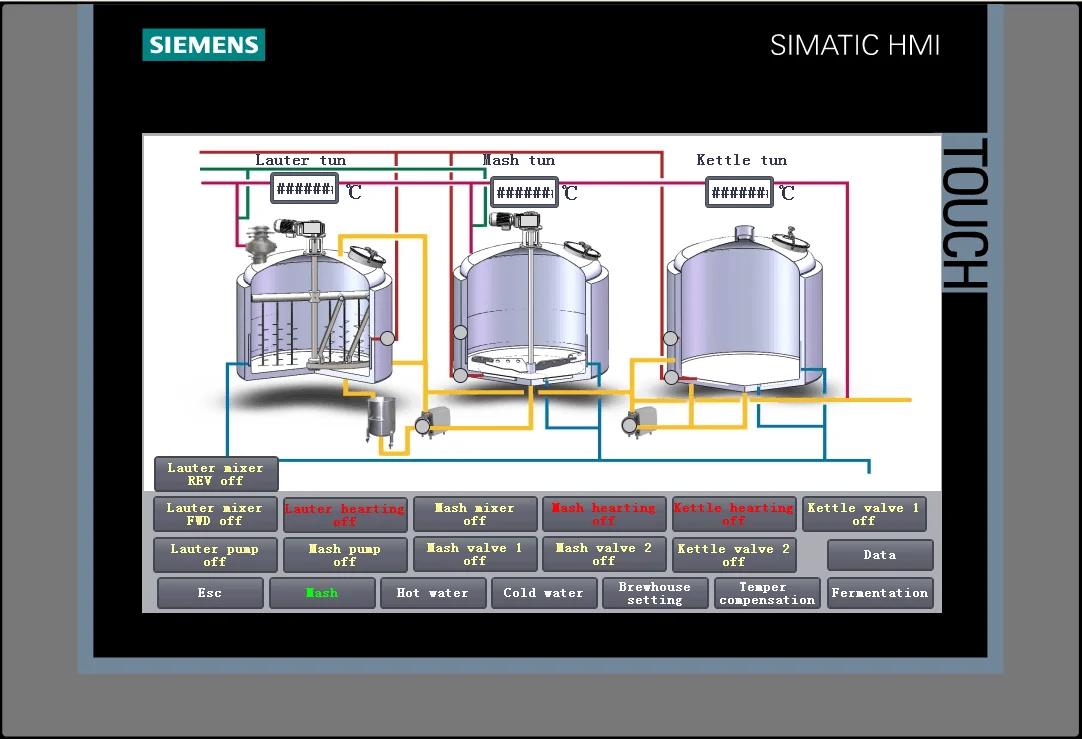

PLC control board for option
Washing system
Washing tanks
Mobile pump
Valve & pipe
Main Features 1) All the tanks insulation use argon arc welding and inner tank will do passivation or mirror polishing; 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) All the steam heating beer brewery tank will do water and pressure test when finishing. Pressure test is 2-4bar;
CE Certificate We steam heating beer brewery beer tank manufacturer have exported lots of 2 vessel beer brewing equipment beer tank to European and many other countries, All the indsutrial beer fermentation tank made by our company are SUS 304/316, and have passed CE, ISO test. We can show you our steam heating beer brewery qualification and certification, to ensure provide the best quality equipment for you.
Our Advantages
1.Mirror Polishing -Inside Polishing: Overall polishing to 0.4μm without dead corner . -Outside Polishing: Mirror polishing, smooth enough and passivating treatment. -Purpose: Make sure the steam heating beer brewery inner tank smooth enough to avoid form any dead cornor which caused bad taste in the wort beer. Outer tanks looks more like an artwork. 2.100% WIG Welding -All welding is TIG welding. -All welding is Full welding. -All welding is double side welding. -Purpose: The use of argon on the protection of metal welding material, So that welding can not be in contact with oxygen in the air, thus preventing the oxidation of welding consumables.Which Makes tanks durable and strong. 3.False bottom/Sieve plate -Equipped in Lauter tank,Laser milling, Filter gap: 0.8mm -This filter plate is made on a complete stainless by CNC lathe, it is strong, filter fast and leak no any grist. Which has a good effect in Separating wort and impurities.
Installation case Our company has lot's of experiences in installation all over the world, so we can gurantee steam heating beer brewery to provide you high quality equipment with best service, we can do our best to make your brewery project perfect!
Company Information
Jinan NFE Machinery Co., Ltd is one of the leading manufacturers of beer brewing equipment, beer packaging machine, stainless steel vessels in China. NFE brewing equipment is confidant to keep pace with fast changing of international brewing market. Beer brewing equipment includes brewhouse equipment, fermentation equipment, yeast propagation equipment and cooling equipment, etc. Beer packaging line includes beer bottling line, beer canning line and beer kegs washer and fillers.
RAQ
FAQ
1. Q: Are you trading company or manufacturer? A: We are a professional beer equipment manufacturer in this field.
2. Q: Do your Stainless Steel Beer Equipment products could be customized? A: Yes, our equipments could be customized according to your requirements.
3. Q: How long will the full set of equipment be shipped to us if we order it? A: It will take 10-30 working days to produce the full set of equipment.
4. Q: How long will the full set of equipment be guaranteed? A: Three years warranty for main machine, one year warranty for the accessories, all life service.
5. Q: What should we do if there are problems during using the equipment? A: Firstly, communicate through email, skype or telephone with us, if any accessory parts lead to the problems, new steam heating beer brewery accessory parts will be posted to you. If problems cannot be solved by all above mentioned method, our engineer will go abroad to solve for you.
6. Q: Do you provide after-sales service? A: Yes, we could provide after-sales service. We have 6 full-time engineers and other 4 part-time engineers available to go abroad to train installing and brewing.
7. Q: How is the proportion of your domestic market and foreign market? A: 100% for foreign market.
