16 ports 24ports Fiber Optic Drying Curing Oven Fiber for fiber optical patch cord

16 ports 24ports Fiber Optic Drying Curing Oven Fiber for fiber optical patch cord

Specifications:

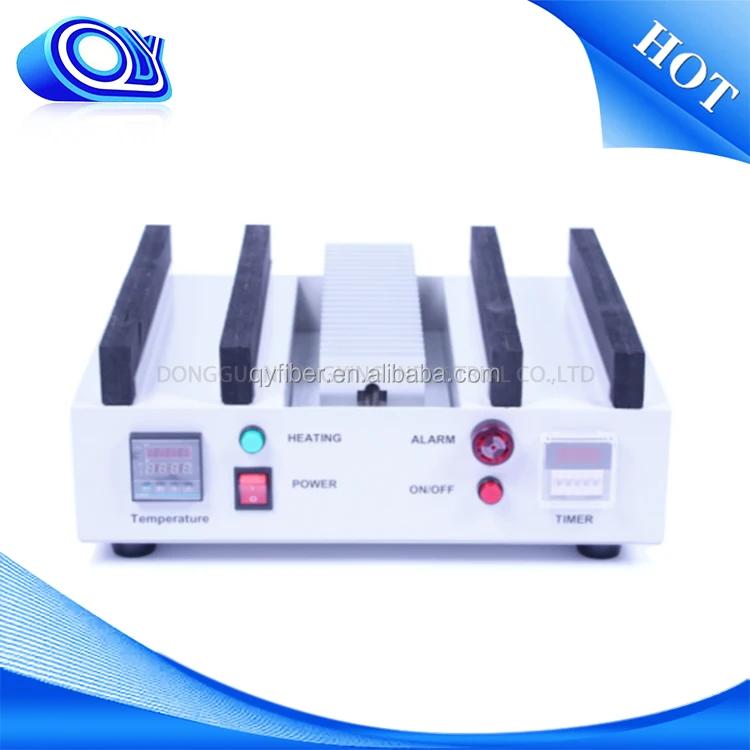

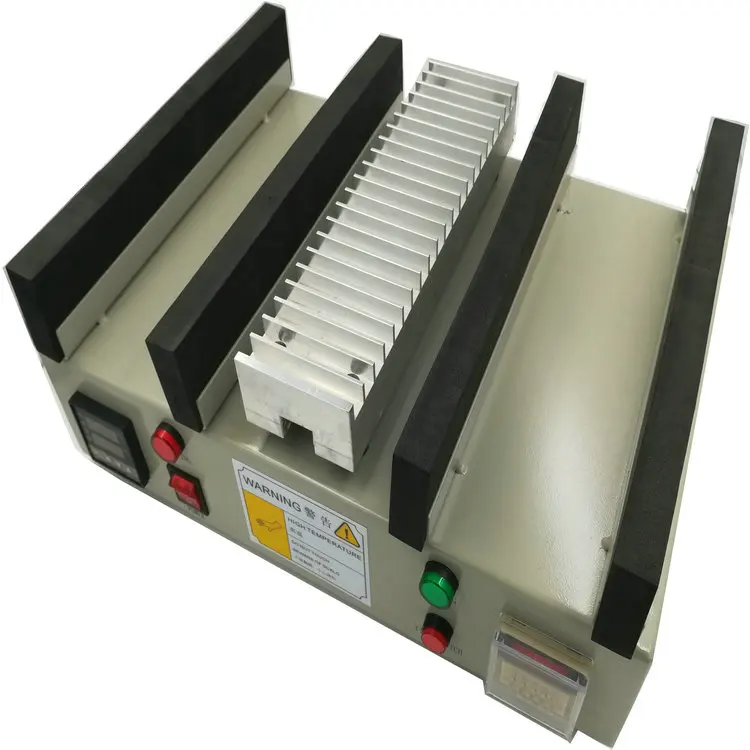

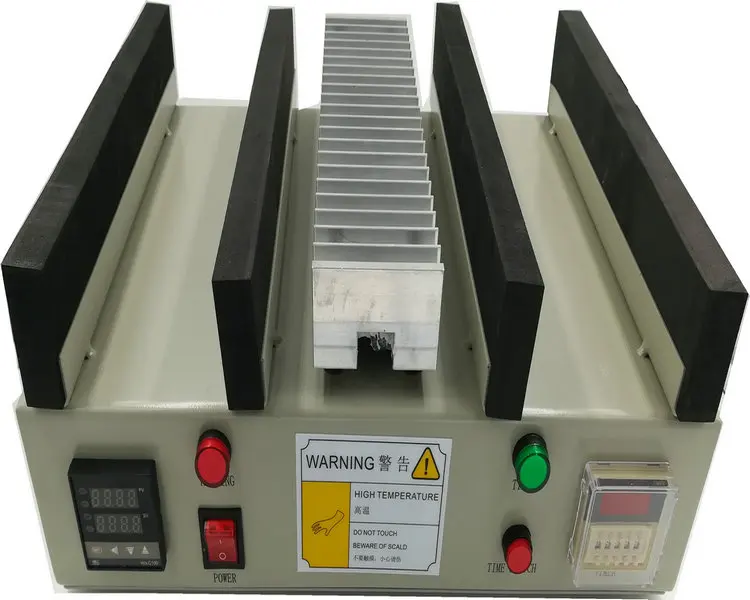

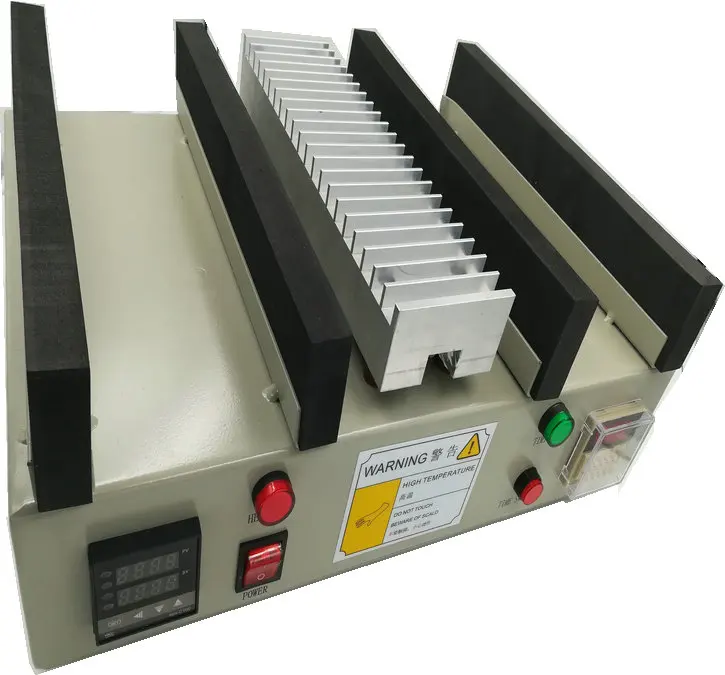

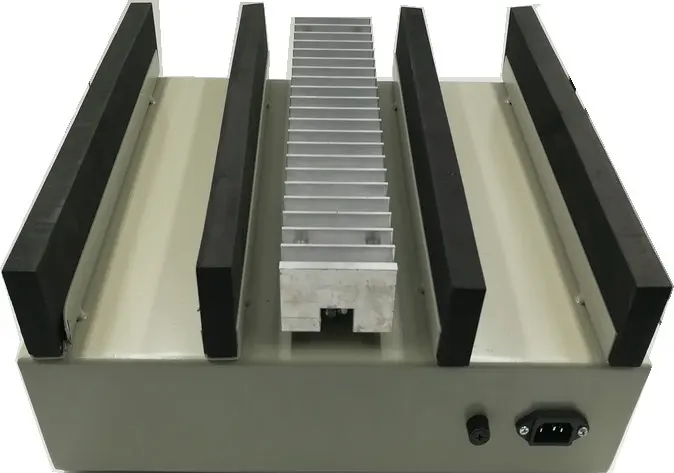

Fiber Optic Heat Oven
1.Easy Operation
2.Self regulating (PID) function
3.Precision Temperature Control
4.One-year warranty

 KEY FEATURES:
1,Used to heat and weld Various fiber optical cable couplers, including FC, SC, ST, LC, MU and so on,
especially suitable for processing MT and MPO fiber optical connectors;
2,it can simultaneously heat & weld 24 fiber optical couplers at the most; Even heating with low wear &
tear of cable coupler;
3,Precise temperature control system can adjust the temperature within the 4,40-150 °C range,
the temperature-control precision can reach ±1°C ;
5,Process equipment are replaceable, reducing the ancillary time;
6,Operation simple and reliable; Process equipment with different number of wires & specifications and
grill plates can be customized based on customer requirements.

Main feature:
• Special designed for curing epoxy of fiber optic connectors.

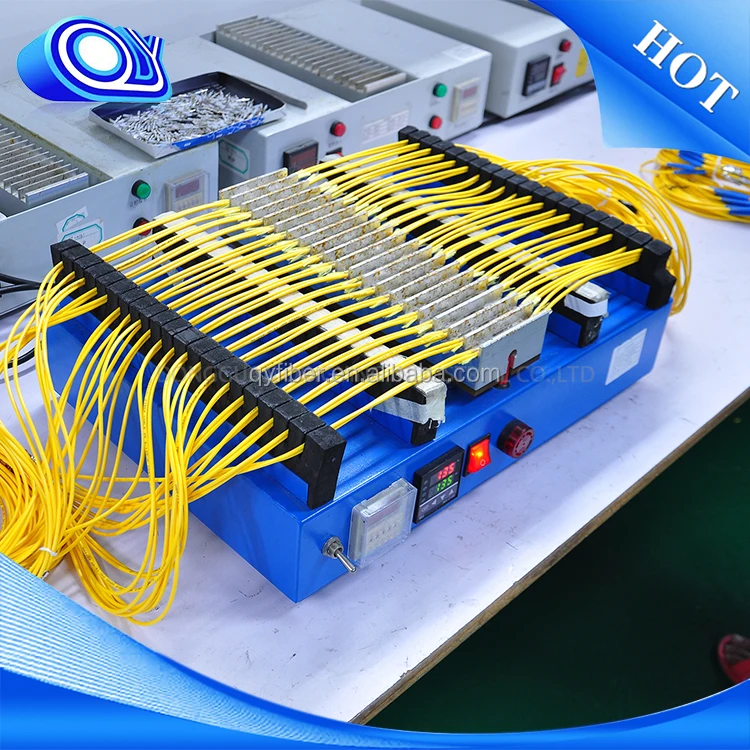

• All of 24 connectors can be placed for heating at the same time.
• Suitable to different type of connectors, just change the heating block to save cost more
