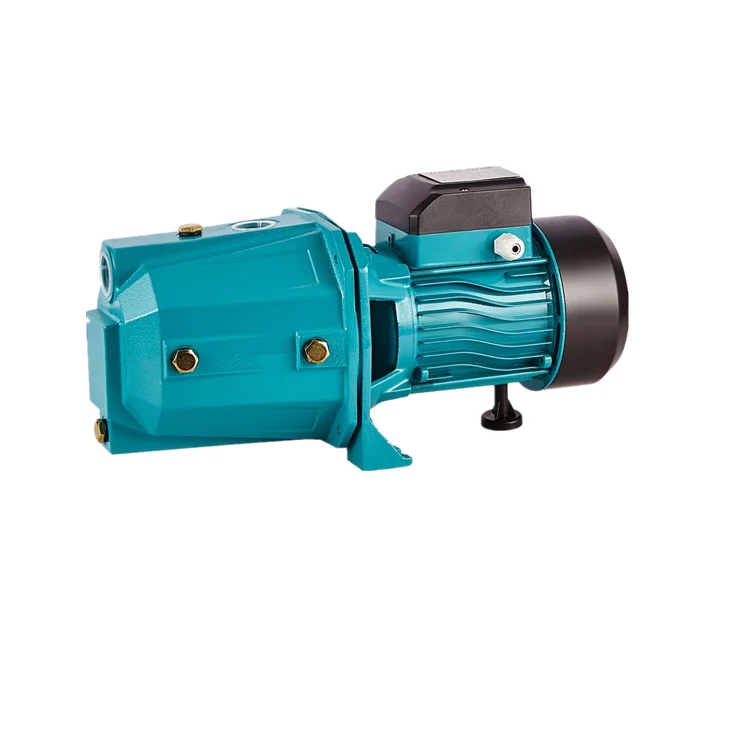

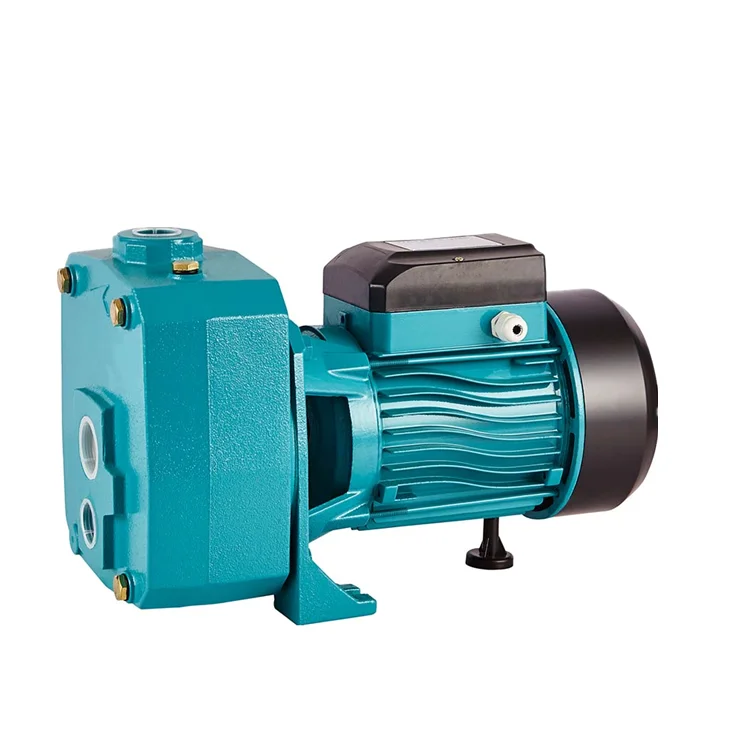

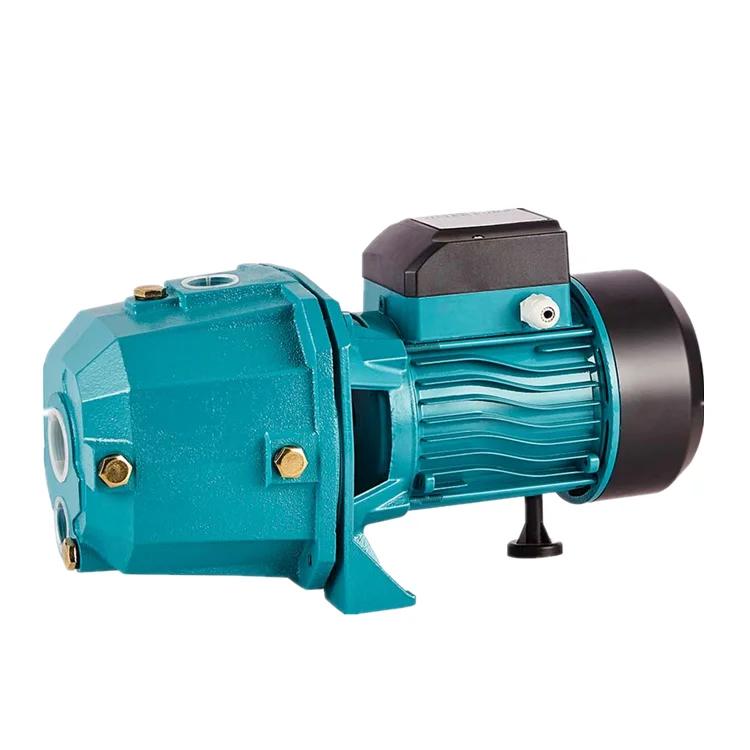

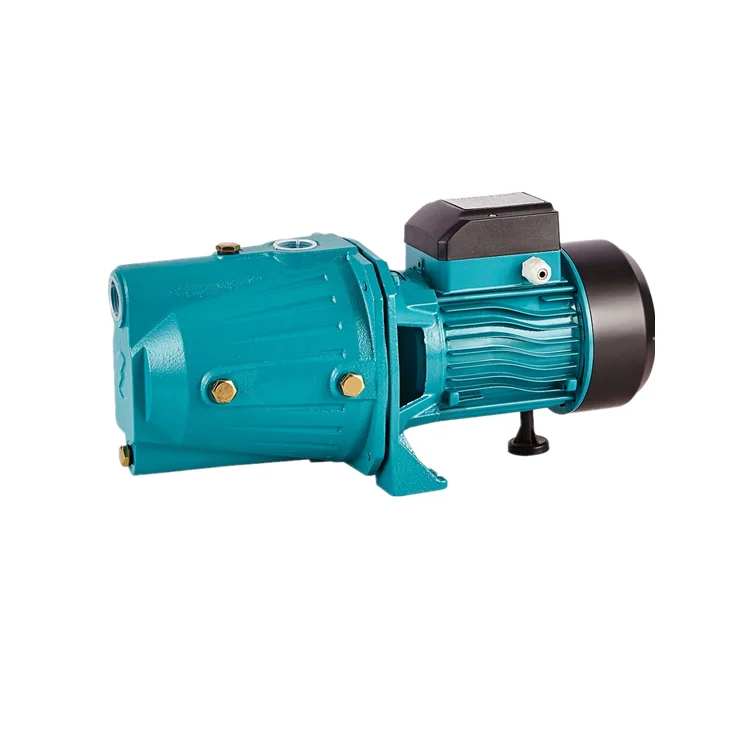

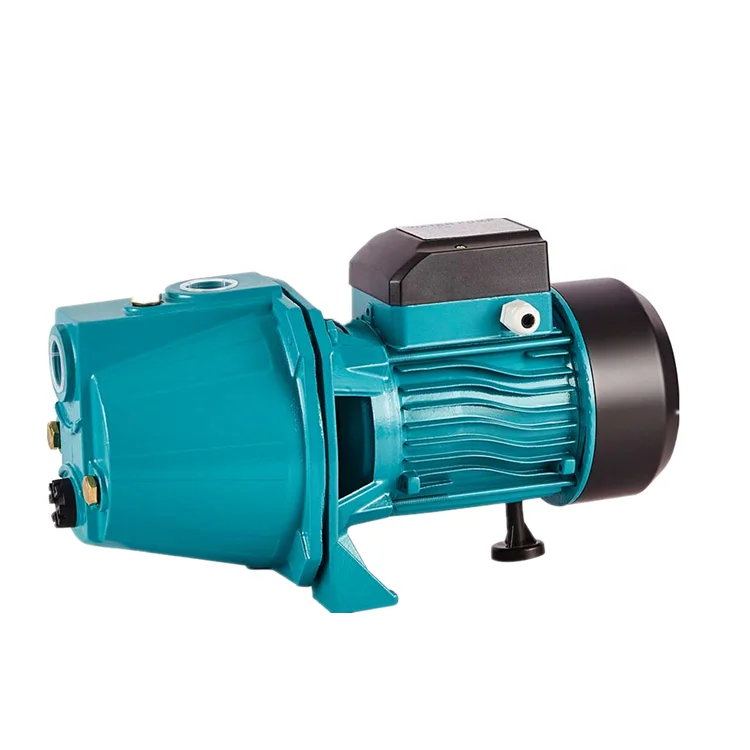

China JET Series Self Priming Water Pumps Manufacturer
- Category: >>>
- Supplier: Taizhou Ouke Technology Co. Ltd.
Share on (62029891983):
Product Overview
Description
Product details
Working Condition Motor
1.For clear water. PH: 6.5-8.5. 1.Degree of protection: IP44
2.Solid impurity no more than 0.1%. 2.Insulation class:B
3.Fluid temperature: 0-40℃. 3.Continuous operation
4.Maximum ambient temperature:+40℃.
Technical Data
| Model |
Power (Kw) |
Power (Hp) |
Max.head (m) |
Max.suct (m) |
Max.flow (L/min) |
Inlet/Oulet |
Packing dimension(mm) |
| JET60 |
0.37 |
0.5 |
35 |
8 |
45 |
1"*1" |
480*210*220 |
| JET80 |
0.55 |
0.75 |
40 |
8 |
50 |
1"*1" |
480*210*220 |
| JET100 |
0.75 |
1 |
45 |
8 |
60 |
1"*1" |
480*210*220 |
| JET60S |
0.37 |
0.5 |
35 |
8 |
45 |
1"*1" |
420*210*220 |
| JET80S |
0.55 |
0.75 |
40 |
8 |
50 |
1"*1" |
420*210*220 |
| JET100S |
0.75 |
1 |
45 |
8 |
60 |
1"*1" |
420*210*220 |
| JS60 |
0.37 |
0.5 |
35 |
8 |
45 |
1"*1" |
480*210*220 |
| JS80 |
0.55 |
0.75 |
40 |
8 |
50 |
1"*1" |
480*210*220 |
| JS100 |
0.75 |
1 |
45 |
8 |
60 |
1"*1" |
480*210*220 |
Illustration
