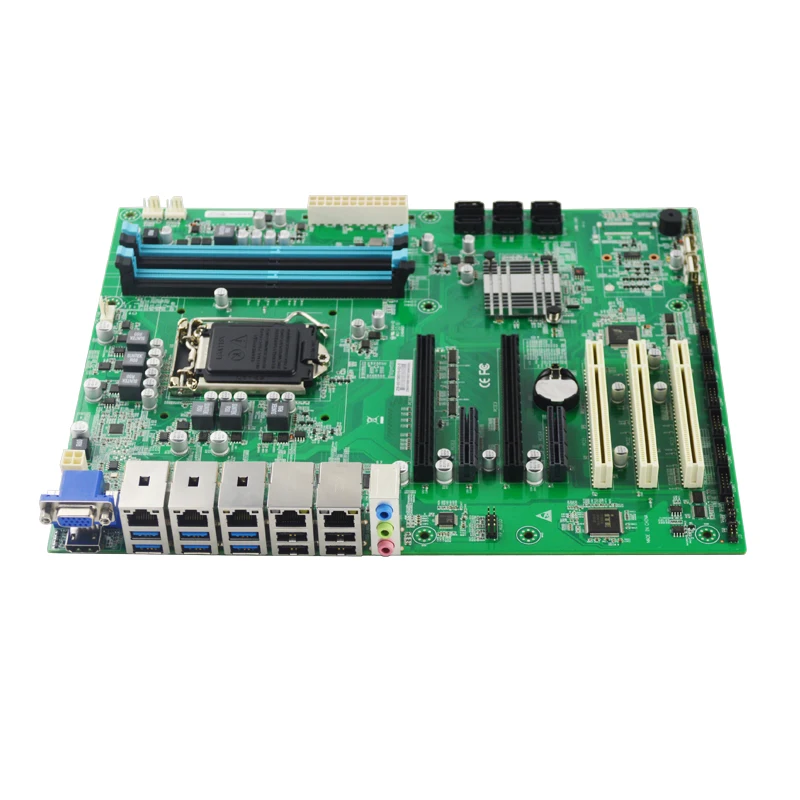

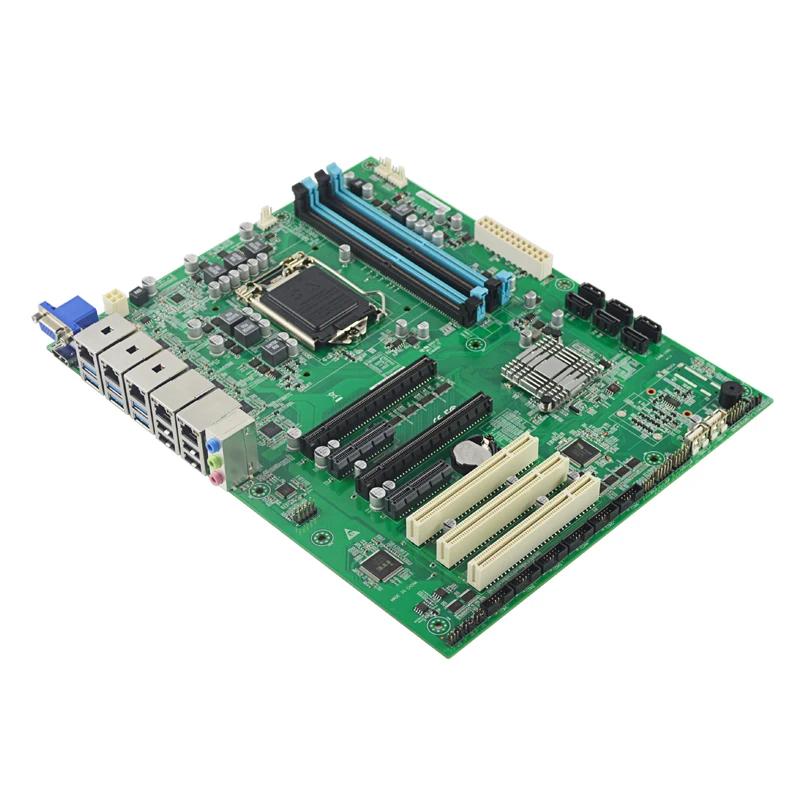

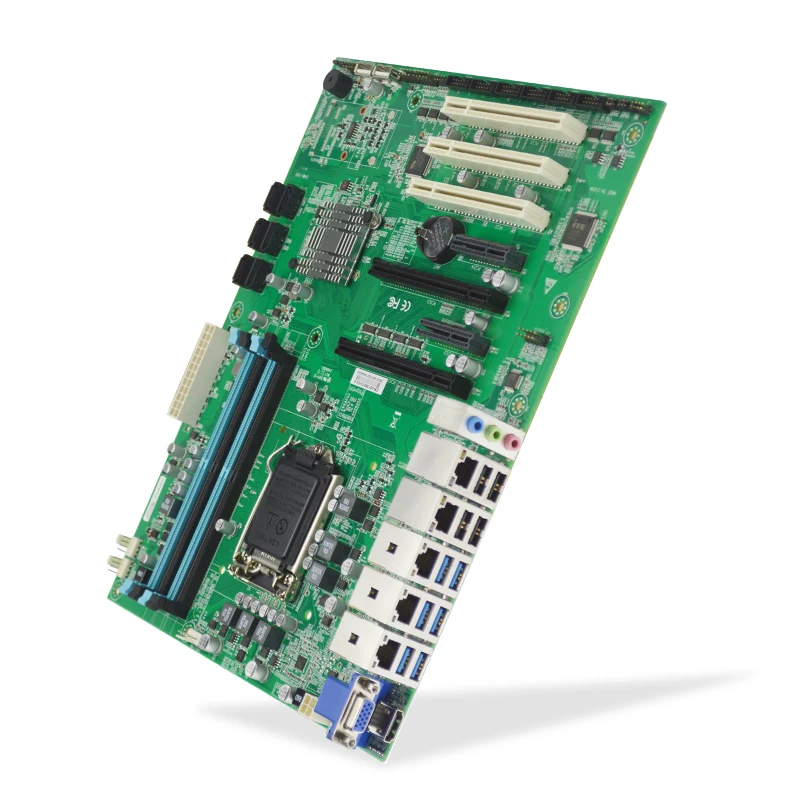

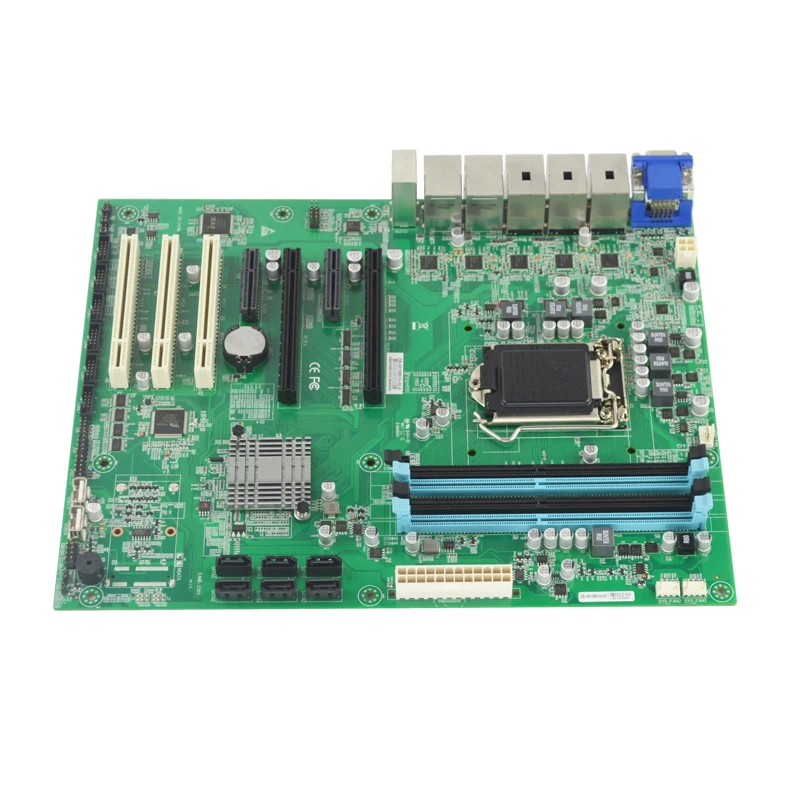

Factory sale LGA1151 ISO slot motherboard with Intel Corei7/i5/i3 Series Processors

EAMB-1585 is an embedded industrial-grade high-end motherboard based on Intel C236/Q170 platform with high performance, high reliability, extensible function and abundant interface resources; Support Intel Skylake/Kaby lake-s LGA1151 Processors.

2 dual-channel UDIMM slots, supporting DDR4 1866/2133/2400mhz memory, memory capacity up to 64GB;

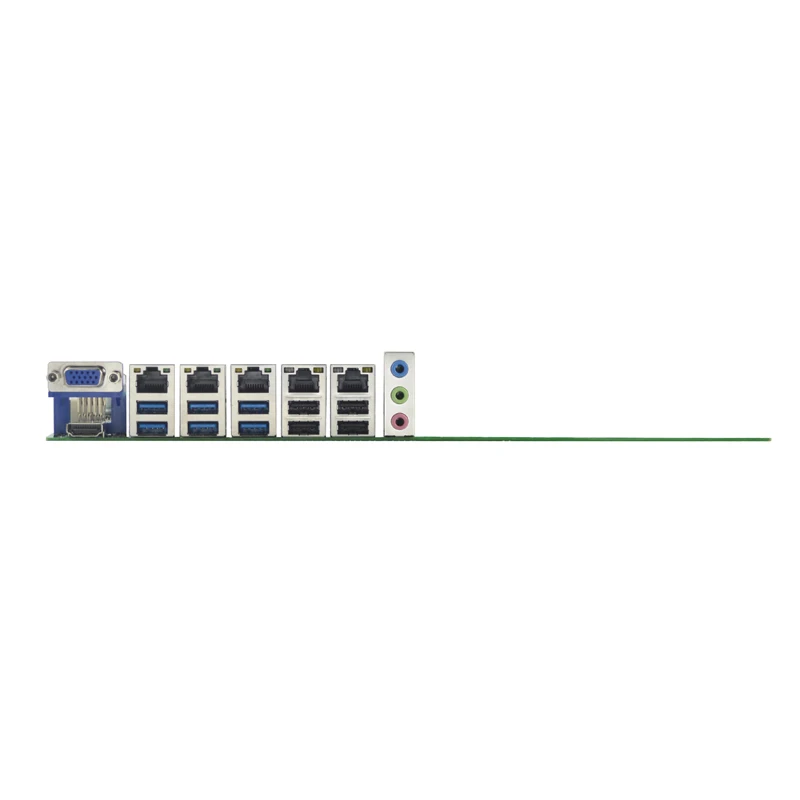

Provided interfaces include:
1* standard DB15 VGA display interface,
1* standard HDMI interface,
6* standard 7Pin SATA interfaces, Support AHCI, RAIDO, RAIDI, RAID5, RAID10 modes
6* standard COM pin interfaces,
6* standard USB 3.0 interfaces,
8* USB 2.0 interfaces(4* back IO panel interface, 1*2x5pin 2.54mm, 2 built-in USB2.0 .),
5* Gigabit Ethernet interfaces (Intel I211 Gigabit network card chip), Support for adaptation.
3* PCI,

2* PCIE X16(Insert only one, it's PCIE X16 resource; when insert two, it's PCIE X8 resourse.),

2* PCIE X4,

1* MSATA,
3* Audio interfaces (Green: line-out, Pink: mic-in, Blue: line-in)
1* PS/2 keyboard and mouse sockets,
1* 2X5Pin JGP, by SIO derivation, and supports 8-way input and output;

Can be widely used in visual control, network security, firewall, industrial automation, intelligent network terminals and other industries. It can meet the needs of the majority of professional customers in the market.
