Best price LPG nozzle with good quality

Share on (62030021557):


Price:

Quantity:


Product Overview

Description

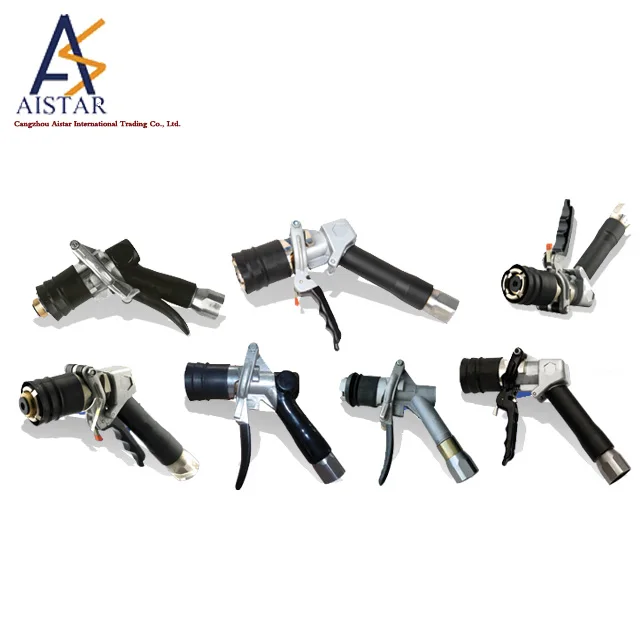

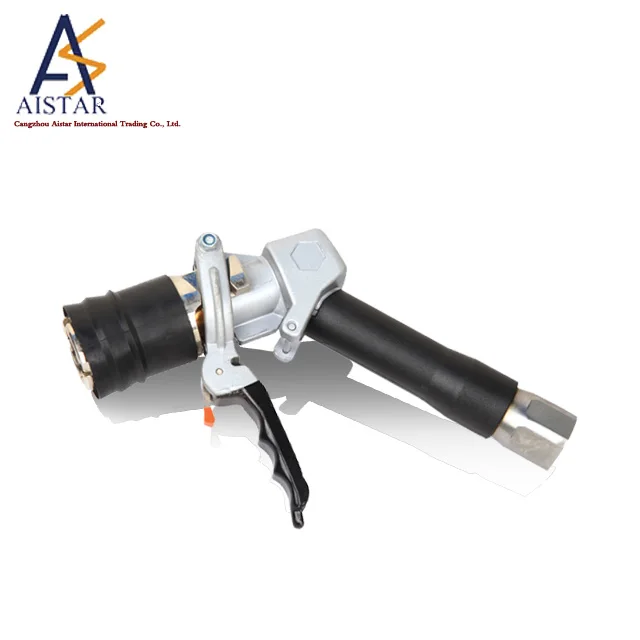

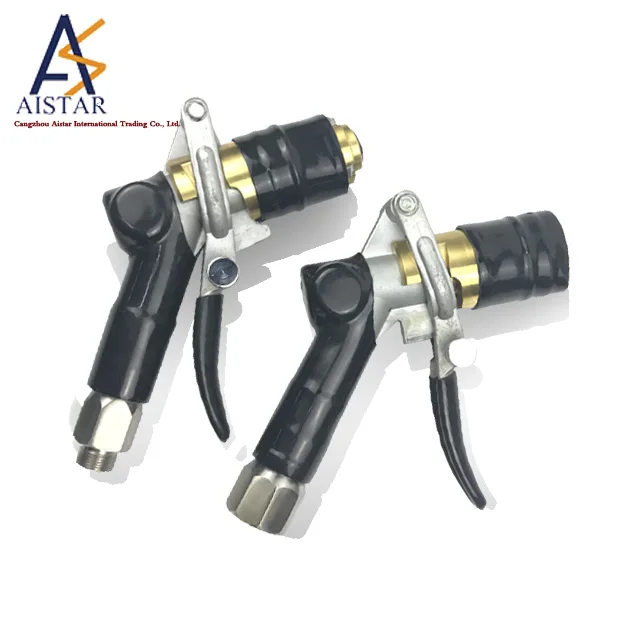

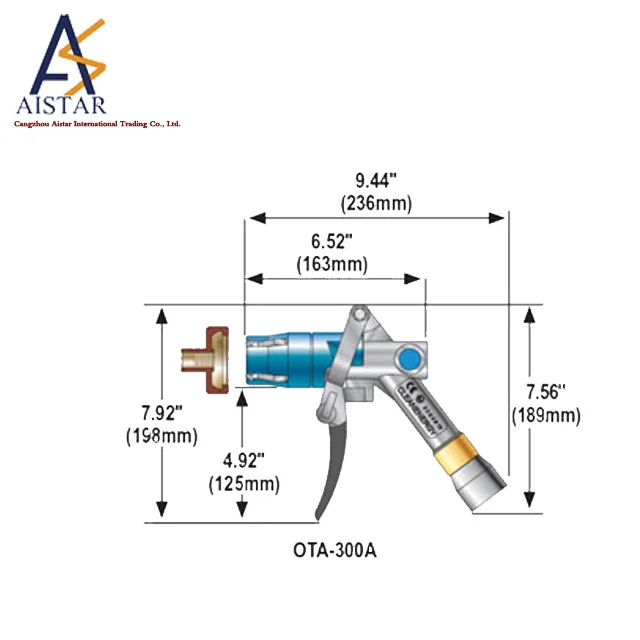

LPG nozzles

Stainless Steel pistons for improved durability
Reduced volume of residual vent gas for improved environmental

Body
Aluminum
Internal Components
Brass and steel

Seals
Specially formulated polymers and elastomers specific to LPG applications
External Components
Brass, stainless steel, anodized aluminum

Features & Benefits

User Friendly Single-Action Operation – Entire fueling operation is initiated by simply engaging nozzle to the receptacle with a single squeeze of the hand.
Hammer-Lock Technology – Maximum durability. Designed specifically for frequent coupling and uncoupling.
Ergonomic Design – Insulated handle protects operator from temperature effects created by high flowing LP gas. Minimal force required to engage nozzle.
Durable Construction – Heavy-duty brass, aluminum and stainless-steel construction provides excellent corrosion resistance in the harsh fueling environment.
Ease-of-Use – Incorporates a single plane 360 degree inlet swivel.
Safety – Will not dispense gas until securely engaged onto an appropriate receptacle. Once engaged, it will not disengage until released by operator.
Individually Leak Tested and Inspected with Traceable Serial Numbers.
Replaceable Rubber Cover – Deflects venting LP gas away from operator's hand.

Technical Specifications

MAWP: 350 psi (24 bar)
LPG Discharge on Disconnect: 1 cm3 of liquid LPG
Weight: 3.08 lbs. (1.40 kg)
Locking Release: Trigger on lever
Coupling Style: Italian Style

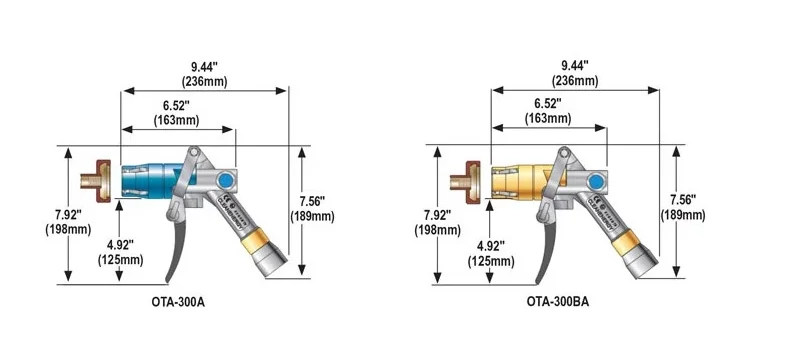

Temperature Range: -40° F to 185° F (-40° C to 85° C)LPG3.png
