Насос для бассейна с переменной скоростью циркуляции воды
- Category: Swimming & Diving >>>
- Supplier: Ningbo Jade Pool Technology Co. Ltd.
Share on (62030035962):
Product Overview
Description
Products Description
Features
Full programmable with a self-contained 24-hour clock and up to 3 custom speed and timer functions.
Simple, intuitive user interface, easy to
program and operate.
Three quick operating speed settings.
Drive is designed to withstand temperatures below freezing without issue.
A revolutionized removable strainer basket
with a built-in thermal overload protection.
Permanent magnet, totally enclosed fan
cooled (TEFC) motor offers incredible
efficiency and reliability.
Simple, intuitive user interface, easy to
program and operate.
Three quick operating speed settings.
Drive is designed to withstand temperatures below freezing without issue.
A revolutionized removable strainer basket
with a built-in thermal overload protection.
Permanent magnet, totally enclosed fan
cooled (TEFC) motor offers incredible
efficiency and reliability.
Speed for Example | Engergy Consumption | Energy Saved |
750 RPM | 32 watts | 97% |
1500 RPM | 56 watts | 94% |
2000 RPM | 160 watts | 83% |
2500 RPM | 280 watts | 71% |
3000 RPM | 800 watts | 17% |
Remarks: Above data is based on running at 220v 60Hz, different voltage or Hz might result in different datas.
This pump is suitable for both 50Hz and 60Hz voltage with intelligent detecter, no settings required between power supply of 50Hz and 60Hz.
Detailed Images

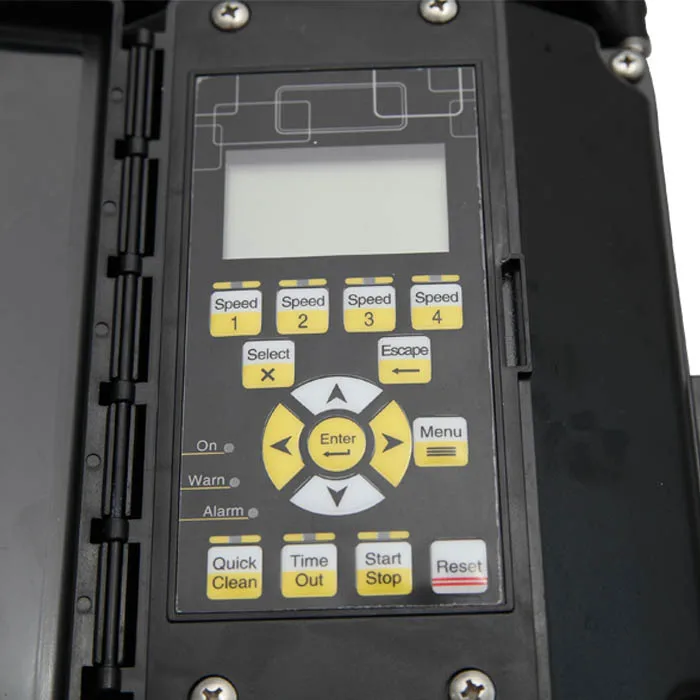

User friendly interface
Three mode: manual, schedule, eggtime.
There are 8 programs for user to set within 24 hours, any speed(500-3450RPM) can be set at any time.
Four quick operating buttons for easy control.
Clear Cover
Let users see when basket needs cleaning and the drain plug allows for easy maintenance of pump
Filter Basket
Super-sized basket has extra leaf-holding capacity and extends time between cleanings. Rigid construction with internal ribbing assures free flowing operation for heavy debris loads.

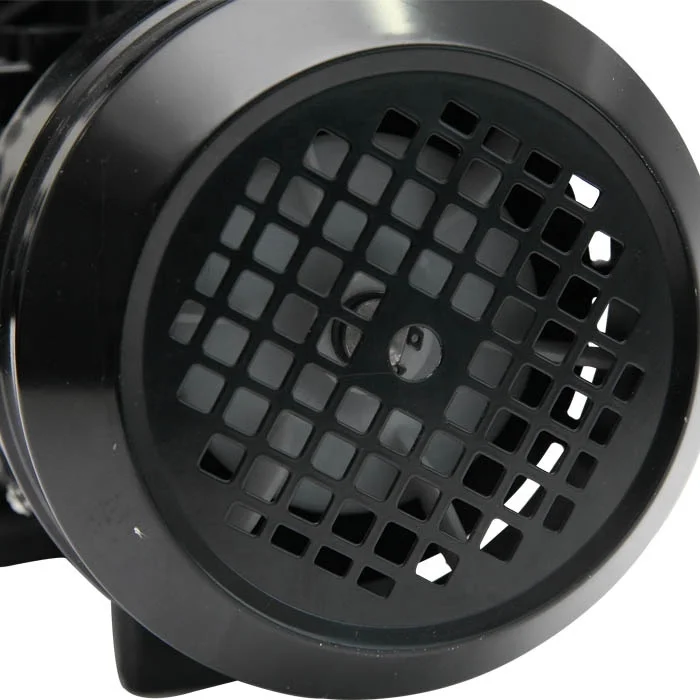

Cool Running & Long Lifetime Motor
Motor drive includes built-in protection for high temperatures and voltage fluctuations.
Motors and drives of advanced technology work perfectly together and insure extremely quiet running,
Low vibration
One piece strainer allows lower vibration and makes it extremely quiet.
Special formula of plastic material makes it durable and even stronger than stainless steel.
Various size of unions availale
2 inch ports insure bigger flow.
Unions can be included in the pump carton on request. Union size: 48mm, 50mm, 60mm, 63mm etc.
SS Shaft
High-precision Stainless Steel shaft reduce noise to 60 dB. Thermostable oil bearing endure temperature rating at 150℃
Well Made Coil
Well made coil with a built in thermal protector allows longer lifetime of the motor. The thermal protector will stop the pump on temperature over 155℃ and re-start the pump once the motor cools down to 105℃
Various Plug Available
Pump power plug can be custominzed to any style you need to meet local standard in every Country.
Procudtion
Packing & Shipping
80% pump body is wrapped by foam. An extra foam is added at the end to further protect the motor. Manual included. Drop test passed.
Package Dimension: 77.5×29×39 cm
Gross Weight: 22kg
Net Weight: 21kg
Usually shipped without pallet and take-up strap. Pallet and take-up strap can be provided wit extra cost.
Shipping by sea recommended.
Gross Weight: 22kg
Net Weight: 21kg
Usually shipped without pallet and take-up strap. Pallet and take-up strap can be provided wit extra cost.
Shipping by sea recommended.
Certifications
Warranty
Warranty period | 1 year since product leave our factory | ||||||
Replacement parts | Available at any time | ||||||
Defective rate | <2% promise | ||||||
How to apply for warraty | Show pictures or videos of the warranty product, we will ship new product with your future orders. | ||||||
How to deal with us
Customized Item | QTY Required |
Label | 20 |
Package | 50 for brown box and 2000 for color box |
Cord Length | 20 |
Plug | 10 |
Motor Color | 200 |
Appearance | Mold Fee should be charged |
About Our Company
Jade Pool Technology Co.,Ltd is a professional manufacturer of swimming pool equipments in China, who was transformed from a motor factory by merging with a 30 years' old plastic factory in 2012.
With rich experience and leading technology in producing motors and plastic parts, Jade always provide customers with qualified products as well as trustworthy customer service, and the Jade team is known as Innovative, Energetic, Precise and Flexible.
Exhibition
Our Customers
FAQ
Q: Are you factory?
A: Yes, our factory has more than 30 years experience in producing motors & plastic parts and 7 years experience in manufacturing pool pumps.
Q: Can you OEM for us?
A: Yes, OEM is available. Package, label, power plug can be customized. We can also help you develop pool pumps of your own style and appearance since we have our own design team and mold developing department.
Q: What's your MOQ?
A: Either quantity is allowed, please contact our sales for more information.
Q: Do you have necessary certificates for our Country?
A: We have ETL, CETL, CE, ROHS, EMC, RCM certificates currently and we can also apply for certificates in your Country.
Q: Is your pump suitable for our Country?
A: Yes, our pump can be made to voltage of 100~120v or 200~250v covering both 50Hz and 60Hz with various choice of power plugs.
Q: How can you prove the quality of your pumps?
A: We release products testing videos in the fees frequently, please follow our shop and you will see many evaluation videos as well as customer reviews from our ditributors. We also provide with 1 year warranty, in warranty period, you only have show us the warranty pump on photo or video and we will do the warranty for you. If the pump defective rate is more than 2%, you can return the whole container to us all on our cost.
A: Yes, our factory has more than 30 years experience in producing motors & plastic parts and 7 years experience in manufacturing pool pumps.
Q: Can you OEM for us?
A: Yes, OEM is available. Package, label, power plug can be customized. We can also help you develop pool pumps of your own style and appearance since we have our own design team and mold developing department.
Q: What's your MOQ?
A: Either quantity is allowed, please contact our sales for more information.
Q: Do you have necessary certificates for our Country?
A: We have ETL, CETL, CE, ROHS, EMC, RCM certificates currently and we can also apply for certificates in your Country.
Q: Is your pump suitable for our Country?
A: Yes, our pump can be made to voltage of 100~120v or 200~250v covering both 50Hz and 60Hz with various choice of power plugs.
Q: How can you prove the quality of your pumps?
A: We release products testing videos in the fees frequently, please follow our shop and you will see many evaluation videos as well as customer reviews from our ditributors. We also provide with 1 year warranty, in warranty period, you only have show us the warranty pump on photo or video and we will do the warranty for you. If the pump defective rate is more than 2%, you can return the whole container to us all on our cost.
Q: What's the leading time if I place order?
A: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
Q: What is the payment term?
A: We accept T/T, western union, Paypal, credit card, alibaba trade insurance etc.
Q: What is the departure port of your products?
A: Our products are usually shipped from Port of Ningbo, but they can also be shipped from other port in China on your request.
Q: I'm an online seller, is your product package firm enough to protect the product?
A: Yes, we have passed drop test performed by Amazon.
Q: I don't have any experience in importing products from China, can you help?
A: Yes, our professional sales team will teach you how to trade with Jade, and we also have our own forwarder that is able to pull out the container for you and deliver the products to your warehouse directly, you only have to stay at office, it is just a piece of cake to do business with Jade, as easy as buying products locally.
Q: Is there any marketing support from you?
A: Yes, we will provide you with awesome pictures and videos of our products to help you sell more in your market.
Q: Apart from pools, what else can Jade pumps be used for?
A: All kind of water circulation&filtration, spa jets, waterfalls, fountains, fish tank and other water features.
A: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
Q: What is the payment term?
A: We accept T/T, western union, Paypal, credit card, alibaba trade insurance etc.
Q: What is the departure port of your products?
A: Our products are usually shipped from Port of Ningbo, but they can also be shipped from other port in China on your request.
Q: I'm an online seller, is your product package firm enough to protect the product?
A: Yes, we have passed drop test performed by Amazon.
Q: I don't have any experience in importing products from China, can you help?
A: Yes, our professional sales team will teach you how to trade with Jade, and we also have our own forwarder that is able to pull out the container for you and deliver the products to your warehouse directly, you only have to stay at office, it is just a piece of cake to do business with Jade, as easy as buying products locally.
Q: Is there any marketing support from you?
A: Yes, we will provide you with awesome pictures and videos of our products to help you sell more in your market.
Q: Apart from pools, what else can Jade pumps be used for?
A: All kind of water circulation&filtration, spa jets, waterfalls, fountains, fish tank and other water features.
