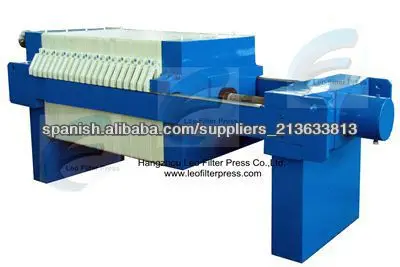

Leo Filter Press Automatic Hydraulic Pressing Filter Press

Filter press skeleton is made of Q235 high strength steel, much stronger, anticorrosion treatment on the surface.

1. Hydraulic filer press External size of filter plate: From 400mmX400mm, 630mmX630mm, 800mmX800mm, 1000mmX1000mm, 1500mmX1500mm, 2000mmX2000mm
2. Adopt die pressed mould pressing reinforced polypropylene for filter plate producing, lower Cost for filter press maintenance, the whole filter press system are auto controlled by the electrical panel.

3. Automatically maintain pressure or mechanically maintain pressure, automatic shifting plate, Closed or open filtrate outlet, Washing or blowing for filter cakes, drip tray device can be chosen

4. Hydraulic cylinder piston are made by steel 45 and plated with 0.06 chromium after surface processing with feature of high hardness, anti-wearing, long life

5. Easy operation by electric control cabinet of filter press

Leo Filter Press Special surface treatment:

Surface treatment can be made according to the customer's requirements or the feed's pH: The frame can be covered by SS, PP material, and spray-paint treatment

Filter Press Hydraulic station:
The hydraulic station is used for pressing and releasing filter plates. The electrical contract pressure gauge is available to automatically maintain pressure. The operation of automatically filter plate movement can realized by the automatic shifting device which is driven by Integrating motor

Motor is ABB product, and has smooth and reliable operation, low power consumption

 by sea or by air,with exporting standard packing

 online service/site service

 Hangzhou Leo Filter Press is a professional filter press manufacturer from China,offer chamber filter press, membrane filter press,plate and frame filter press,hydraulic filter press or different special design automatic filter press,hydrauic filter press etc.offer filter press plates,such as membrane filter press plate,chamber filter press plate or filter plate and frame for plate and frame filter press,filter press cloth etc.
