4020 Small Cooling Mini Fan Blower 40x40x20mm 5v 12v DC centrifugal Fans
- Category: >>>
- Supplier: Shenzhen Yccfan Technology Co. Ltd.
Share on (62030069253):
Product Overview
Description
4020 small profile cooling mini fan blower 40x40x20mm 5volt 12v DC centrifugal fans
Product Description
40x40x20mm small blower fan data-sheet
Model | Bearing type (S / Ball ) | Voltage (V) | Current (A) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmAq) | Noise Level (dBA) |
YDL4020X05 | S / B | 5v | 0.14 | 3000 | 2.20 | 3.0 | 21.40 |
YDM4020X05 | S / B | 5v | 0.2 | 4500 | 3.11 | 5.62 | 27.15 |
YDH4020X05 | S / B | 5v | 0.26 | 6000 | 4.02 | 8.71 | 31.56 |
YDL4020X12 | S / B | 12v | 0.07 | 3000 | 2.20 | 3.0 | 21.40 |
YDM4020X12 | S / B | 12v | 0.11 | 4500 | 3.11 | 5.62 | 27.15 |
YDH4020X12 | S / B | 12v | 0.15 | 6000 | 4.02 | 8.71 | 31.56 |
YDL4020X24 | S / B | 24v | 0.05 | 3000 | 2.20 | 3.0 | 21.40 |
YDM4020X24 | S / B | 24v | 0.08 | 4500 | 3.11 | 5.62 | 27.15 |
YDH4020X24 | S / B | 24v | 0.1 | 6000 | 4.02 | 8.71 | 31.56 |

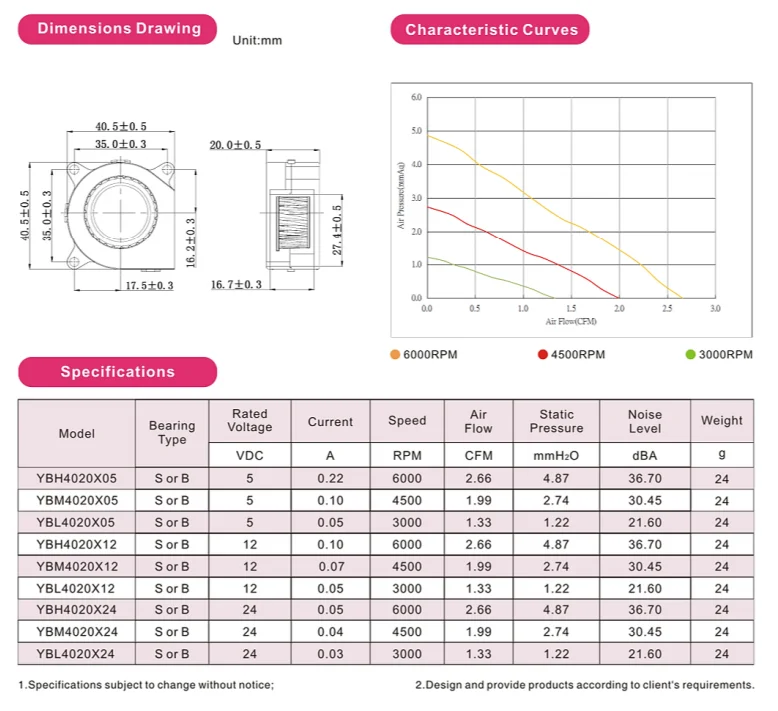

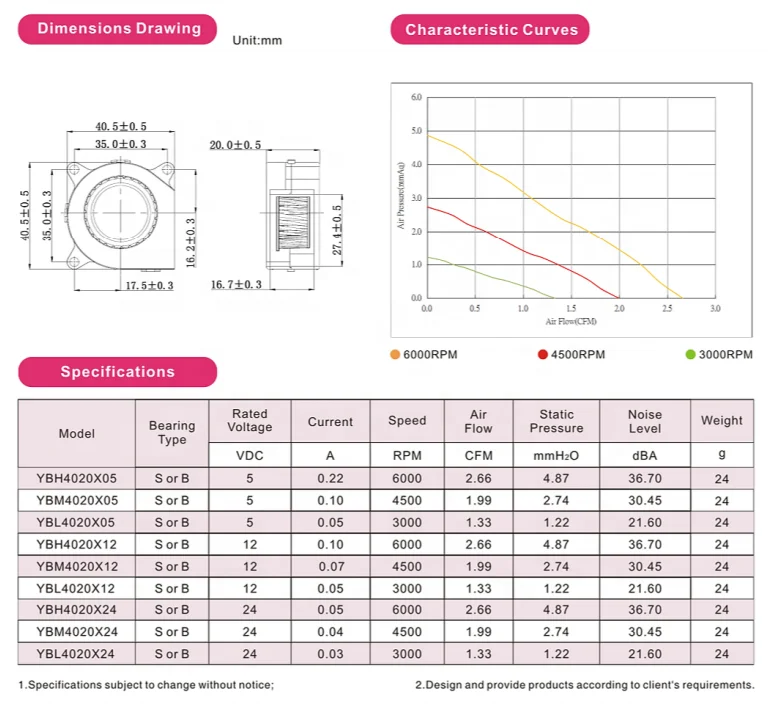

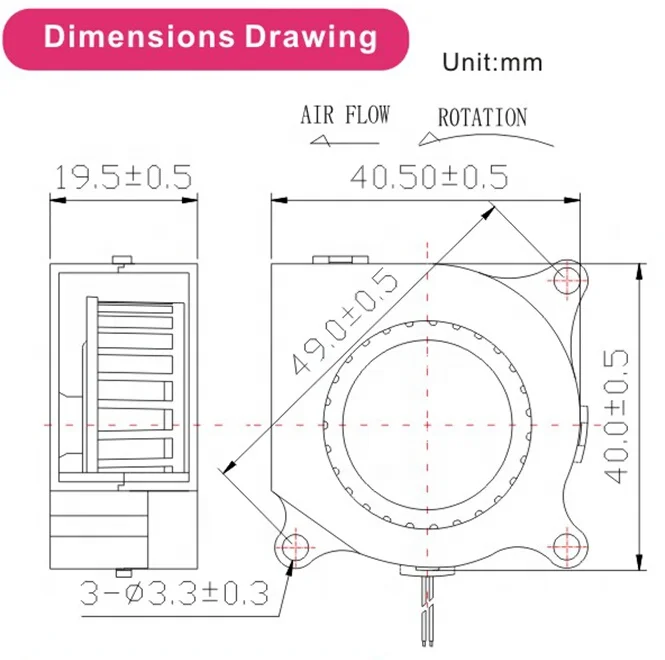

DRAWING DIMENSSION OF 40X40X20MM DC BLOWER FAN
2
4020 small micro blower 40x40x20mm 5volt 12v DC centrifugal fans price
Related Fan Lists
DC FAN is powered by 3.3v 5v 12v 18v 24v 48v,AC FAN powered by 110v 125v 220v 240v 380v,
YCCFAN manufacture DC/AC fan from 20mm - 254mm.
For more information,pls check below lists to find you need, feel free to e-mail me questions.
4020 small micro blower 40x40x20mm 5volt 12v DC centrifugal fans price
Application&Featured
-------------------------------------------------------------------------YCCFAN------------------------------------------------------------------------------
------------------------------------------------------------------------Your Correct Choice-----------------------------------------------------------------
---------------------------------------------------------------------YCCFAN'S SERVICE------------------------------------------------------------
4020 micro blower 40x40x20mm 5volt 12v DC centrifugal fans price
Company Information
Shenzhen YCCFAN Technology Co., Ltd Founded in 2011, 7000 square meters plant , 300+ staff , 50000pcs daily capacity.
AC Cooling Fan ( 60mm - 220mm )
DC Cooling Fan ( 20mm - 172mm )
1.Super Mini Model ( 20×20mm-50×50mm)
2.Normal Models ( 60×60mm-200×200mm)
3.Special Models: customize the products as the client’s requirements
EC Cooling Fan: (60mm - 120mm)
High efficiency, Low Consumption, Energy Saving, 110v - 220v widen usage volatge
R&D equipment & Work shop & Prodution equipment
4020 small micro blower 40x40x20mm 5volt 12v DC centrifugal fans price
Certifications
UL & CUL & CE & RoHS & SGS & ISO9001 & ISO14001 &3C and more to be continued.
4020 small micro blower 40x40x20mm 5volt 12v DC centrifugal fans price
FAQ
Q1 : Provide preferably product fan for you:
1 Fan Type, DC/AC
2 Case Size (Dimensions)
3 Speed
4 Air Flow
5 Noise Level if situation needs
6 Rating Voltage, 3v/3.3v/5v/9v/12v/48v/115v/220-240v/380v
7 Bearing, Sleeve/2Ball/VAPO
8 Wire, 2 lead wires/3 lead wires/4 lead wires (PWM control/FG signal output/RD Alarm)
9 Wire Length
10 Connector or not
11 Just contact me freely if any request,I will get back to you soon.
Q2: Can you tell me the normal DC Cooling Fan Model?
20*20*6mm 20*20*10mm 25*25*10mm 30*30*7mm
30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm
60*60*15mm 60*60*25mm 60*60*38mm 70*70*15mm
80*80*15mm 80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*38mm
150*150*51mm 172*150*51mm 172*51mm
We have more model,just e-mail me to get details...
Q3: Can I get samples before order ?
A3: Definely, that's our suggestion too. when mass production, performance is compliance to sample checked.
Now, contact Teresa Yu to get more information.
