China Laboratory Flotation Machine D12 Flotation Cell With Stainless Steel Tank and

                                     China laboratory flotation machine d12 flotation cell with stainless steel tank

Description

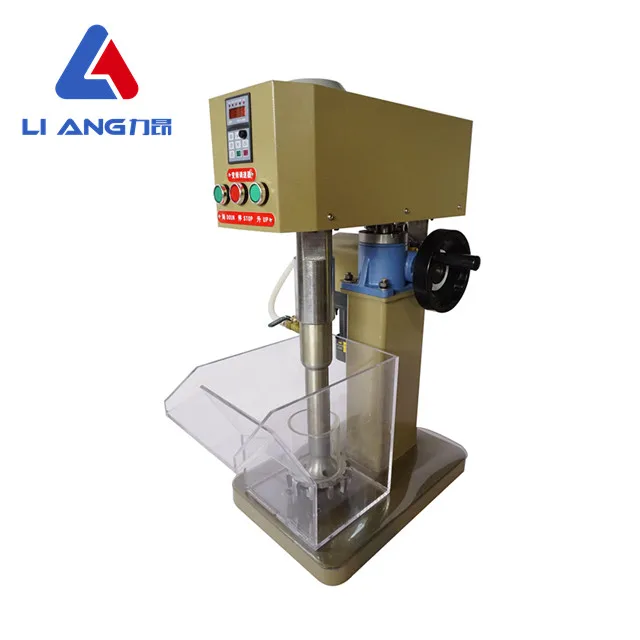

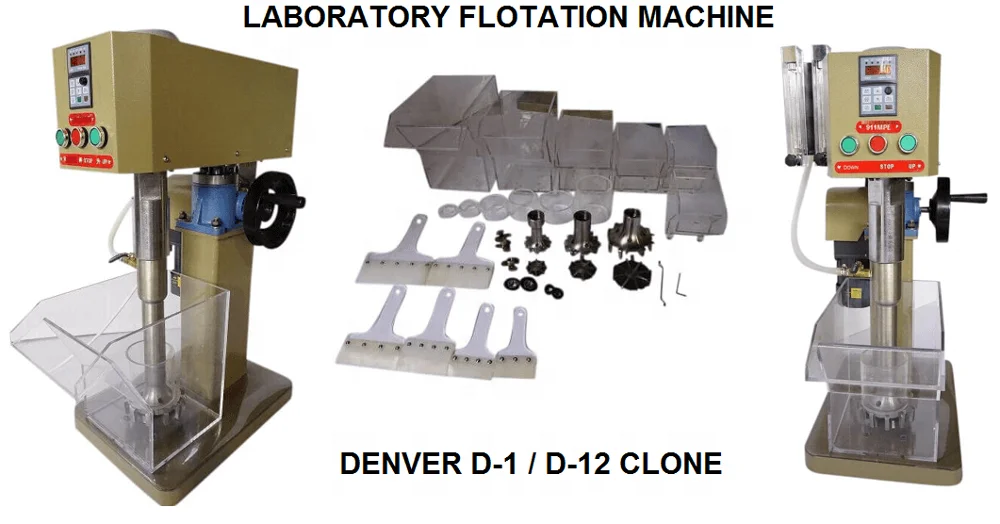

The perfect, affordable alternative to the original Denver (Metso) D12 flotation machine used in bench-top laboratory testing.

Features of lab flotation machine

1.Simple structure, easy operation and convenient maintenance.
2.High precision, high separation efficiency.
3.Lower pharmaceutical consumption, lower energy consumption.
4.Corrosion resisting,asdapted special technology and material.
5.Excellent quality,stable working performance.

New style D12 Muti-cell flotation Cell features:

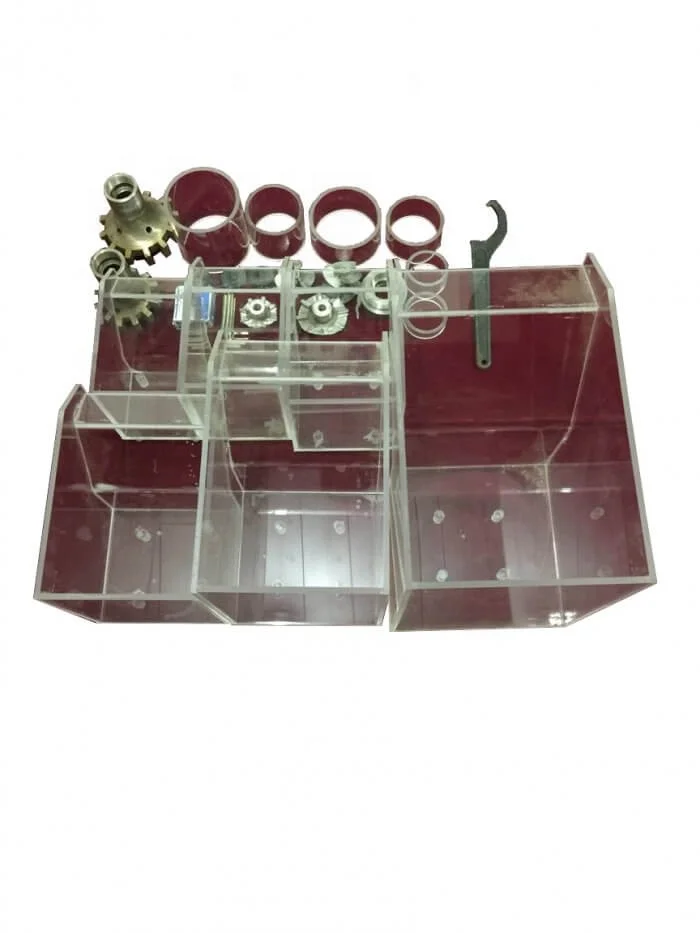

1. Cell adjustable, six different volume of cells can meet different requirements.
2. Two different material cells, plexiglass and stainless steel, can meet different needs under different working conditions.
3. Low cost. One machine gets the same function of six old type machines, changable impeller and cells makes maintenance easier and cost less.

Main Components:

Working Principle:

Before operation, we should check if the main spindle turns clockwise normally. If not, then change phase sequence of the power source to let the motor turns clockwise before operation. Mix mineral samples with water and then pour them into the cell. Turn on the start button of the motor to make the main spindle for rotation. The impeller will rotate in the cell. Then open the valve for air inflation and add chemical agent to help form foams. Turn on the switch of the scraper motor for rotation of the scraper to scrape foams out of the cell. There is a box on the working table to collect foams. Minerals needed can be concentrated after processing of the foams.

Maintenance:

1.We'd better add lubricating oil on every rotation connection part . The bearing should be changed the lubricating grease at least 3 months each time,but REQUEST THE MELTING POINT OF LUBRICATING GREASE ≥100℃.
2.After using, please clean the cell, impeller, and keep them dry, can make the machine last a long working life .
3.When you are change the impeller stator, firstly screw out the impeller, secondly loose the fastening screw between the stator and below part, then can install a new one.
4. The lab flotation cell works at temperature from 15℃ to50℃.

Pre-Sales Service:

1.We can help you select equipment model and design resonable and complete production line flow according to clients's requirements and budget.
2.Welcome to do the sample testing in our factory.A lot of clients sent or brought them to us to do the test.
3.OEM service is available.We can design and manufacturer products based on clients' requests.
4.We can supply the technical parameters of the equipment.

After-Sales Service:

1.In order to make sure there is no quality problem,we shall pre-check and test the products before sending them out.We take pictures of finished products before delivery.
2.We shall track the logistic information until the products are well received.

3.We shall prepare the documents of custom clearance to help you receive your goods smoothly.
4.We can send professional engineers to help you install and debug the machine,train the operators and technical personnel and meet some other requirements if you need on site.

5.We can provide lifelong service of quick-wear part and technical exchanging for you.
6.We shall make prompt response to any problem about the machine within 24 hours if you have.And shall provide trouble-shooting solutions until the fault is completely eliminated.
7.To establish long-term friendship, we will regulary contact with our customers.

Q1: For providing you the suitable quotation we need to know the following information:

1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product?
Once we get your answers, I can provide you the best quotation immediately.

Q2: Do you provide ODM/OEM service?

A: OEM/ODM is welcome.A lot of clients placed an customized order from our factory.

Q3. What warranty do you give for your machine?

A:---We can supply spare parts .
   ---The quality assurance date we give is one year for the main parts after commissioning.
   ---We provide lifelong maintainence and technical support.
