5BBL10BBL 15BBL 20BBL 23 BBL 25BBL 30BBL 50BBL electric brew kettle beer making equipment brewery system brewing plant
Product Description
1. 20BBL Mashing System
A typical two-vessel brewhouse:
Mash Lauter Tuns + Kettle Whirlpool tanks
Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out.
Next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle, but is equipped with a tangential fitting for whirlpooling.
Send Inquiry>>
Click Here Contact Us Now!!!
2. 20BBL Fermentation System
1). A serials of the fermentation tank models:
Fermentation tank series | Volume in US Gallon | Diameter | Height |
26US Gallon | 640mm | 1500mm | |
53US Gallon | 760mm | 1800mm | |
79US Gallon | 860mm | 2000mm | |
132US Gallon | 960mm | 2350mm | |
264US Gallon | 1260mm | 2650mm | |
| 528 US Gallon | 1560mm | 3150mm | |
| 618 US Gallon | 1700mm | 3350mm | |
793US Gallon | 1800mm | 3550mm | |
1321US Gallon | 2000mm | 4450mm | |
2642US Gallon | 2200mm | 6100mm | |
5283US Gallon | 2200mm | 10200mm |

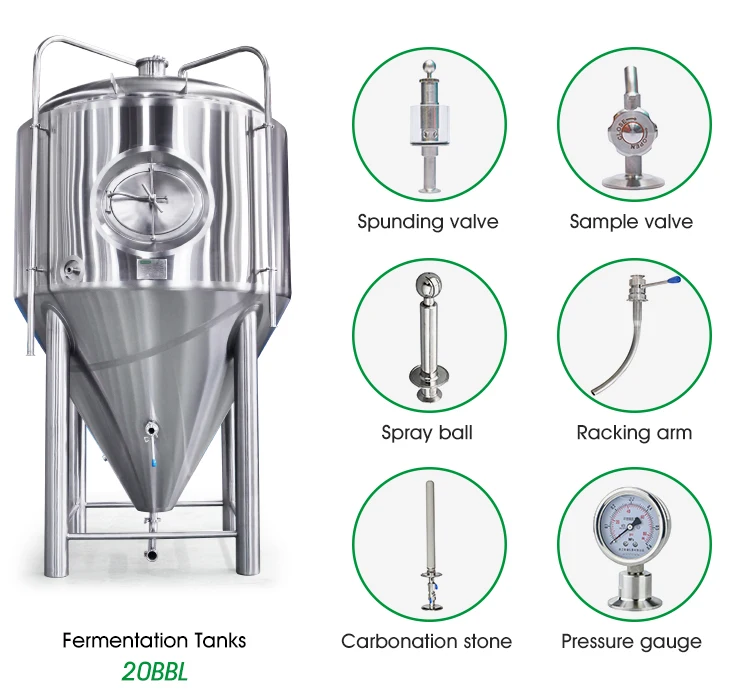

2). Basic Configuration of 20BBL Fermentation Tank:
| No. | Item | Introduction |
01 | Volume | 20BBL |
02 | Dimension | 1700*3350mm |
03 | Material | Stainless steel 304 or 316,or red copper |
04 | Insulation | Polyurethane, TH: 100mm |
05 | Fermentation tank | Glycol jacket: Dimpled jacket on the cone and side Or single wall with jacketed, or single layer fermentor. |
06 | Head | Double or single dish head on the top |
07 | Accessories | Sample valve, pressure gauge, solenoid valve, pressure relief valve, racking arm, CIP arm and Blow off arm, dry hops port and so on. |
Send Inquiry>>
Click to Contact Us Now!!!
3. Auxiliary Equipment of 20BBL Micro Beer Brewery
4. Accessories of 20BBL Micro Beer Brewery
Company Information
NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.
Certifications
We have established an ERP management system and have passed quality audits for internationally recognized certifications.
ISO 9001: Certification for the Quality Management System
ISO 14001: Certification for the Environmental Management System
ISO 18001: Certification for the Occupational Healthland Safety Management System
CE: Certification of Compliance
PED(TUV): Certification of Compliance, Certification of Conformity
SGS: Gold Plus Supplier Assessment Certificate
