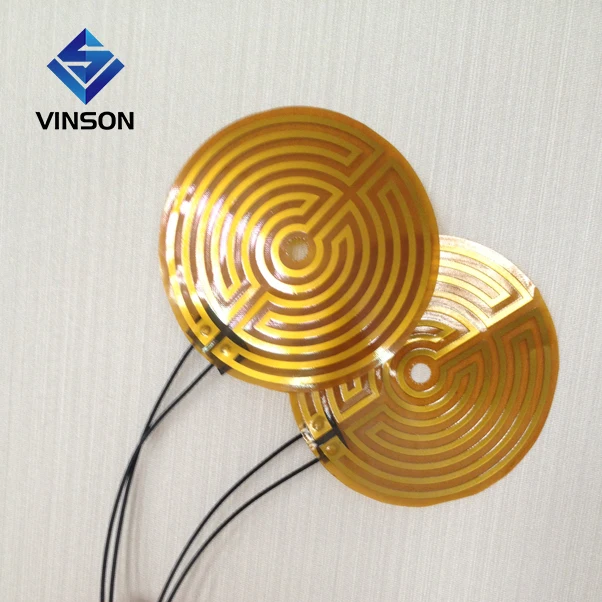

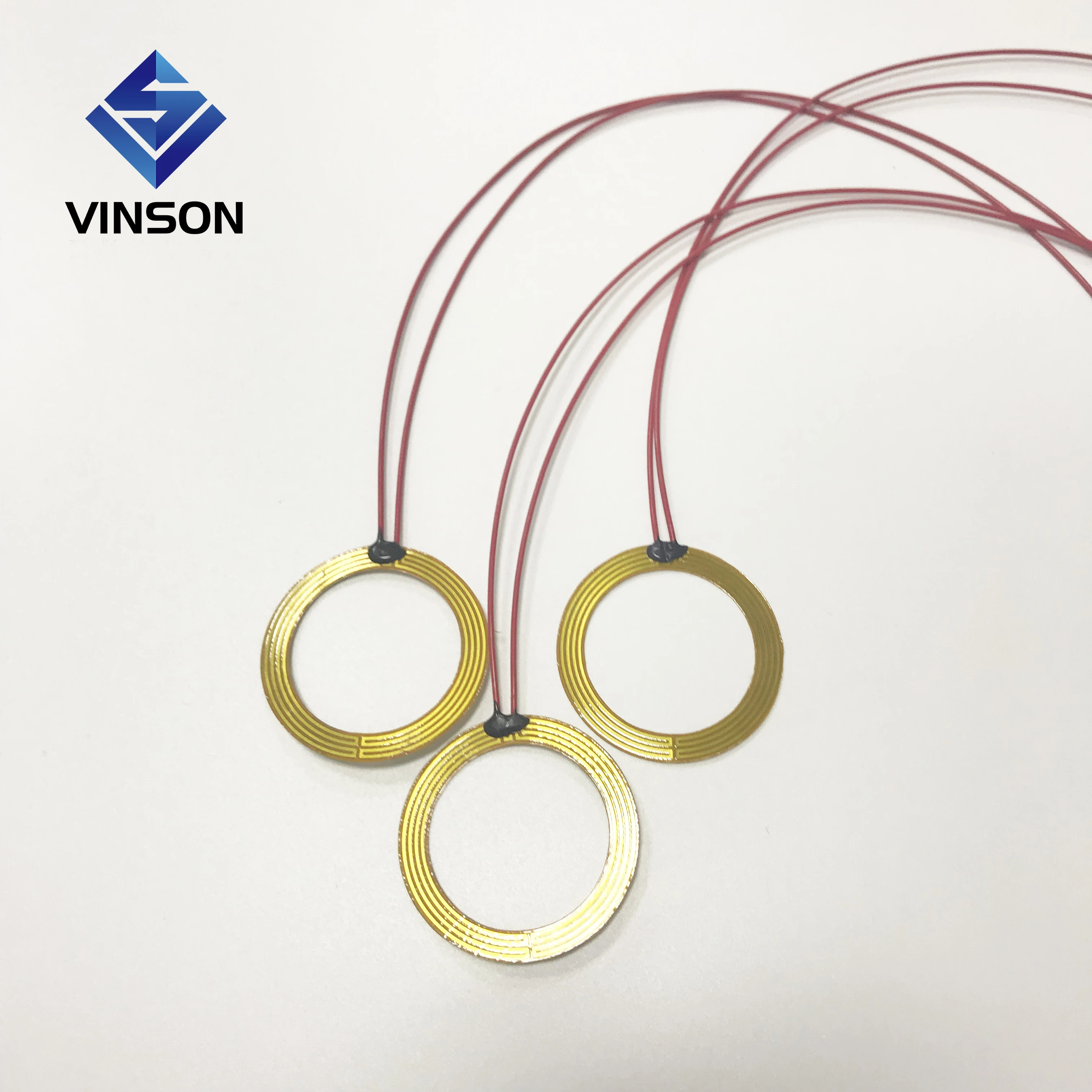

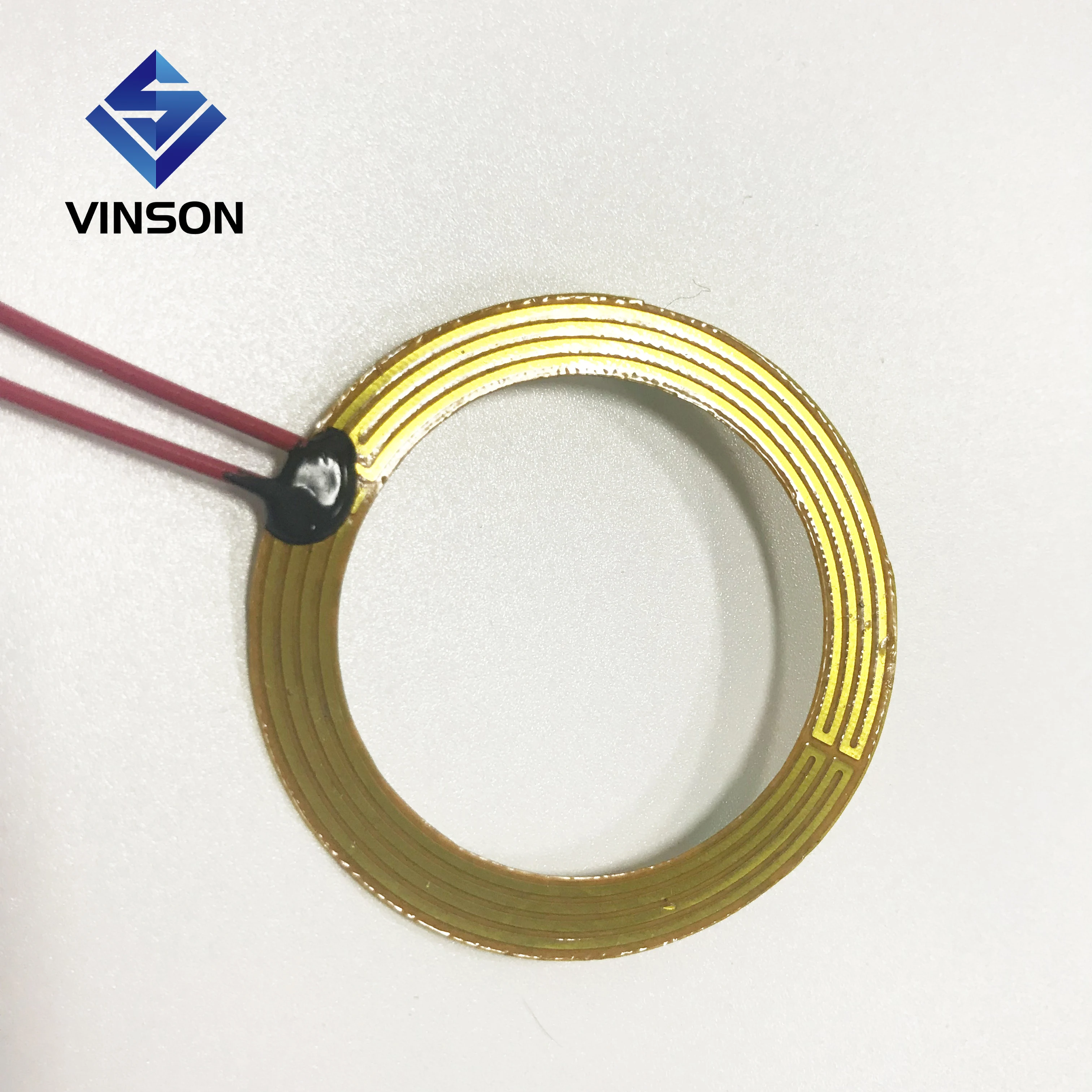

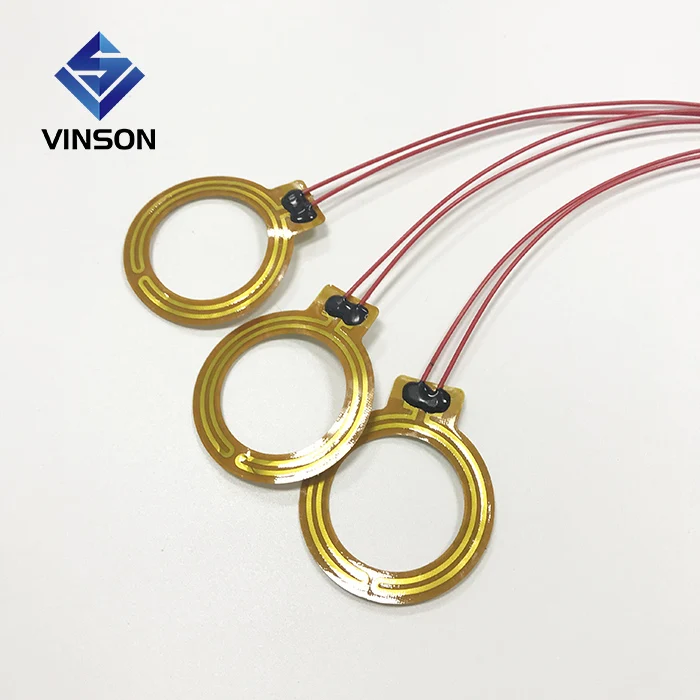

12v/24v 12w polyimide film heater / foil PI heating element for mirror

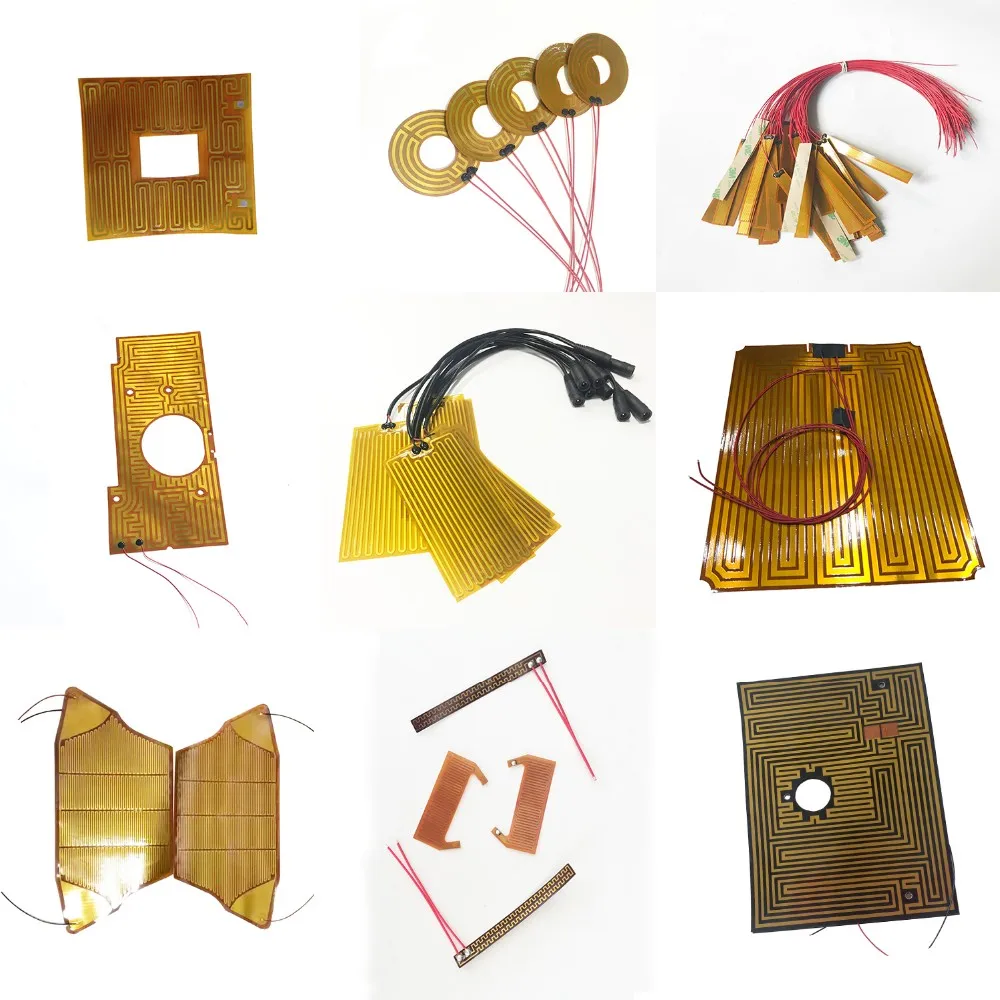

Kapton Foil Heater are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.
Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.

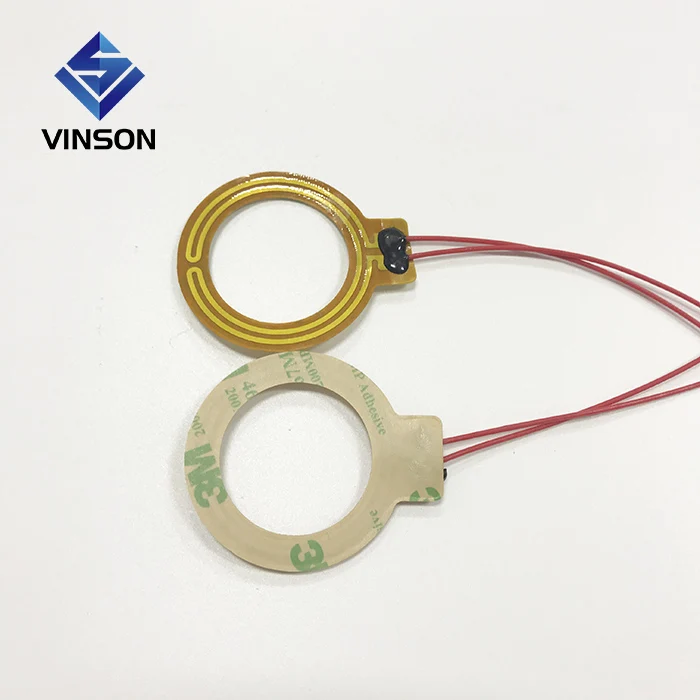

Kapton Foil Heater also allows easy visual inspection on the internal structures. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.
Applications.
• Medical applications that require a clean, sterile environment
• Laboratory research
• Semiconductor processing equipment
• Optical equipment
• LCD displays
• Computer equipment
• Photographic equipment
• Aerospace/defense, where low outgassing properties
are required
Specifications | ||
Flexibility (min. radius) | 1⁄32 in. (0.8 mm) | |
Watt density rating on stock units | 5 W/in2 (0.8W/cm2) | |
Voltage range | 1.5v~400v | |
Thickness | Standard:0.126~0.266mm(0.005"~0.01") | |
Weight | 1.5 oz./ft2 (0.05 g/cm2) | |
Using temperature range | -60~200°C(-140~392°F) | |
Exit | Teflon, kapton or silicone insulated leads | |
Dielectric strength | Min. VAC: 1000 | |
Maximum Allowable Watt Density Versus Temperature.
Note:
The maximum watt density (W/in2) in open air is 5 W/in2. The chart right assumes bonding the polyimide heater to a part.
