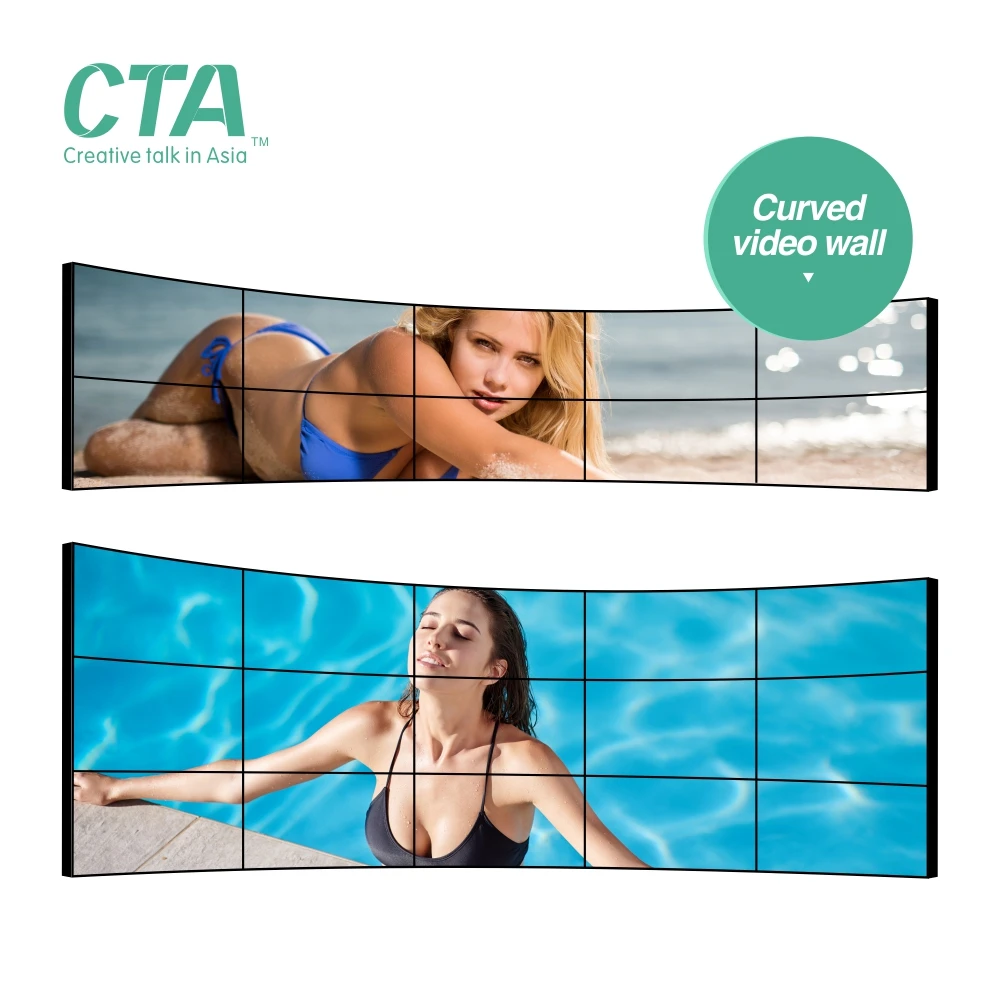

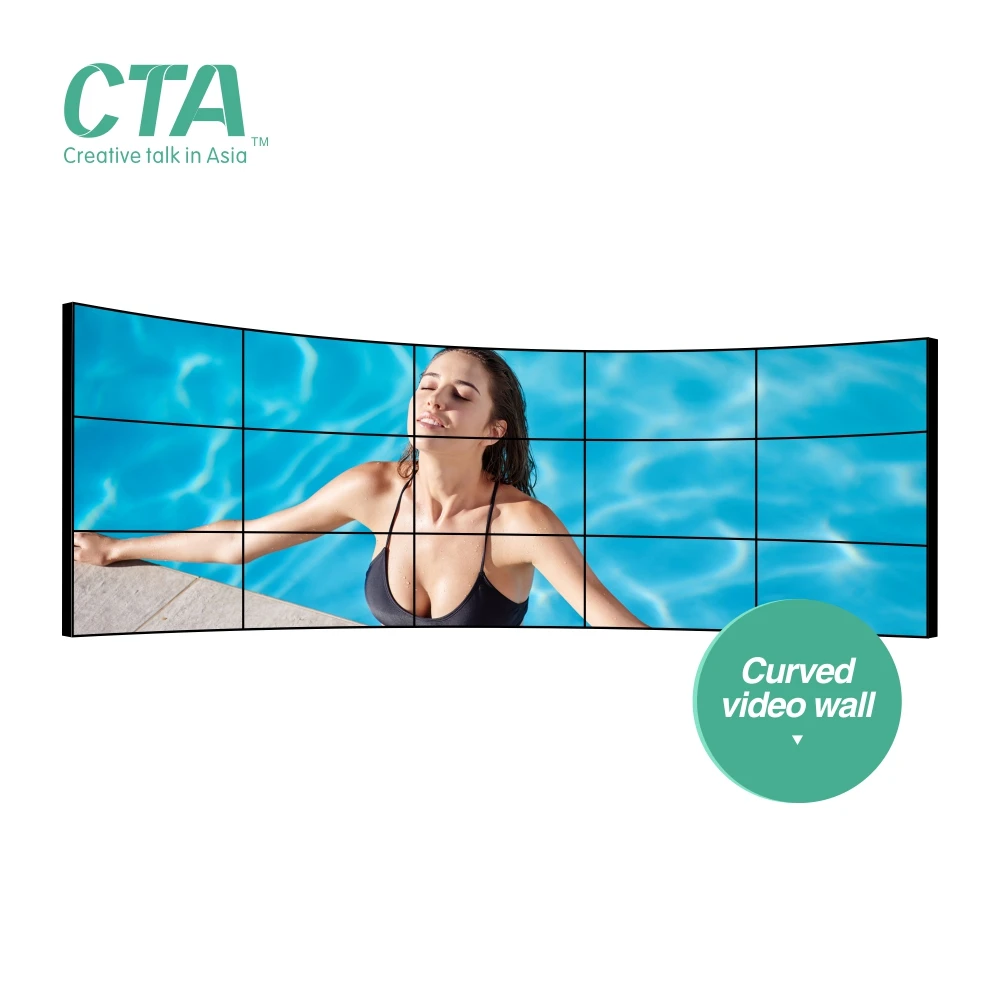

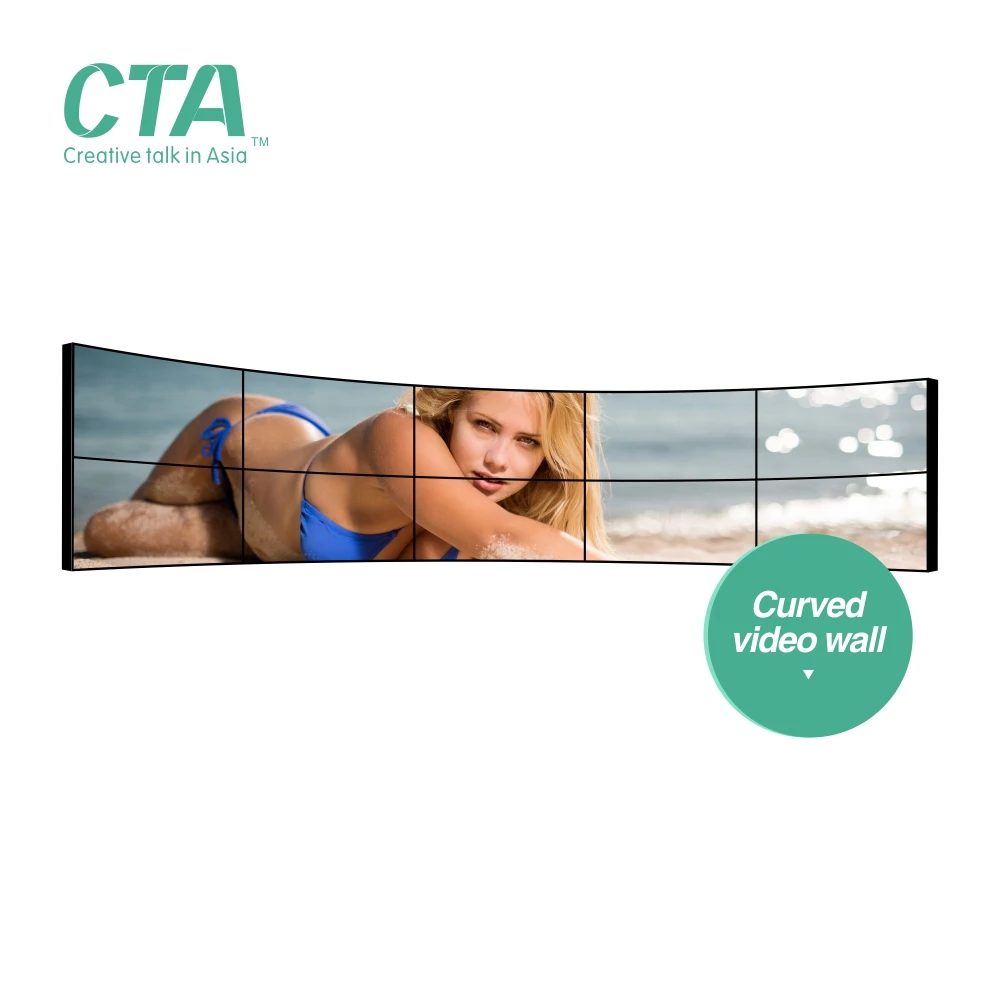

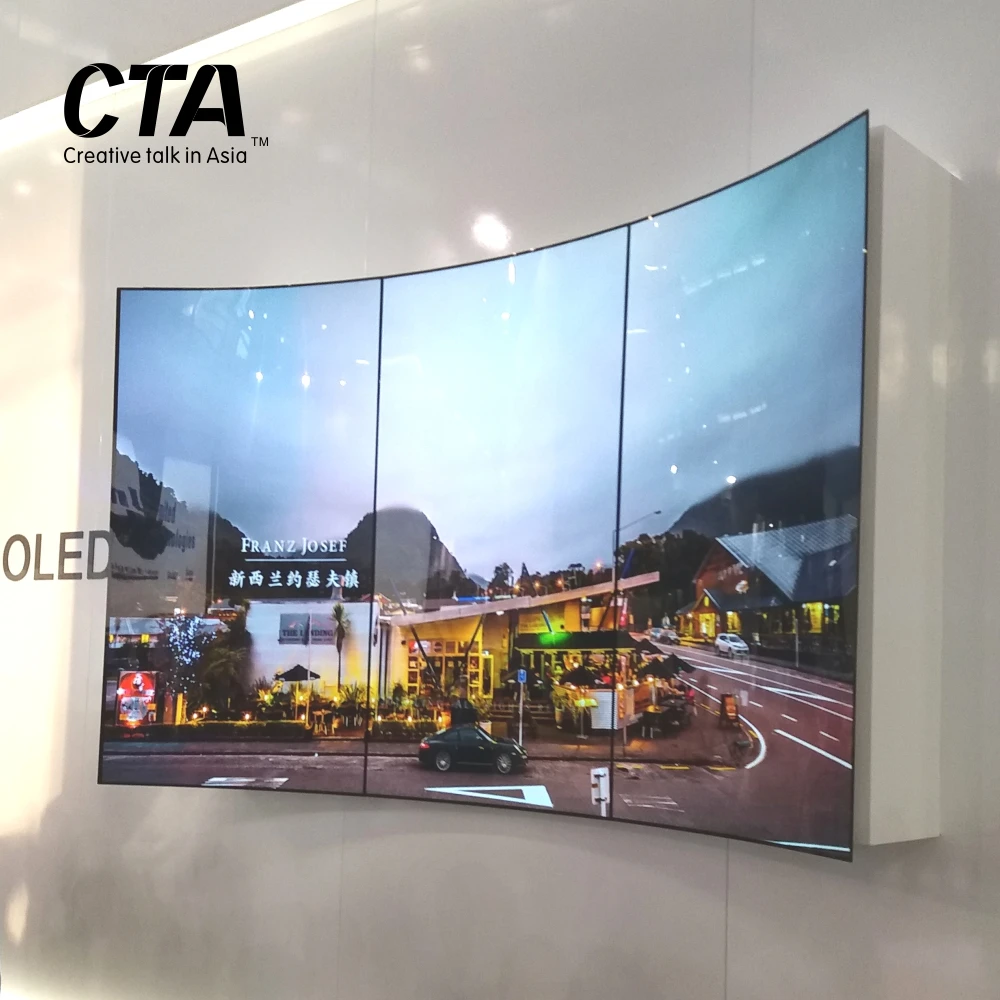

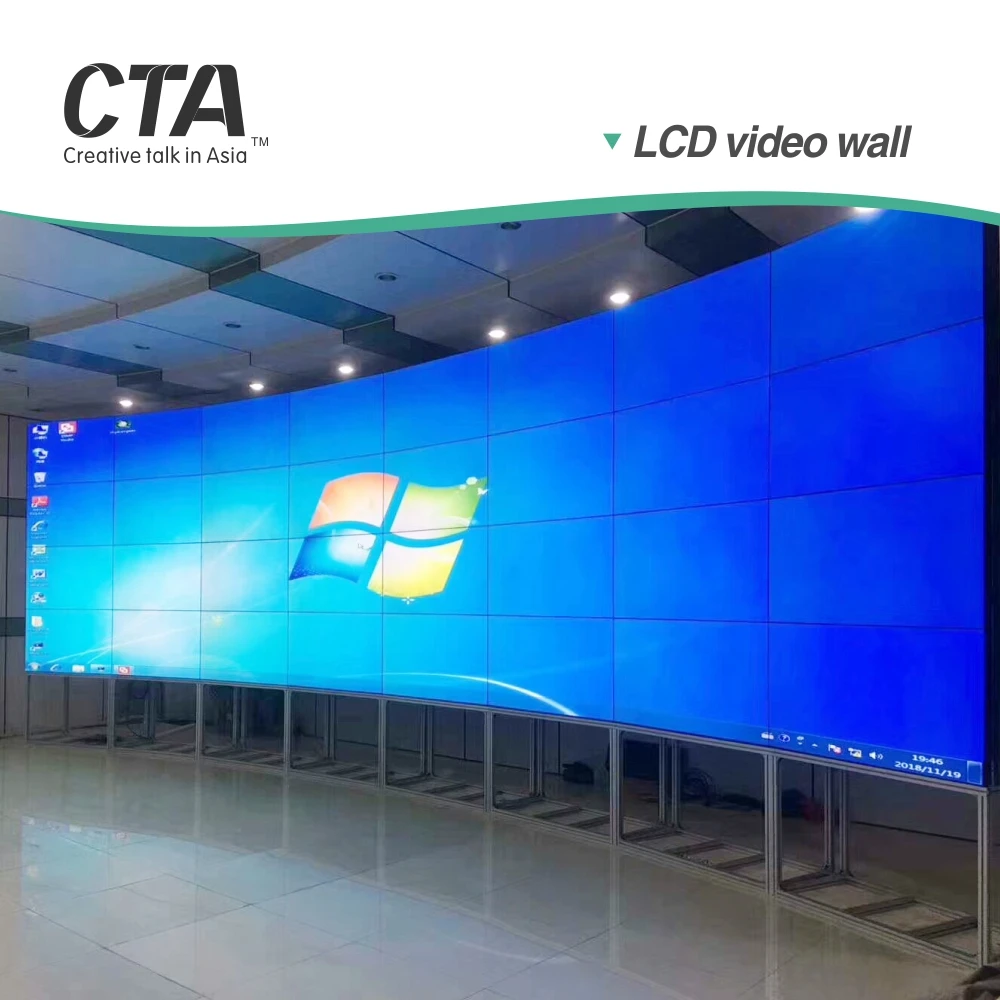

Fashion design LED curved video wall screen panel 1x3 2x2 4x6 with controller
- Category: >>>
- Supplier: Shenzhen Cta Display Technology Co. Limited
Share on (62030335605):
Product Overview
Description
Hot sale video wall
Fashion design LED curved video wall screen panel 1x3 2x2 4x6 with controller
Product Description
Product Description for Fashion design LED curved video wall screen panel 1x3 2x2 4x6 with controller
| Specifications | |
| Model No. | CTA-PJ4202 |
| Panel size | 42-65" TFT-LCD,with LED Backlight |
| Resolution Support | 1920*1080/3840*2160 |
| Display color | 16.7M/1.07G |
| Pixel Pitch(mm) | 0.0793×0.2383 (mm) |
| Brightness (nits) | 450cd/m2 |
| Contrast | 5000:1 |
| Visual angle | 178°/178° |
| Response time | 6ms |
| Life(hrs) | >60,000(hrs) |
| Image | |
| Aspect ratio | 16:9 |
| Quality compensation technology | LTI,CTI |
| Motion compensation technology | AUTO MOVE |
| Filter | 3D comb filtering, digital noise reduction |
| Video starnard | PAL,NTSC |
| Video Wall Controller(Built-in each Screen) | |
| Digital signal input | HDMI×1; 1920x1080@60Hz backward compatible |
| Computer signal input | VGA(DB-15) ×1;1920x1080@60Hz backward compatible |
| Digital signal input | DVI(DVI-I)×1;1080P(1920×1080) backward compatible |
| Composite Video Input/(AV) | CVBS(BNC)x1 |
| Composite Video Output | CVBS(BNC)x1 |
| RJ45 | 4 |
| USB | 1(optional) |
| Computer centralized control Interface | RS232 |
| Power | |
| Power Supply | AC100V~240V |
| Maximum Power Consumption | 280W |
| Standby Power Consumption | <=3W |
| Structure | |
| Border dimension | Top: 5.9mm; Bottom 5.9mm; Left: 5.9mm; Right: 5.9mm |
| External dimension | 945.74mm×539.76mm×112.1mm |
| Net weight | 22kg |
| Shell material | Metal shell, anti-static,anti-magnetic,anti-strong electric field interference |
| Installation way | Wall mount, floor standing mount,hanging mount |
| Temperature | |
| Working temperature | 0℃~50℃ |
| Storage temperature | -20℃~65℃ |
| Working humidity | 20%-80% |
| Package weight and dimension | |
| Gross weight(2 sets in one honeycomb carton) | 61kg |
| honeycomb carton(2 in 1) | 1160x380x750mm |
CTA video walls have their own
integrated control system giving perfect HD quality pictures,
multi-screen capabilities, signal switching,
centralized network control and so on…
Users can experience the true video wall experience!
