 CNC Pipe Tube Plasma Cutting Machine Cutter  PNC-1200A 2019 New Design Light Weight Good For Outdoor Working

Product Description

 The machine can pipe end cutting such as miter. The machine is able to do the tee holes, circular holes and centex line osets by dierent positions for pipes with dierent diameter. The machine is able to do the saddle such as double miter, cross eccentric additional pipe cutting, corss eccentric additional pipe cutting and oblique crossing eccentric additional pipe cutting. The machine can do the rectangular holes. The machine can do the ends cutting of pipe.

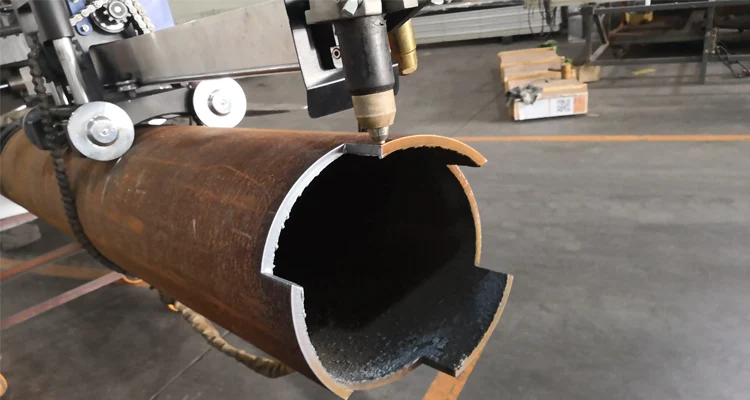

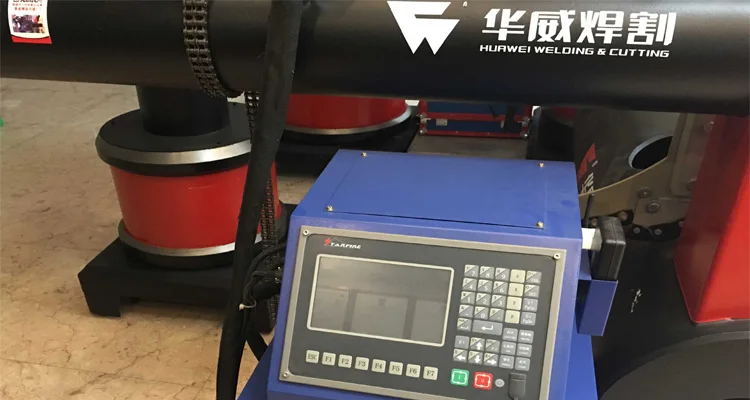

PNC-1200 11.jpgPNC-1200 22.jpgThe performance 1..jpg

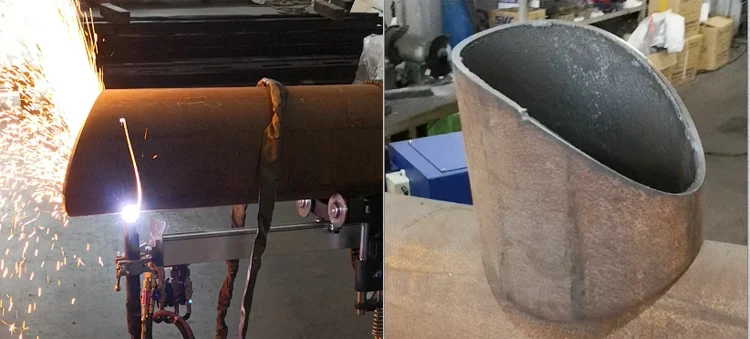

The performance 2.jpg

Model No.

Track Length

Effective cutting Length(mm)Effective Pipe Diameter (mm)Supply Voltage(mm)Cutting torches set
PNC-500A65030080-500AC220V/50HZ1
PNC-500B85050080-500AC220V/50HZ1
PNC-1200A1250900250-1200AC220V/50HZ1
PNC-1200B15501200250-1200AC220V/50HZ1
