Factory cost nema 43 High power 1.5kw BLDC 48V brushless dbrushless dc motor for Electric Bicycle Usage
- Category: >>>
- Supplier: Beijing SDSW Technology Co. Ltd.
Share on (62030486602):
Product Overview
Description

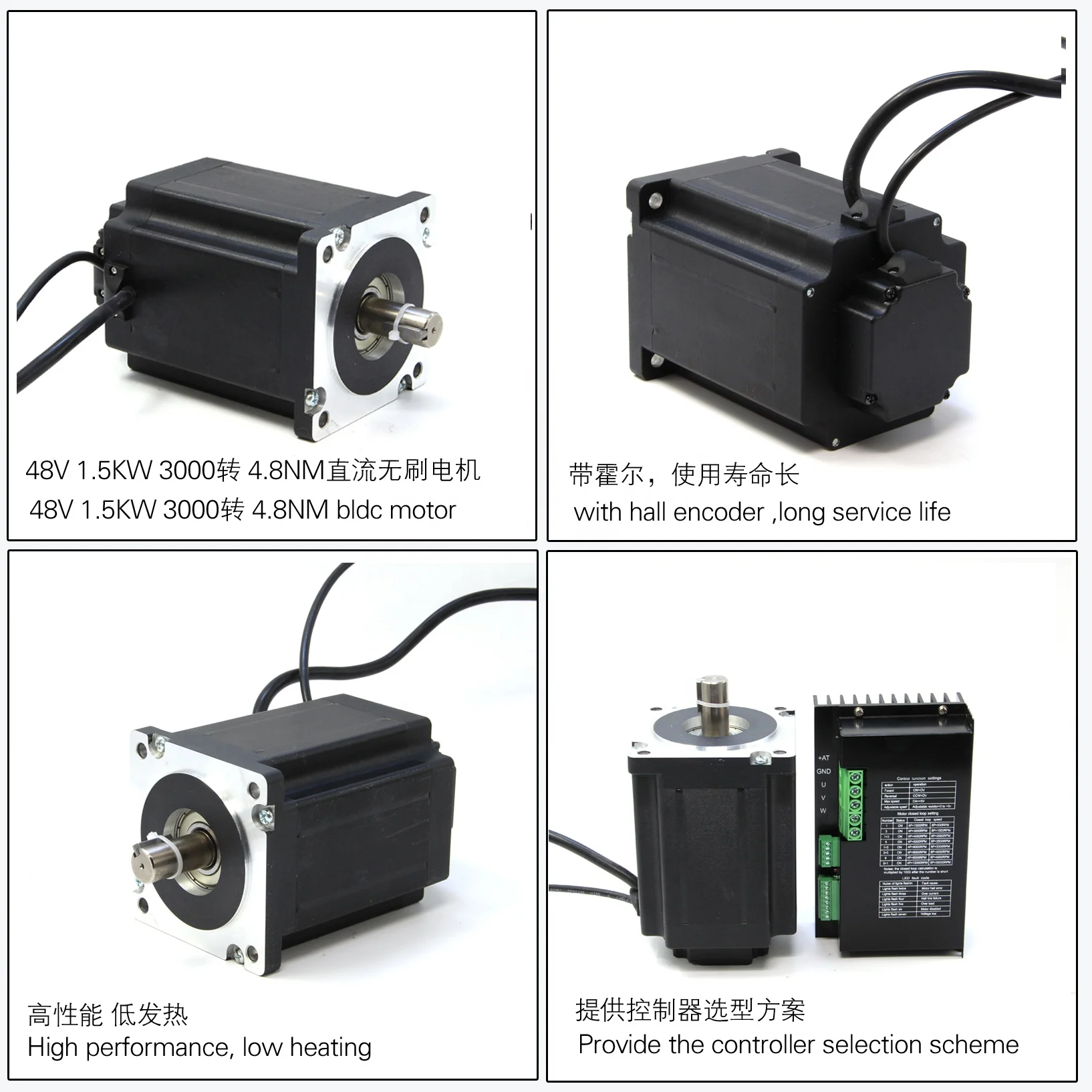

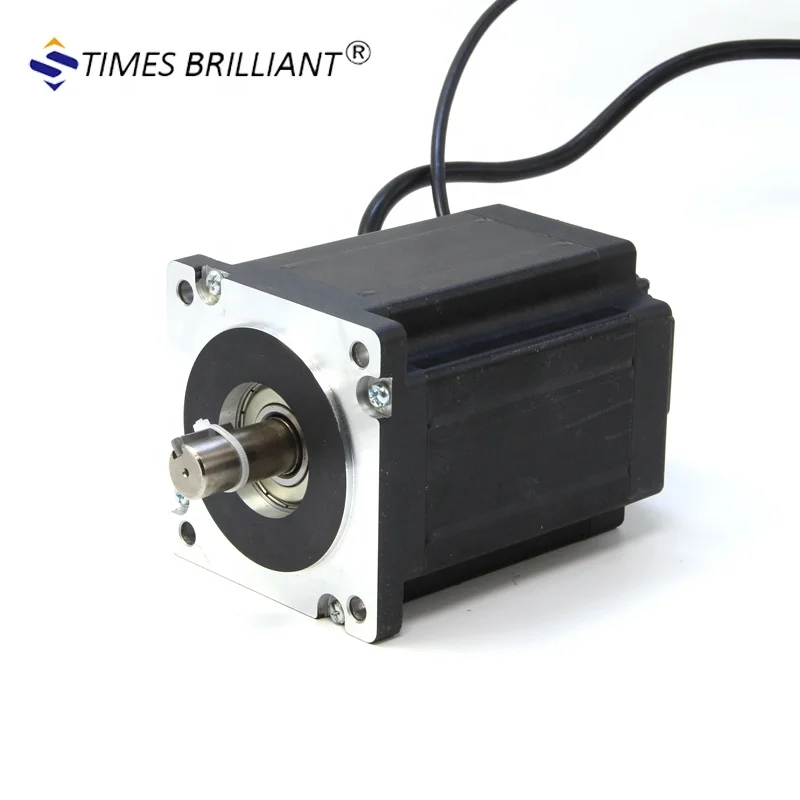

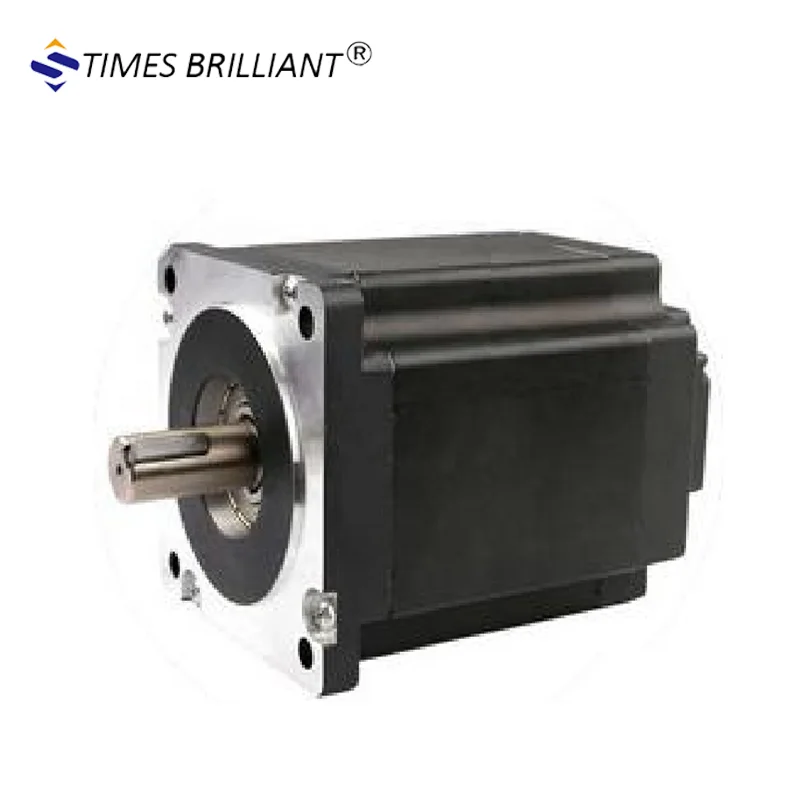

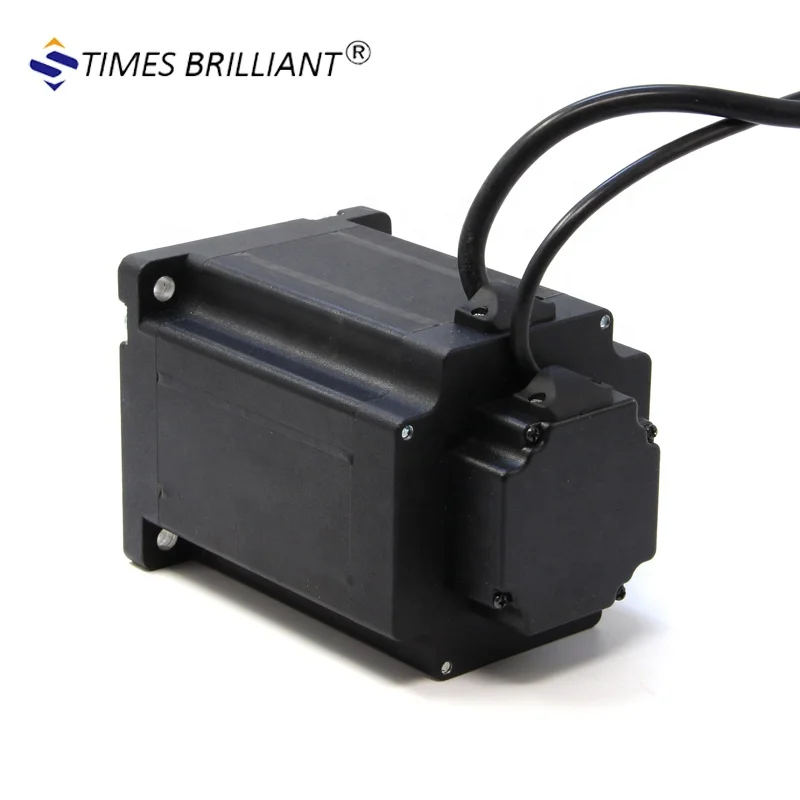

Factory cost nema 43 High power 1.5kw BLDC 48V brushless dbrushless dc motor for Electric Bicycle Usage
Note: the motor with magnetic ,so magnetic inspection fee will be incurred during transportation. Please contact shop assistant to supplement it.large quantities can dispense with it

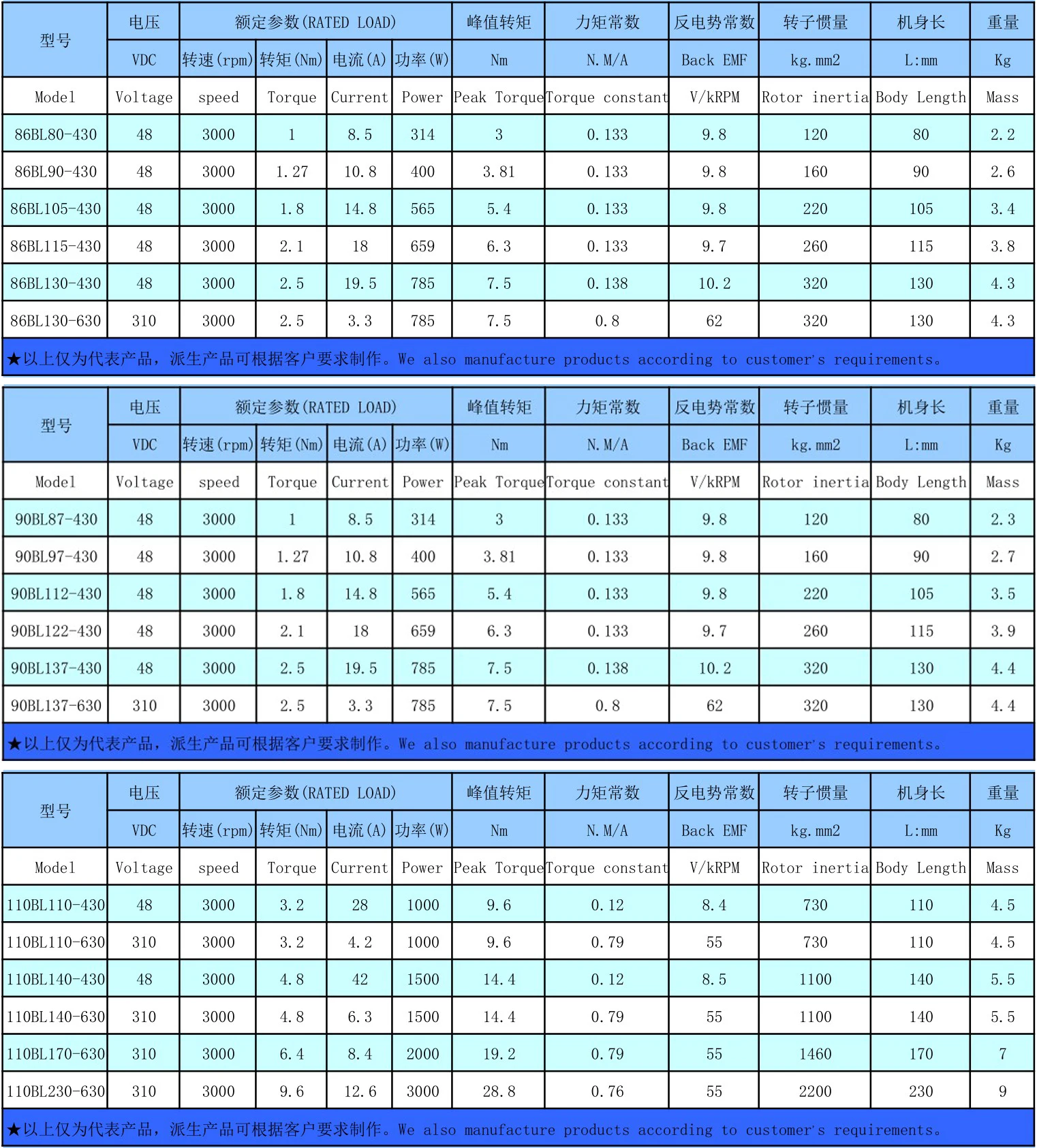

| KeyWords | Brushless DC Motor |
| Number of poles | 8 |
| Rated Voltage | 48V |
| No Load Speed | 4000±10% |
| No load current (Max) | 3.2A |
| Rated Speed | 3000±10% |
| Rated Torque | 4.8NM |
| Rated power | 1.5KW |
| Rated Current (Max) | 40A |
| Peak Torque | 14.4NM |
| Torque constant | 0.12NM/A |
| Back EMF | 8.5V/krpm |
| Rotor inertia | 1100kg.mm2 |

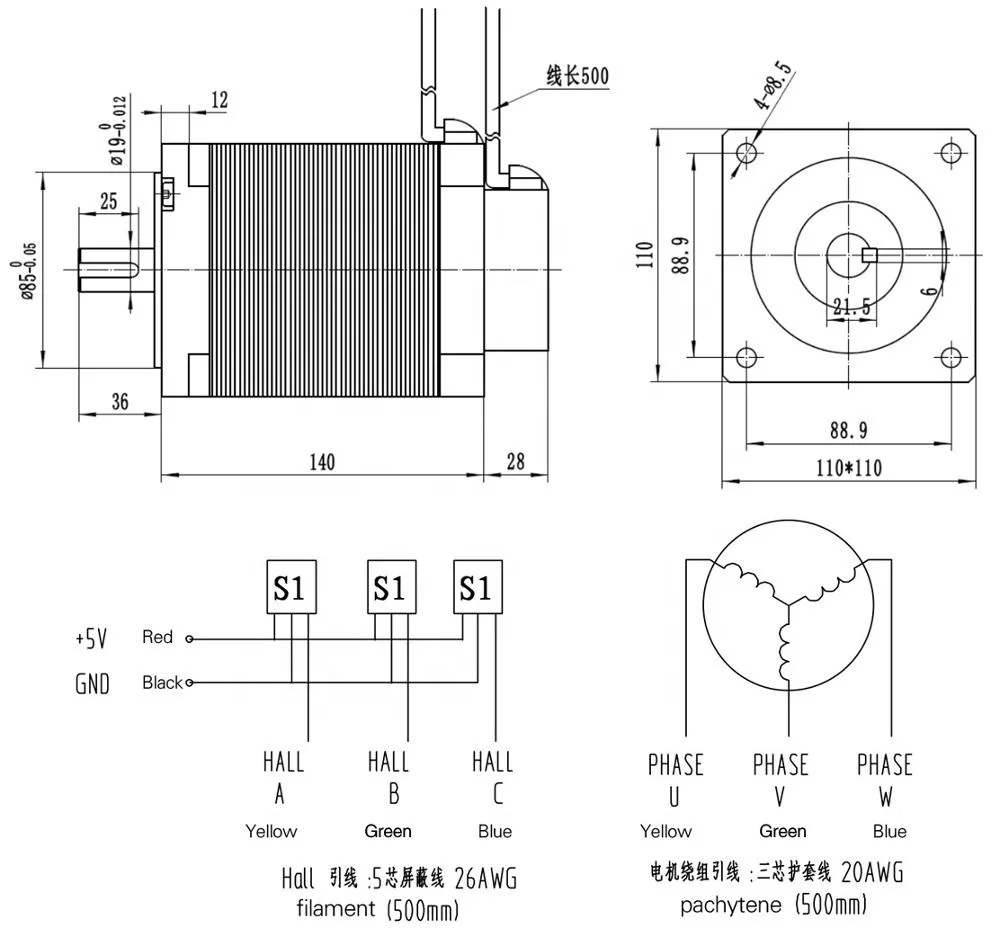

| Body length | 140mm |
| Mass | 5.5Kg |
